Brushed ESC, Waterproof Dustproof Brushed ESC Electric Speed Controller, ESC Brushed Motor 6V 3A BEC with 3 Modes for 1/10 RC Car, Truck Models, Boat Models, Tanks

Brushed ESC, Waterproof Dustproof Brushed ESC Electric Speed Controller, ESC Brushed Motor 6V 3A BEC with 3 Modes for 1/10 RC Car, Truck Models, Boat Models, Tanks

Brand: GUPE
5.0
A$26.15
Availability:
  • This item is currently not available

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • Voltage : RC brushed ESC when the voltage is close to the battery value, the speed will drop down until the voltage, the power output to zero, the red light flashes slowly.

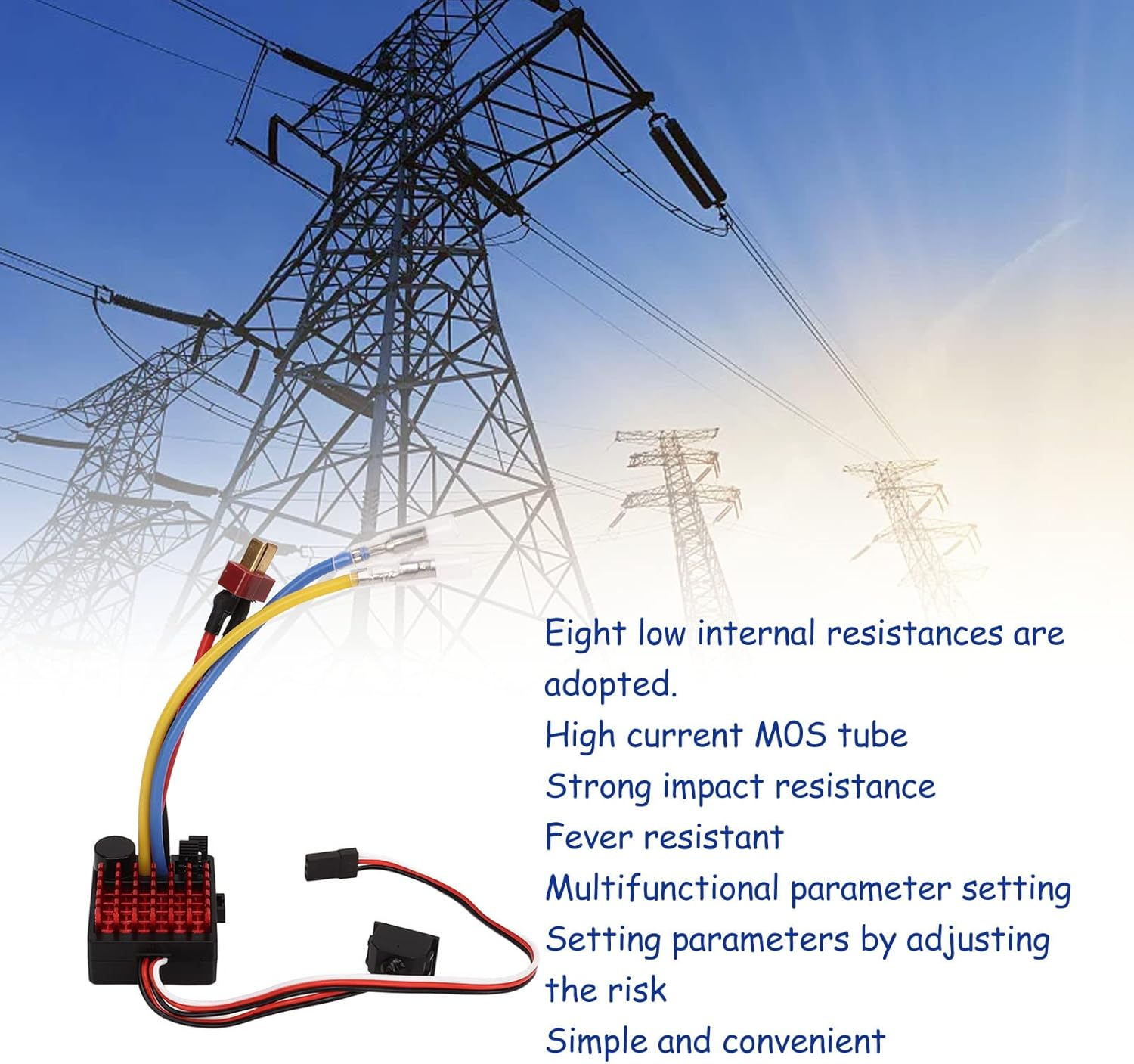

  • Superior Performance: Brushed ESC adopts automatic throttle detection, using 8 low internal , high current M0S tube, strong shock , not easy to heat up.
  • Parameter Setting, Waterproof Dustproof: RC ESC adopts the adjustment bubble to set parameters, simple and convenient. Waterproof and dustproof integrated design, suitable for various environments.
  • 3 Modes: RC ESC built in 3 modes, forward, brake, backward; forward, brake; forward, back in the brake, backward, can be adjusted to switch the function.
  • Temperature Control: When the internal temperature of the ESC reaches 100 degrees Celsius, the output power will be reduced to 50 percent, and the output power will be normal when the temperature drops to 80 percent.

Specification:

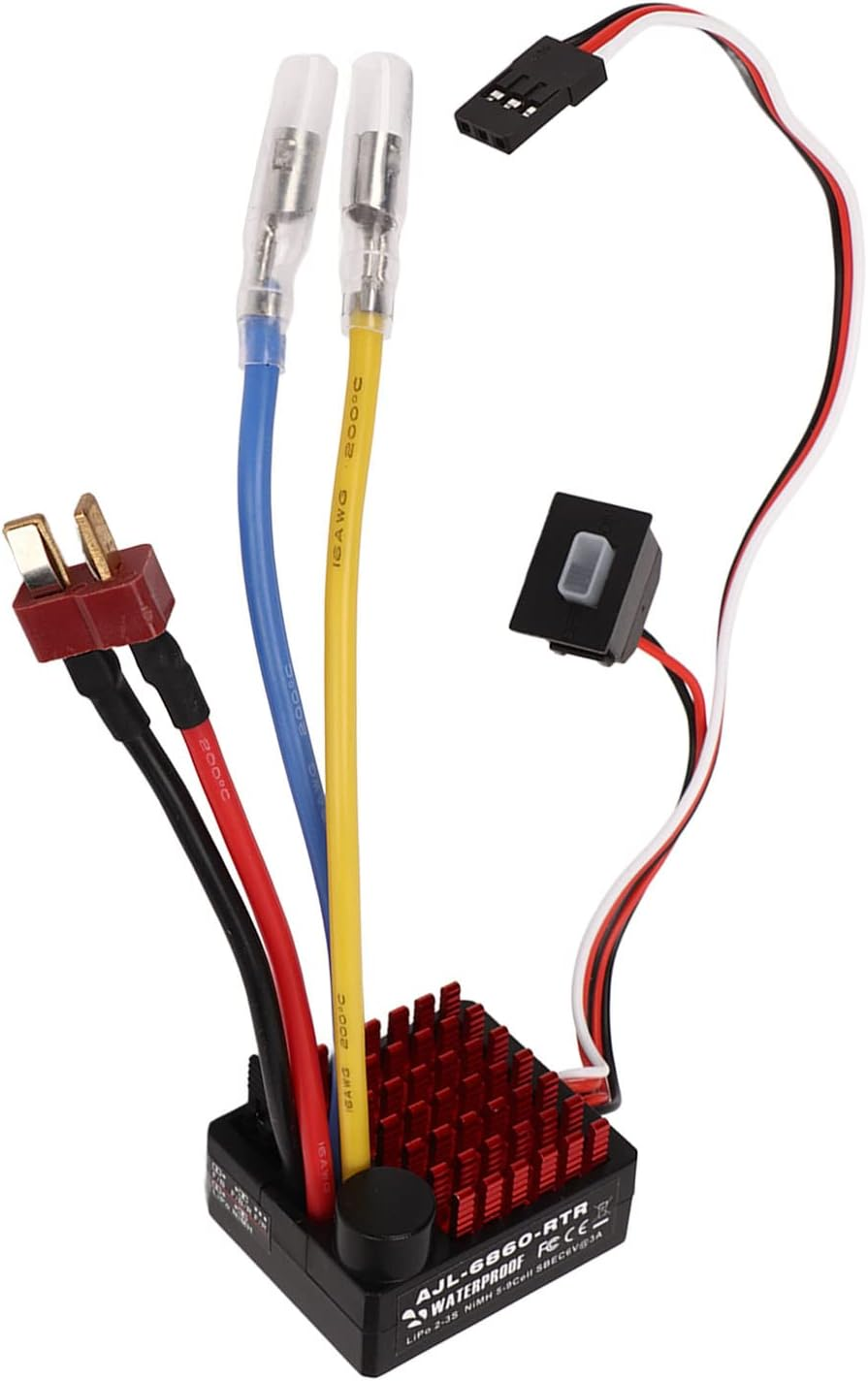

Item Type: RC Brushed ESC
Material: Aluminum Alloy, Plastic
Size: Approx. 37.5x31.5x20mm / 1.48x1.24x0.79in
Color: Black Red
Model: AJL 6860 RTR
Continuous Current, Peak Current: 60A 480A
BEC Output: 6V 3A
Voltage Range: 2-3S Lipo Battery, 5-9 Cell Nimh Battery
Support Motor: 540 550 750 Motor
Operation Modes: Forward, Backward, Brake; Forward, Brake; Forward, Backward, Intermediate Trigger Brake
Suitable for 1/10 Car Models, Boat Models, Tanks, Etc.

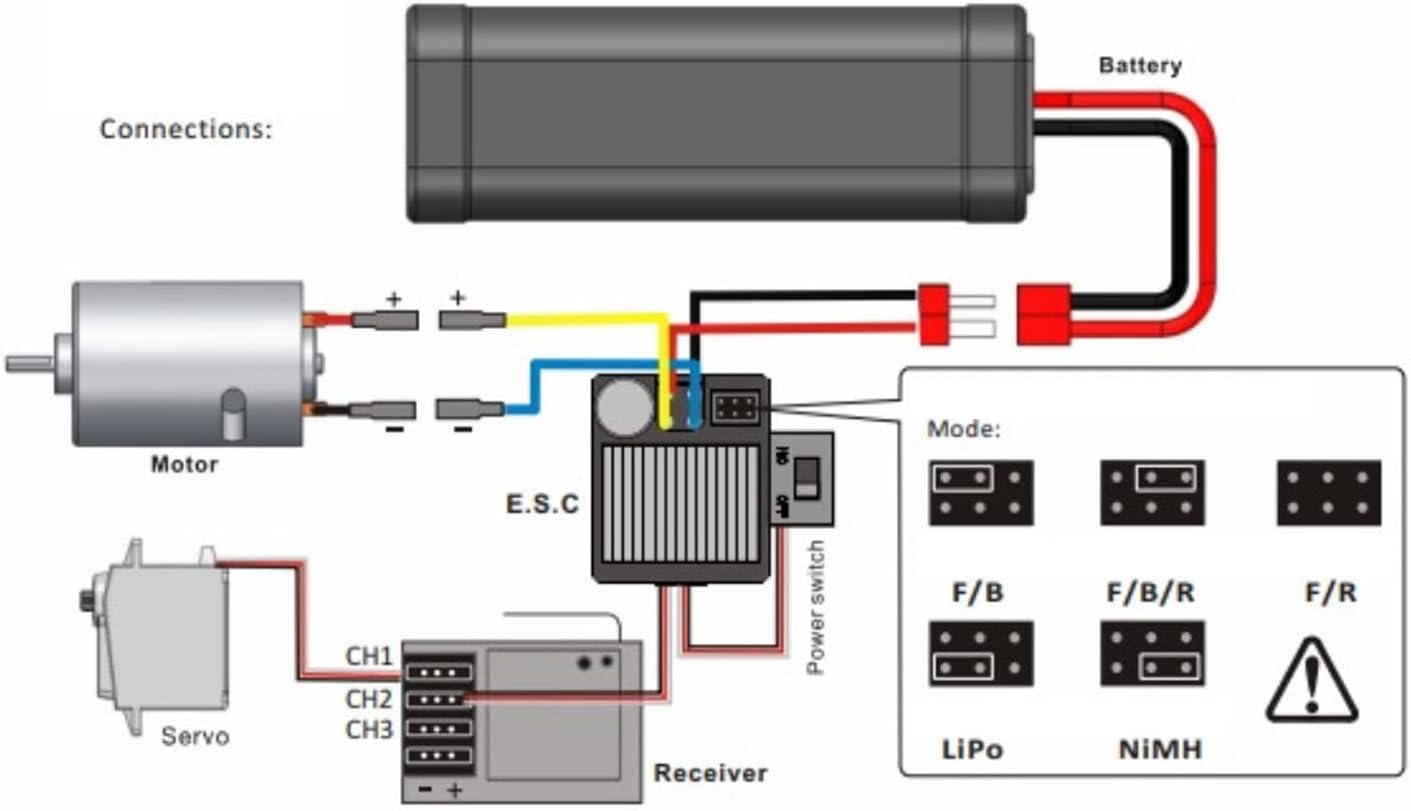

How to Use:
1. First turn off the ESC switch, confirm whether you use the same battery and battery tuning switch, and whether the function matches your model, if not, there can also be adjusted through the tuning.2. Return the remote control forward wrench to the middle position, control the throttle trim to the middle position, and D/R EPA to the maximum.3. Open the ESC switch and wait for the ESC self‑test sound to complete before you can operate the battery self test sound description: chirp 1 short sound means NiMH battery, chirp 2 short sound means 2s lithium, chirp 3 short sound means 3S lithium.
packing list:
1 xRC Brushed ESC
1 x Manual
Note:
1. Due to manual measurement, please allow 1‑3mm/0.04‑0.12in error, thank you!
2. Due to the difference between different monitors, the picture may not reflect the actual color of the object.
