Features:

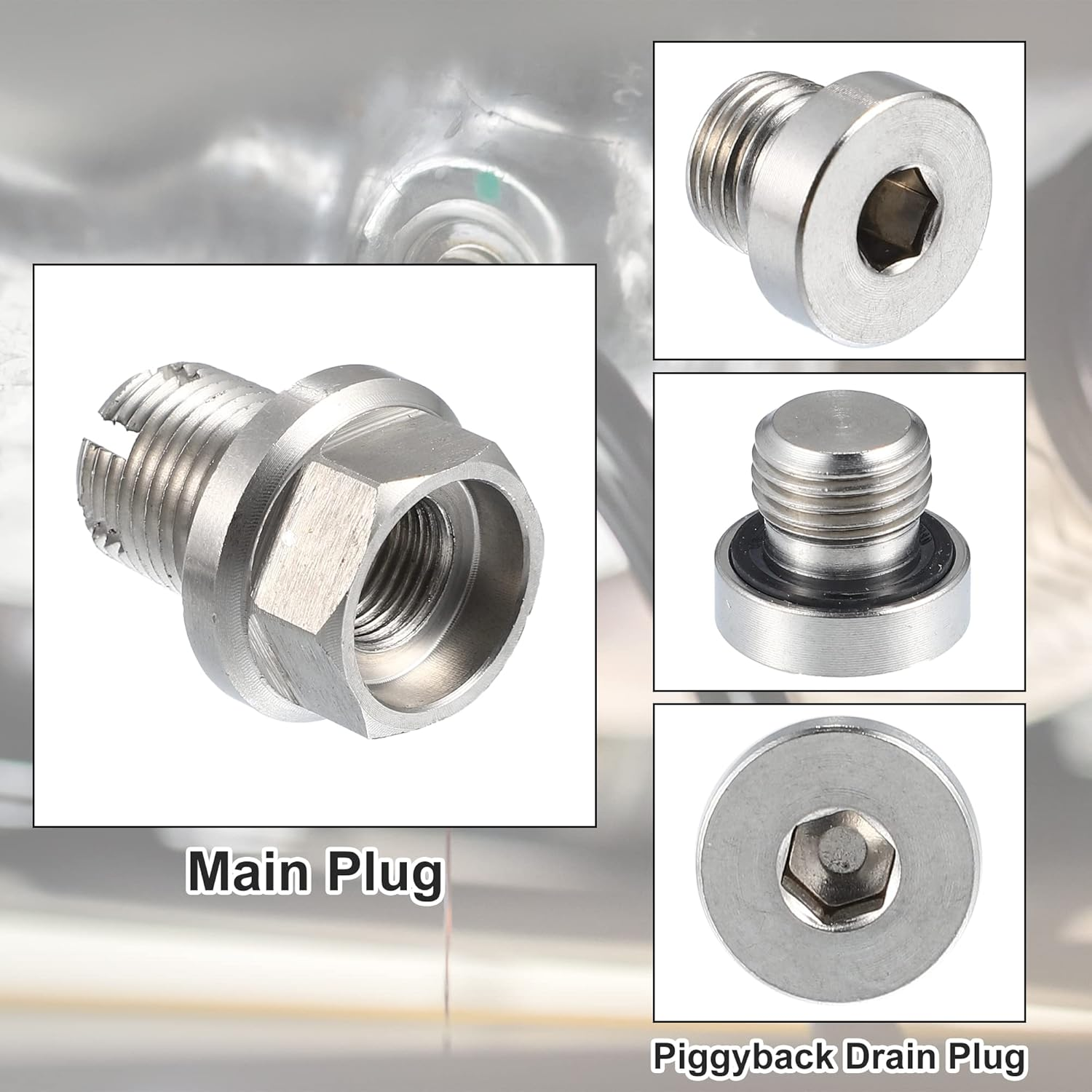

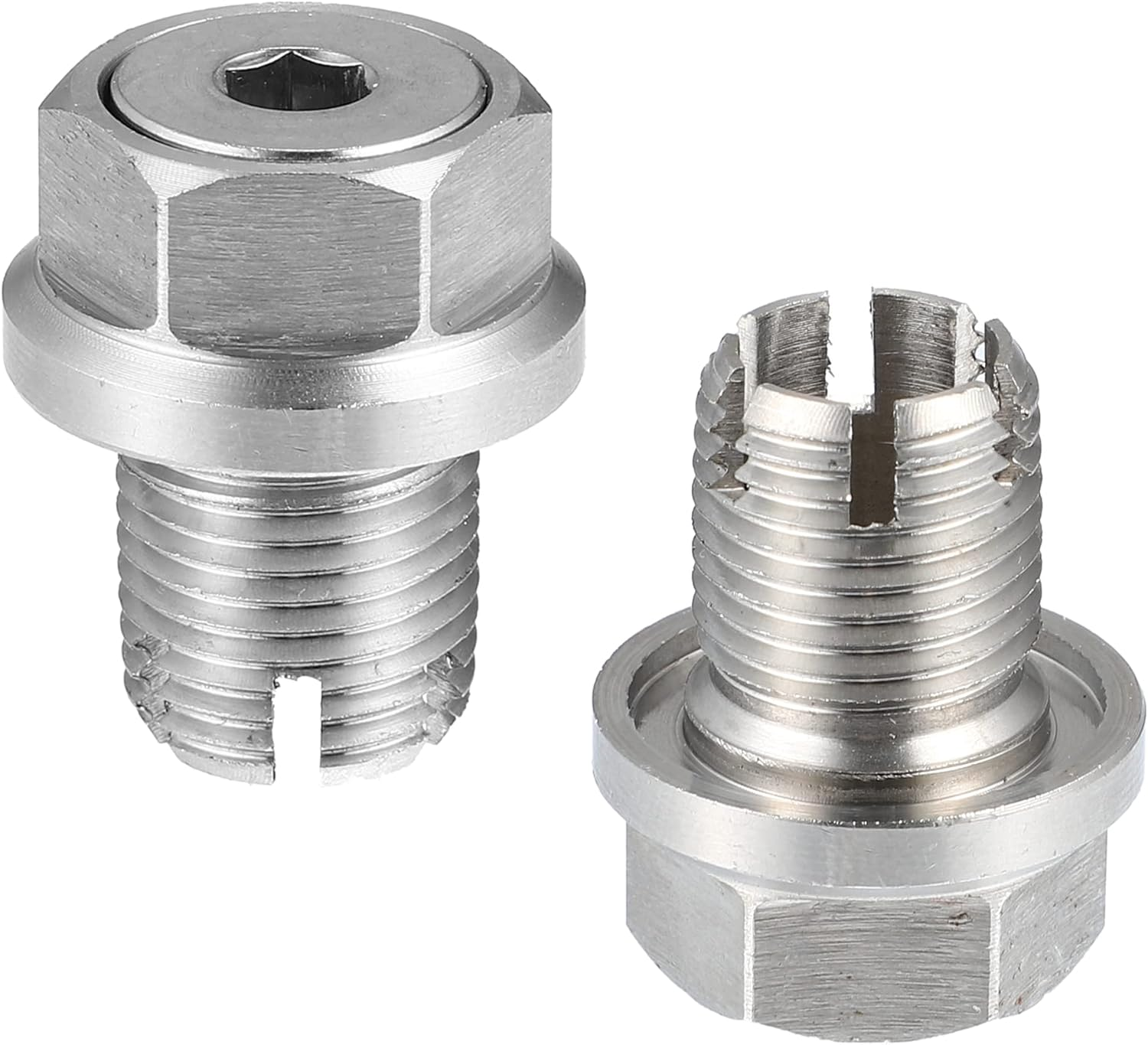

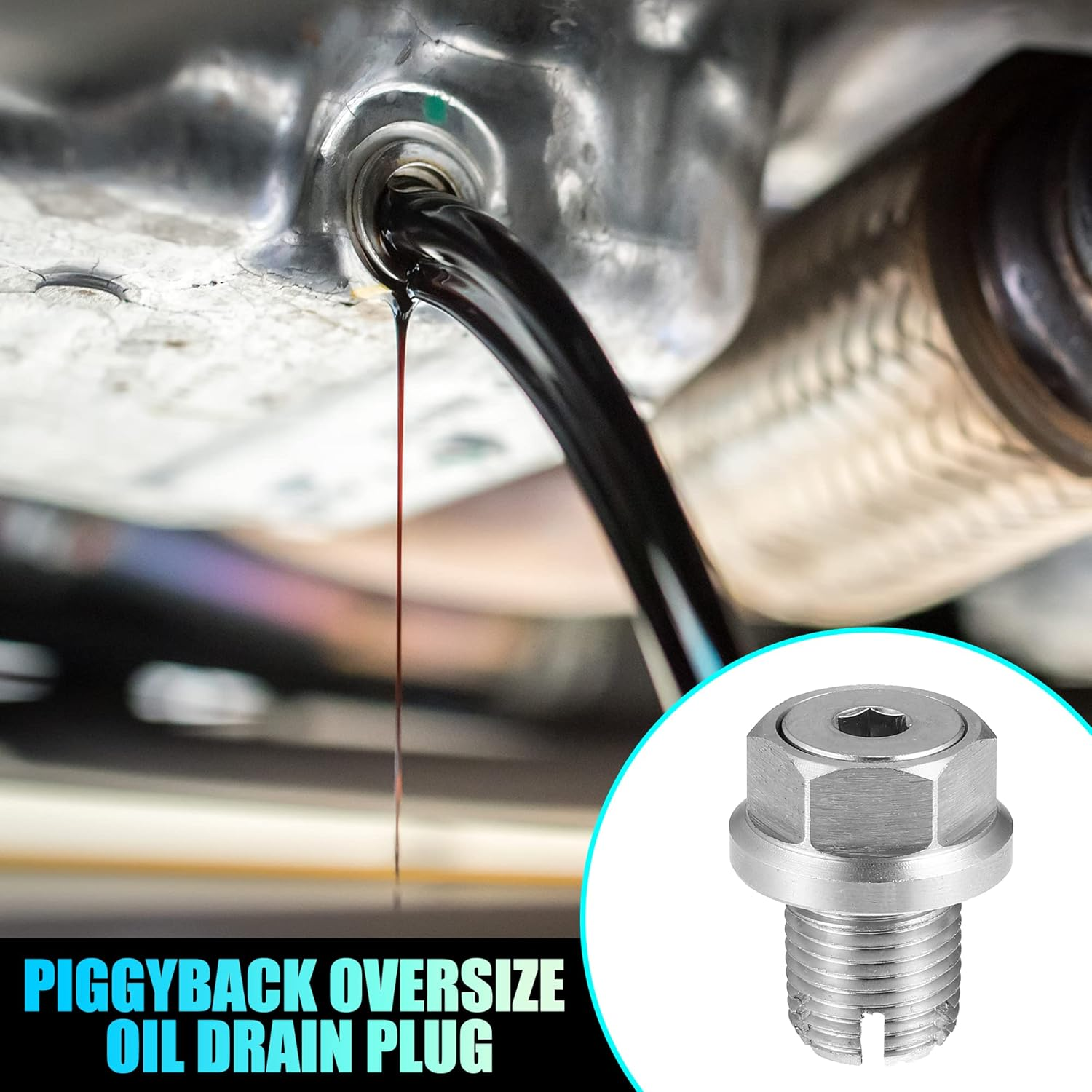

This piggyback oil drain plug to repair your slipped oil pan thread, no need to replace whole pan, easy installation.
This oil drain plug is made of stainless steel material and CNC processing, the surface is painted, which is wear-resistant, durable and scratch-resistant, providing enough hardness for a long service life.
When you need to remove little piggyback screw for oil drain, remember to use a wrench to hold the larger bolt stationary.
Specification:
Color: Silver Tone
Material: Stainless Steel
Craft: CNC Processing
Thread Size: M14x1.25
Main Plug Size: 19x27mm / 0.75''x1.06''(H*D)
Main Plug Thread Length: 15mm / 0.59''
Piggyback Oil Drain Plug Size: 12x14mm / 0.47''x0.55''(H*D)
Gasekt Diameter: 14mm / 0.55''
O-Ring Diameter: 10mm / 0.39''
Note:
Due to manual measurement, please allow slight size differences.
Please check the item size and description picture etc. before ordering to make sure it fits your car.
Installation Steps:
1. Make sure the oil pan threaded area is thoroughly cleaned of excess oil.
2. Screw the piggyback plug into the hole, a few turns forward, then back a few turns. Once the plug has bottomed out, slowly remove it and use some brake cleaner to clean loose thread material.
3. Using a T-box wrench, torque the plug to approximately 14ft-lbf.

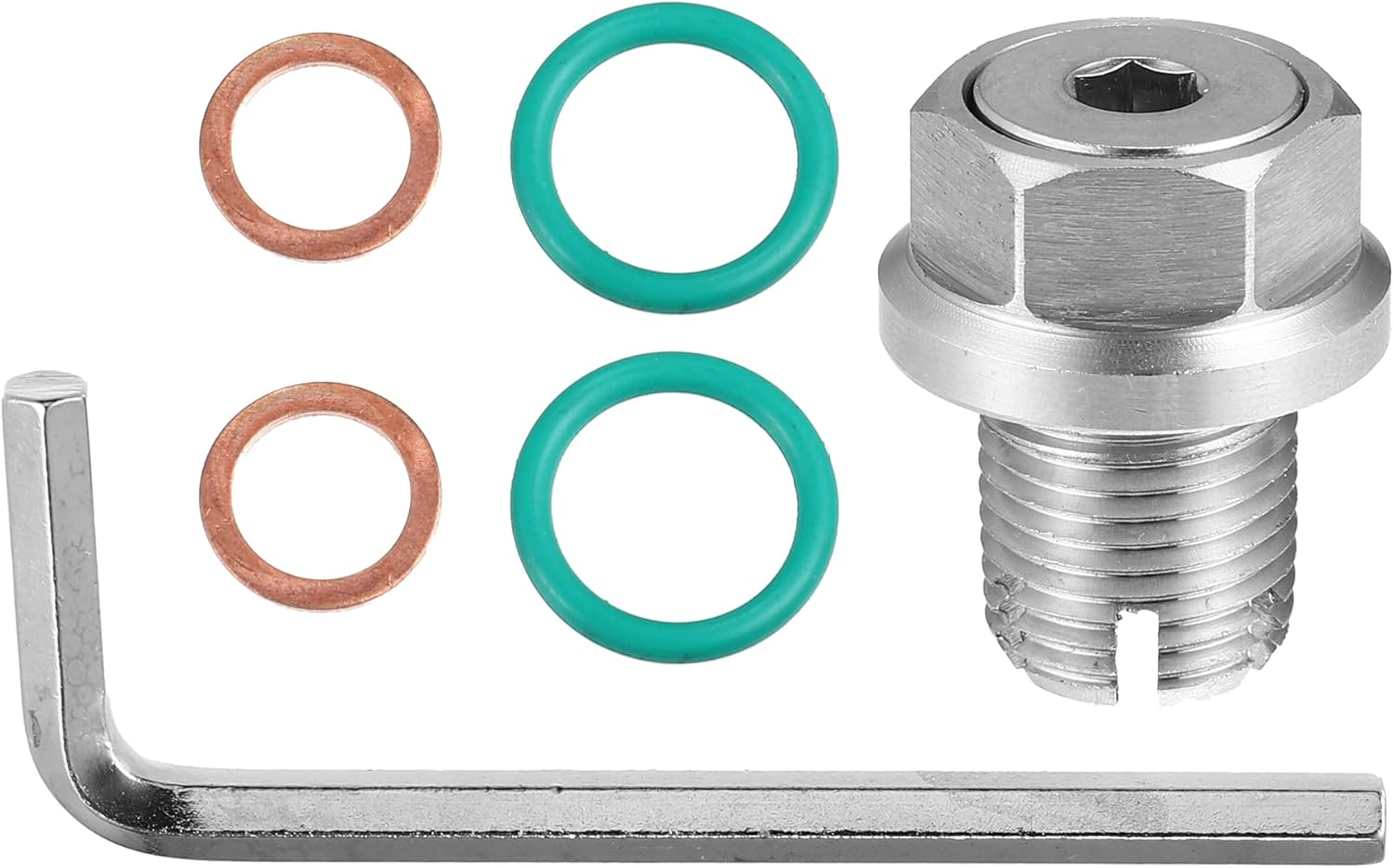

Package Includes:
1 x Oil Drain Plug
1 x Hex Key Wrench
2 x O-Ring
2 x Gasekt
