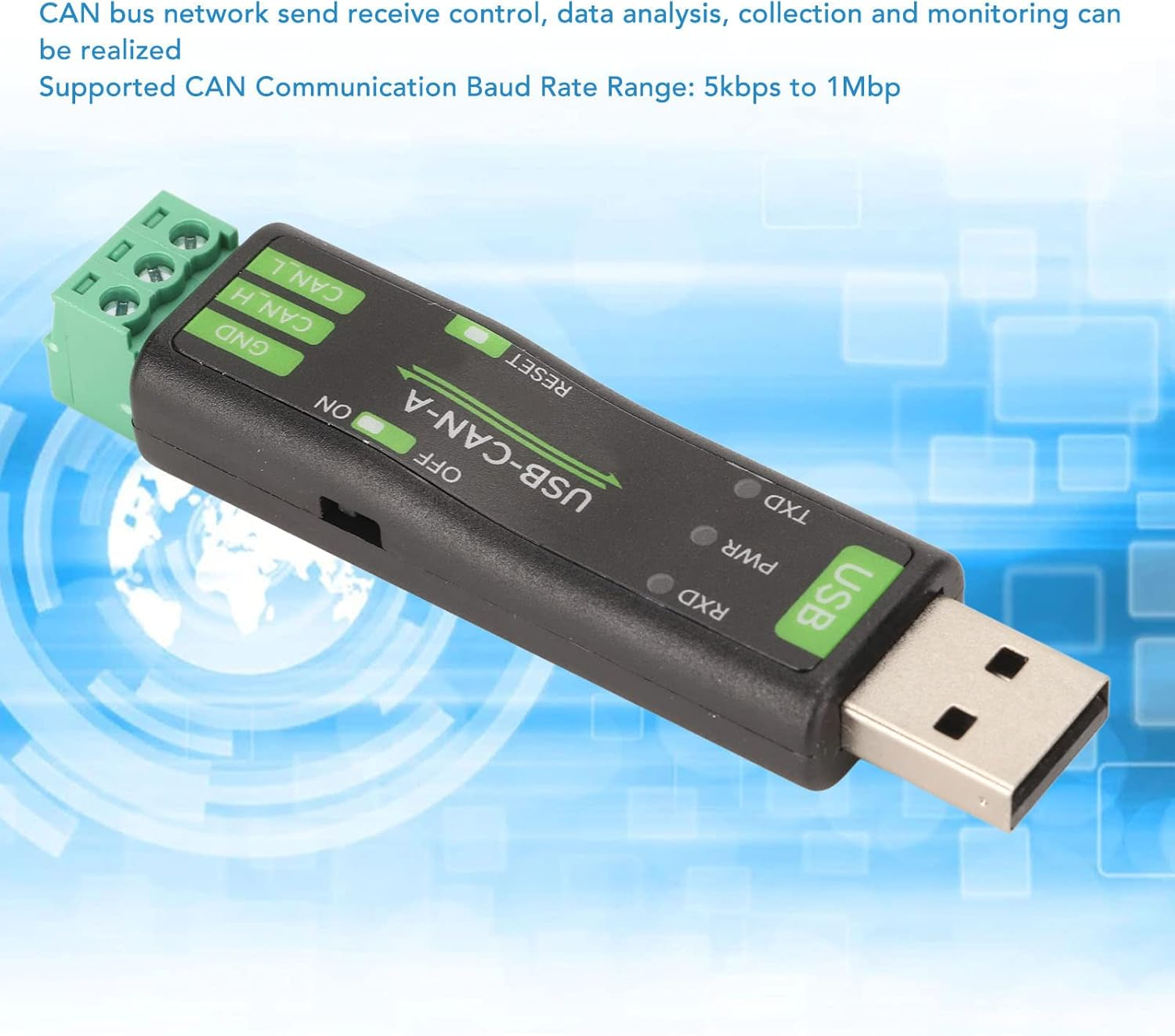

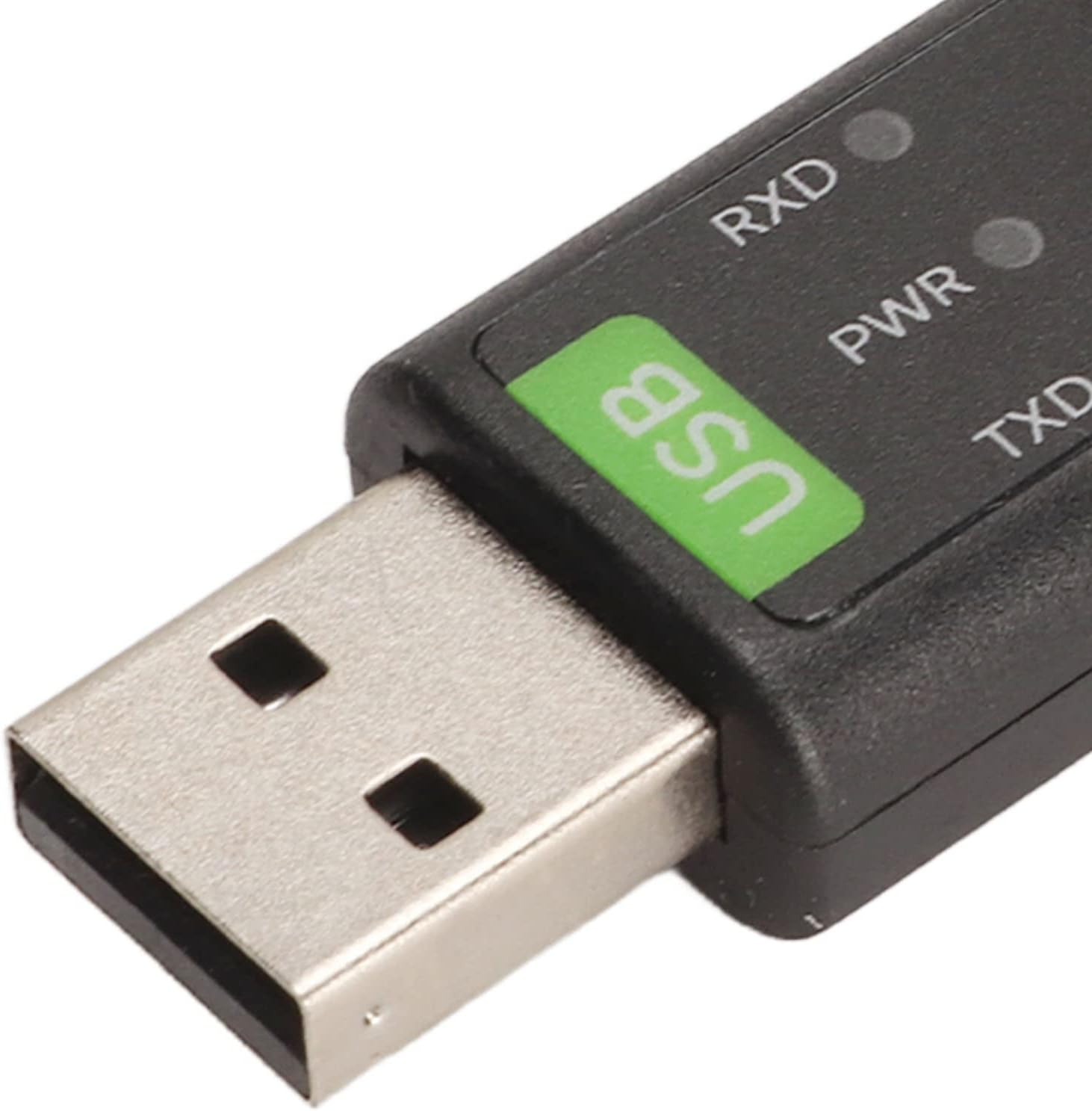

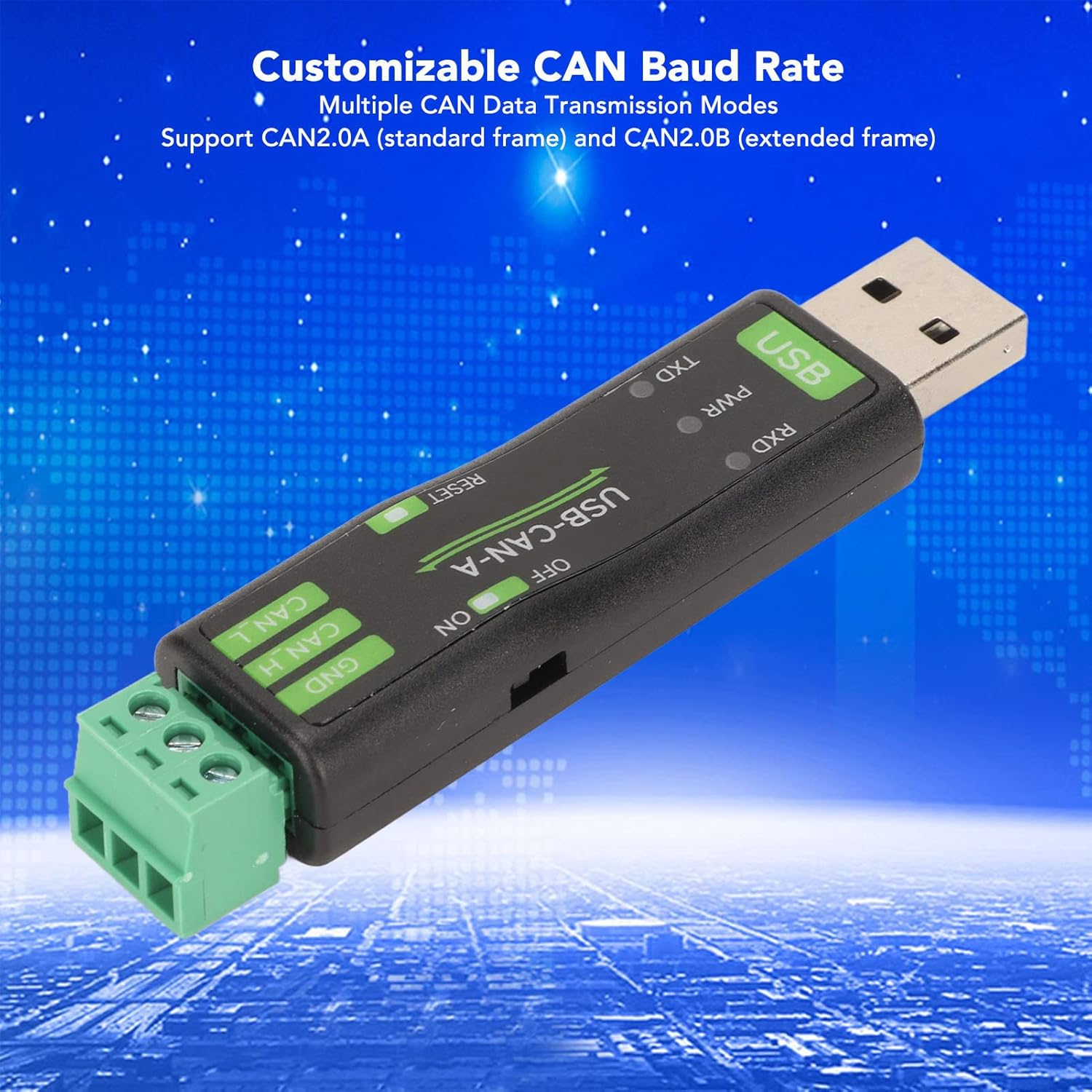

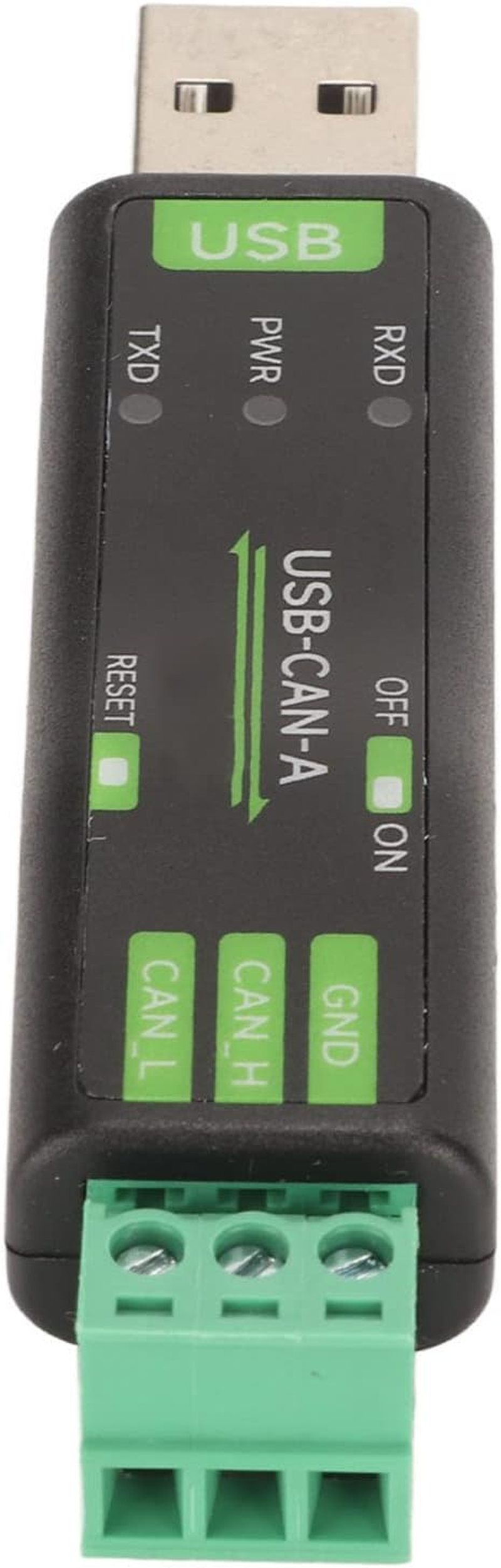

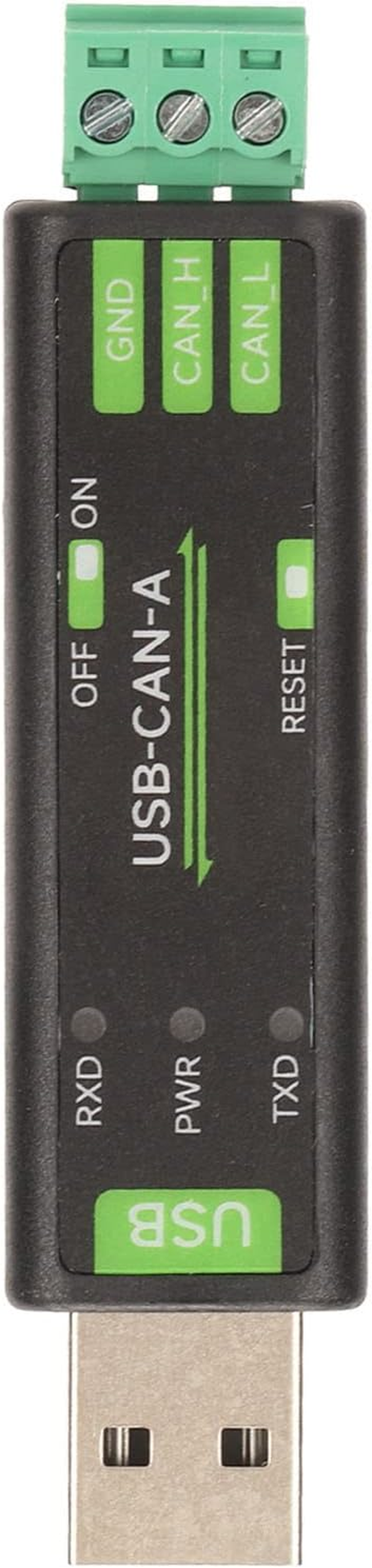

USB to CAN Adapter, Portable 5Kbps to 1Mbps Converter Adapter, 4 Mode STM32F103 Chip Onboard, TVS USB to CAN Analyzer for Bus Data Computer
USB to CAN Adapter, Portable 5Kbps to 1Mbps Converter Adapter, 4 Mode STM32F103 Chip Onboard, TVS USB to CAN Analyzer for Bus Data Computer
Brand: Dpofirs
A$55.50
- CAN2.0A and CAN2.0B: This USB to CAN analyzer supports CAN2.0A (standard frame) and CAN2.0B (extended frame), supports a variety of CAN data receiving modes. CAN data can be saved as TXT or EXCEL text. Support CAN bus detection, convenient to check the CAN bus status.
- Widely Compatible: This USB to CAN bus adapter is suitable for XP, 7, 8, 10, 11. Support for RasPi OS, for Ubuntu, for Linux system.
- STM32F103 Chip: This USB to CAN bus converter adopts STM32F103 main control chip. Onboard TVS, Effectively suppress the circuit voltage and transient peak voltage.
- Data Collection: With this USB to CAN adapter, the data of CAN bus can be collected to computer through USB, and CAN bus network send receive control, data analysis, collection and monitoring can be realized. Supported CAN communication baud rate range is 5kbps to 1Mbps, customizable CAN baud rate.
- Easy Setting: The baud rate (9600 to 2000000bps) of the USB virtual COM port CAN be set. The default baud rate is 2000000bps. Working parameters can be set through the configuration software or serial port command, and can be saved after power cut.
Product Description
CAN2.0A and CAN2.0B: This USB to CAN analyzer supports CAN2.0A (standard frame) and CAN2.0B (extended frame), supports a variety of CAN data receiving modes. CAN data can be saved as TXT or EXCEL text. Support CAN bus detection, convenient to check the CAN bus status.
Widely Compatible: This USB to CAN bus adapter is suitable for Win XP, 7, 8, 10, 11. Support for RasPi OS, for Ubuntu, for Linux system.
STM32F103 Chip: This USB to CAN bus converter adopts STM32F103 main control chip. Onboard TVS, Effectively suppress the circuit surge voltage and transient peak voltage.
Data Collection: With this USB to CAN adapter, the data of CAN bus can be collected to computer through USB, and CAN bus network send receive control, data analysis, collection and monitoring can be realized. Supported CAN communication baud rate range is 5kbps to 1Mbps, customizable CAN baud rate.
Easy Setting: The baud rate (9600 to 2000000bps) of the USB virtual COM port CAN be set. The default baud rate is 2000000bps. Working parameters can be set through the configuration software or serial port command, and can be saved after power cut.
Specification:
Model: USB CAN A
Chip: STM32F103 Main Control Chip
Interface: USB to CAN
Supported CAN Communication Baud Rate Range: 5kbps to 1Mbps, Customizable CAN Baud Rate
4 Working Modes: Normal Mode, Loopback Mode, Silent Mode, and Silent Loopback Mode
Multiple CAN Data Transmission Modes: Including Single Frame Transmission, Multiframe Transmission, Manual Transmission, Timed Transmission, and Cyclic Transmission
Scope of Application: Suitable for Win XP, 7, 8, 10, 11. Support for RasPi OS, for Ubuntu, for Linux system., Support Secondary
How to Use:Install and use

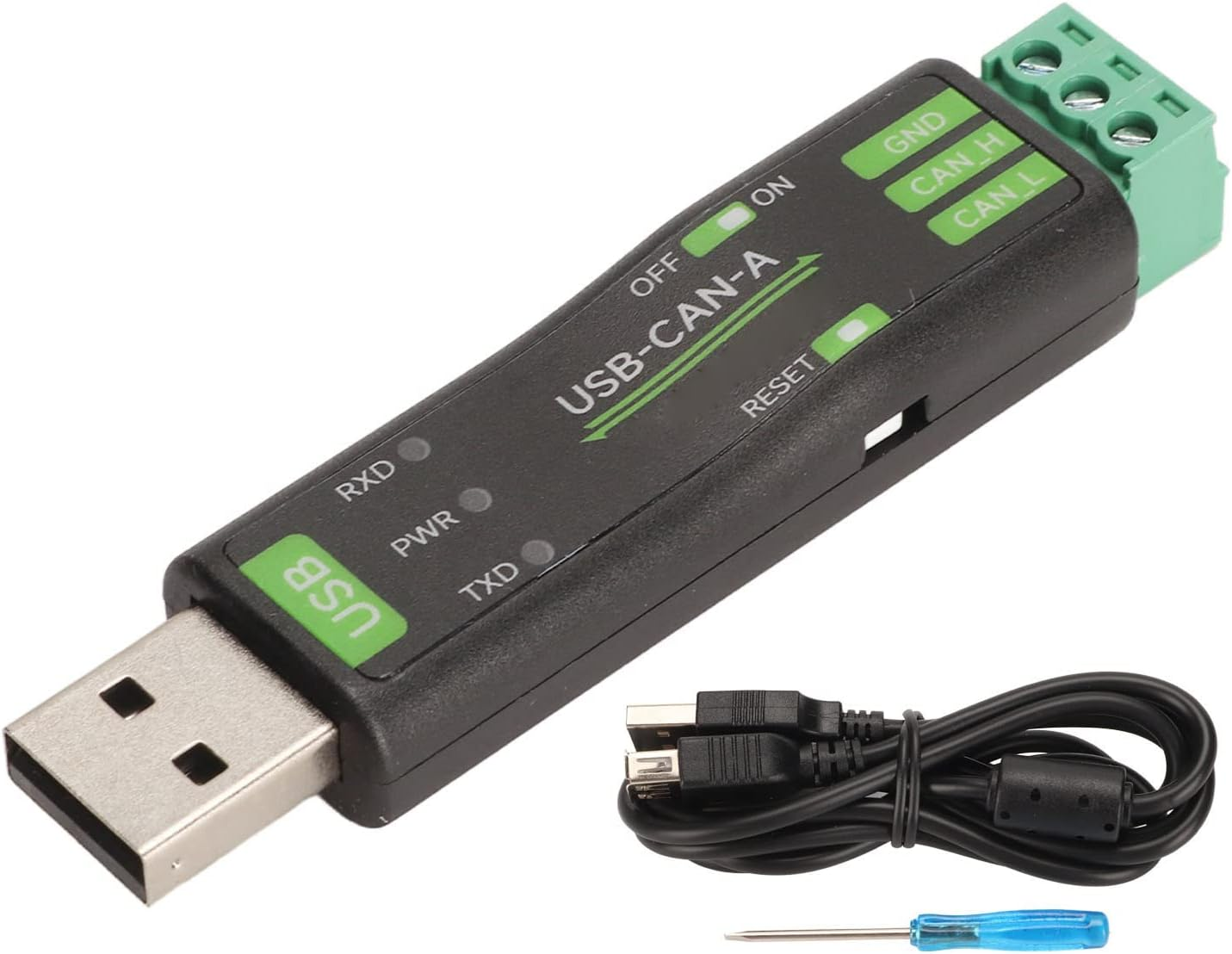

Packing list:
- 1 xUSB to CAN Adapter
- 1 x USB Cable
- 1 x Screwdriver
- Item Model Number: Dpofirsd1w7hi8oqf
- Part Number: Dpofirsd1w7hi8oqf
- Country/Region of origin: China
- Brand: Dpofirs
- Item Weight: 100 g
- Number of Ports: 1
- Model Name: Dpofirsd1w7hi8oqf
- Model: Dpofirsd1w7hi8oqf
- Package Dimensions: 11.7 x 6.6 x 3.4 cm; 100 Grams
- Manufacturer: Dpofirs
