Handheld Digital Oscilloscope, 3 in 1 Handheld Oscilloscope Multimeter with 500Khz Bandwidth, 10Msa/S Sampling Rate, 2.4Inch TFT LED Screen Portable Digital Oscilloscope Kit (High Configuration)

Handheld Digital Oscilloscope, 3 in 1 Handheld Oscilloscope Multimeter with 500Khz Bandwidth, 10Msa/S Sampling Rate, 2.4Inch TFT LED Screen Portable Digital Oscilloscope Kit (High Configuration)

Brand: DAUB
4.5
A$110.40
Availability:
  • In Stock

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

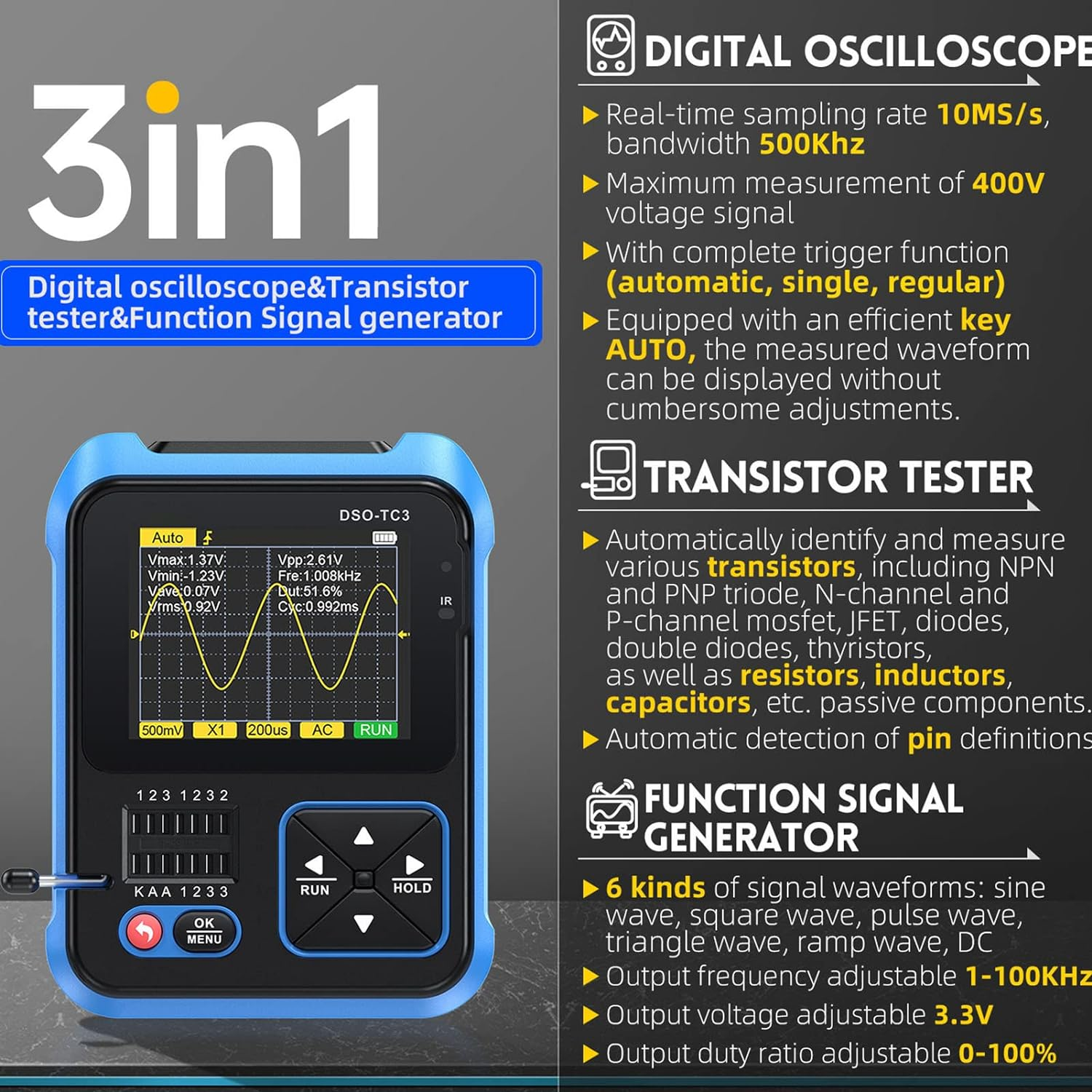

  • 【3 IN 1 PROFESSIONAL DESIGN】It integrates digital oscilloscope, electronic component tester and PWM signal generator functions into one,. It has a sampling rate of 10MSa/s, a bandwidth of 500KHz, up to 400V voltage signal test, and a complete trigger function (single, normal, automatic), the measured waveform can be displayed without tedious adjustment, easily cope with mearsurement testes.
  • 【2.4INCH HIGH DEFINITION BACKLIT SCREEN】This handheld digital oscilloscope transistor tester is designed with a high resolution 2.4 inch TFT screen with adjusting backlight. Better reading experience and easy to use. It can test different functions and support multi interface screen display. With keypad design, it is more convenient to operate and select different test function modes.

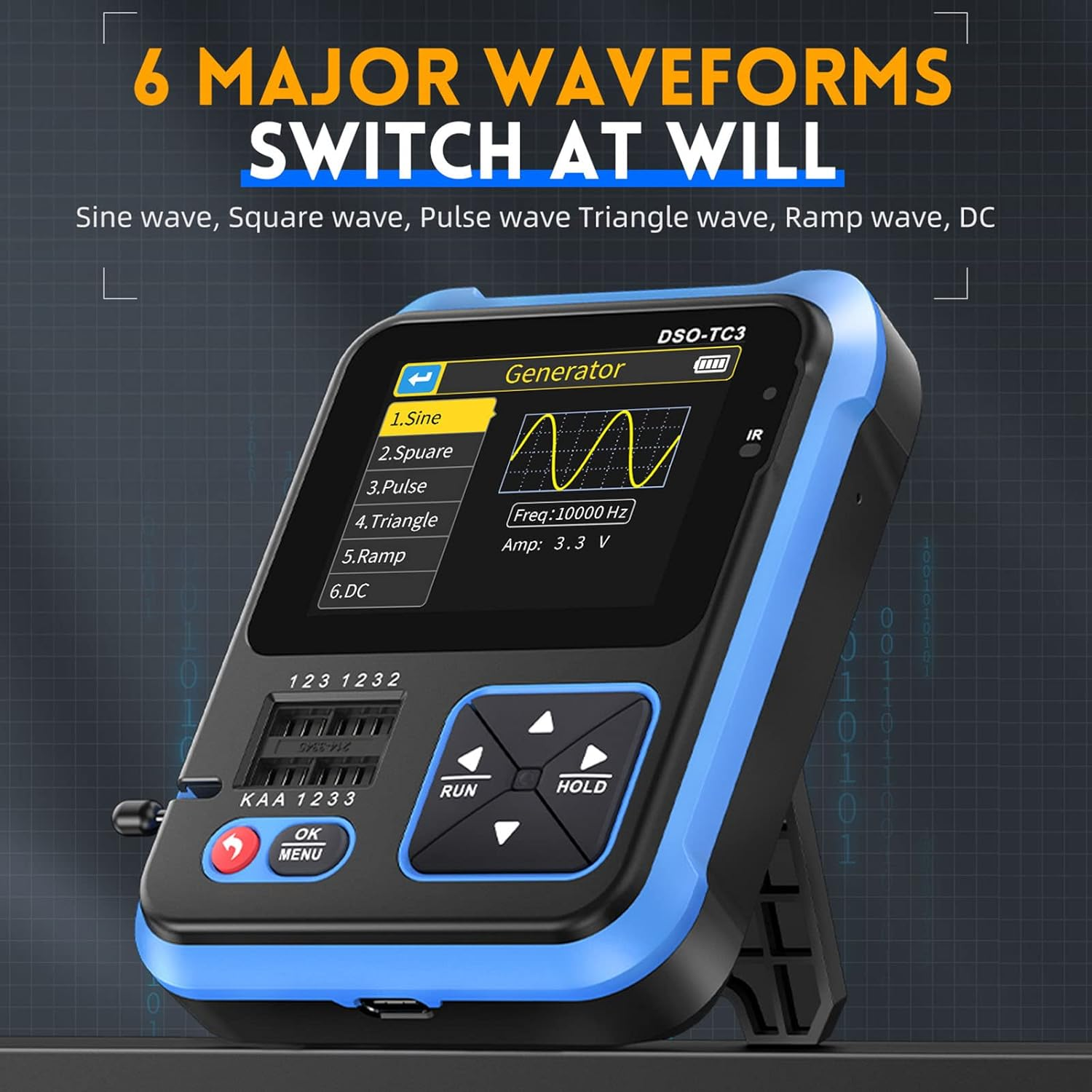

  • 【IDENTIFY DEVICE TYPE】The oscilloscope mode can test the signal waveform of the circuit, while Mos test mode can test various types of transistors, which can identify device type, pin polarity, hFE, on state voltage, junction capacitance, resistance, inductive components, etc. Signal generator mode, you can use sine, pulse, triangular or ramp waveform, which can meet your daily testing needs.

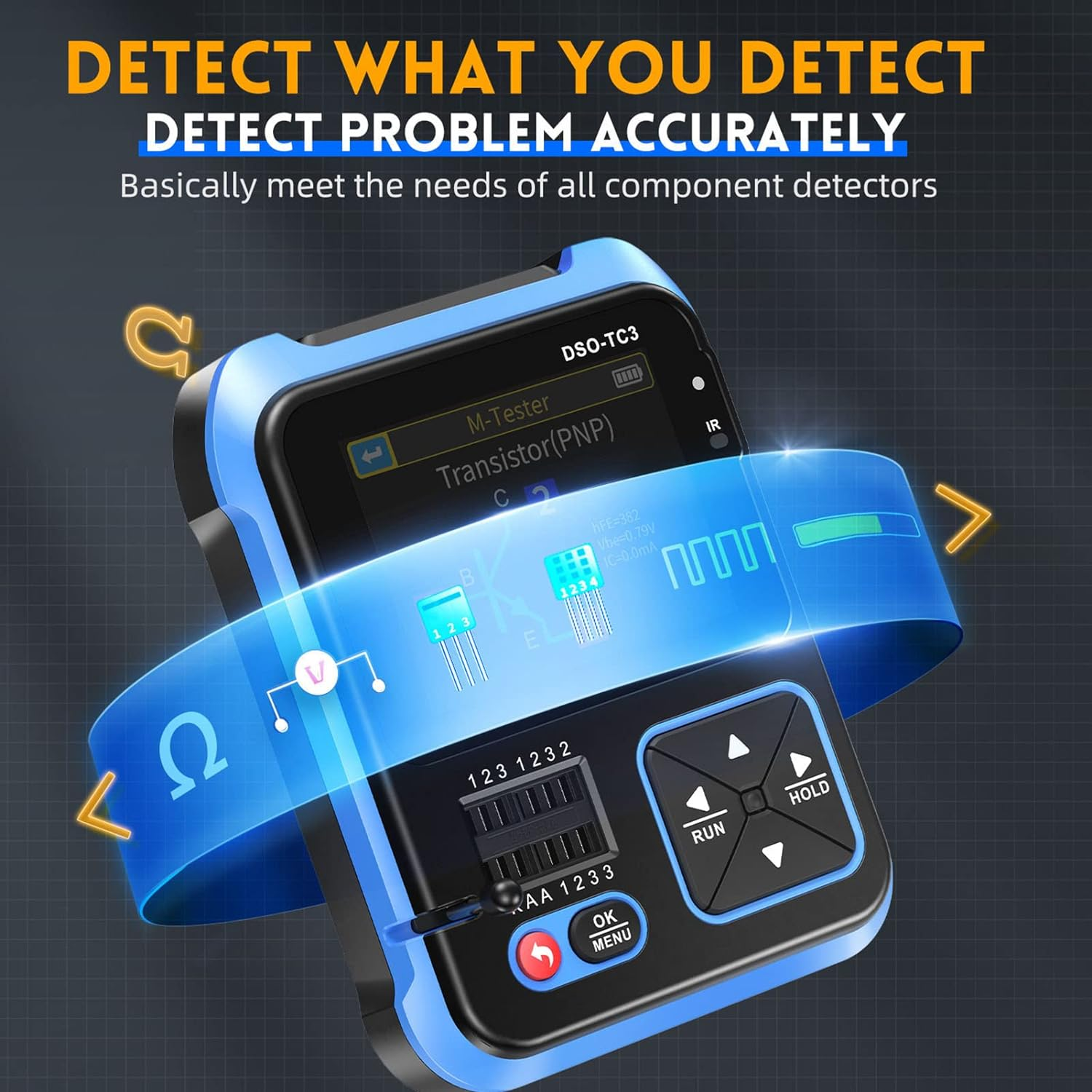

  • 【APPLICABLE ITEMS】This oscilloscope probe kit supports PC online operation, which is especially suitable for fast pairing of transistors, identification of mixed face mount and wordless components, and initial screening of small batch components. It can automatically identify and measure various transistors, including NPN and PNP transistors, diodes, double diodes, etc.
  • 【100% QUALITY ASSURANCE】 This oscilloscope signal generator has 5 built in basic waveforms, more waveform data can be obtained per unit time, thus making the waveform more accurate. We are very confident in the quality of this DIY oscilloscope kit, and provide 24 months warranty or refund for it. Please feel free to reach us if you have any questions about your purchase.

Spec:
Item Type: Digital Oscilloscope

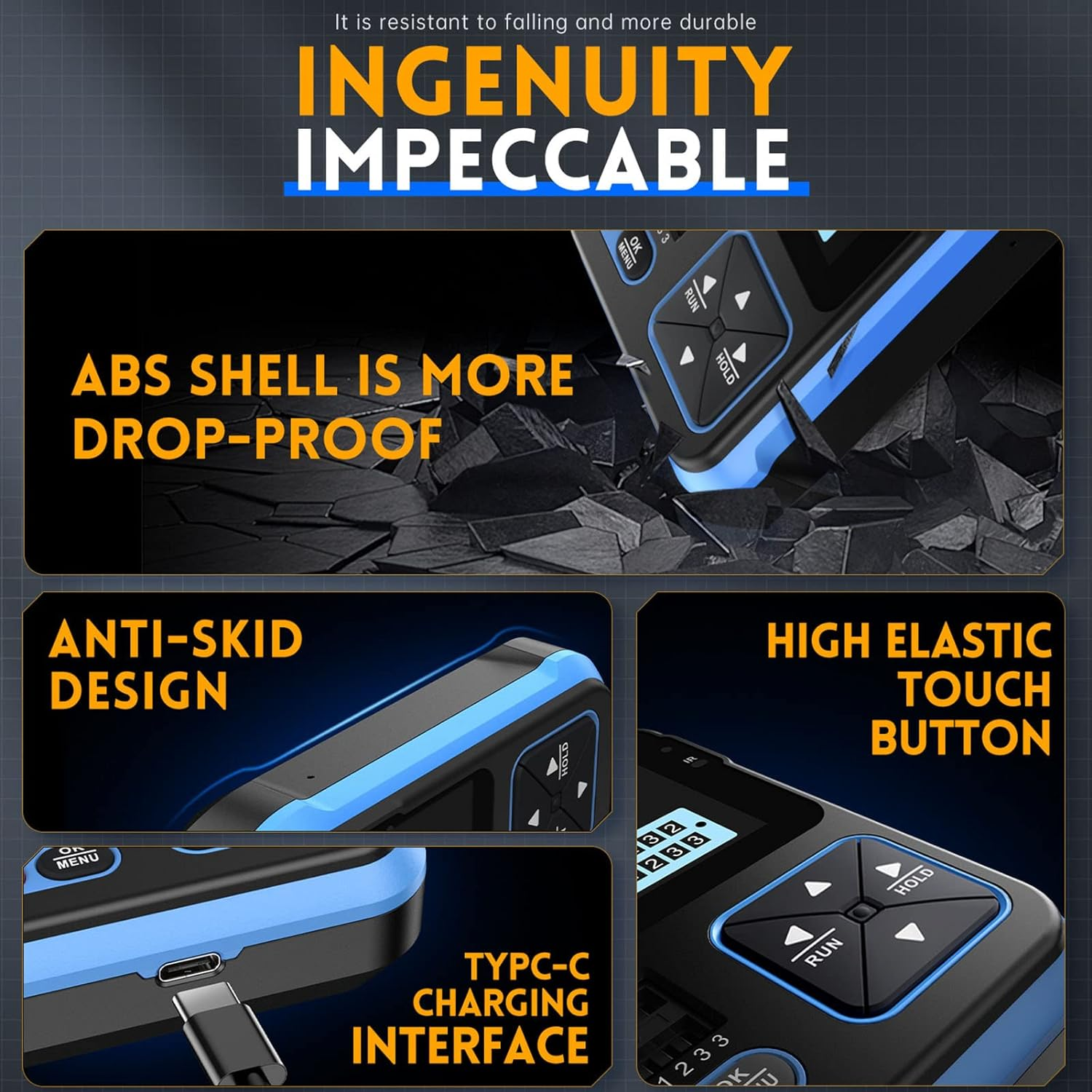

Material: ABS
Main Parameters Of The Machine
Model DSO TC3
Display 2.4 Inch TFT Color Screen, LED Backlight
Power Supply Voltage1 x 803450 1500mah Li Polymers Battery (Shipping With Built In Battery)
Charging SpecificationUSB Type C
Stand SpecificationsOne Piece Foldable Stand
Digital Oscilloscope Mode Parameters
Realtime Sampling Rate 10MSa/s
Analog Bandwidth 500Khz
Input Impedance 1MO
Coupling Method AC or DC
Test Voltage Range ±400V
Vertical Sensitivity 10mV-10V
Horizontal Time Base Range 1us-10s
Trigger Mode Auto, Normal, Single
Trigger Type Rising Edge Or Falling Edge
Waveform Freeze Yes
Automatic Measurement Yes
Component Test Mode Parameters
Class Range Description
Triode β greater than 10 less than 600 Magnification hfe, base emitter voltage Ube, lc/le, collector emitter reverse cutoff current lceo, lces, protection diode forward voltage drop Uf
Diode Forward voltage drop Forward voltage drop, junction capacitance, reverse leakage current
Voltage regulator diode 0.01-4.5V (1 2 3 test area) Forward voltage drop, reverse breakdown voltage
0.01-32V (K A A test area) reverse breakdown voltage
How to Use:
Take out the product, install it and use it.

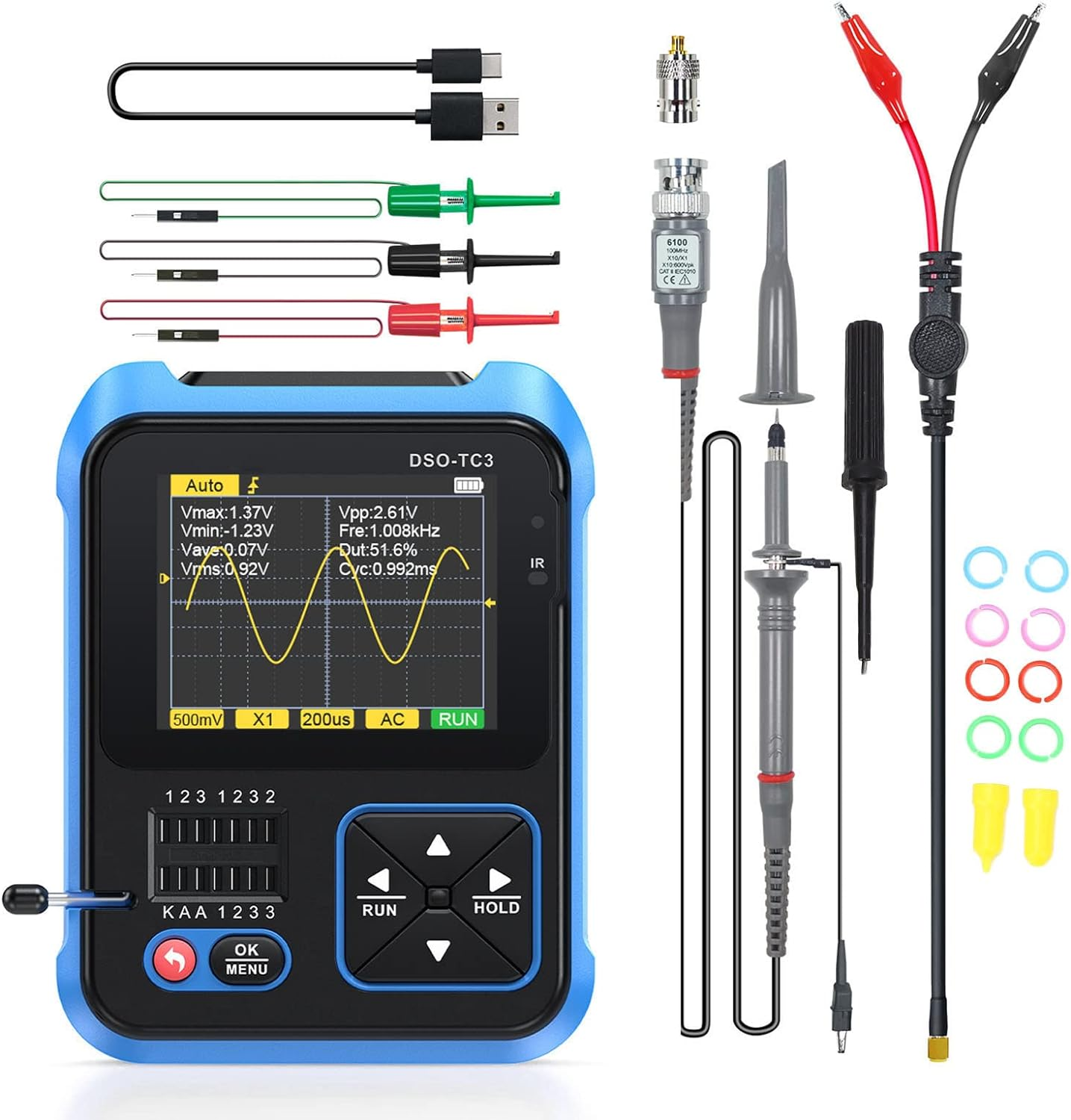

PackageList:
1 x Oscilloscope
1 x USB Cable
3 x Test Hook Cable
1 x Ordinary Probe
1 x Instruction Manual
or
1 x Oscilloscope
1 x USB Cable
3 x Test Hook Cable
1 x Ordinary Probe
1 x Adapter
1 x P6100 High Voltage Probe
1 x Instruction Manual

  • Item weight: 0.37 Kilograms
  • Batteries required: No
