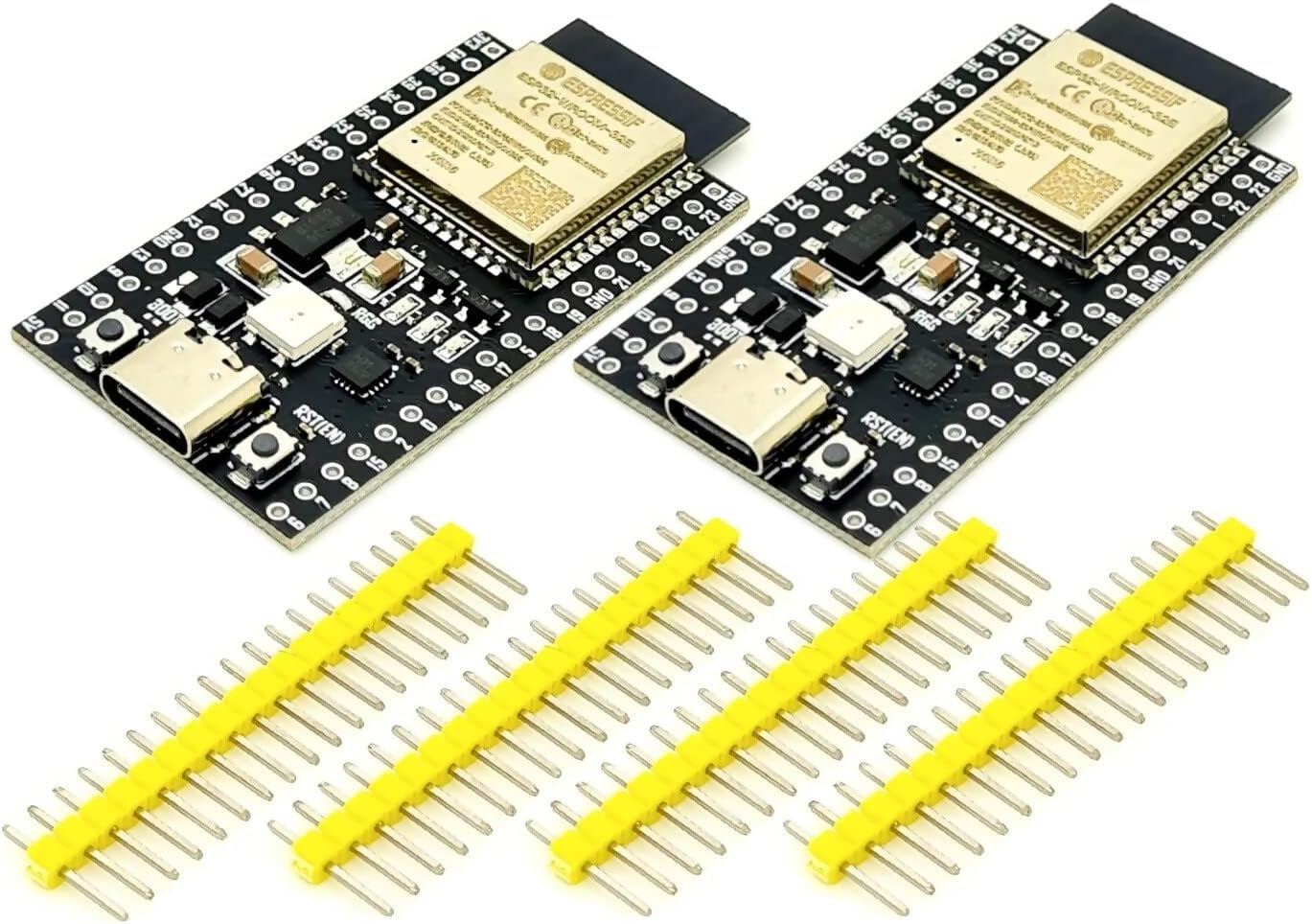

ESP32-WROOM-32E Board, 16Mb(128Mbit) Flash, Wifi, Bluetooth, USB Type C, PCB Antenna (2 Boards)

ESP32-WROOM-32E Board, 16Mb(128Mbit) Flash, Wifi, Bluetooth, USB Type C, PCB Antenna (2 Boards)

Brand: 99Tech
5.0
A$36.75
Availability:
  • In Stock

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

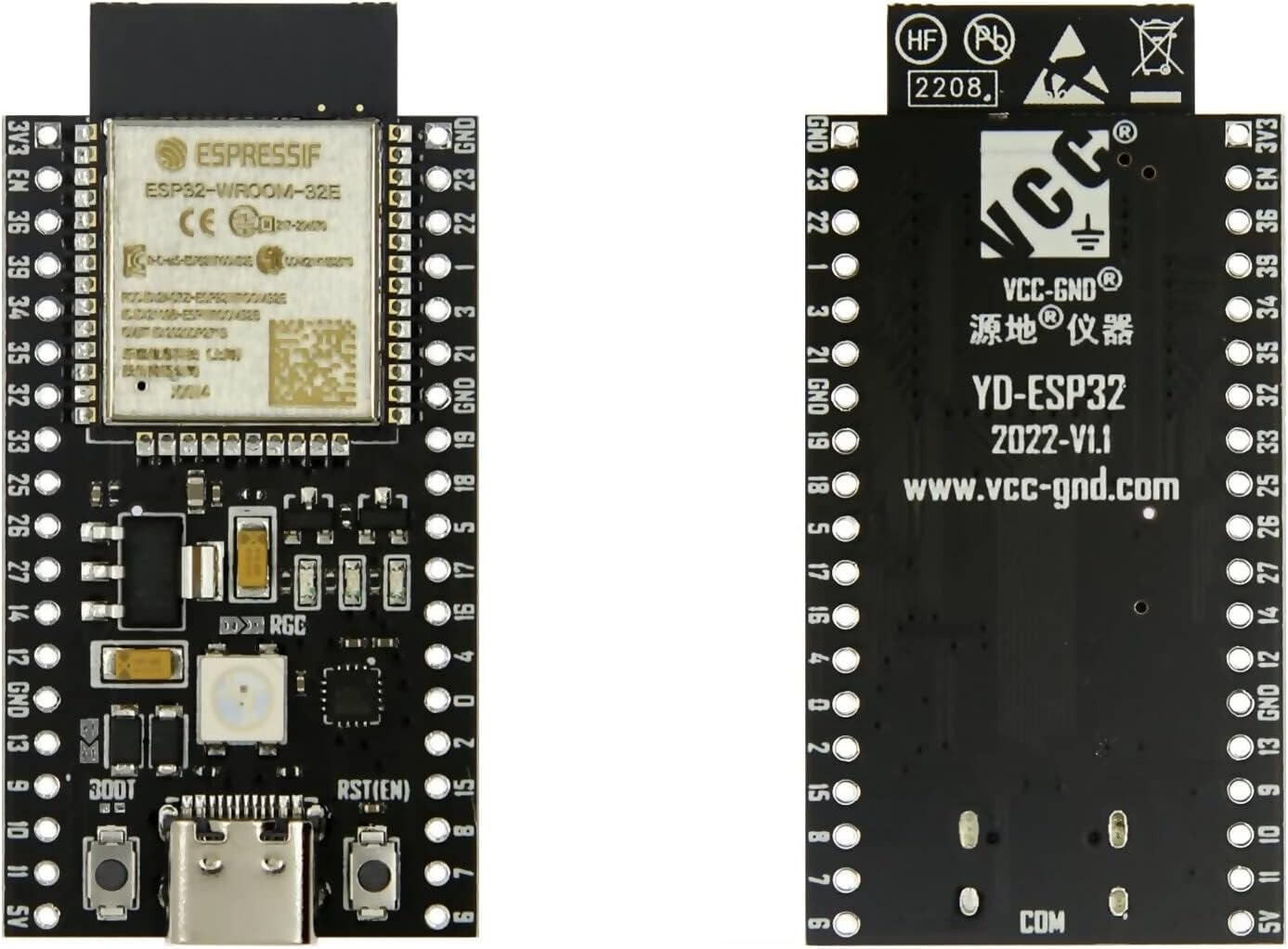

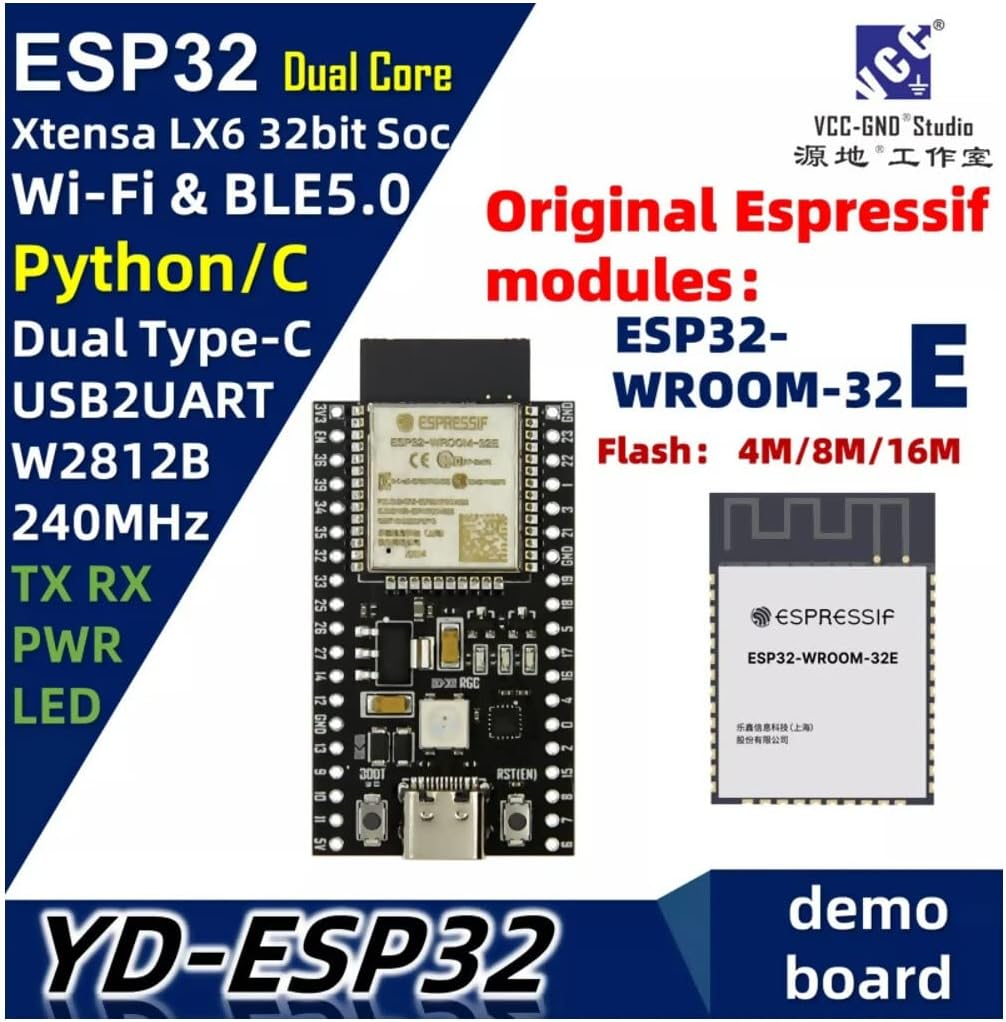

  • Development Board with original Espressif ESP32-WROOM-32E Module
  • ESP32-WROOM-32E;ESP32 16MB; ESP32 128Mbit
  • USB Type-C connector
  • 2.4 GHz Wi-Fi: IEEE 802.11 b/g/n-compliant
  • Bluetooth and Bluetooth LE: Bluetooth 5, Bluetooth mesh

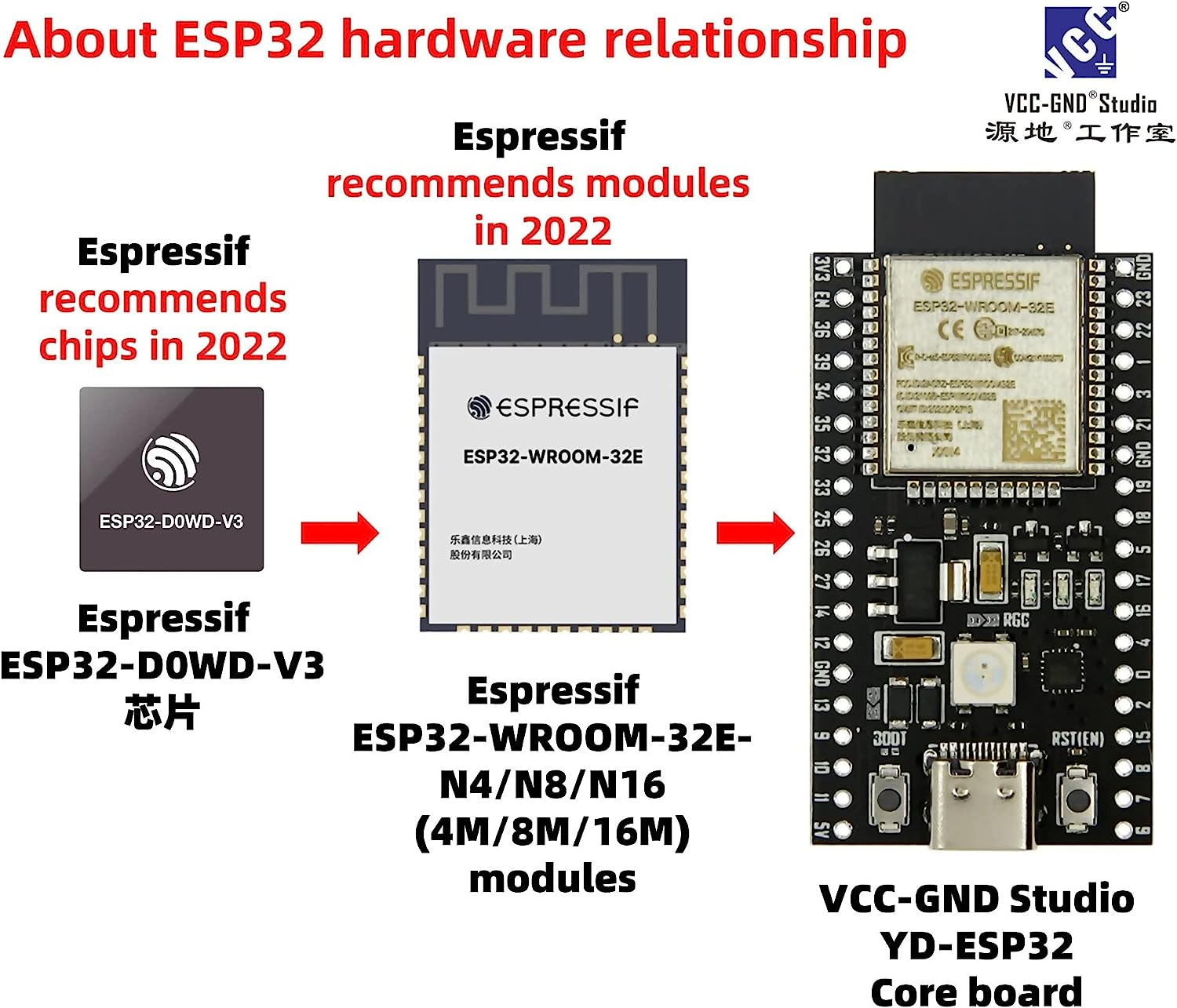

This board is based on the popular Espressif ESP32 chip, and has WiFi & Bluetooth. It is assembled with an original Espressif ESP32-WROOM-32E module, with 16MB(128Mbit) Flash.

A USB to serial interface is implemented using the CH343 chip.

It also has the higher power SOT-223 linear regulator, which has a higher power rating than the SOT-23 type used on some other modules.

Software can be developed using many different platforms, including Arduino.

There is a RGB WS2812 LED connected to IO16. It has a Red, Green and Blue LED that are individually addressable. There are plenty of examples on the internet showing how to drive a WS2812 LED. For example, Google "WS2812 Arduino" or "WS2812 c code".

PDF Schematics: 99tech.com.au/m/esp32-yd_schematics.pdf

=== Features ===

- 2.4 GHz Wi-Fi: IEEE 802.11 b/g/n-compliant
- Bluetooth and Bluetooth LE: Bluetooth 5, Bluetooth mesh
- 16 MByte(128Mbit) SPI Flash
- 448 KByte ROM
- 512 KByte SRAM
- PCB Antenna
- USB Type-C connector

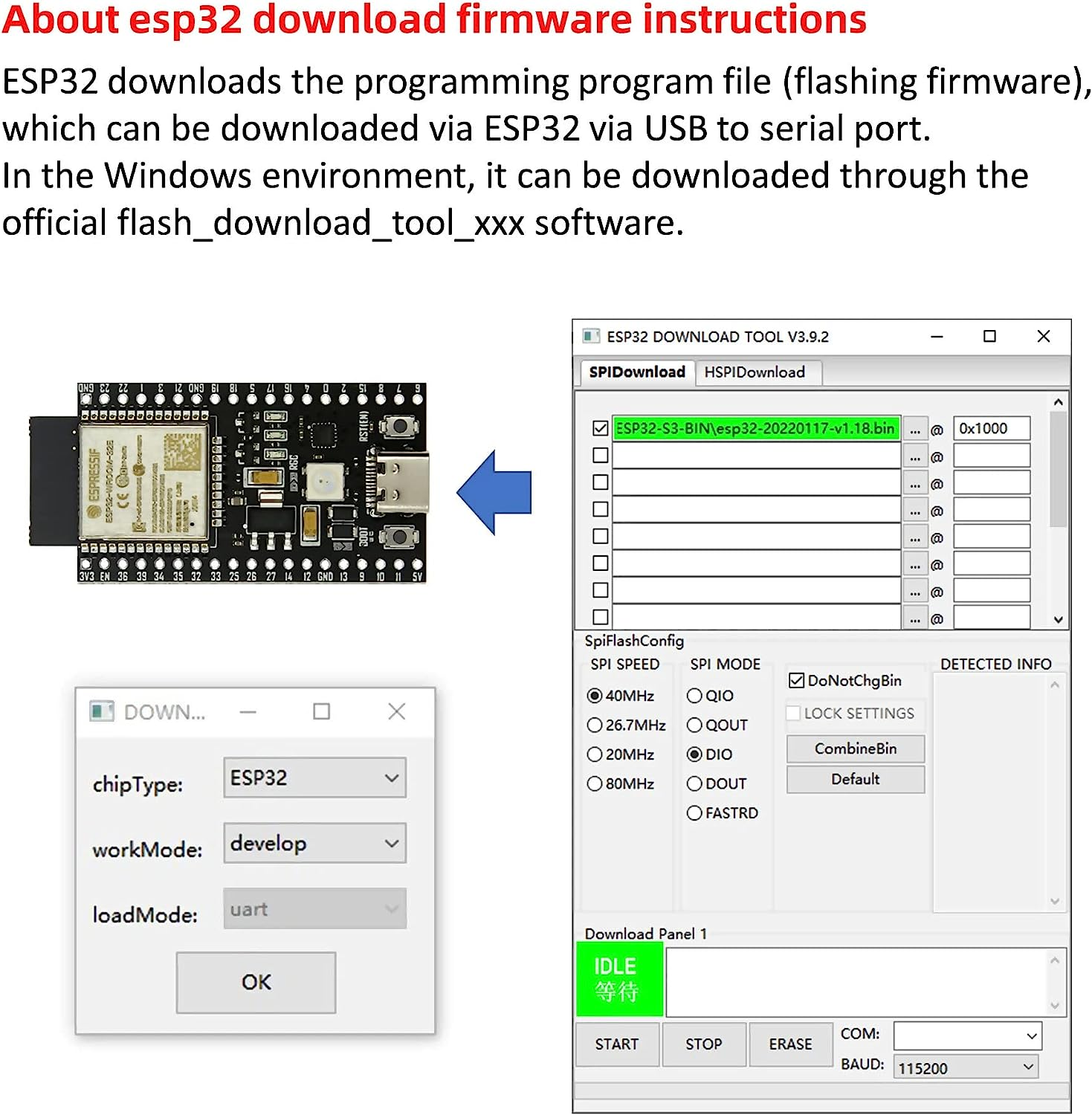

- Virtual USB port provided by CH343 for debugging and firmware upgrade
- Reset and User/Firmware Buttons
- RGB WS2812 User LED
- Power LED
- Assembled with ESP32-WROOM-32E module

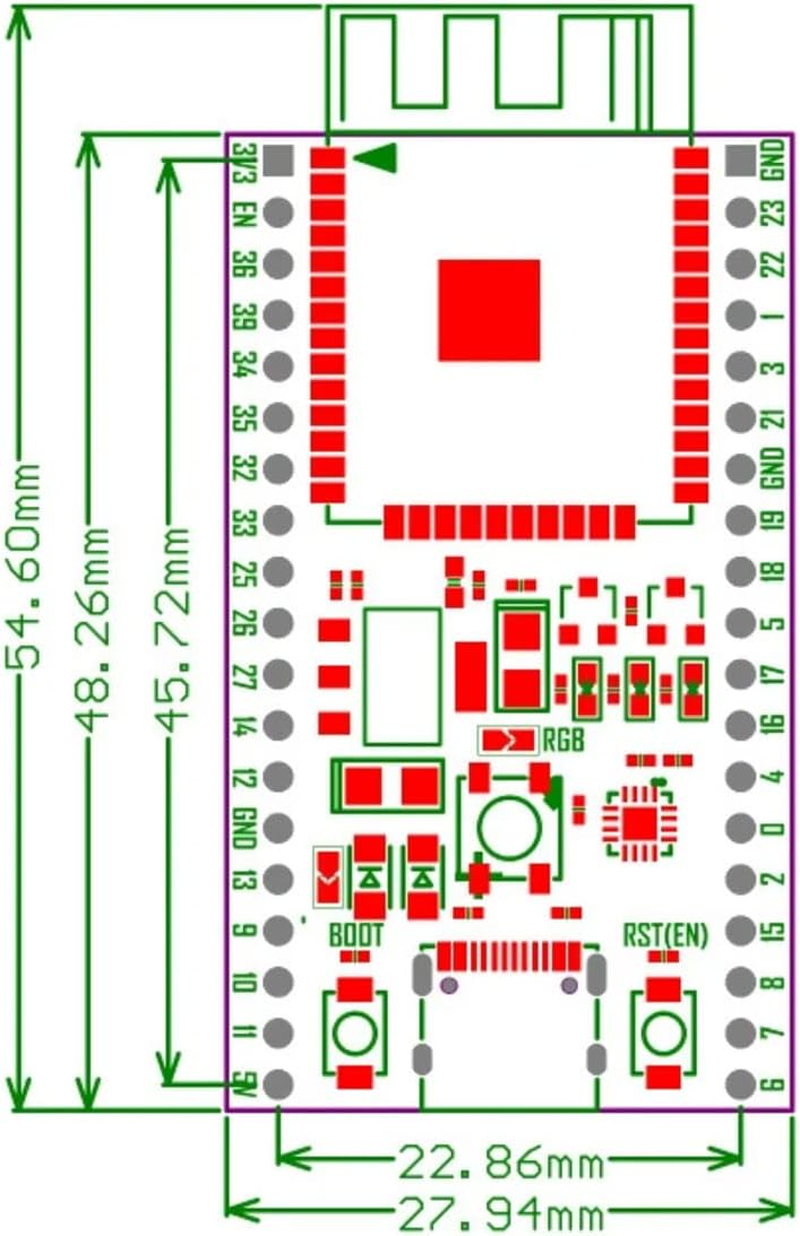

- Compact size of 48.3 x 28
- Supply Voltage: 5V via USB
- Circuit Voltage: 3.0 to 3.6V Circuit Operation

=== Package Includes ===
1 x ESP32 Module with ESP32-WROOM-32E
2 x Loose 19 pin, 2.54mm pin headers

  • Size Name: 2 Boards
  • Total USB ports: 1
  • Number of items: 1
  • Country/Region of origin: China
  • Batteries Required: No
  • Memory Storage Capacity: 16 MB
  • Brand: 99Tech
  • Ram Memory Installed Size: 512 KB
  • Compatible Devices: Arduino Boards, Personal Computer, Laptop, Tablet, Smartphone
  • Connector Type: Bluetooth, USB, Wi-Fi
  • Item Weight: 20 g
  • Ram Memory Technology: SRAM
  • Processor Count: 1
  • Wireless Type: 802.11b, Bluetooth
  • Model Name: ESP32-WROOM-32E
  • Processor Brand: Espressif
  • Package Dimensions: 11.8 x 8.2 x 0.9 cm; 20 Grams
  • Manufacturer: 99Tech
