1. With a peak voltage absorption circuit, it effectively protects the high-power SCR anti, anti-spike, RC absorption multiple protection.
2. Original imported chip SCR, all‑aluminum heat sink, high‑temperature circuit board.
3. Built‑in accurate resistance, high voltage capacitor, stable output, no lag and delay.
4. Use multifunctional industrial sockets, thick copper parts, thicker parts inside the copper parts, high current, good and safety.
5. Compulsory certification 3C power cord, thick wire, large current, strong twisting and no deformation, low‑quality plug wire thin and there are safety hazards
6. With stepless variable speed adjustment, control adjustment, no gear limit
Specification:

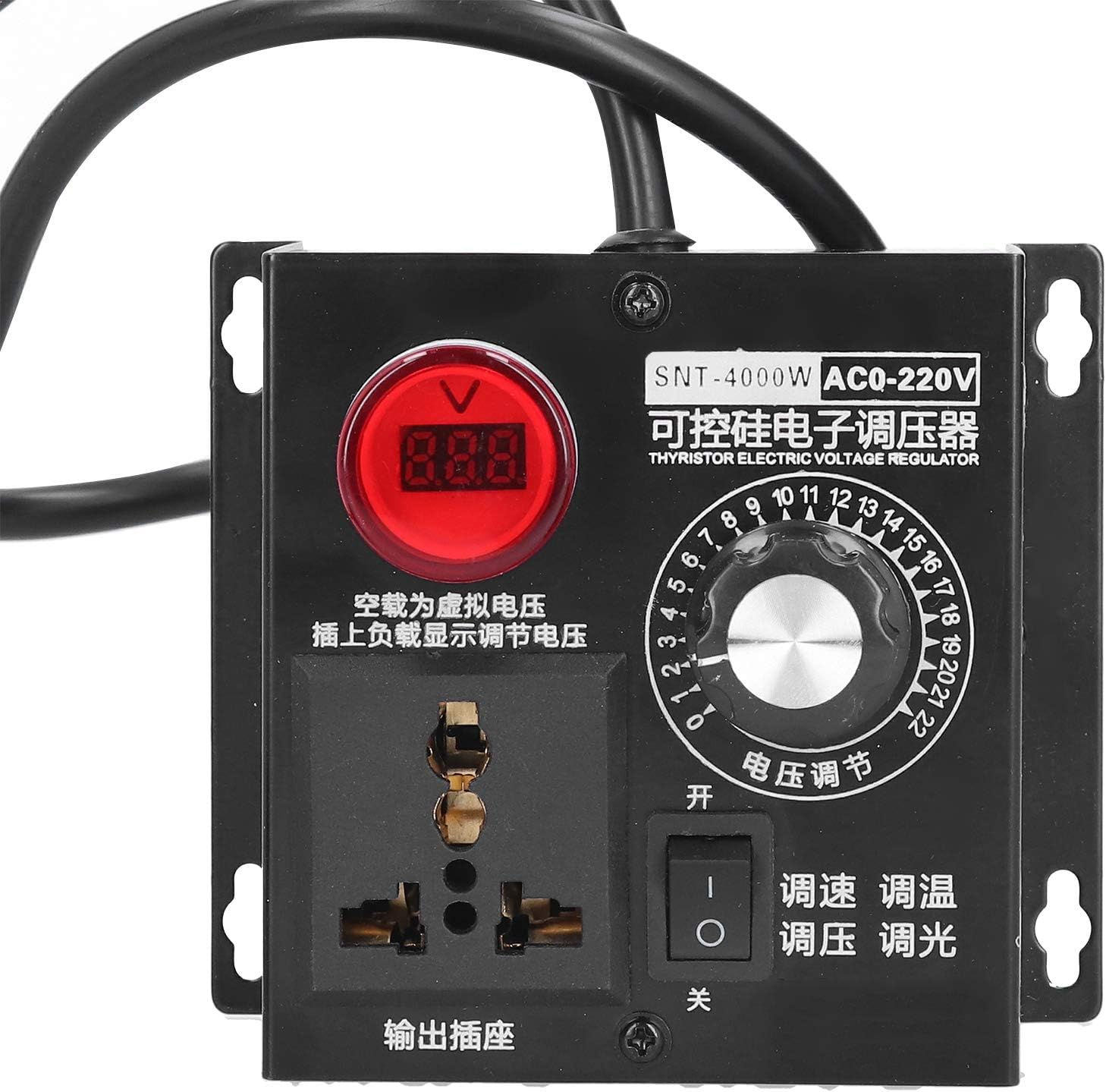

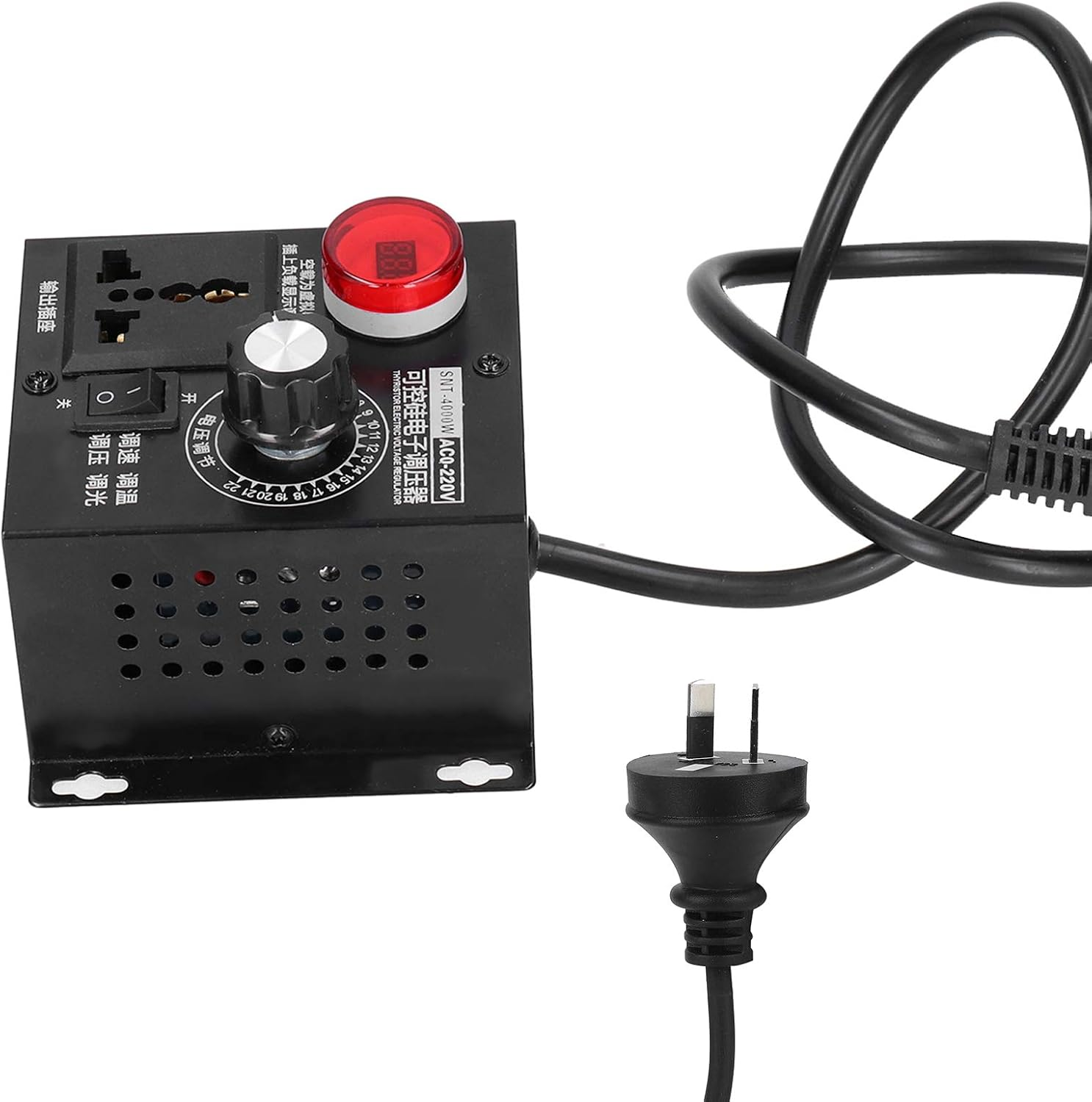

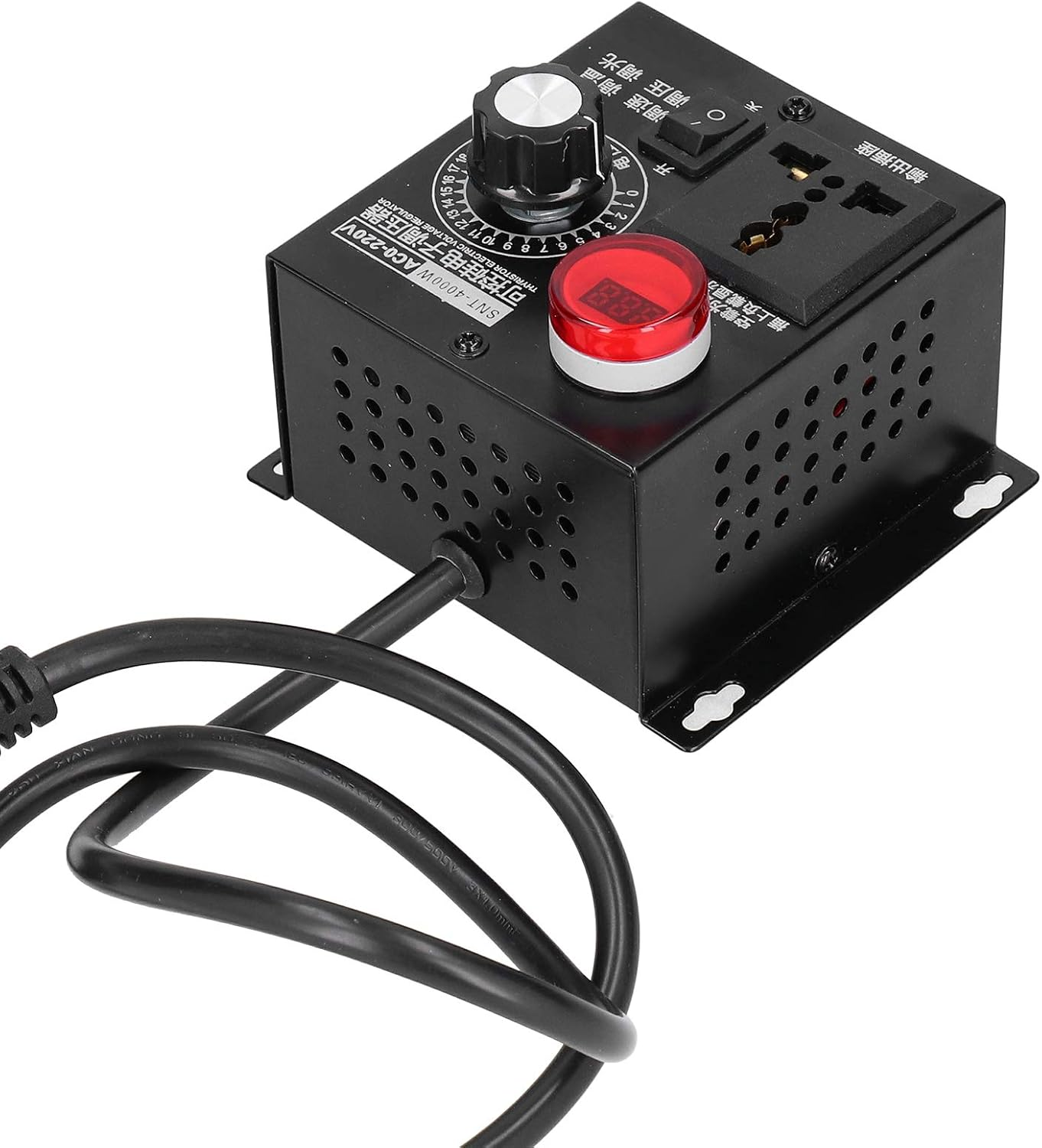

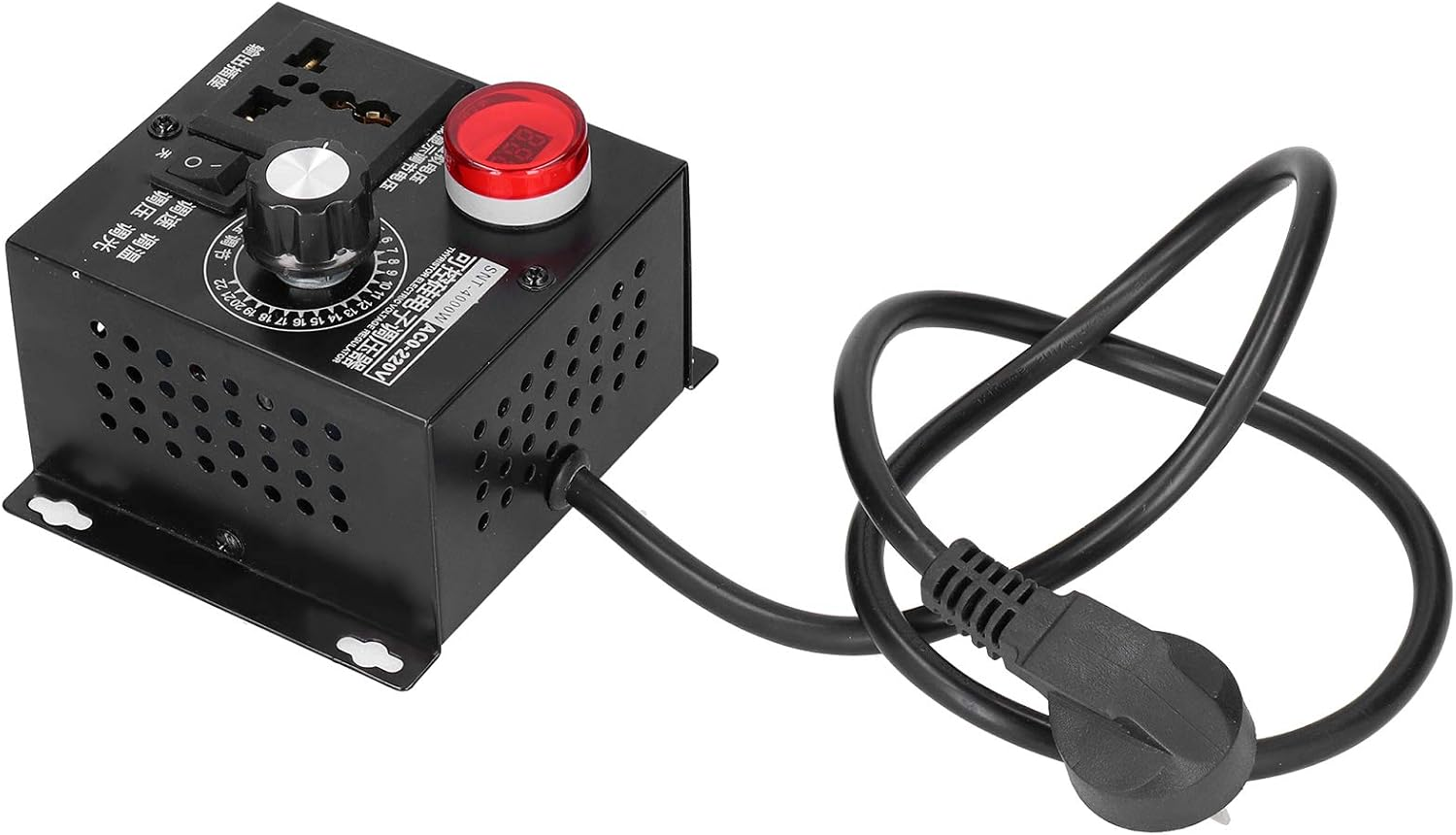

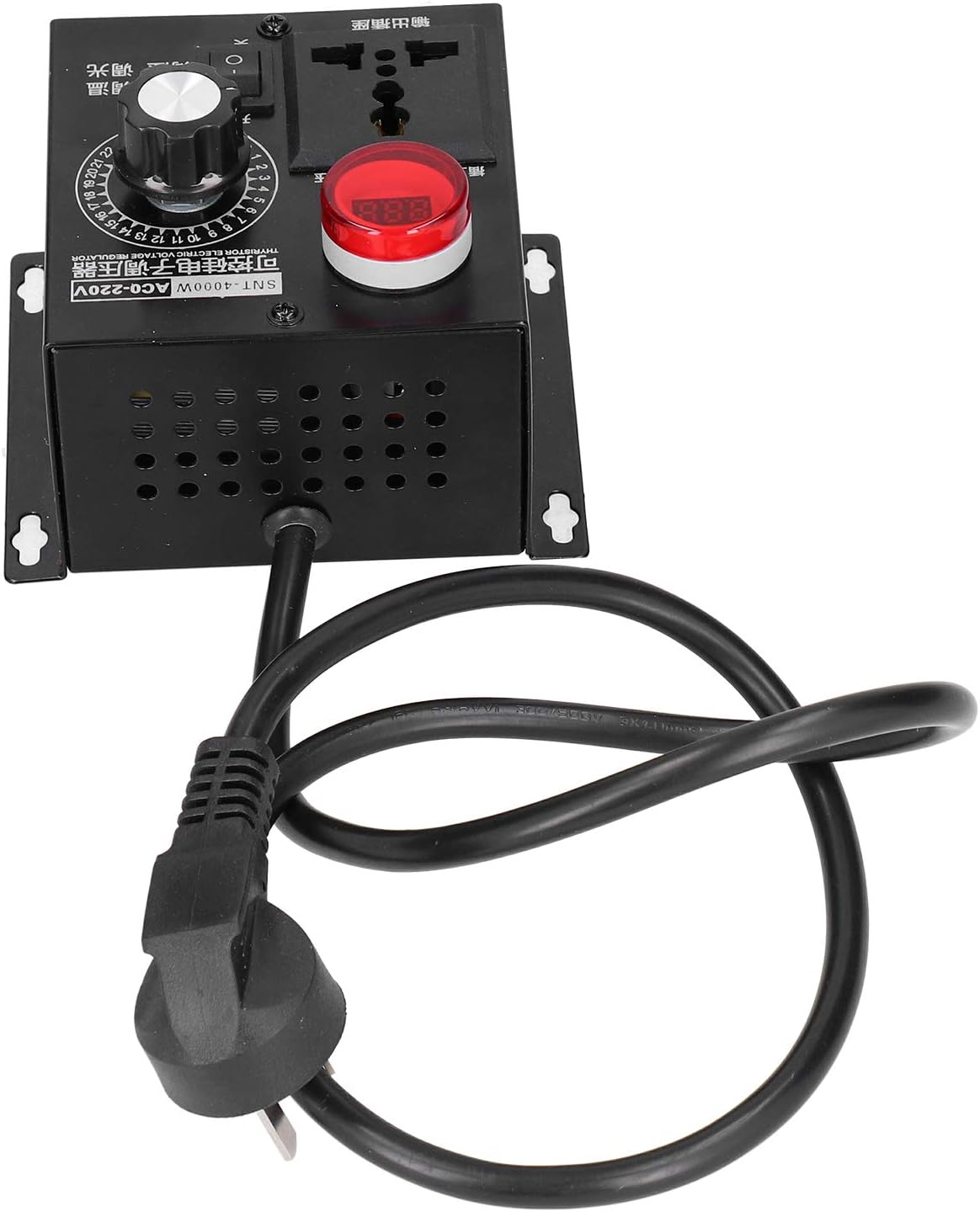

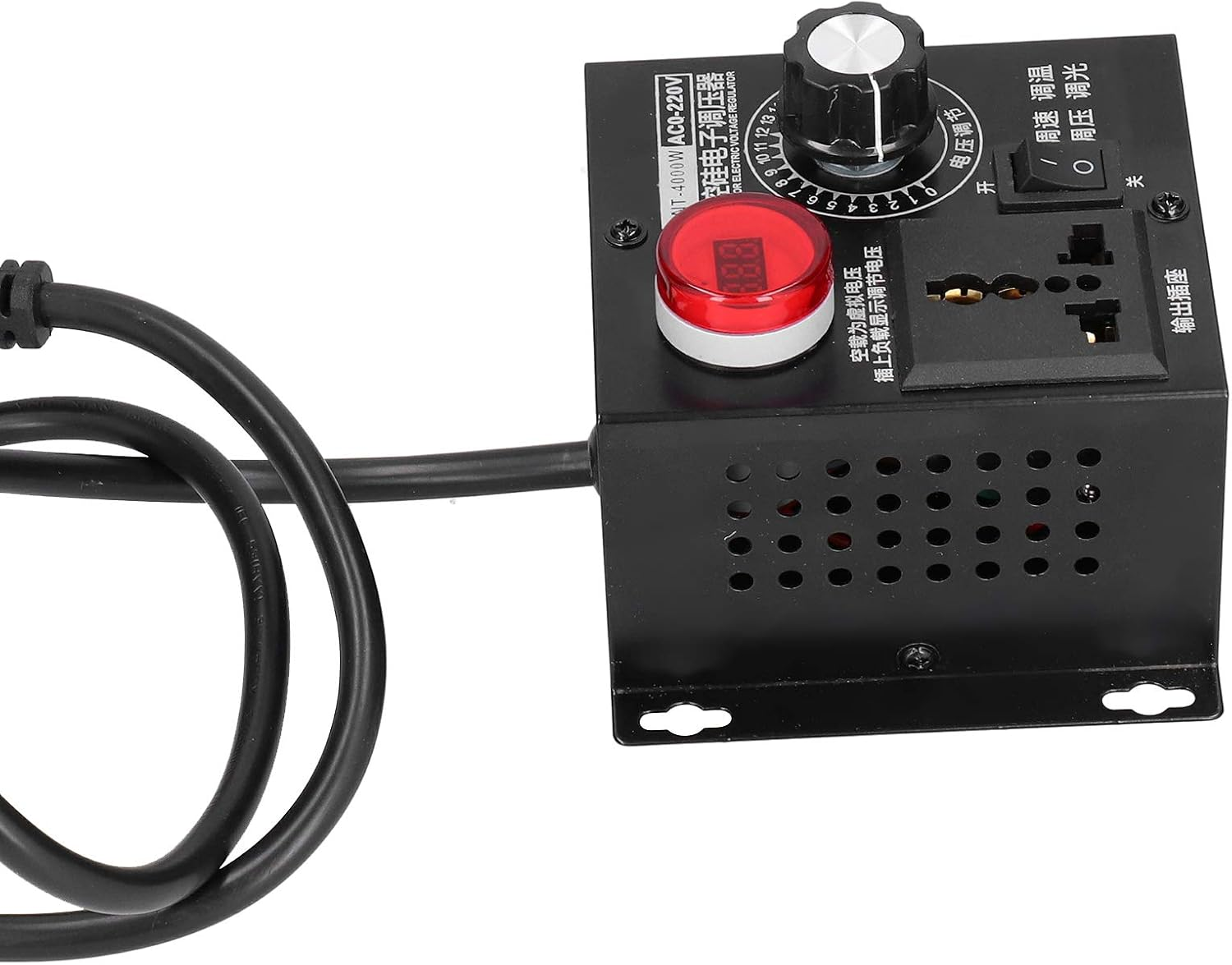

Item Type: AC Voltage Regulator
Material: Cold rolled steel, aluminum alloy, thyristor, PCB
Uses: High-power thyristor voltage regulation, speed regulation, temperature regulation, and dimming applications. Household appliances, industrial electrical appliances, scientific test equipment, electrical equipment for factories, schools, etc.
Item Parameter
Output voltage adjustable (Voltmeter does not work when the output voltage is lower than 5V)
Limit power 4000W (adapt to 2000W-3000W resistive load)
Regulating range steplessly adjustable (under load condition) step-down to 0V, step-up 10V
Rated current 9A
Limit current 18A
Overload protection switch Yes
Output power indicator Yes
Thyristor model STMicroelectronics, Thyristor: BTA41-600B/800B Size: Approx.Precautions And Instructions for Use:
1. When the machine is empty, the measured output voltage is a virtual voltage, and a load above 20W must be connected to measure the correct output voltage
2. Input AC power, the output is also AC, not DC.
3. The 4000W mentioned above refers to the limit power when working in a resistive load. The inductive load is 1/3 of the resistive load. The resistive load refers to the
