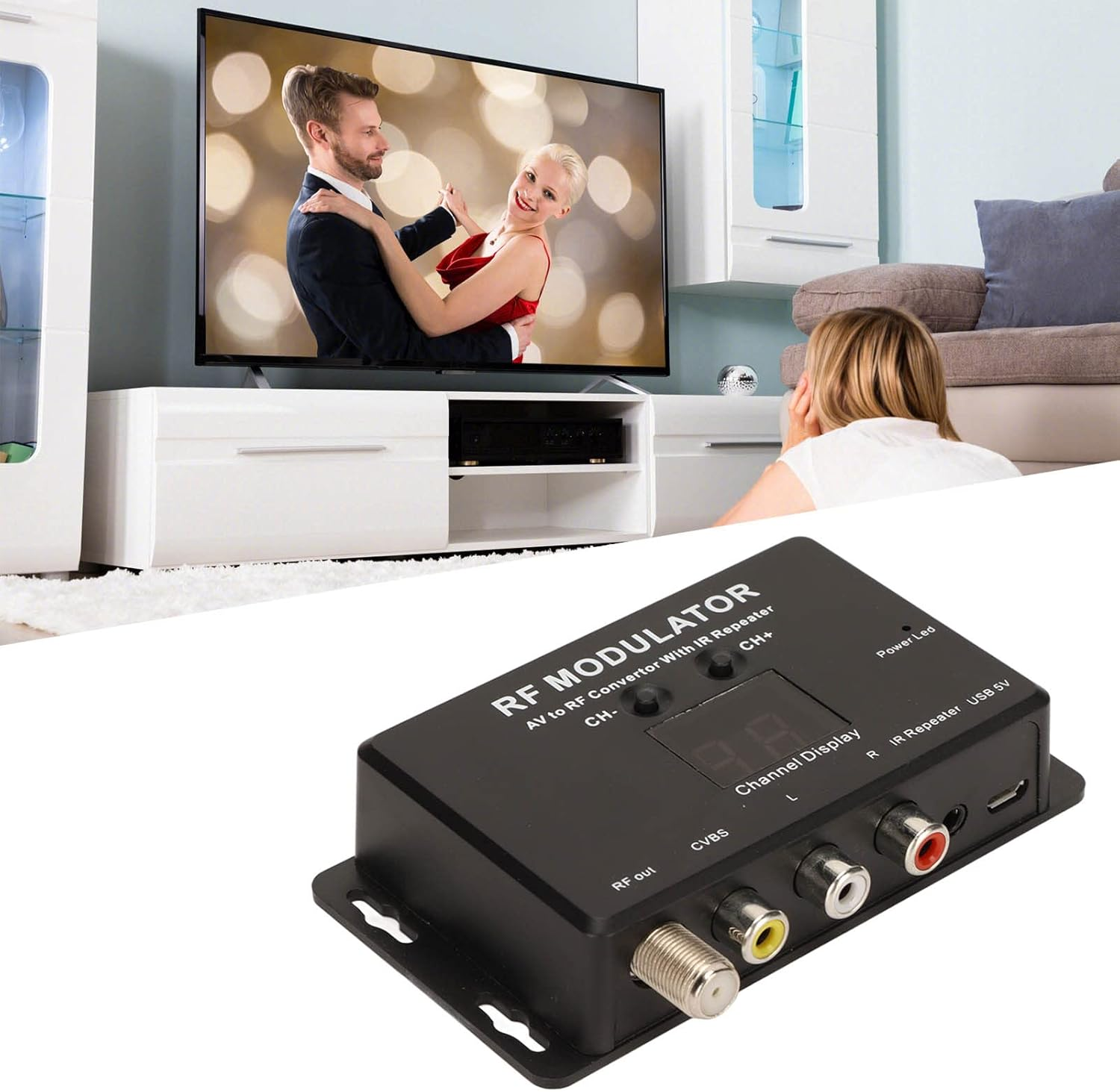

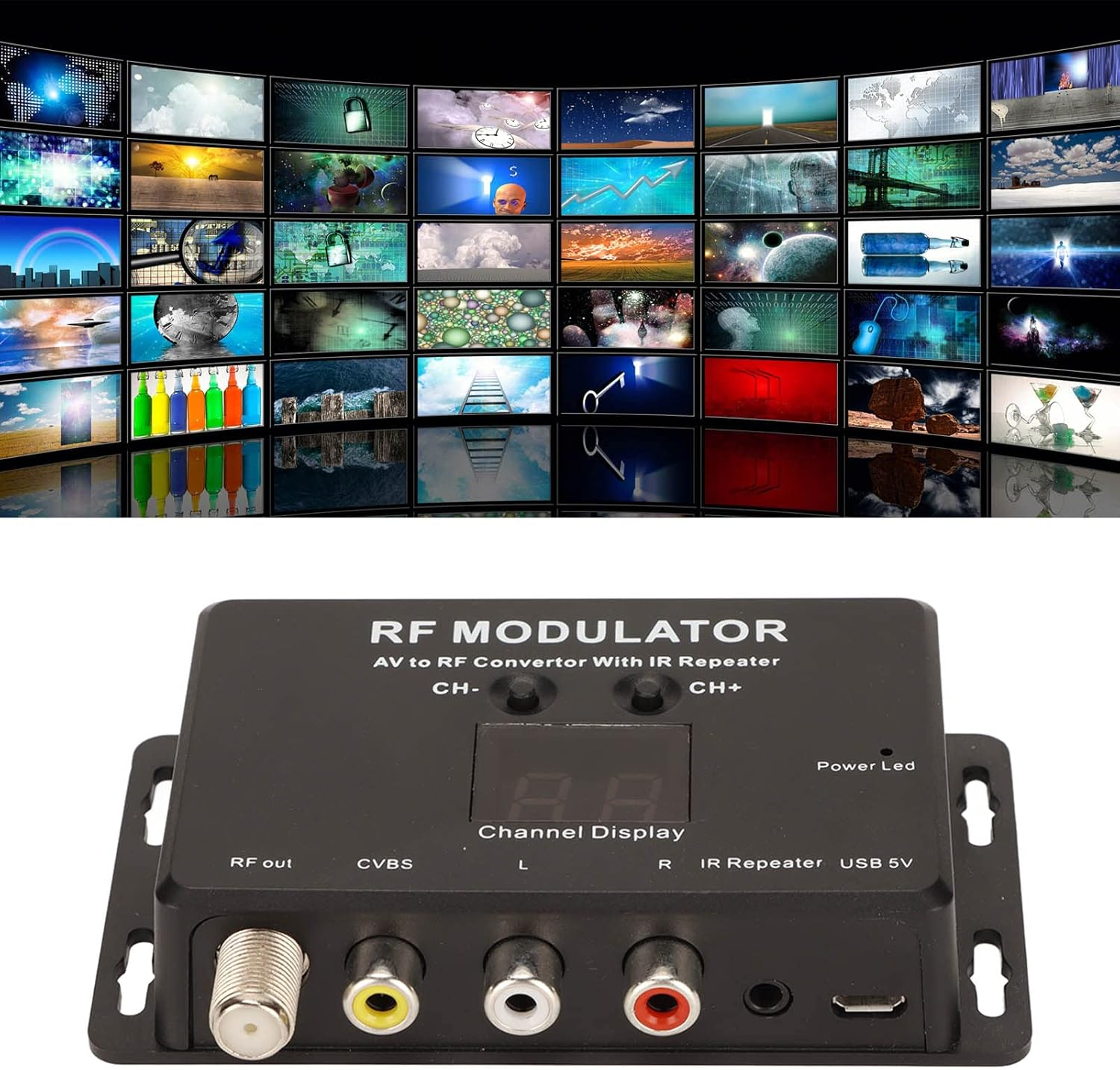

1. Sharing Funtion: AV to RF converter with IR repeater can share set top boxes and DVDs with several rooms.
2. Worldwide Use: RF modulator can set the flexibility of TV formats such as PAL NTSC and IF to meet users around the world.
3. Wide Range: Modulator has a wide frequency range of 471.25MHZ‑885.25MHZ, selectable transmit frequency and corresponding frequency display and built in memory will minimize and avoid interference.
4. PCB Circuit Design: The AV to RF TV modulator uses broadcast standard PCB circuit design to further enhance stability and better image quality.
5. Applicable: AV to RF TV modulator for global or external setup using NTSC PAL B G, 1, D K, L M N TV formats.
Specification:

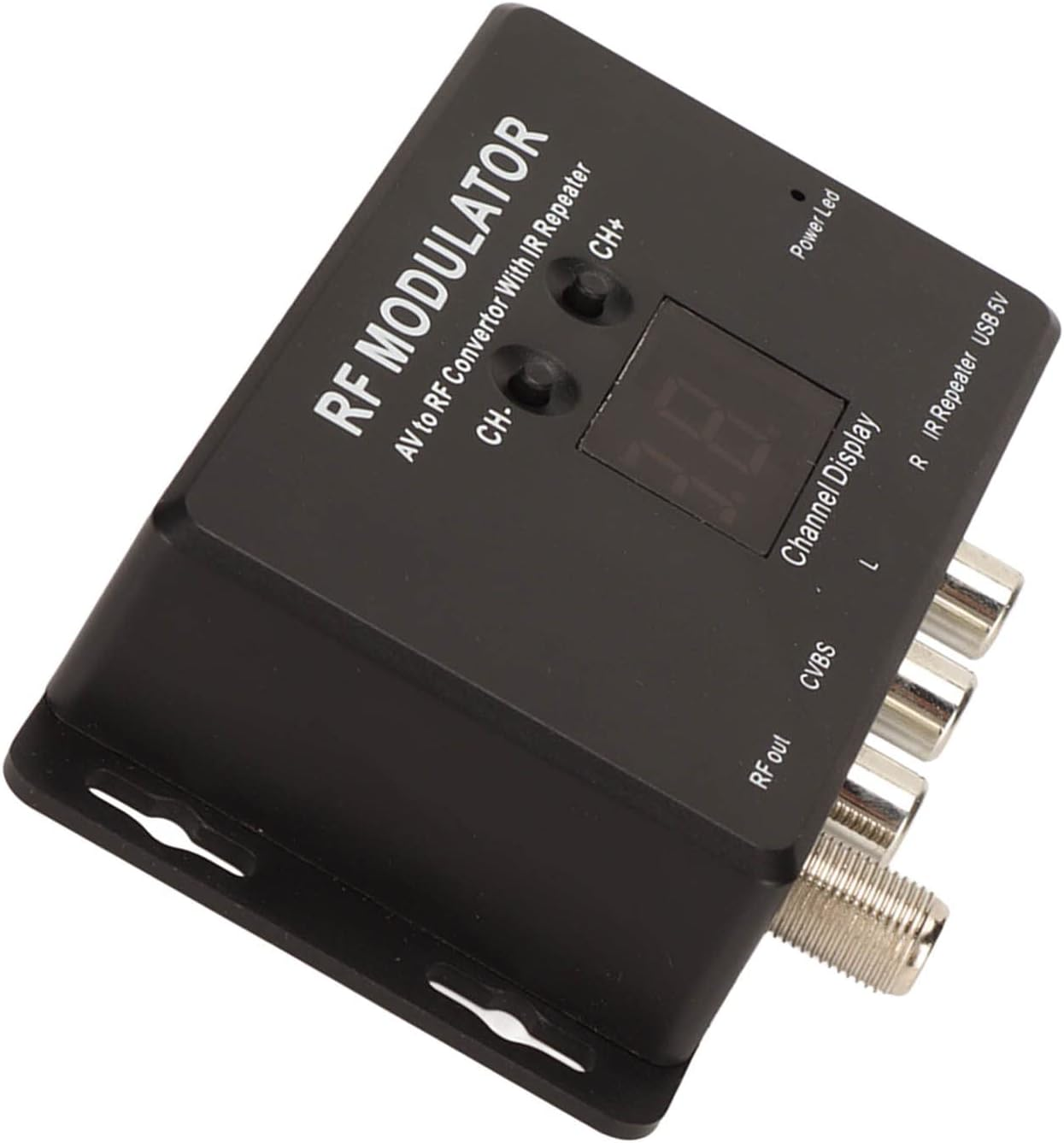

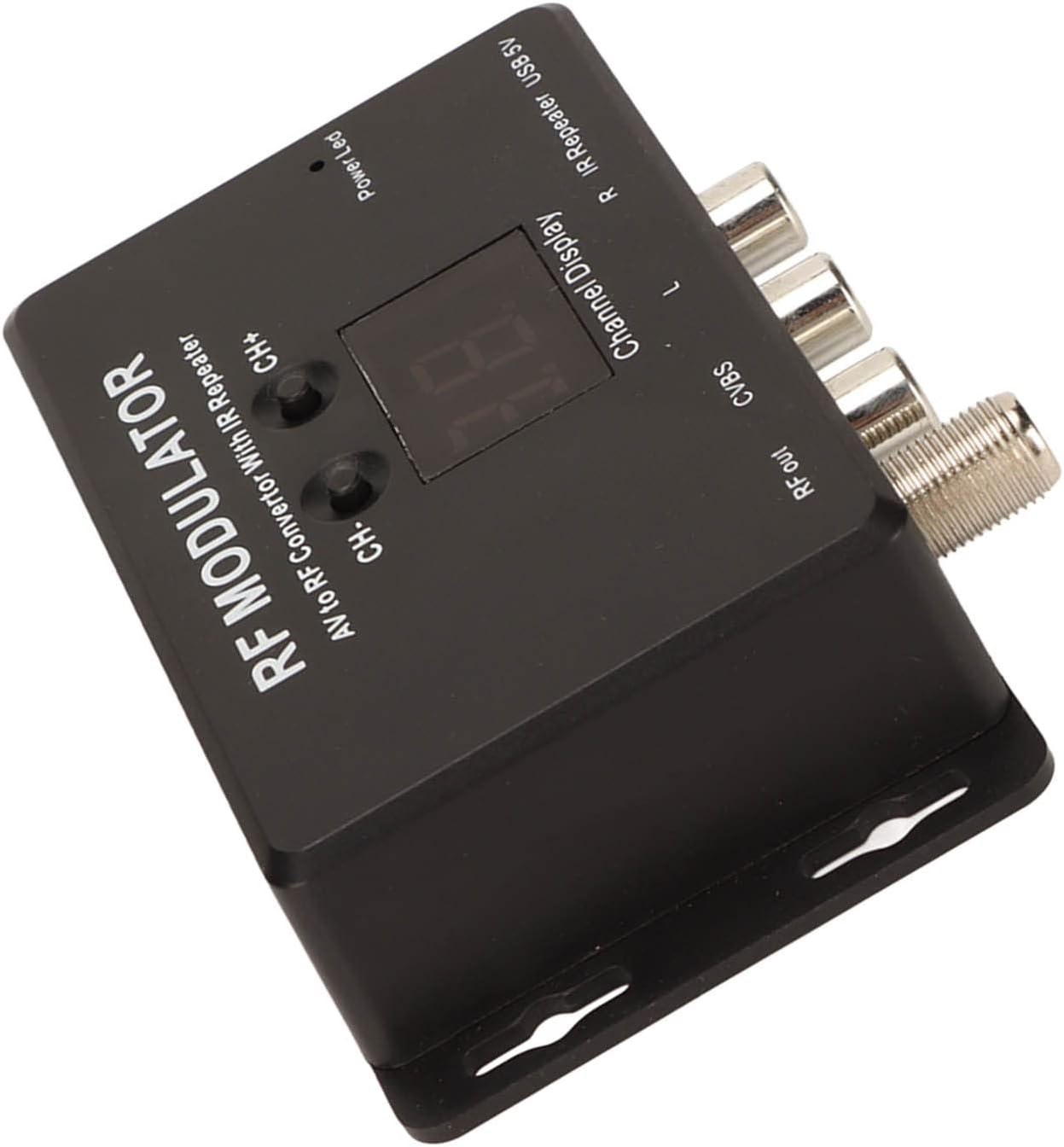

Item Type: RF Modulator
Material: ABS
RF Frequency Range: 471.25MHz-885.25MHz
Channel Range: PAL:21-69;NTSC:14-83
Default Factory Setting: Channel 21 (471.25MHz) PAL
TV Format: PAL NTSC
Sound Carrier Frequency: 4.5 5.5 6.0 6.5MHz
IR Remote Frequency: 34-56KHz
How to Use:

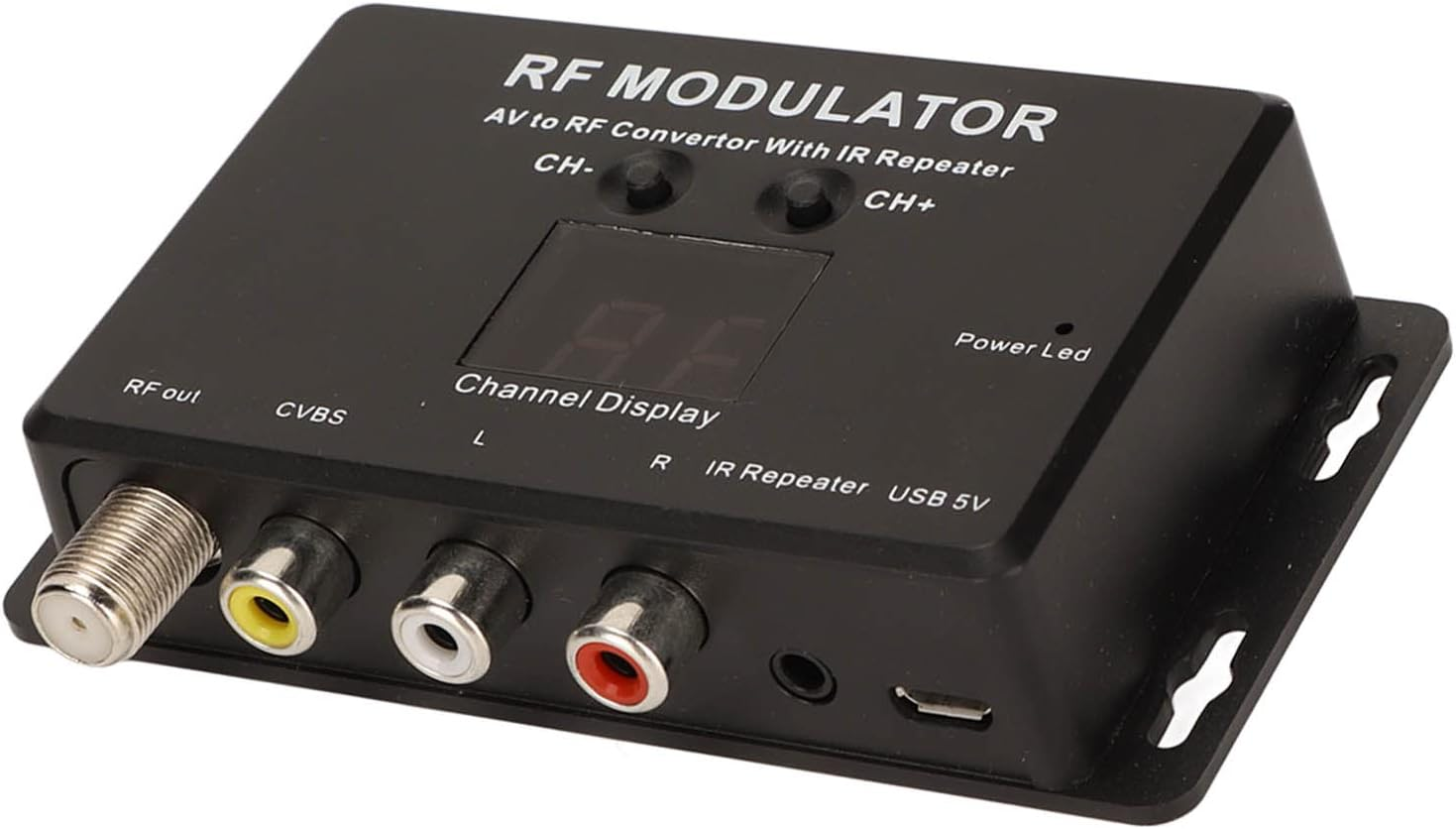

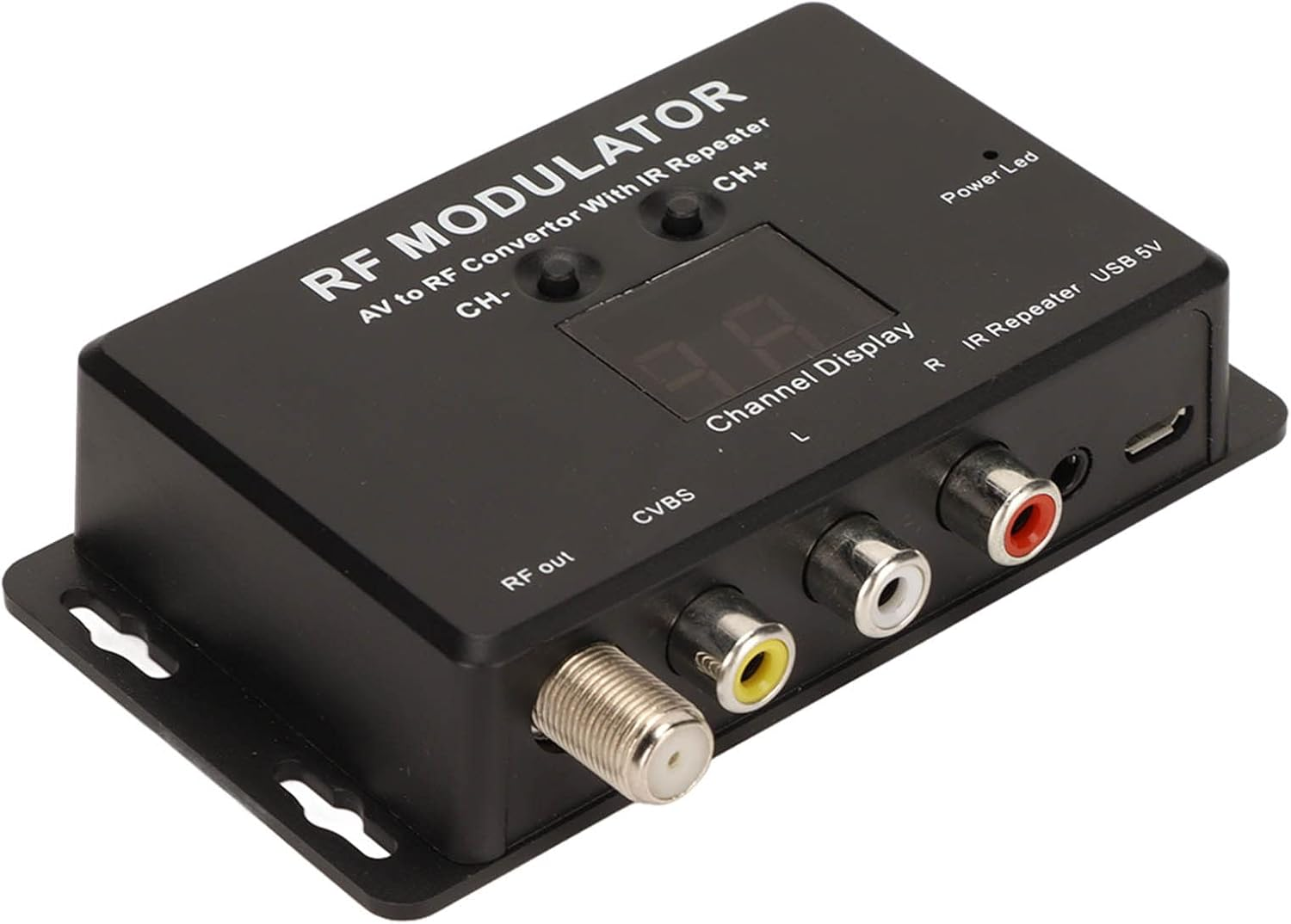

1. A V output on the set top box, DVR or DVD to A V input on the transmitter box using cable.
2. RF output for connecting to a TV panel or directly to the receiving host using a coaxial cable.
3. Power supply: USB DC 5V, can be connected through any device with USB port.
Package List:
1 x RF Modulator
1 x USB Cable
1 x IR Extender
1 x Manual
1 x Double Sided Sticker
