1. This is a non‑isolation DC regulated power converter module with long service life
2. High power and stable output, it converts 12VDC or 24VDC to 5VDC

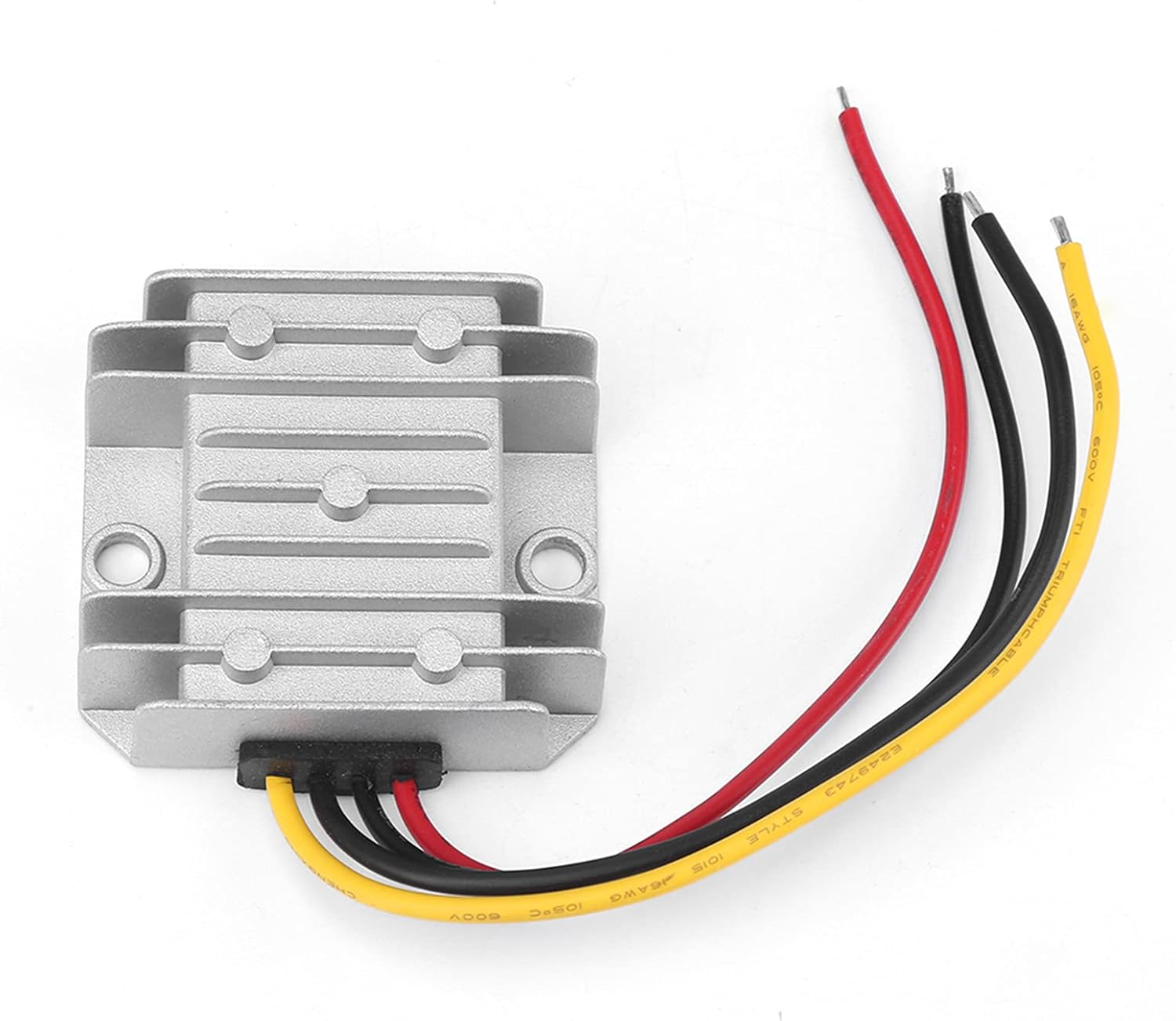

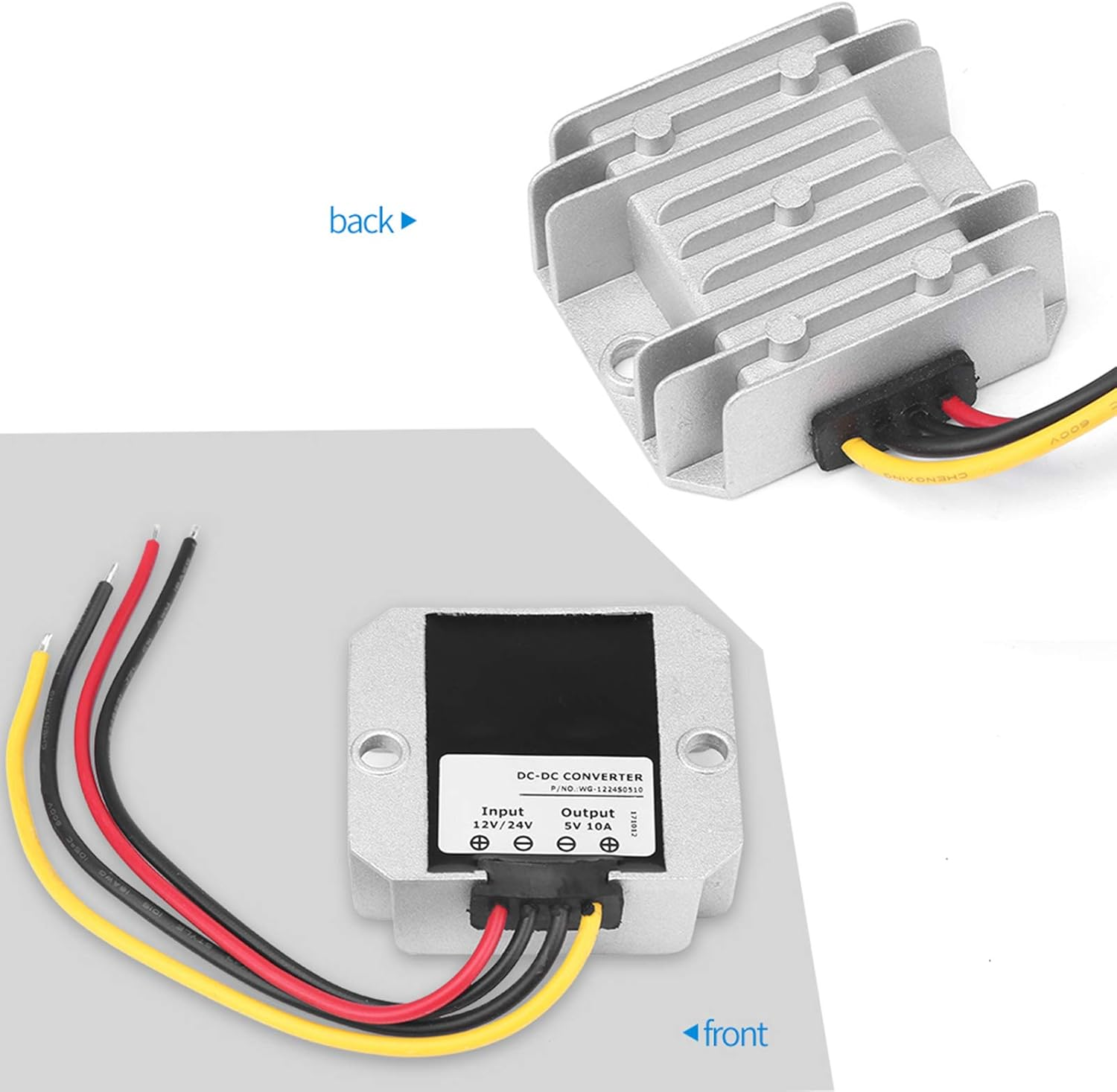

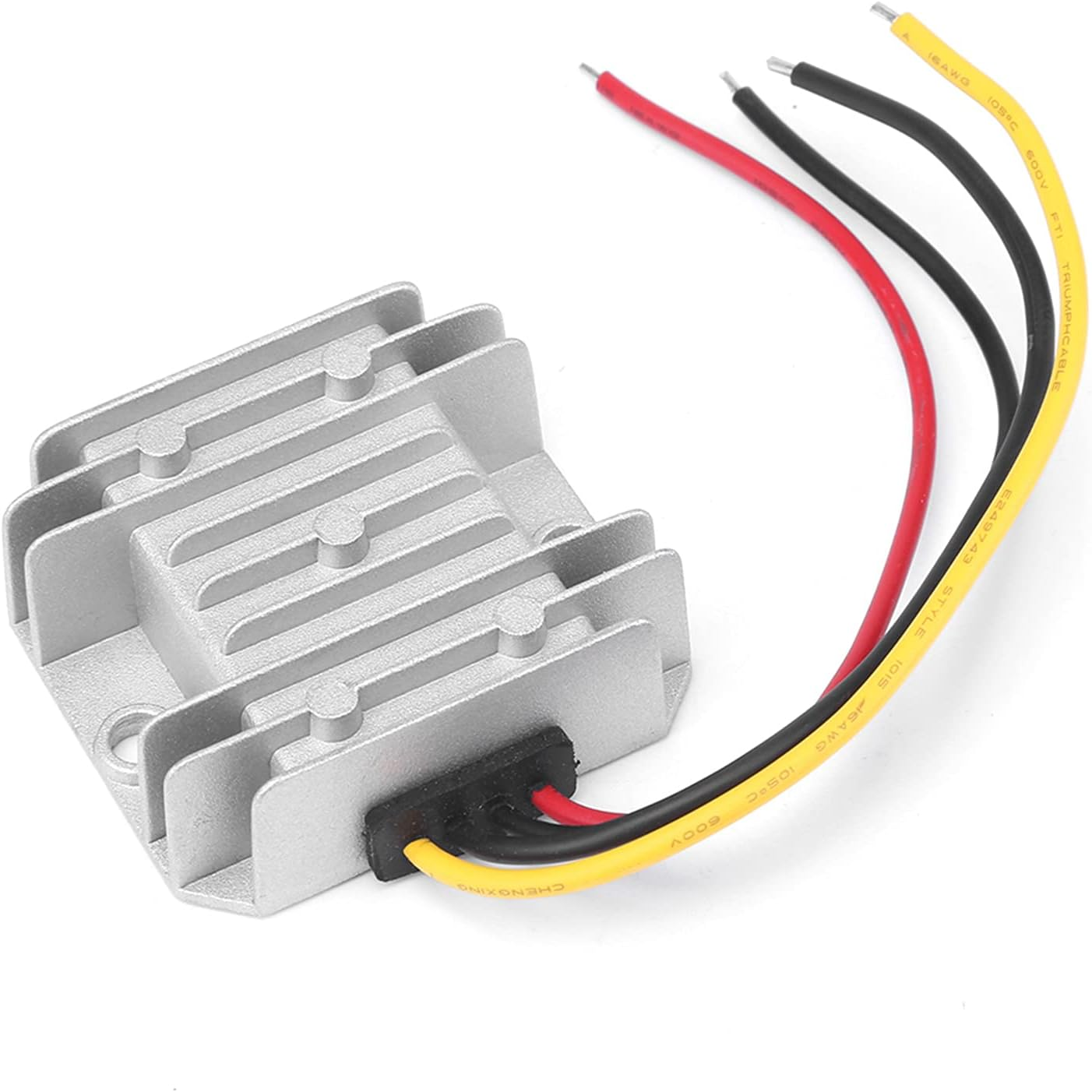

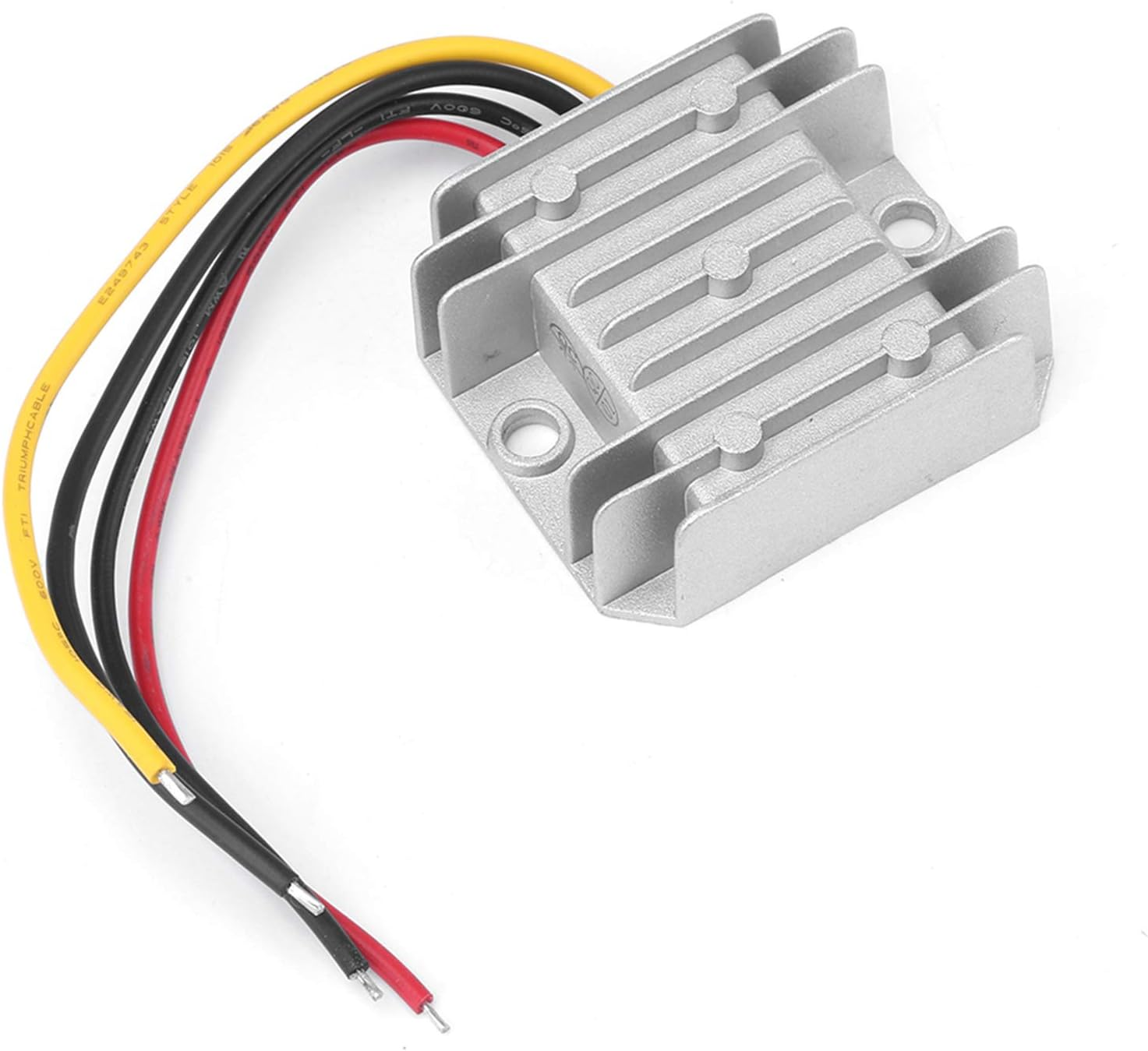

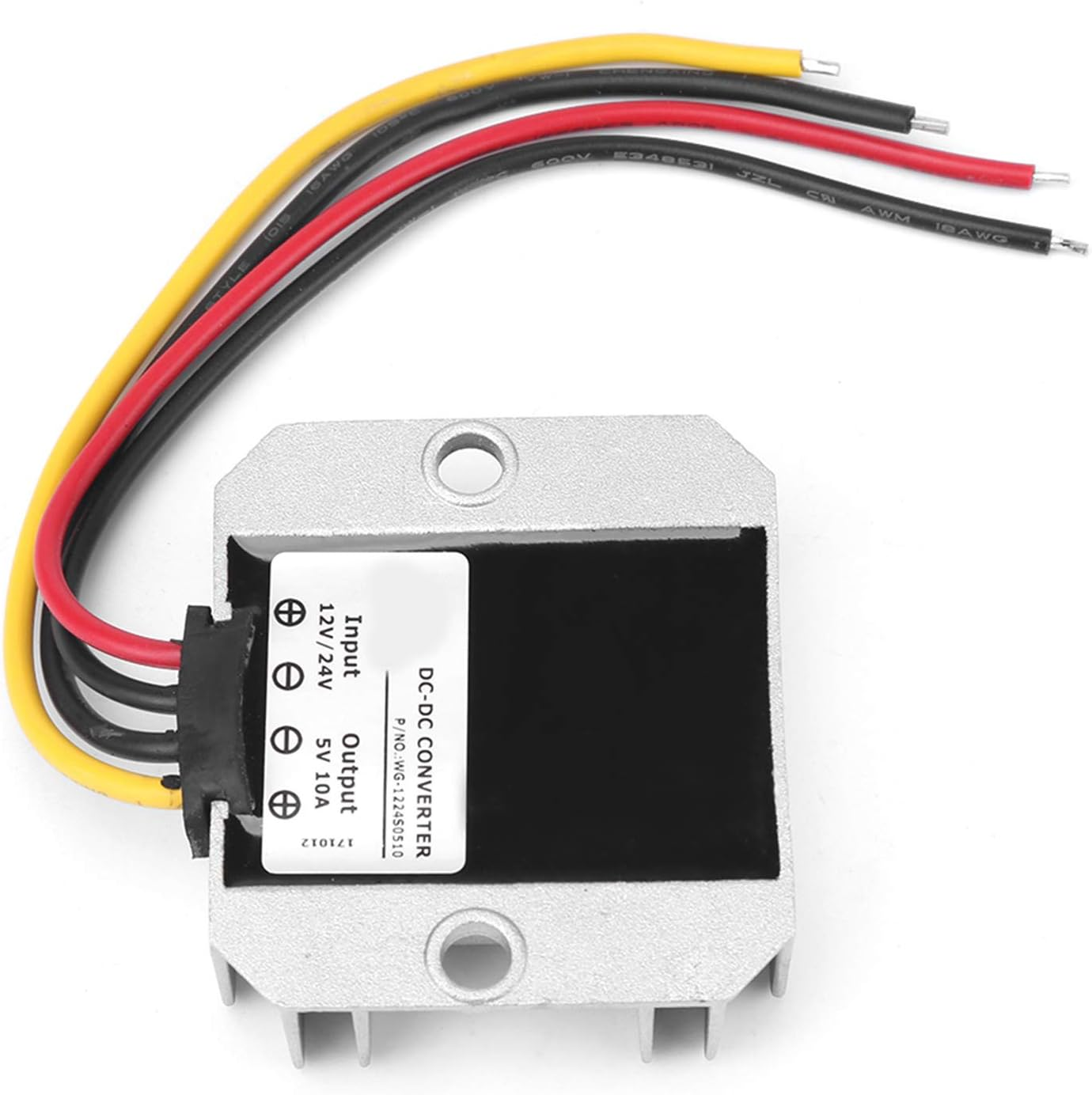

3. Aluminum alloy housing is small and easy to mount; sealed with silicone, it is waterproof(IP68), dust and vibration resistant
4. High quality components ensures high conversion efficiency, up to >94%
5. Wide input voltage, it supports over current, over voltage, over temperature and short circuit protection
Specification:
Features:
This is a non-isolation DC regulated power converter module with long service life.
High power and stable output, it converts 12VDC or 24VDC to 5VDC.
Aluminum alloy housing is small and easy to mount; sealed with silicone, it is waterproof(IP68), dust and vibration resistant.
High quality components ensures high conversion efficiency, up to >94%.
Wide input voltage, it supports over current, over voltage, over temperature and short circuit protection.
Specifications:
Input Voltage12V/24V DC
Input Voltage Range8-40V DC
Conversion Efficiency>94%
Output Voltage5V
Output Current10A
Rated Output Power50W
Peak Output Power130%
Voltage Regulation<1%
Load Regulation<2%
No-load Current<20mA
Ripple<40mV
Operating Temperature-30℃~+80℃
Ingress Protection RatingIP68
Over Current ProtectionYES
Over Voltage ProtectionYES
Over Temperature ProtectionYES
Short Circuit ProtectionYES
Size65 x 57 x 23mm/2.55 x 2.24 x 0.9in
Package Includes:
1 x Voltage Converter
Note:

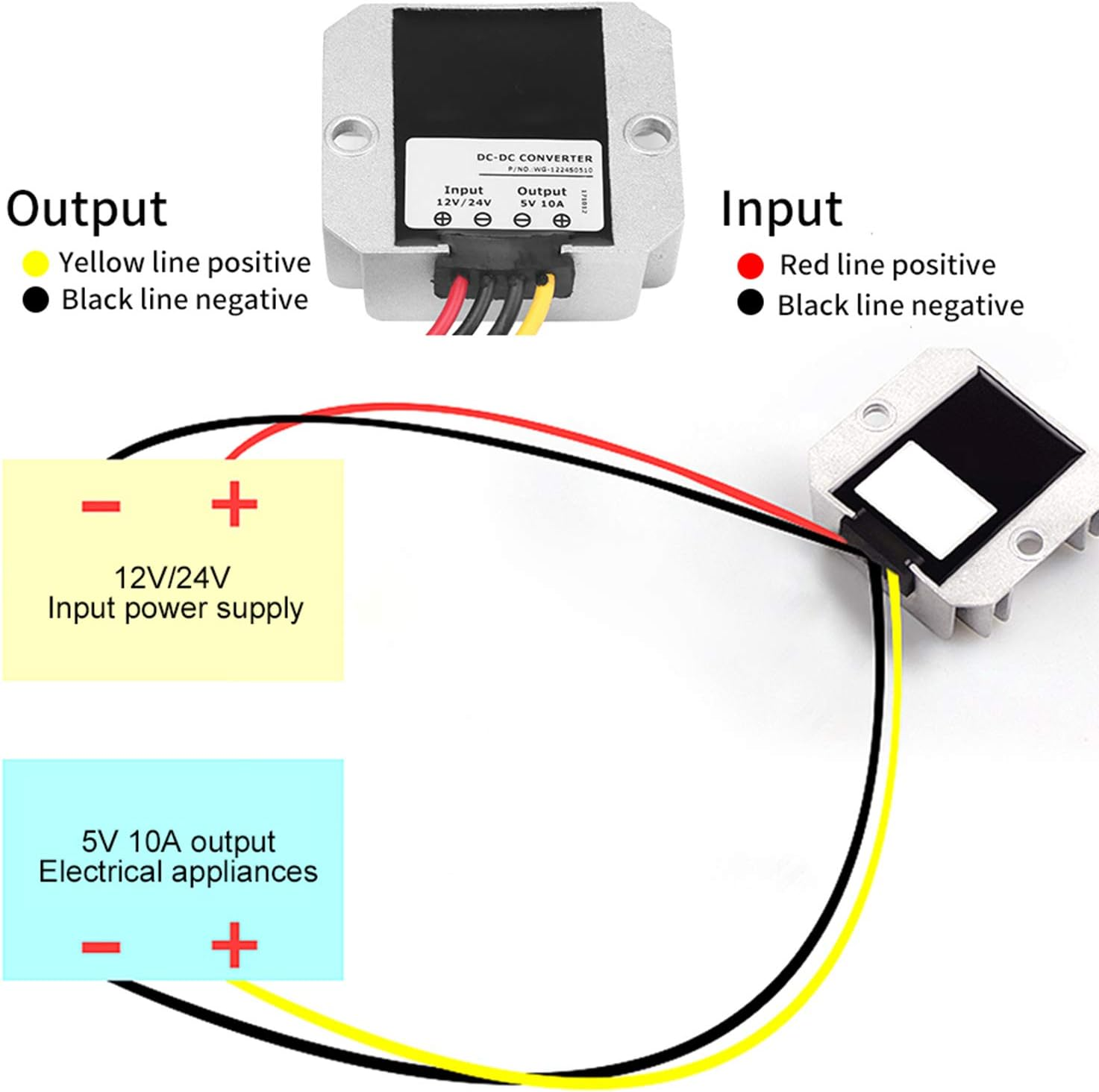

Please be careful and connect wires correctly, otherwise the module will be damaged.
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
