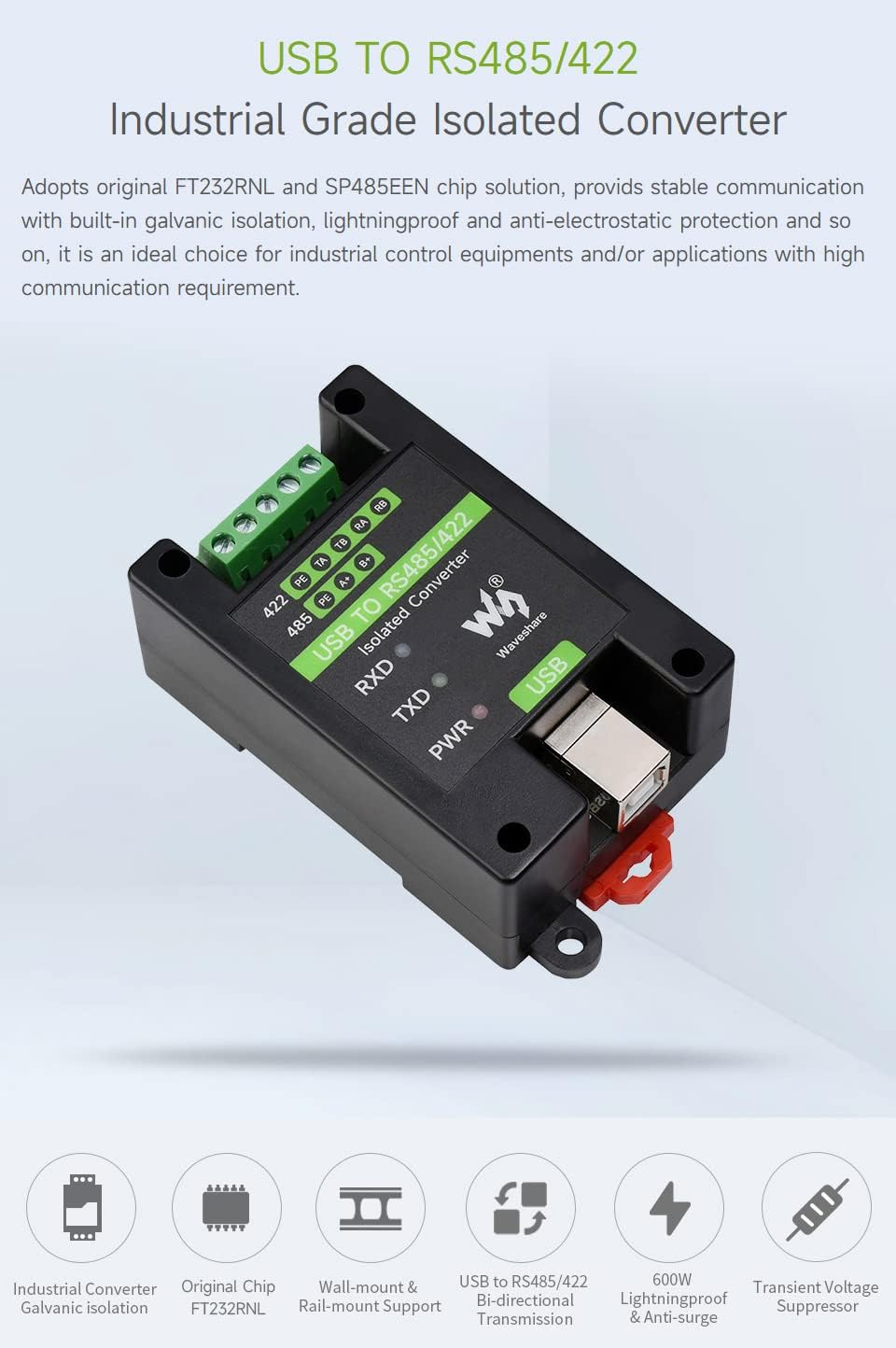

• Adopts original FT232RNL and SP485EEN chip solution, provids stable communication with built-in galvanic isolation, llghttningproof and anti-electrostatic protection and so on, it is an ideal choice for industrial control equipments and/or applications with high communication requirement.

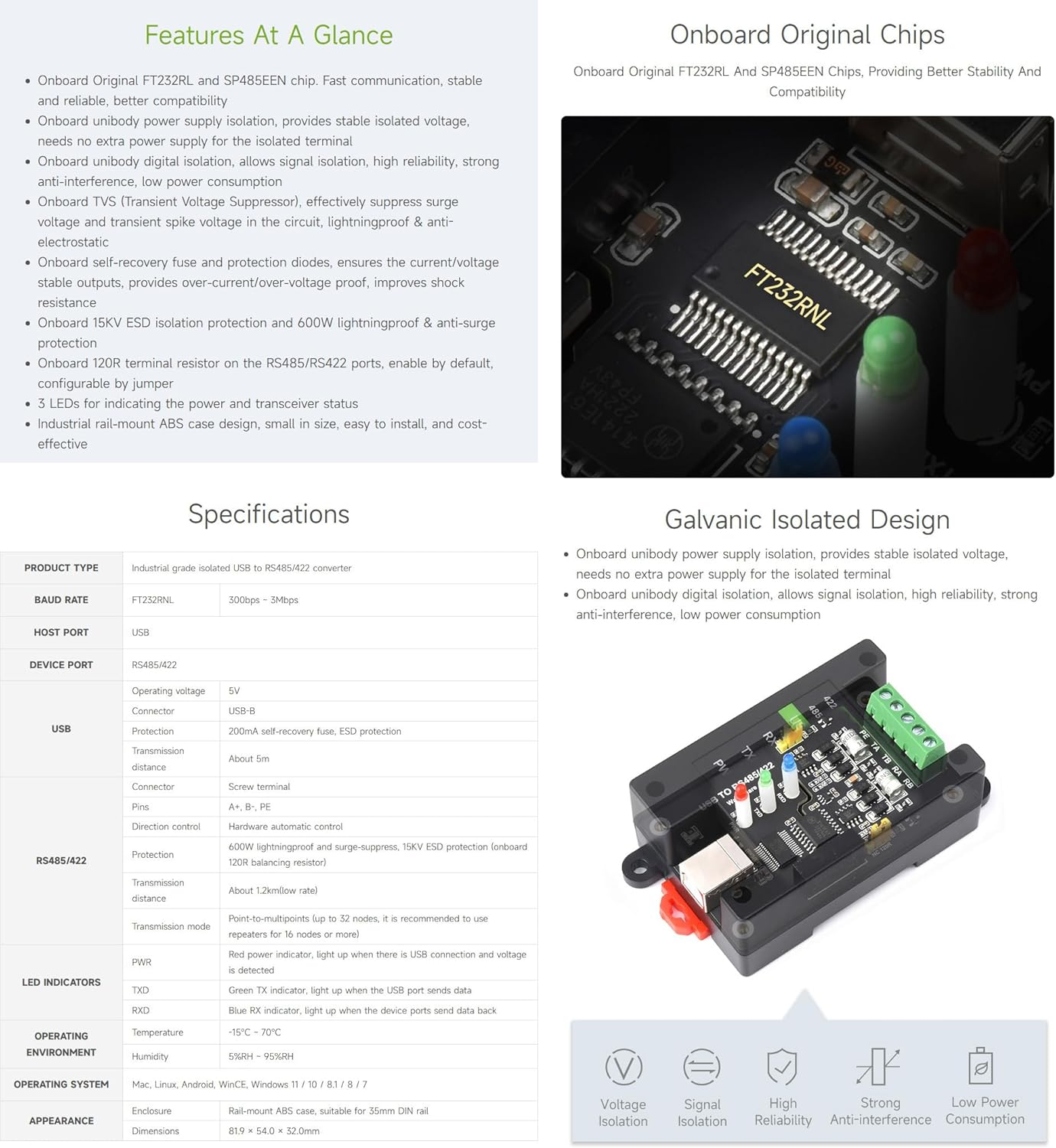

Features At A Glance

• Onboard Original FT232RL and SP485EEN chip. Fast communication, stable and reliable, better compatibility
• Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
• Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
• Onboard Transient Voltage Suppressor, effectively suppress surge voltage and transient spike voltage in the circuit, llghttningproof & anti-electrostatic
• Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
• Onboard 15KV ESD isolation protection and 600W lightningproof & anti-surge protection
• Onboard 120R terminal resistor on the RS485/RS422 ports, enable by default, configurable by jumper
• 3 LEDs for indicating the power and transceiver status
• Industrial rail-mount ABS case design, small in size, easy to install, and cost-effective

Galvanic Isolated Design

• Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
• Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption

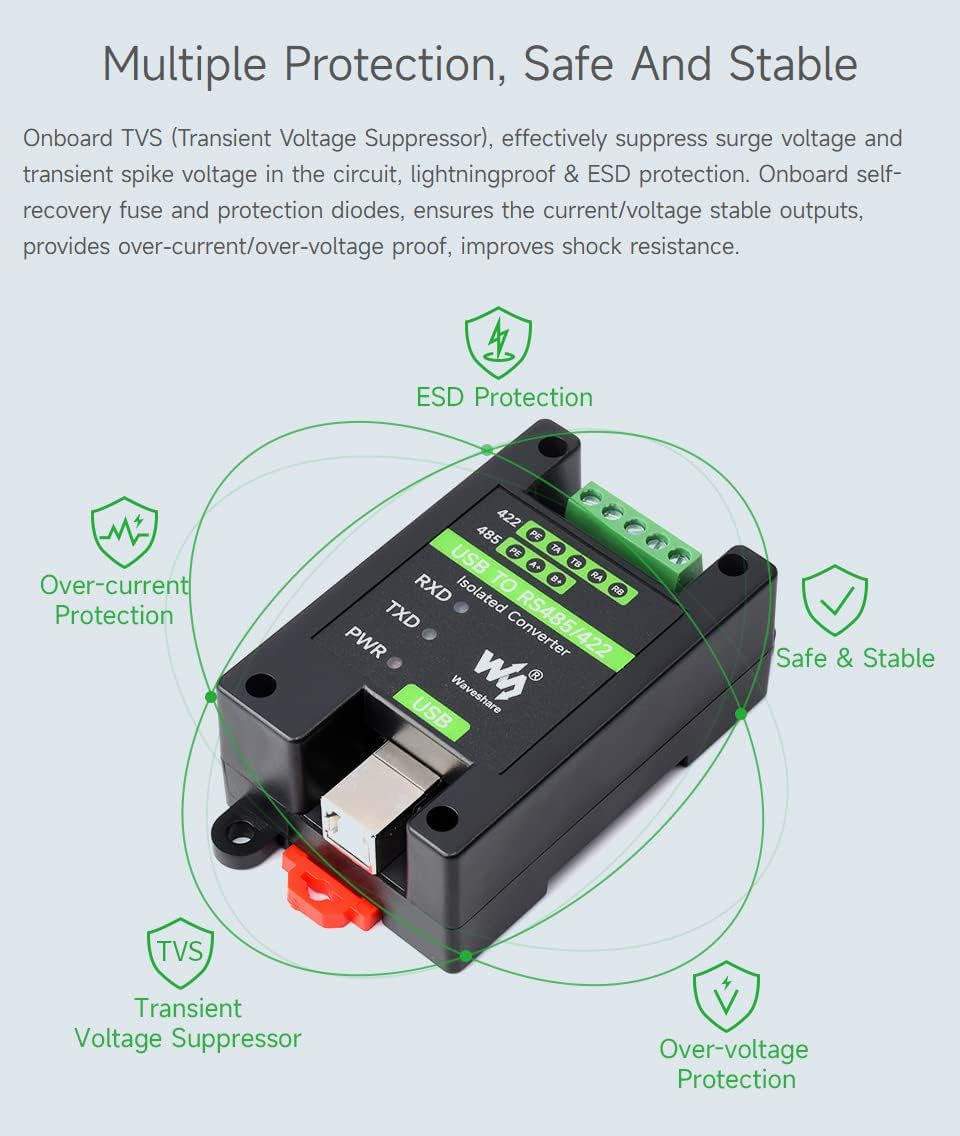

Multiple Protection, Safe And Stable

• Onboard Transient Voltage Suppressor, effectively suppress surge voltage and transient spike voltage in the circuit, llghttningproof & ESD protection. Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance.

There is the online user manual, please check it before/while using.
