4 * 50KG Scale Body Load Cell Resistance Strain Weight Sensor + HX711 AD Module

4 * 50KG Scale Body Load Cell Resistance Strain Weight Sensor + HX711 AD Module

Brand: BIGTEDDY
3.6
A$11.35
Availability:
  • In Stock

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

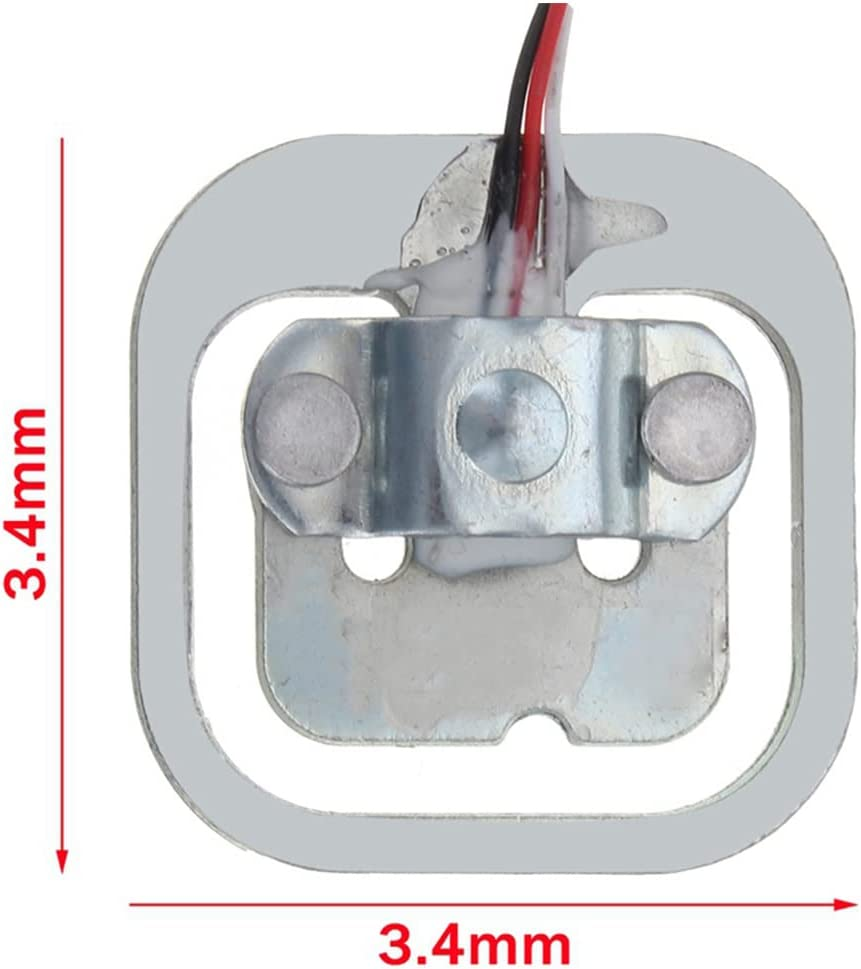

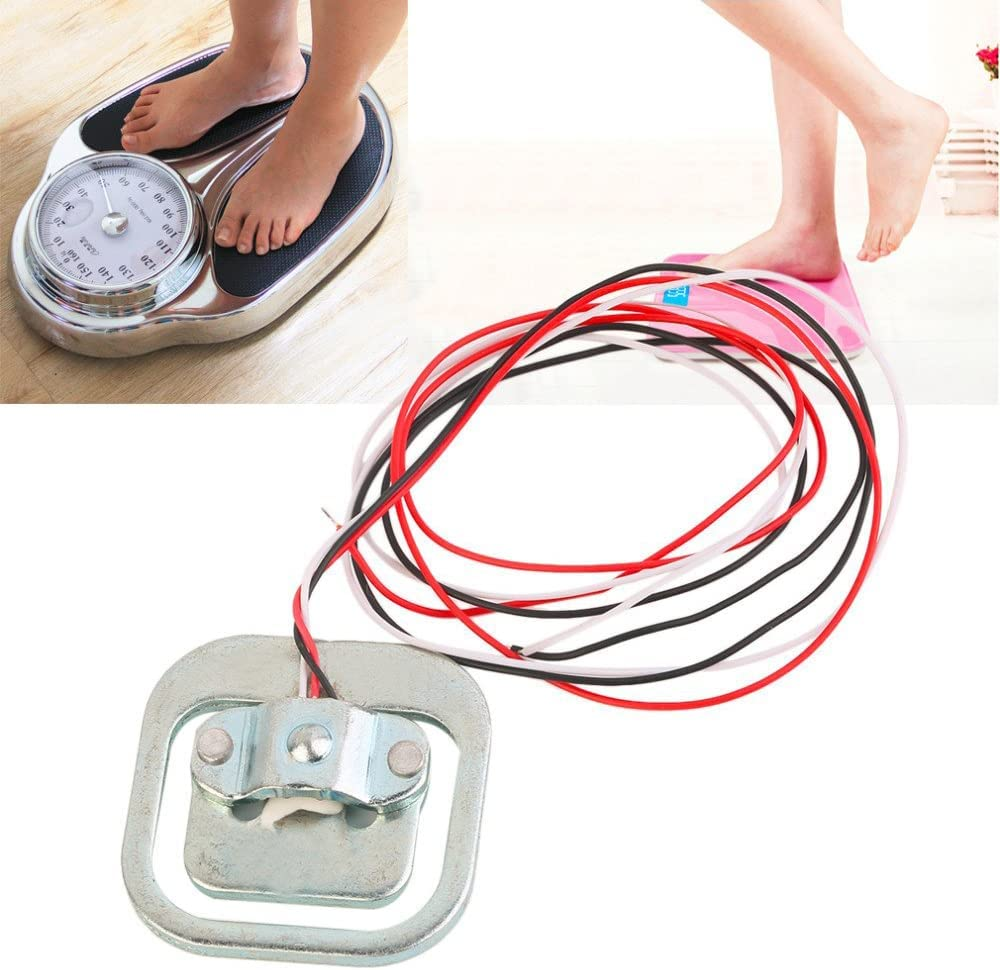

  • This load sensor, sometimes called a strain gauge, is the same one found in digital bathroom scales.
  • The sensor is a group of half-bridge strain gauge.
  • Fine workmanship and good performance.
  • Easy to use.
  • Long service life.

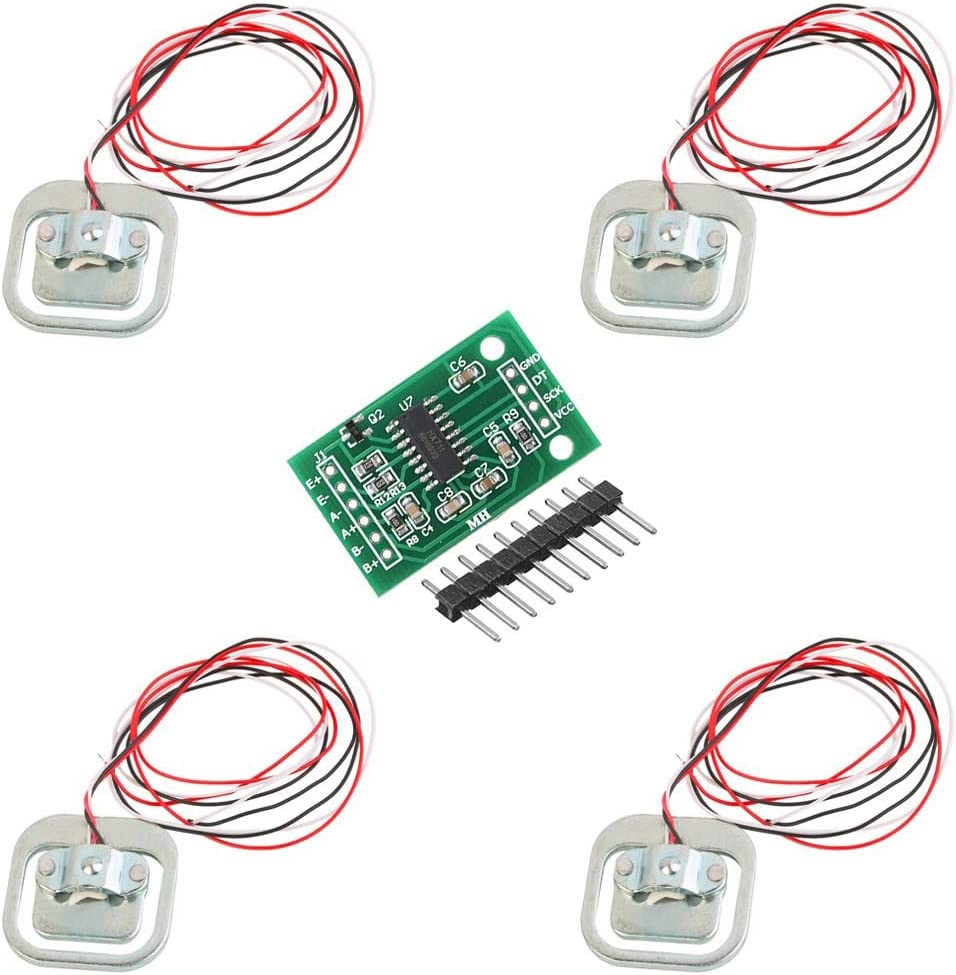

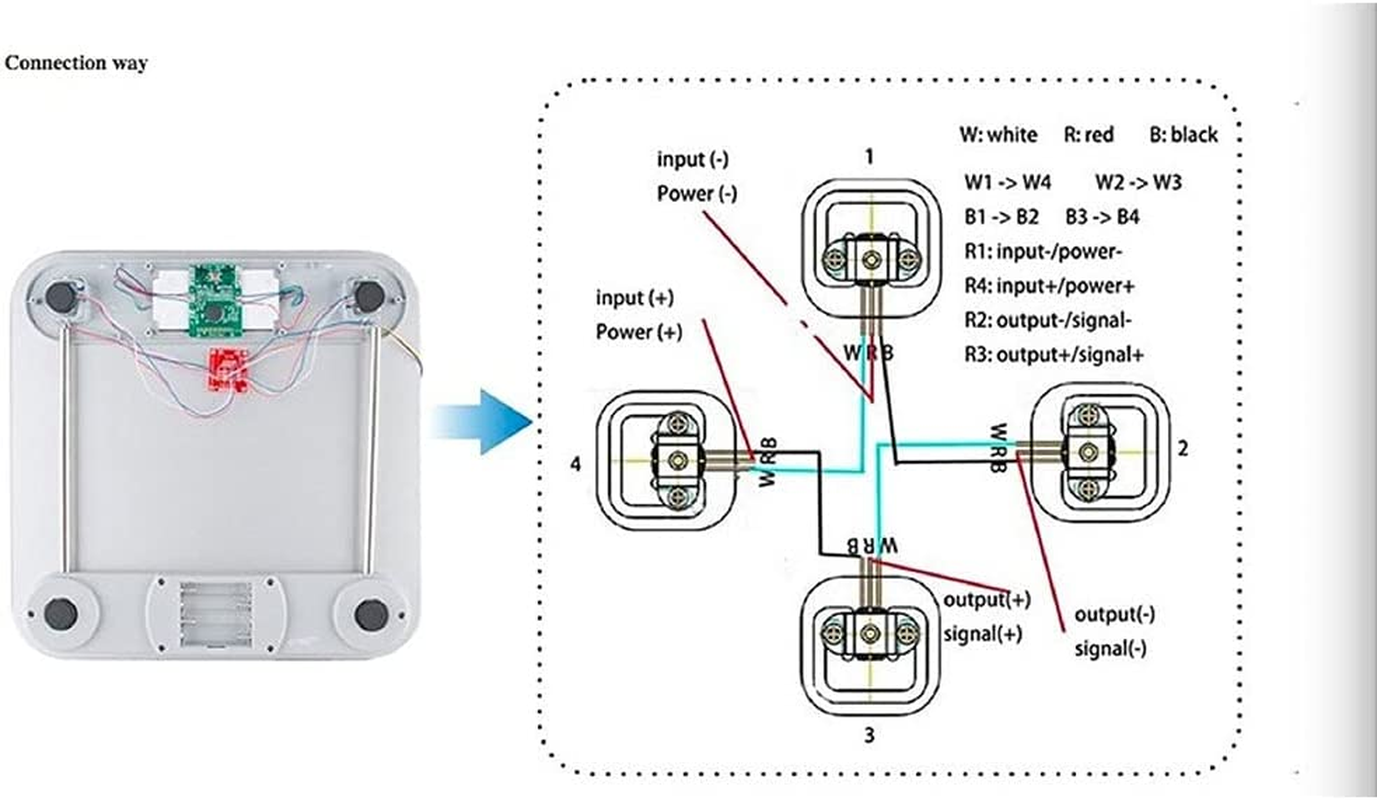

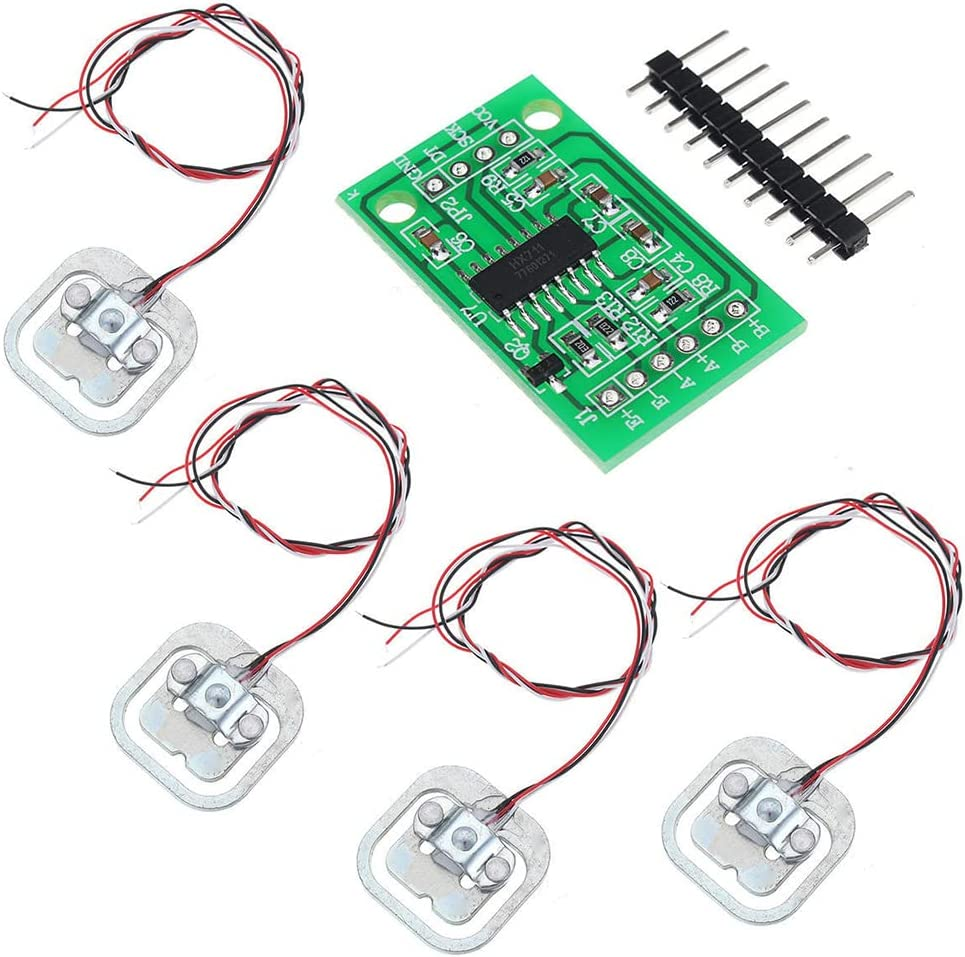

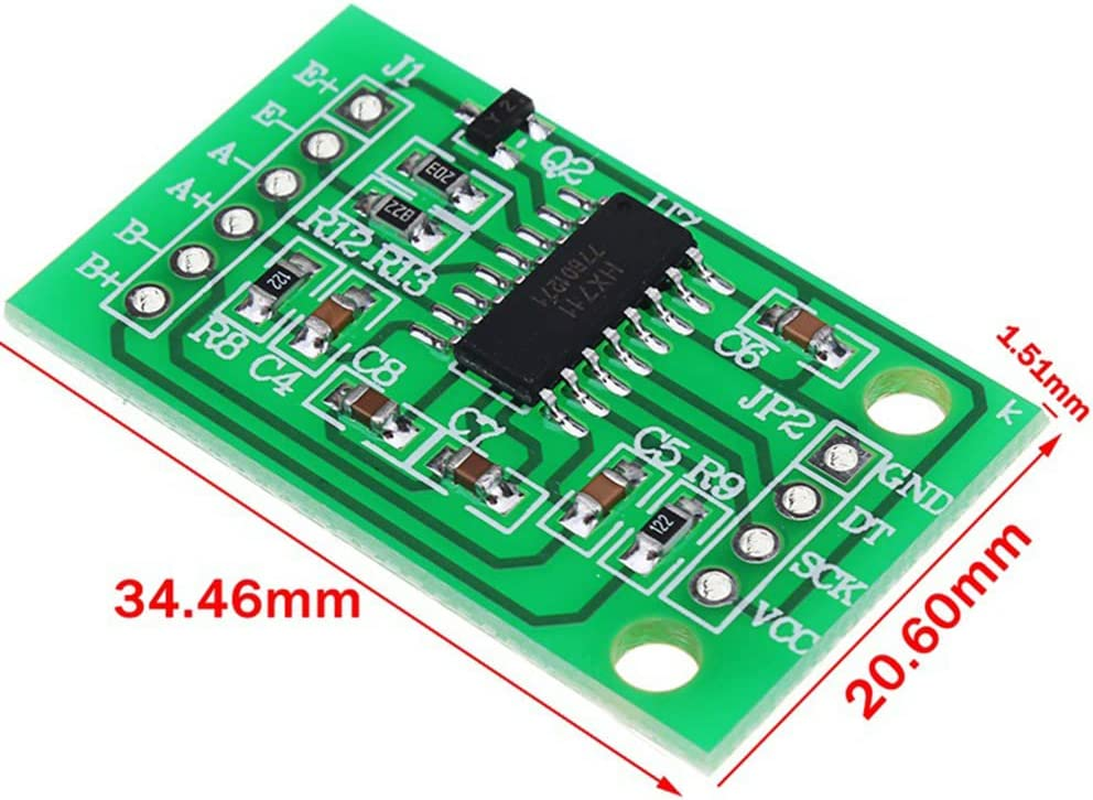

Description: Brand new Color: as shown in picture This load sensor, sometimes called a strain gauge, is the same one found in digital bathroom scales. The sensor is a group of half-bridge strain gauge. Fine workmanship and good performance. Easy to use. Long service life. 3 ways to use it: 1. Use one sensor with an external resistor to form a full-bridge measurement, the range of a sensor range: 50kg. External resistance on the higher requirements. 2. Use two sensors to form a full-bridge measurement, measuring range for the sum of the two sensors: 50kgx2 = 100kg 3. Use four sensors to form a full-bridge measurement, measuring range for the sum of four sensors: 50kgx4 = 200kg Package Included: 4 x Human Scale Load Cell 50kg 1 x HX711 AD Weighing Module

  • Item Weight: 80 g
  • Brand: BIGTEDDY
  • Package Dimensions: 18 x 11.9 x 1.4 cm; 80 Grams
