Waveshare Industrial Serial Server, RS232 to RJ45 Ethernet, TCP/IP to Serial, Rail-Mount Support, with POE Function

Waveshare Industrial Serial Server, RS232 to RJ45 Ethernet, TCP/IP to Serial, Rail-Mount Support, with POE Function

Brand: Waveshare
5.0
A$55.45
Availability:
  • In Stock

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • This RS232 TO POE ETH (B) is the hardware upgrade version, support PoE Ethernet port power supply
  • This is a RS232 device data acquisitor/IoT gateway designed for industrial environment
  • It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS232 to JSON, etc.

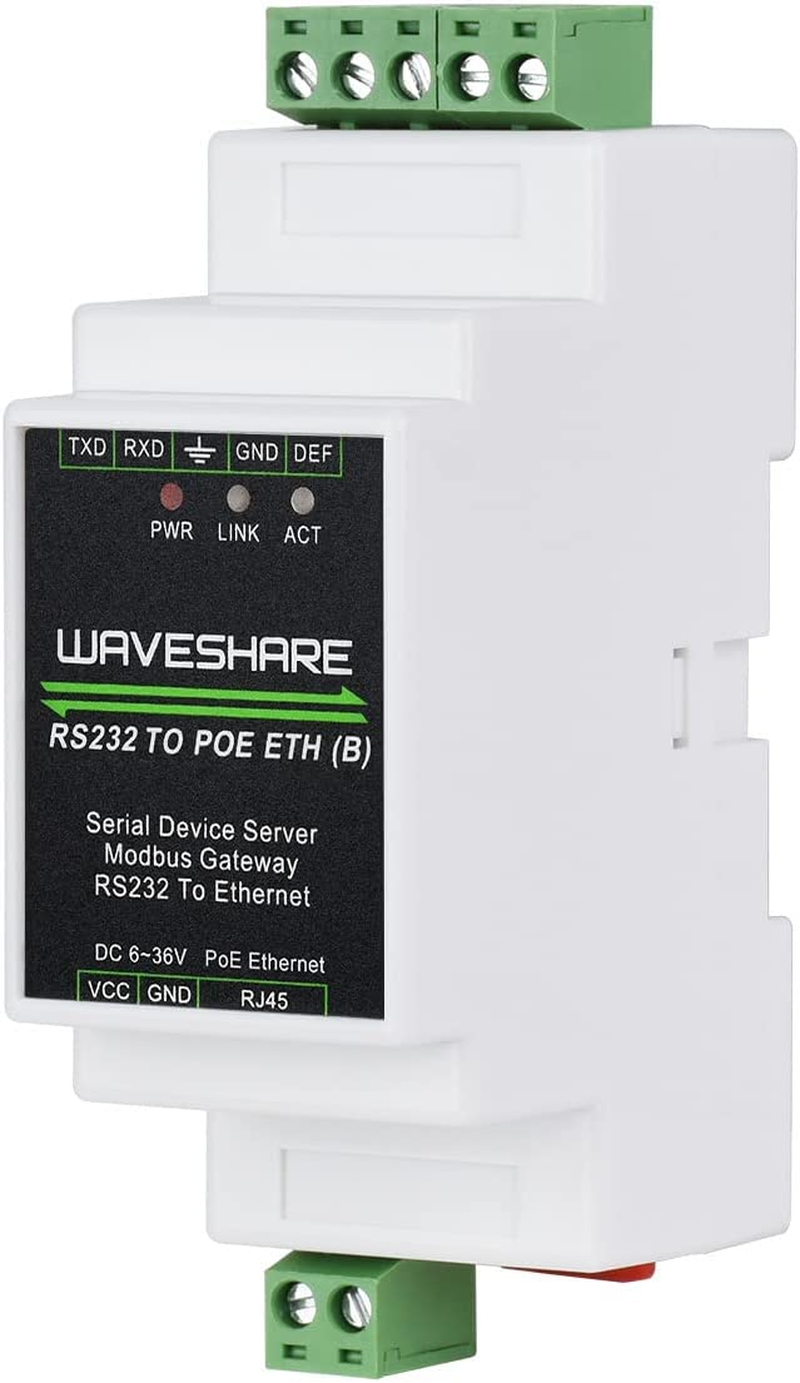

  • The module features RS232 and Ethernet port(POE function is optional), uses screw terminals for power input
  • Rail-mount case design, small in size, easy to install. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...

Product Description

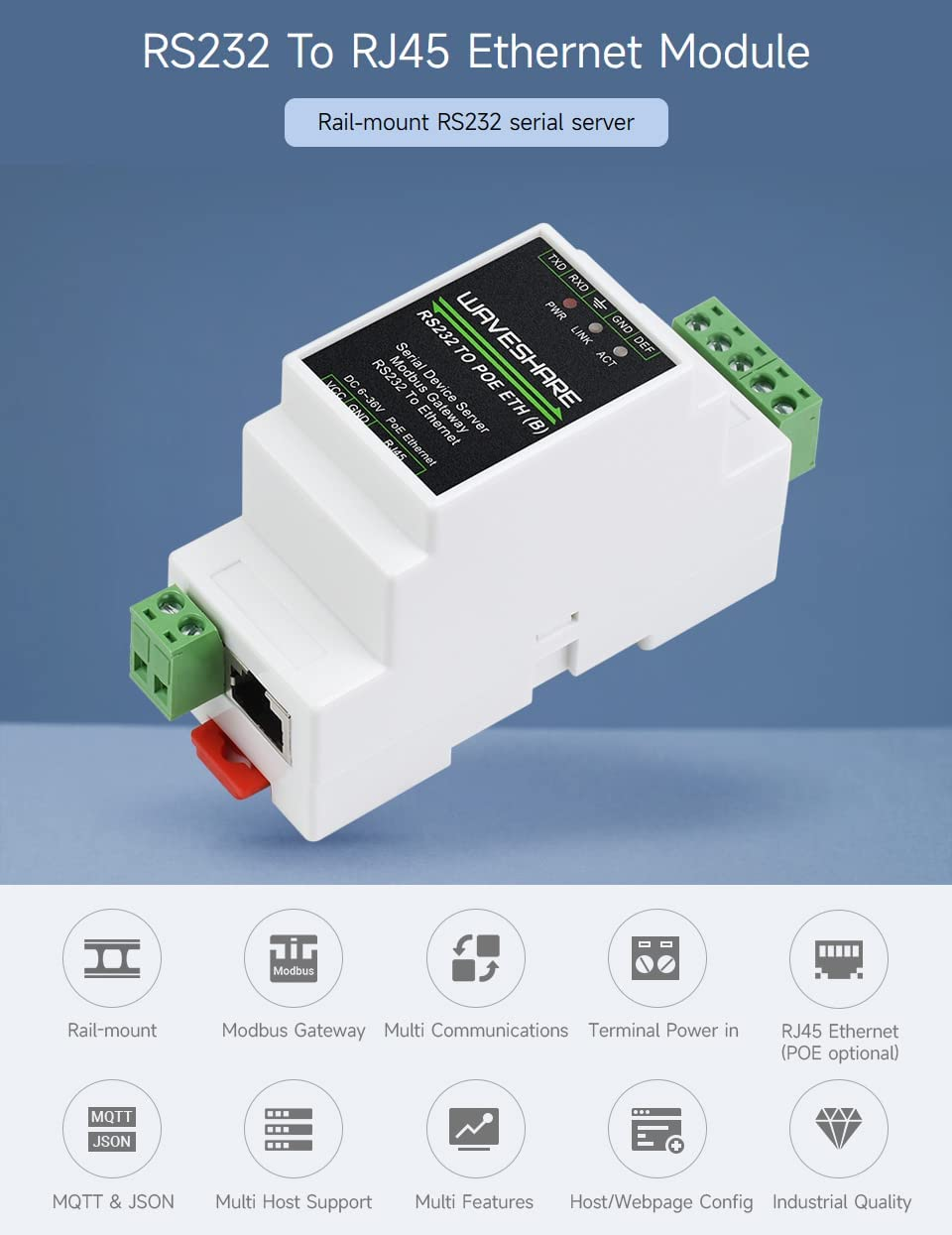

Industrial Serial Server, RS232 To RJ45 Ethernet, TCP/IP To Serial, Rail-Mount Support, With POE Function(Optional)

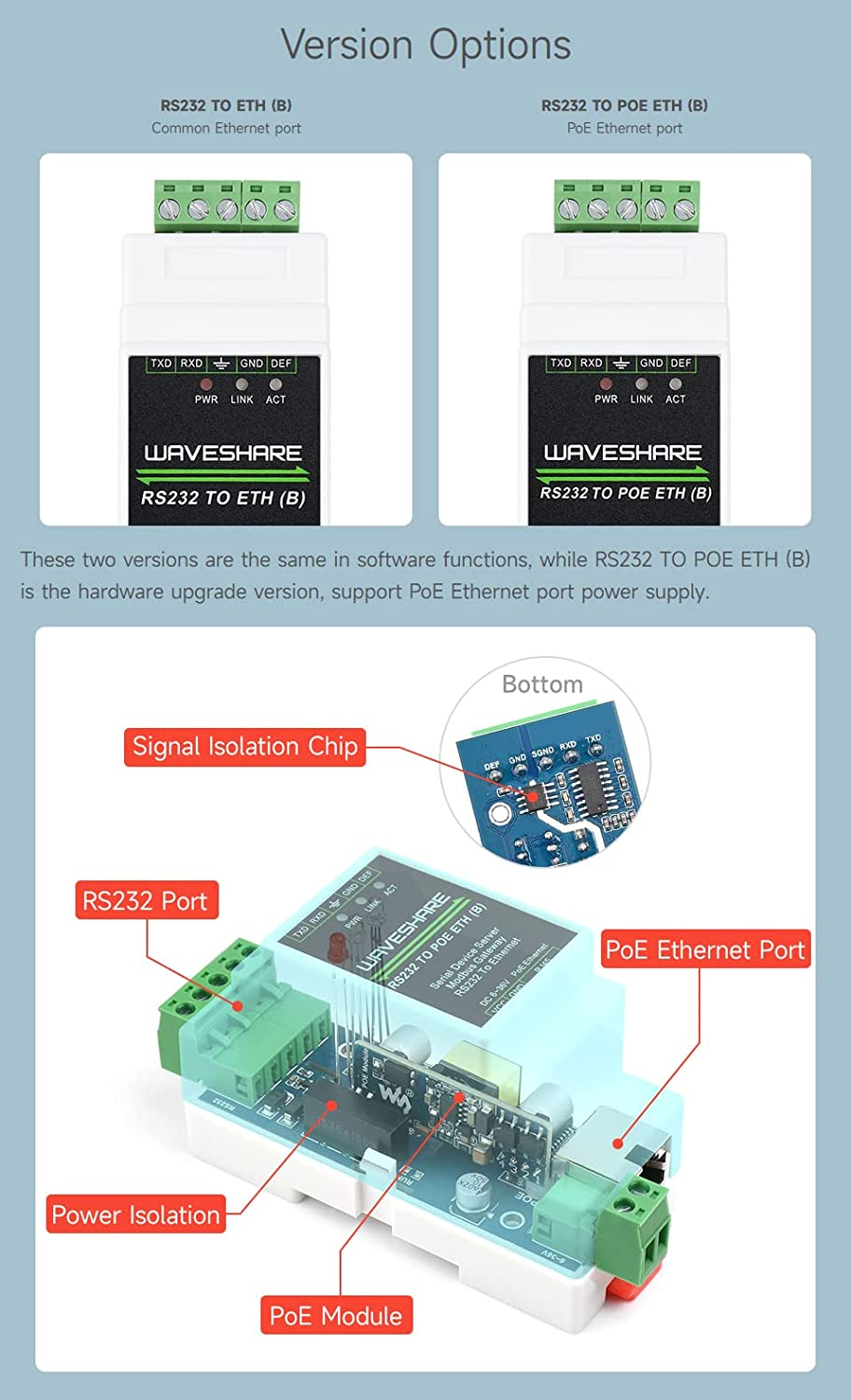

This two versions are the same in software functions,while RS232 TO POE ETH (B) is the hardware upgrade version,support PoE Ethernet port power supply

Features At A Glance:

  • This is a RS232 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS232 to JSON, etc. The module features RS232 and Ethernet port(POE function is optional), uses screw terminals for power input. Rail-mount case design, small in size, easy to install. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...

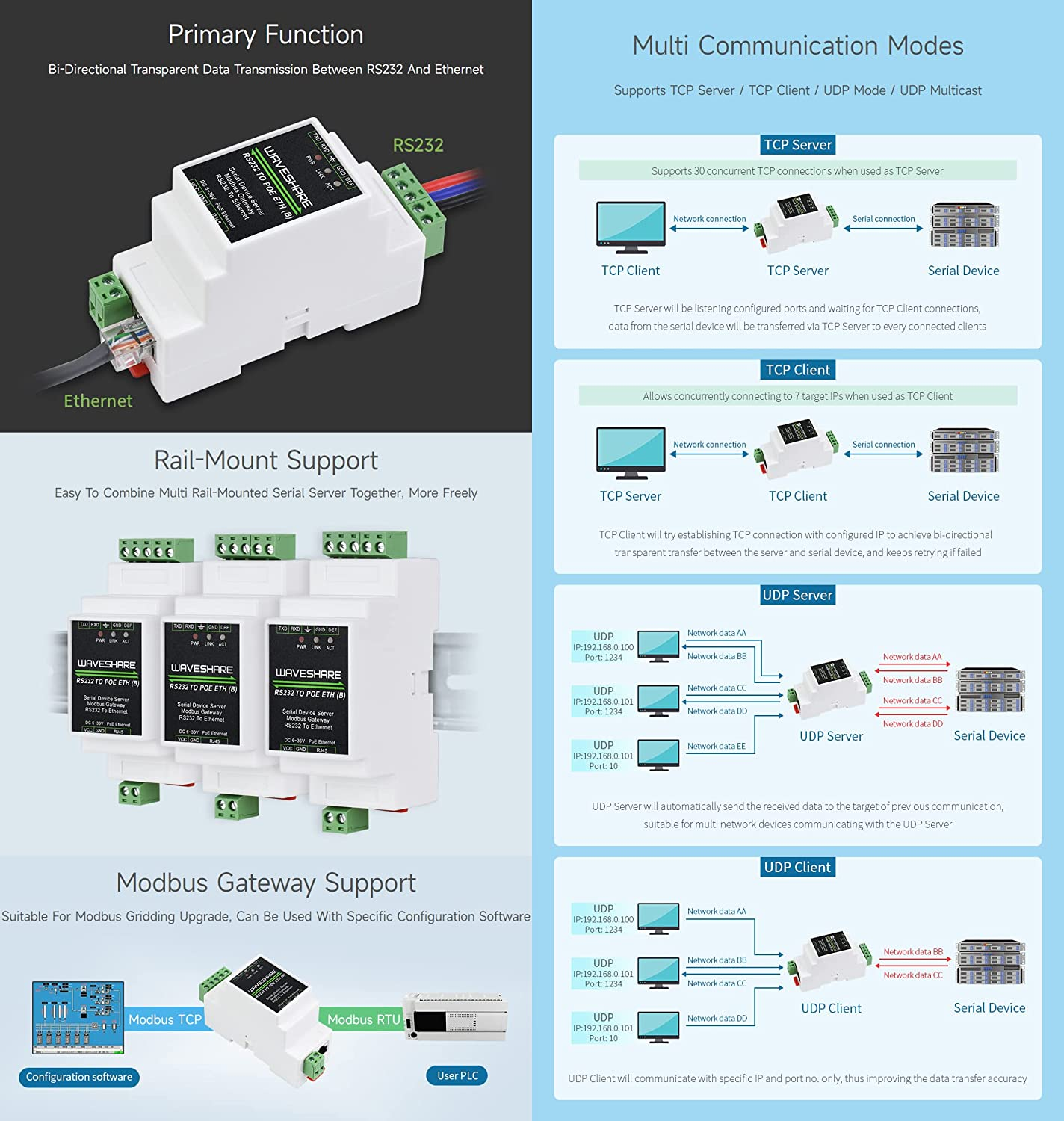

Primary Function

Bi-Directional Transparent Data Transmission Between RS232 And Ethernet

Rail-Mount Support

Easy To Combine Multi Rail-Mounted Serial Server Together, More Freely

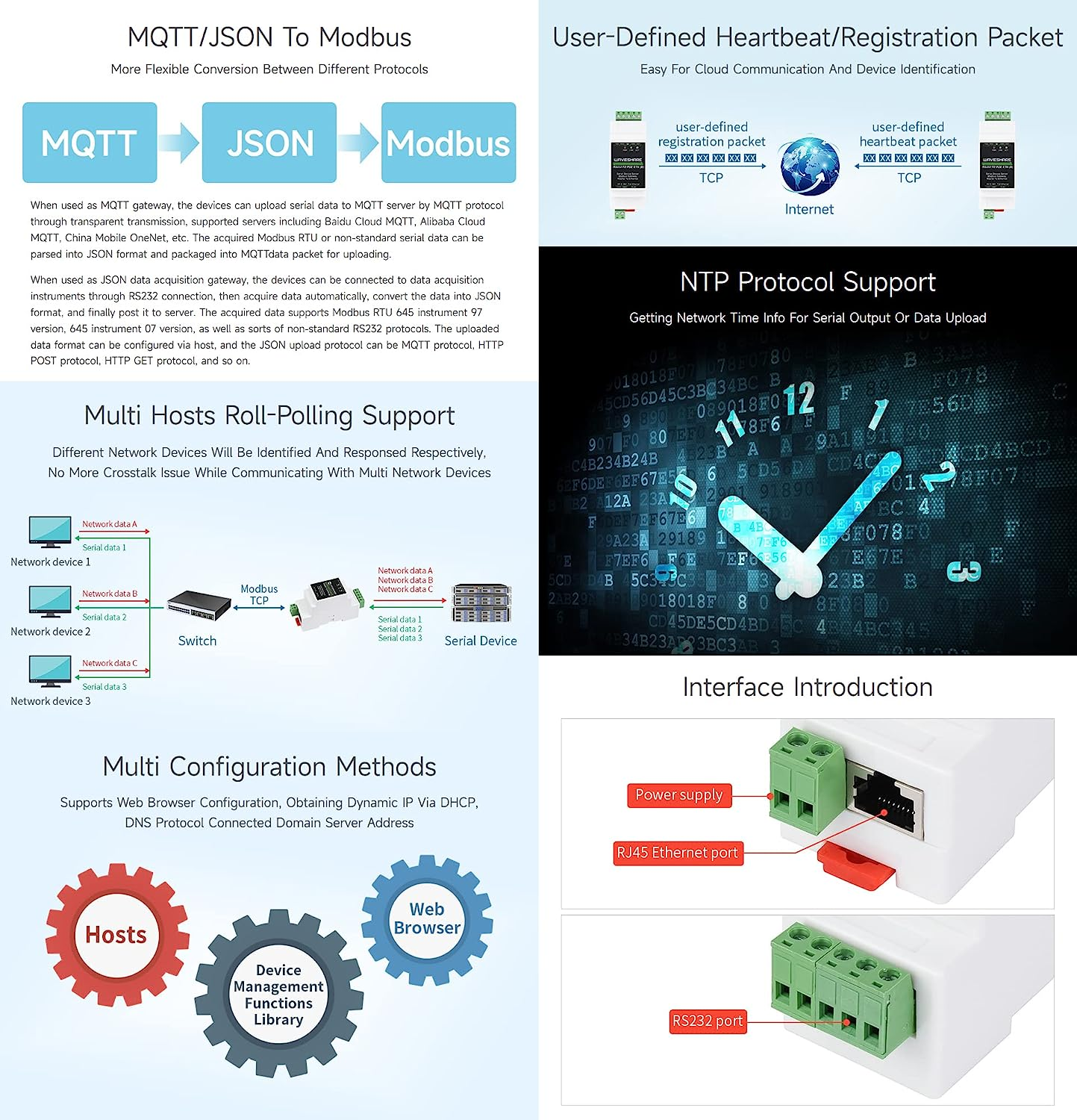

NTP Protocol Support

Getting Network Time Info For Serial Output Or Data Upload

Multi Configuration Methods

Supports Web Browser Configuration, Obtaining Dynamic IP Via DHCP, DNS Protocol Connected Domain Server Address

Usage Manual:

  • Wiki: waveshare.com/wiki/RS232_TO_ETH_(B)?amazon
  • Wiki: waveshare.com/wiki/RS232_TO_POE_ETH_(B)?amazon
  • Item Model Number: a15efa78-f6f8-4004-a05c-dc17efa8b528
  • Part Number: RS232 TO POE ETH (B)
  • Graphics Card Interface: PCI Express
  • Country/Region of origin: China
  • Batteries Included: No
  • Batteries Required: No
  • Brand: Waveshare
  • Item Weight: 110 g
  • Number of Ports: 2
  • Human interface input: Buttons
  • Ram Memory Technology: DDR4
  • Chipset Type: Intel C236
  • Model: a15efa78-f6f8-4004-a05c-dc17efa8b528
  • Hardware Interface: Ethernet

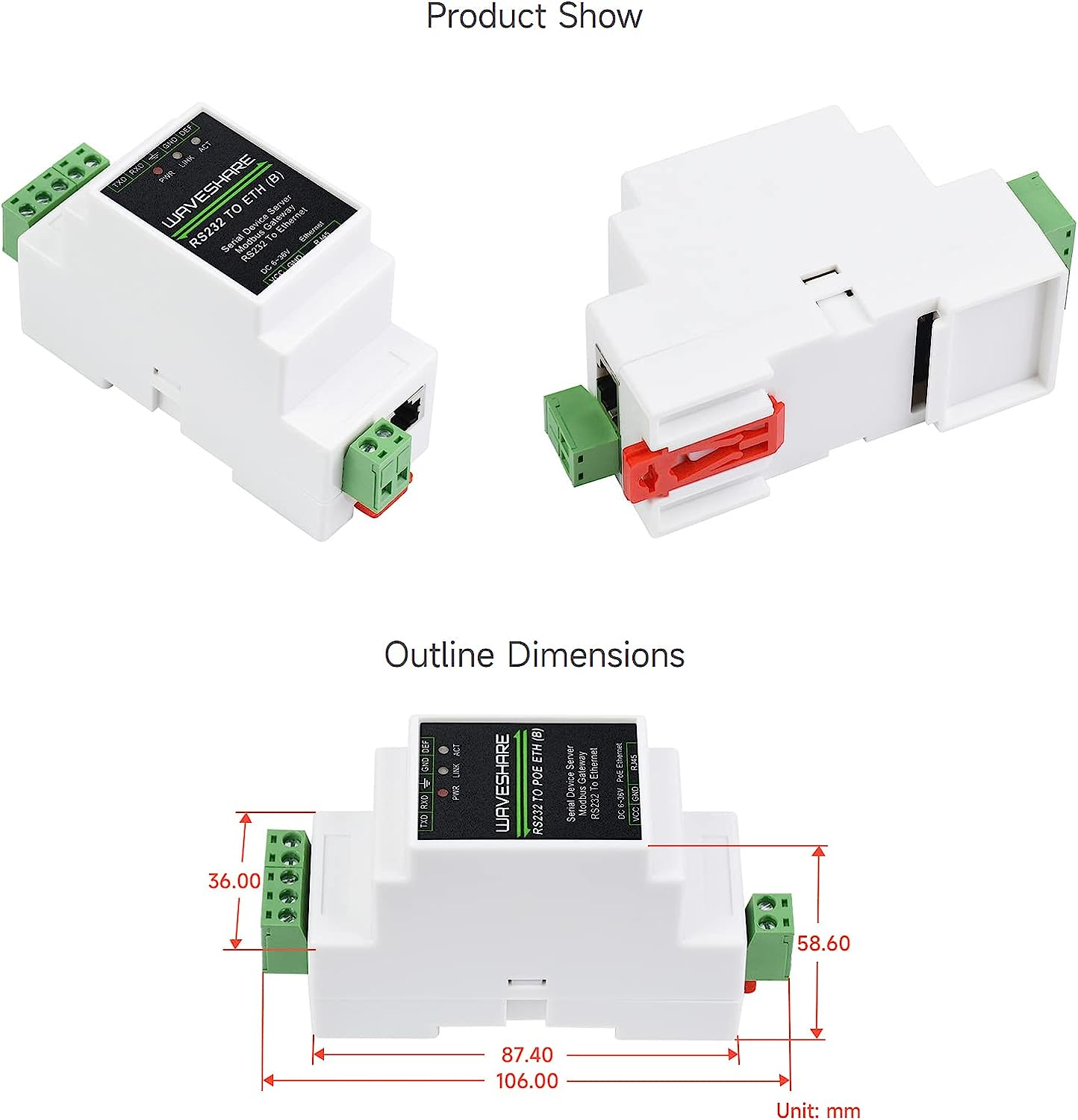

  • Package Dimensions: 13.6 x 9.9 x 4.2 cm; 110 Grams
  • Manufacturer: Waveshare
