Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range (V): 40~60
Max. Charging Current (A): 190
Max. Discharging Current (A):190
Charging Curve: 3 Stages / Equalization
External Temperature Sensor:Yes
Charging Strategy for Li-Ion Battery: Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W):10400
Rated PV Input Voltage (V):370 (125~500)
Start-up Voltage (V):125
MPPT Voltage Range (V):150-425
Full Load DC Voltage Range (V)：200-425
PV Input Current (A):26+26
Max. PV ISC (A): 34+34

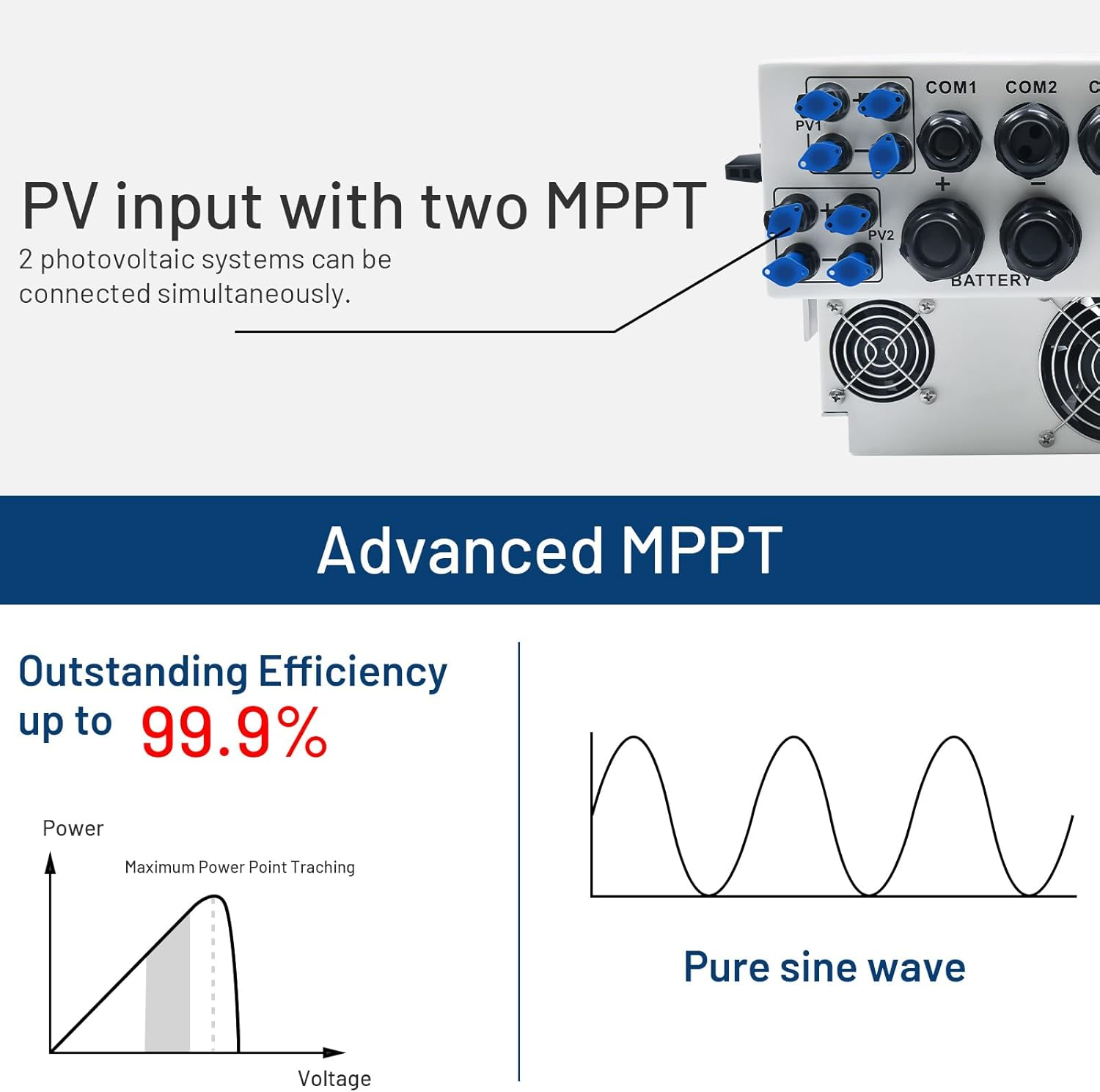

Number of MPPT / Strings per MPPT: 2/1+1
AC Output Data
Rated AC Output and UPS Power (VA): 8000
Max. AC Output Power (W): 8000
AC Output Rated Current (A):34.8
Max. AC Current (A):34.8
Grid Type: Single Phase
Efficiency：
Max. Efficiency：97.60%
Euro Efficiency：97.00%
MPPT Efficiency: 99.90%
General Data
Operating Temperature Range (℃):-40~60℃, >45℃ derating
Cooling : Nature Cooling
Noise (dB): <30 dB
Communication with BMS：RS485; CAN
Protection Degree: IP65
Installation Style: Wall-mounted
Warranty: 10 Years
Dimensions & Weight:
Weight (kg):24
Size (mm):330W x 580H x237D
Package:
1 x Hybrid Inverter
1 x Wall Mounting Bracket
1 x Set of Stainless Steel Anti-collision Bolt M6 x60 x4
1 x Set of Stainless Steel Mounting Screws M4 x12 x2
1 x Parallel Communication Cable
1 x L-type Hexagon Wrench
1 x Wi-Fi Plug
1 x Battery Temperature Sensor
1 x Sensor Clamp
1 x User Manual
