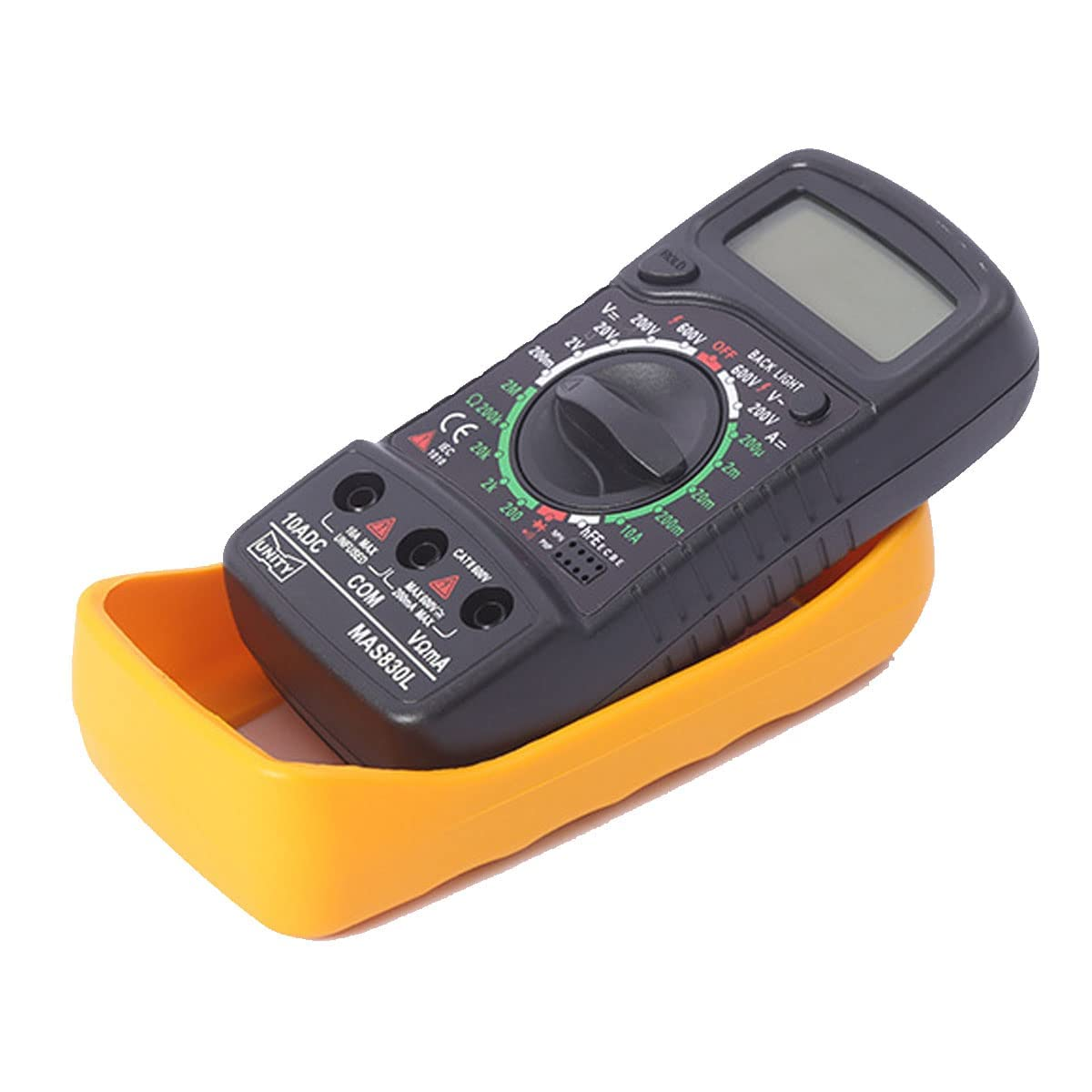

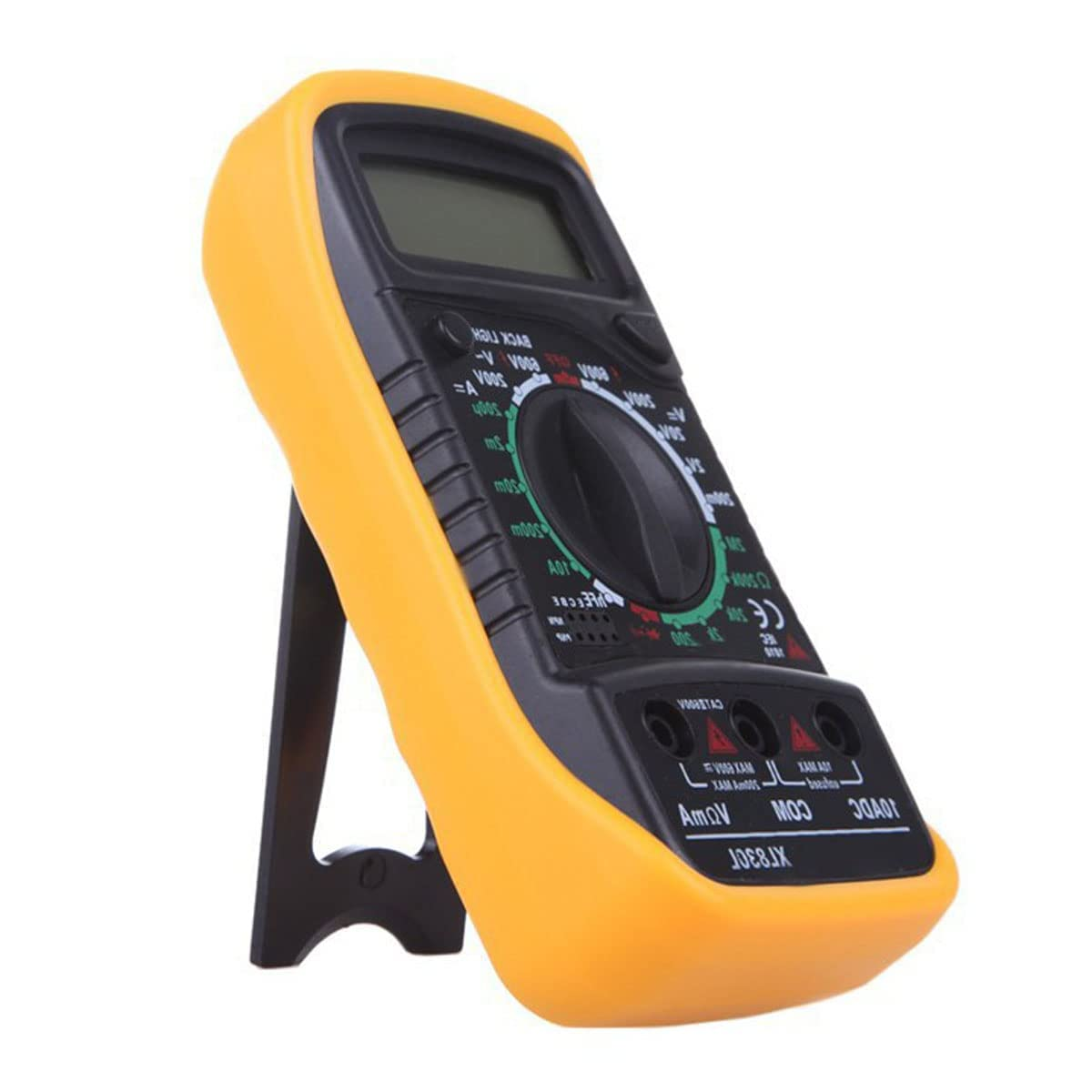

Digital Multimeter, Multi Meter Manual Ranging Includes Volt Meter Digital, Ammeter, Ohmmeter with Backlight LCD
Digital Multimeter, Multi Meter Manual Ranging Includes Volt Meter Digital, Ammeter, Ohmmeter with Backlight LCD
Brand: Ausmason
A$18.70

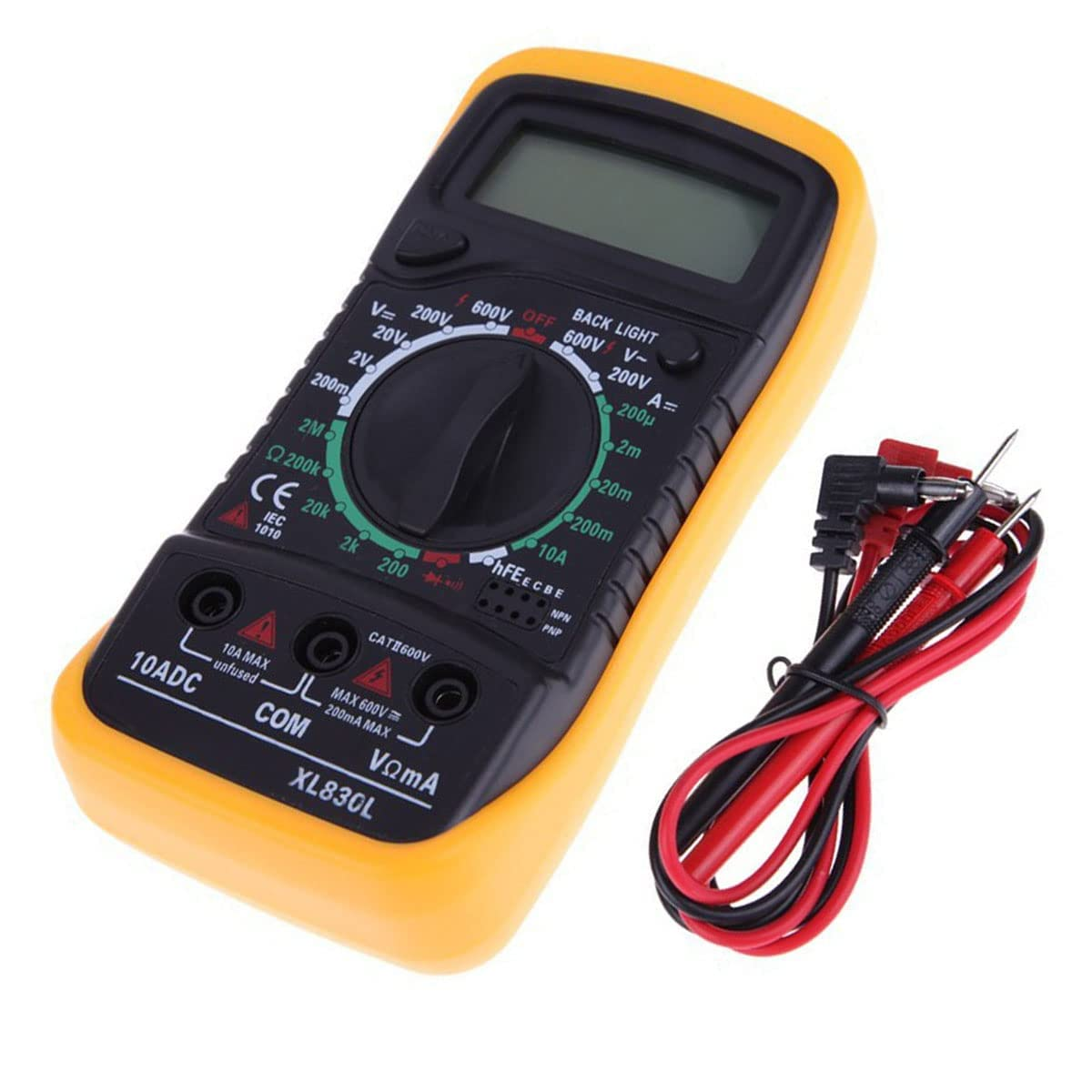

- 【Full Features】With Backlit LCD Display and Pair Test Lead, the Multi-functional Tester Accurately Can Measures AC/DC voltage, DC current, resistance, frequency; test diodes transistors & temperature and more
- 【CE Rated】Designed to Safely and Accurately Troubleshoot a Variety of Automotive and Household electrical problems.Overload Protection on all ranges to ensure long-term service life.
- 【Backlit LCD Display】LCD Display with Backlight Shows Clearer Value to You, Easier to Read, Back-light Makes a Real Difference in Low Light Areas.

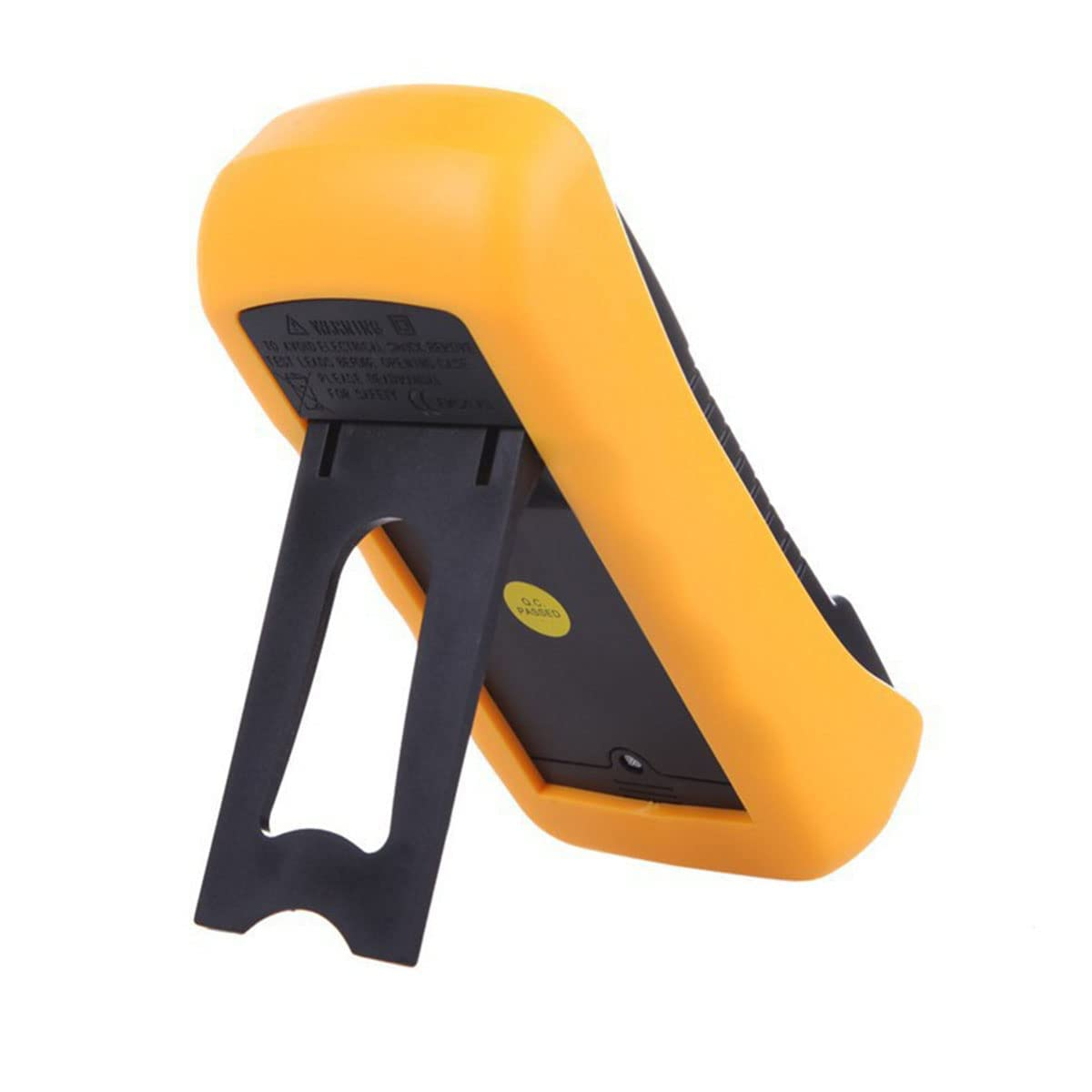

- 【Protective Shell with Stand】The Protective Shell is Some Kind of Anti-Slip, Slightly Soft Plastic that will Help with Drop Protection. The Stand Places the Device at a 45 Degree Angle and Makes the Screen Easy to See Hands Free.
- 【Note】The digital multimeter cannot be used to test AC current and capacitance.
Product Description
The multimeter is a basic assistant to test & troubleshoot a variety of automotive and household electrical problems safely and accurately. Adopting durable material, it is tough enough to be used for a long time. Don't hesitate to bring it home now!
Features:
CMOS integrated circuit and dual slope A/D conversion, auto zero and select polarity
It will auto turn off after starting up 25 minutes
High reliable measure range and 32 gears are more effective to avoid false operation
Support transistor and Diode test
Newest design and high quality
Introduction:
PART 1
DISPLAY: 3½ digit LCD.
FUNCTION & RANGE SWITCH
Our CMM adopt rotational switch which situated at the middle of the front case. It is used for the selection of function and range. (Note: In order to save energy, please turn the switch to "OFF" position when not in use.)
PART 2
"COM" jack -- Common jack.
" VΩmA" jack -- Voltage, resistance, not more 200mA current and battery input test jack.
"10ADC"jack -- For the input of more than 200mA current.
Specifications:
1. DC Voltage: 200mV-600V ±(0.5％±2dgts-1.0％±5dgts)
2. AC Voltage: 200/600V ±(2.0％±10dgts)
3. DC Current: 200uA-10A ±(1.8%+2dgts-2.0％±10dgts)
4. Resistance: 200Ω－2MΩ ±(1.0％±10dgts-1.0％±4dgts)
5. Power supply: 9V, 6F22
6. Max. display: 1999
7. LCD Size: 50 x 18mm
Note: For more product details, please refer to the attached product manual.
- Item Model Number: AU-SZWYB
- Batteries: 1 9V batteries required. (included)
- Country of origin: China

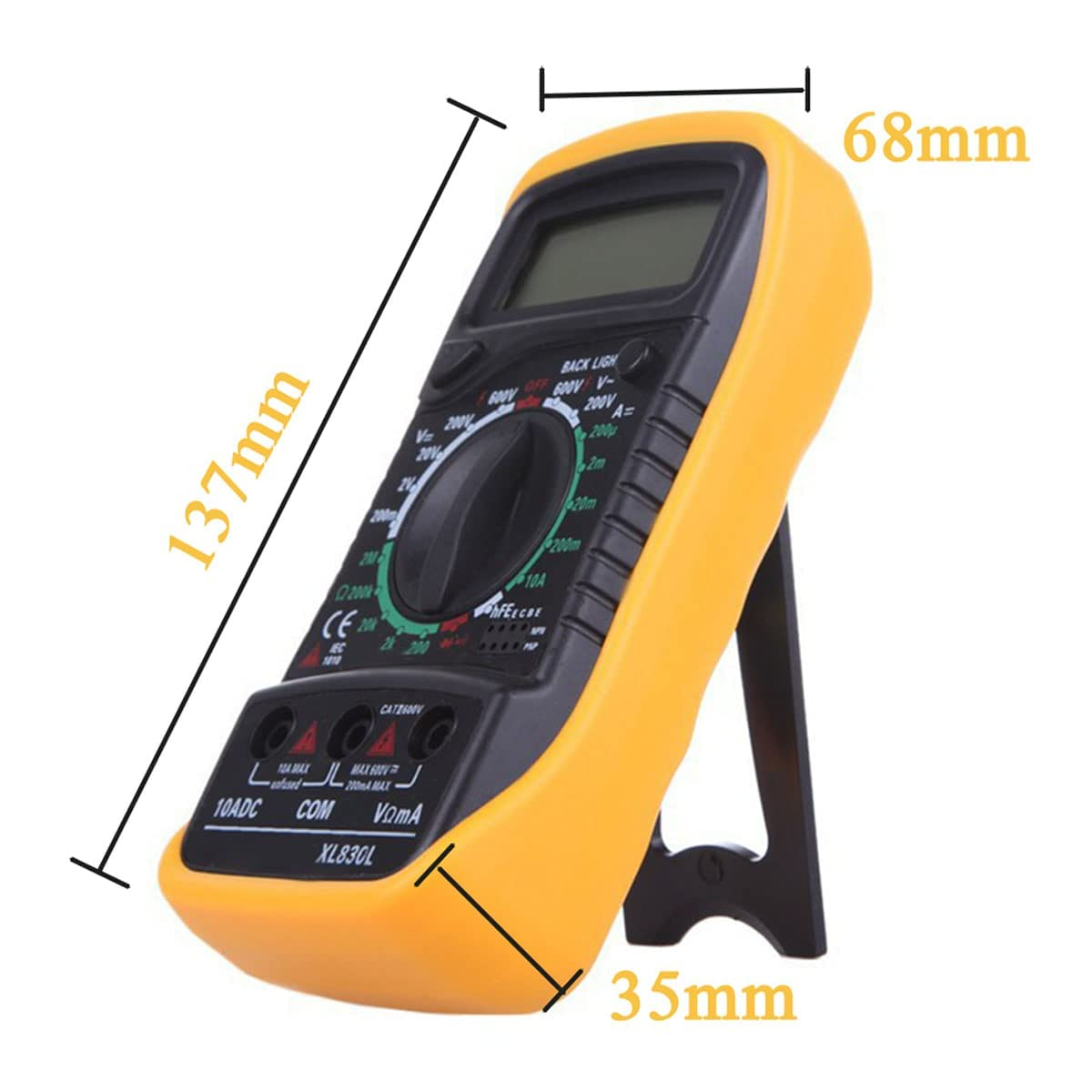

- Product dimensions: 10 x 4 x 17 cm; 210 Grams
- Manufacturer: Ausmason
