Chgimposs RS550 25V 19500 RPM DC Motor with Two-Speed 12 Teeth and High Torque Gear Box for Electric Drill/Screwdriver

Chgimposs RS550 25V 19500 RPM DC Motor with Two-Speed 12 Teeth and High Torque Gear Box for Electric Drill/Screwdriver

Brand: ChgImposs
4.9
A$10.50
Availability:
  • This item is currently not available

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • Model Number: RS550; Voltage: 25V; No load Speed: 400 - 19500 rpm; Torque: 1 N.m; Output Power: 90W; Type: Micro Motor; Commutation: Brush
  • Motor Length: 75.1mm/2.96"; Motor Diameter: 37.2mm/1.46"; Motor Shaft Length: 12mm/0.47"; Motor Shaft Diameter: 3.2mm/0.13"; Motor Gear Diameter: 8.6mm/0.34"; Motor Gear Thickness: 5.2mm/0.2"; Motor Installation Hole Distance: 25mm/0.98"
  • Front and rear double ball bearings. The front can be fixed with 2 M4 screws.
  • High power, low noise. Long life.
  • High-speed high torque DC motor, electric drill machine tools.


Model Number: RS550
Voltage: 25V
No load Speed: 400 - 19500 rpm
Torque: 1 N.m
Output Power: 90W
Type: Micro Motor
Commutation: Brush

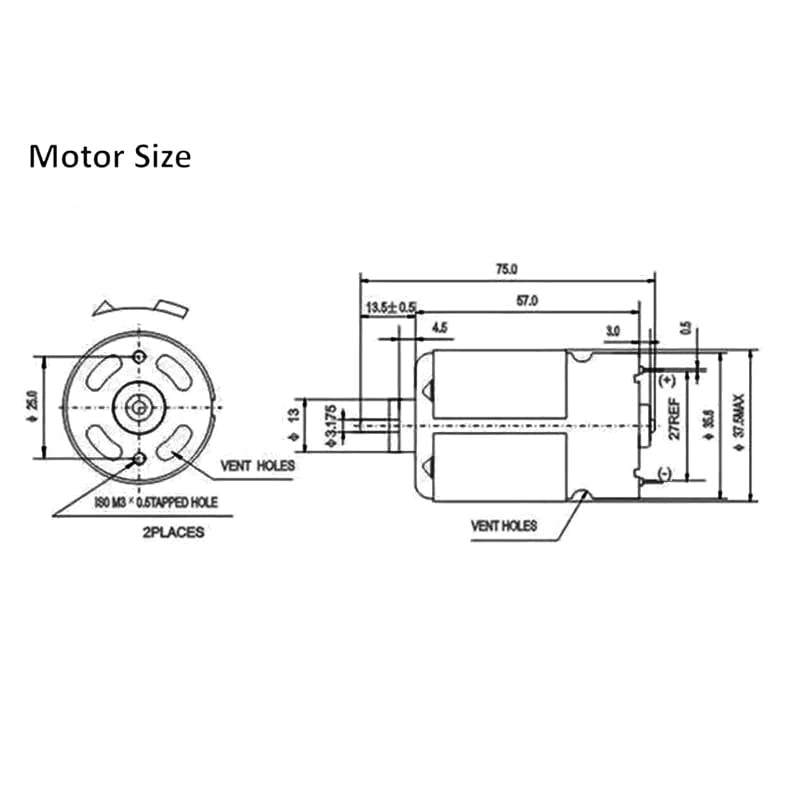

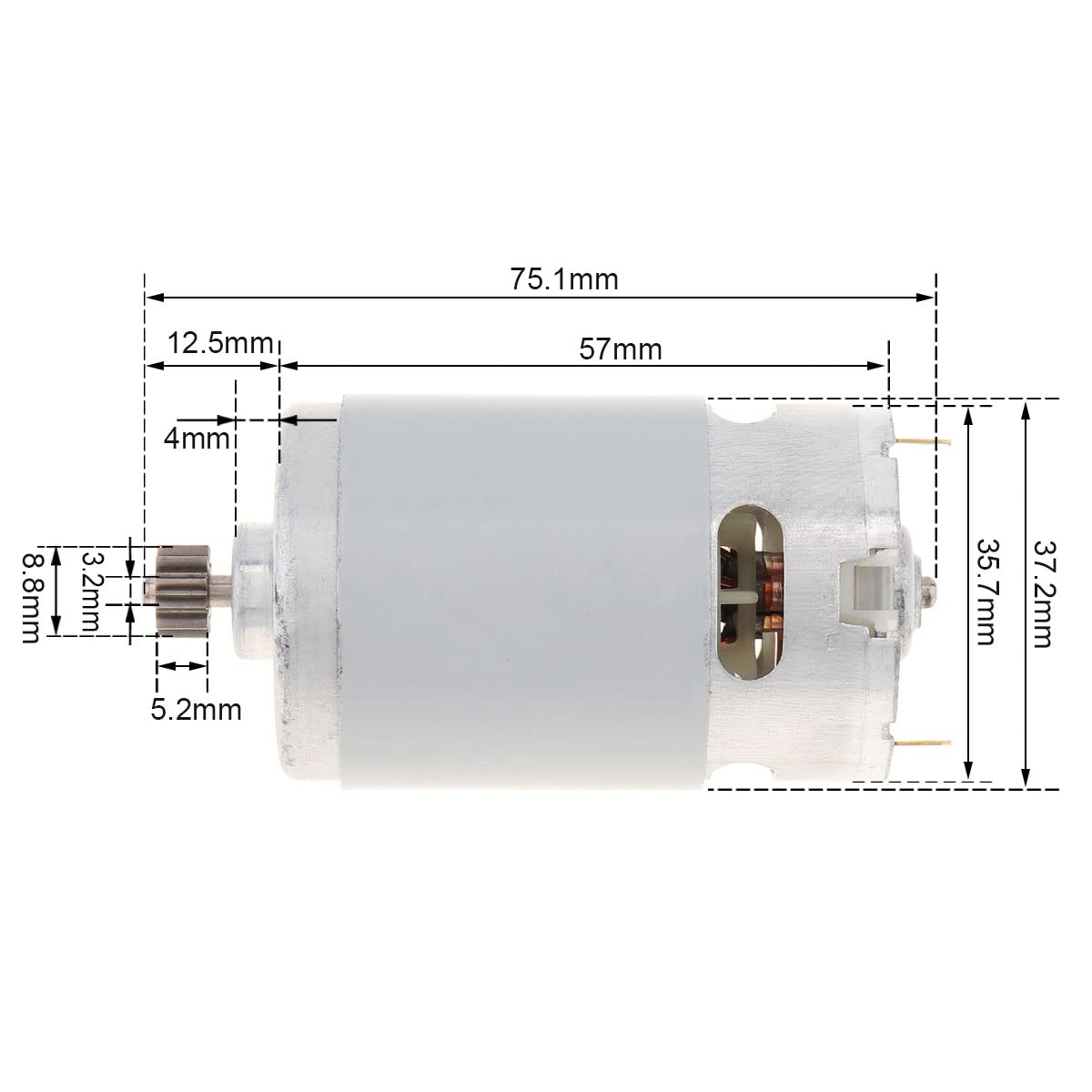

Motor length: 75.1mm
Motor diameter: 37.2mm
Motor shaft length: 12mm
Motor shaft diameter: 3.2mm
Motor gear diameter: 8.6mm
Motor gear thickness: 5.2mm
Motor installation hole distance: 25mm
Place of Application: Electric Drill / Screwdriver
Package Include:
1 x 25V Two-speed 12 Teeth DC Motor

  • Item Model Number: RS550
  • Product dimensions: 6.6 x 3.05 x 3.05 cm; 220 Grams
  • Manufacturer: ChgImposs
