Waveshare Industrial Isolated Rail-Mount Serial Server, Modbus Support, RS232/485/422 to RJ45 Ethernet Module, TCP/IP to Serial, with POE Function

Waveshare Industrial Isolated Rail-Mount Serial Server, Modbus Support, RS232/485/422 to RJ45 Ethernet Module, TCP/IP to Serial, with POE Function

Brand: Waveshare
4.1
A$64.60
Availability:
  • In Stock

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • This is a RS232/485/422 device data acquisitor / IoT gateway designed for industrial environment.

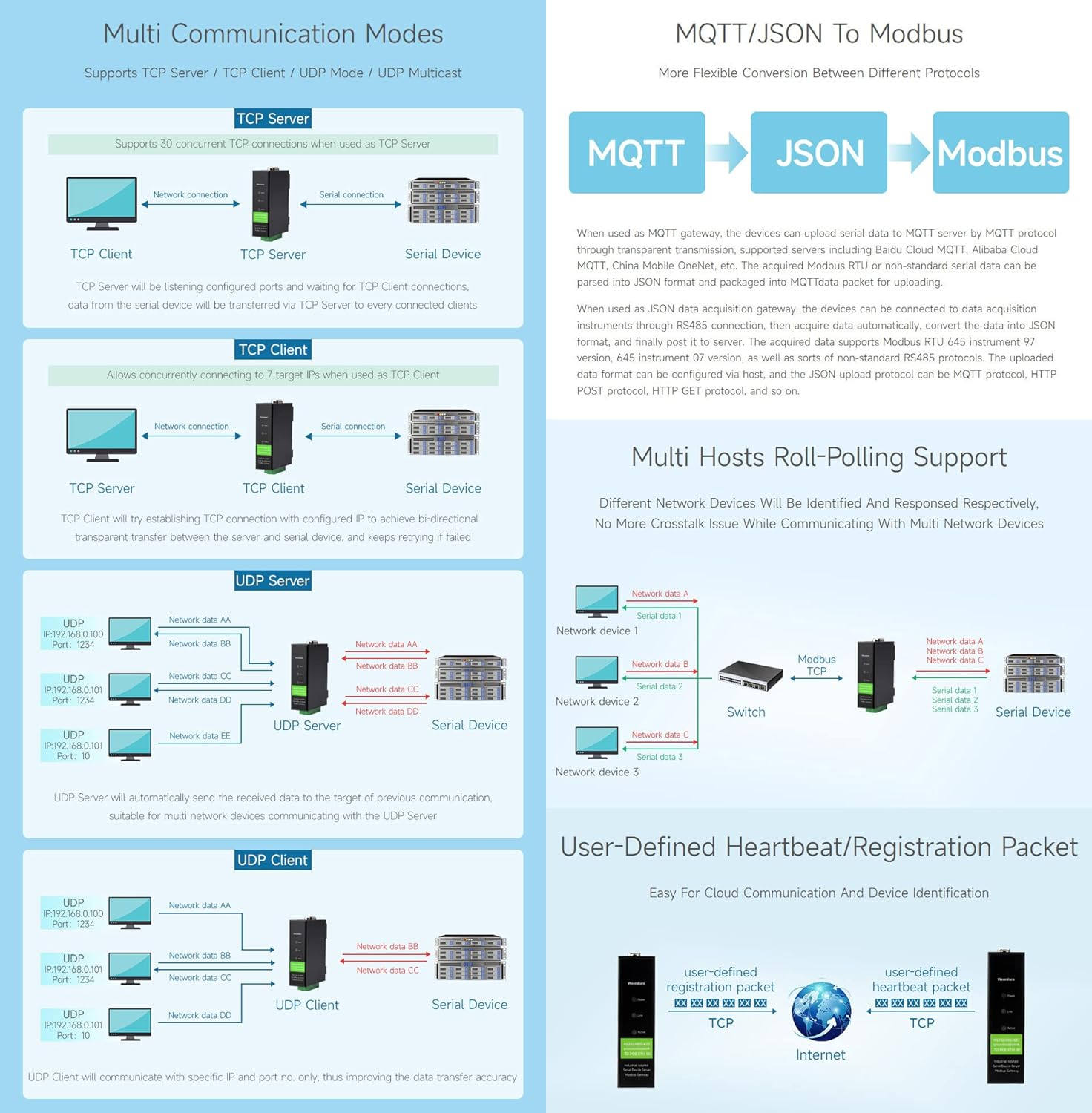

  • It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, etc.

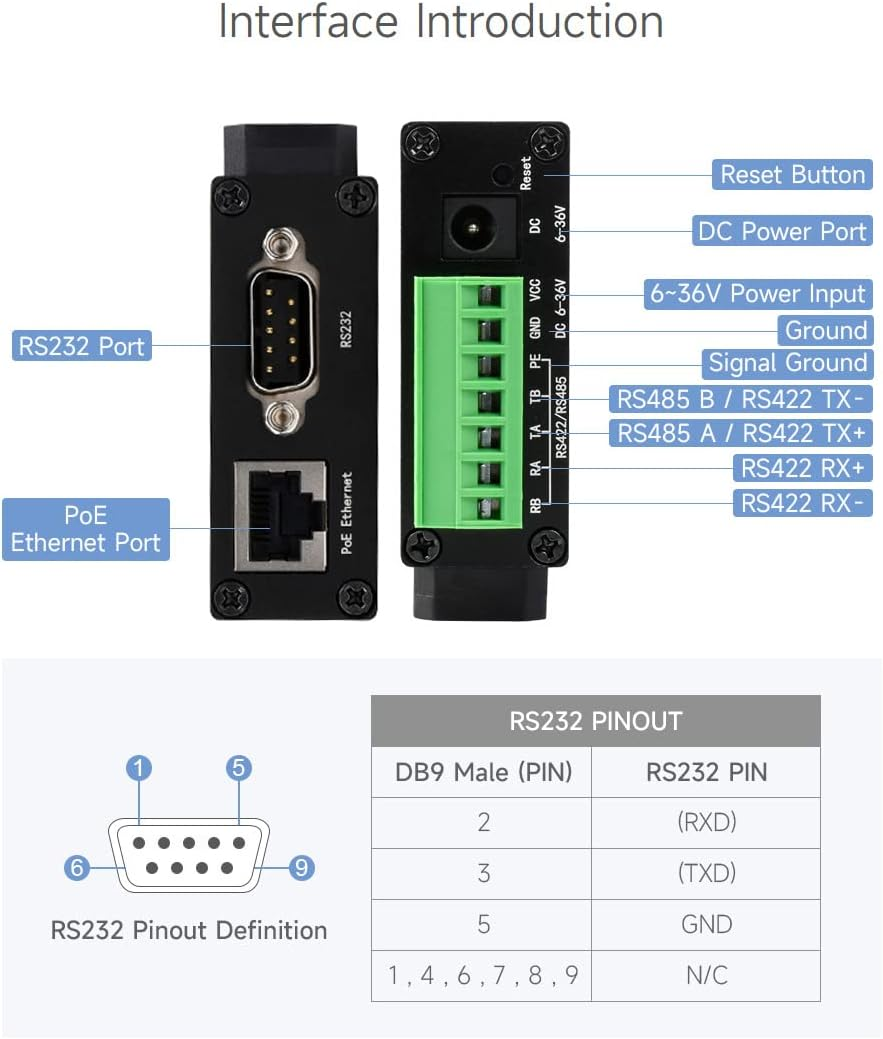

  • The module features RS232/485/422 and Ethernet port with PoE function, uses DC port (outer diameter: 5.5mm, inner diameter: 21mm) and screw terminals for power input.
  • The case with rail-mount support, small in size, easy to install, cost-effective.
  • It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...

Product Description

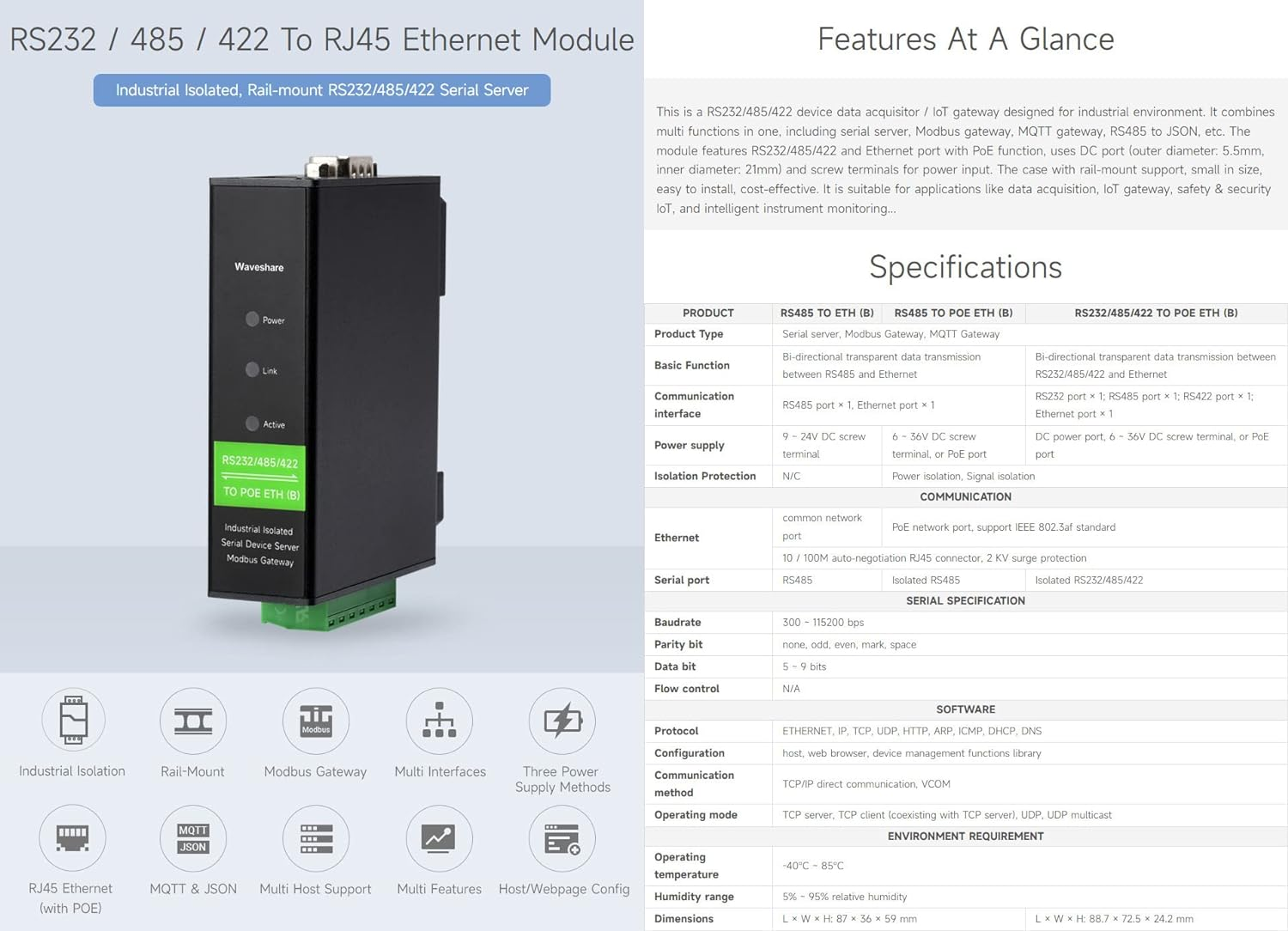

Features At A Glance

This is a RS232/485/422 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, etc. The module features RS232/485/422 and Ethernet port (PoE function optional), uses DC port (outer diameter: 5.5mm, inner diameter: 21mm) and screw terminals for power input. The case with rail-mount support, small in size, easy to install, cost-effective. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...

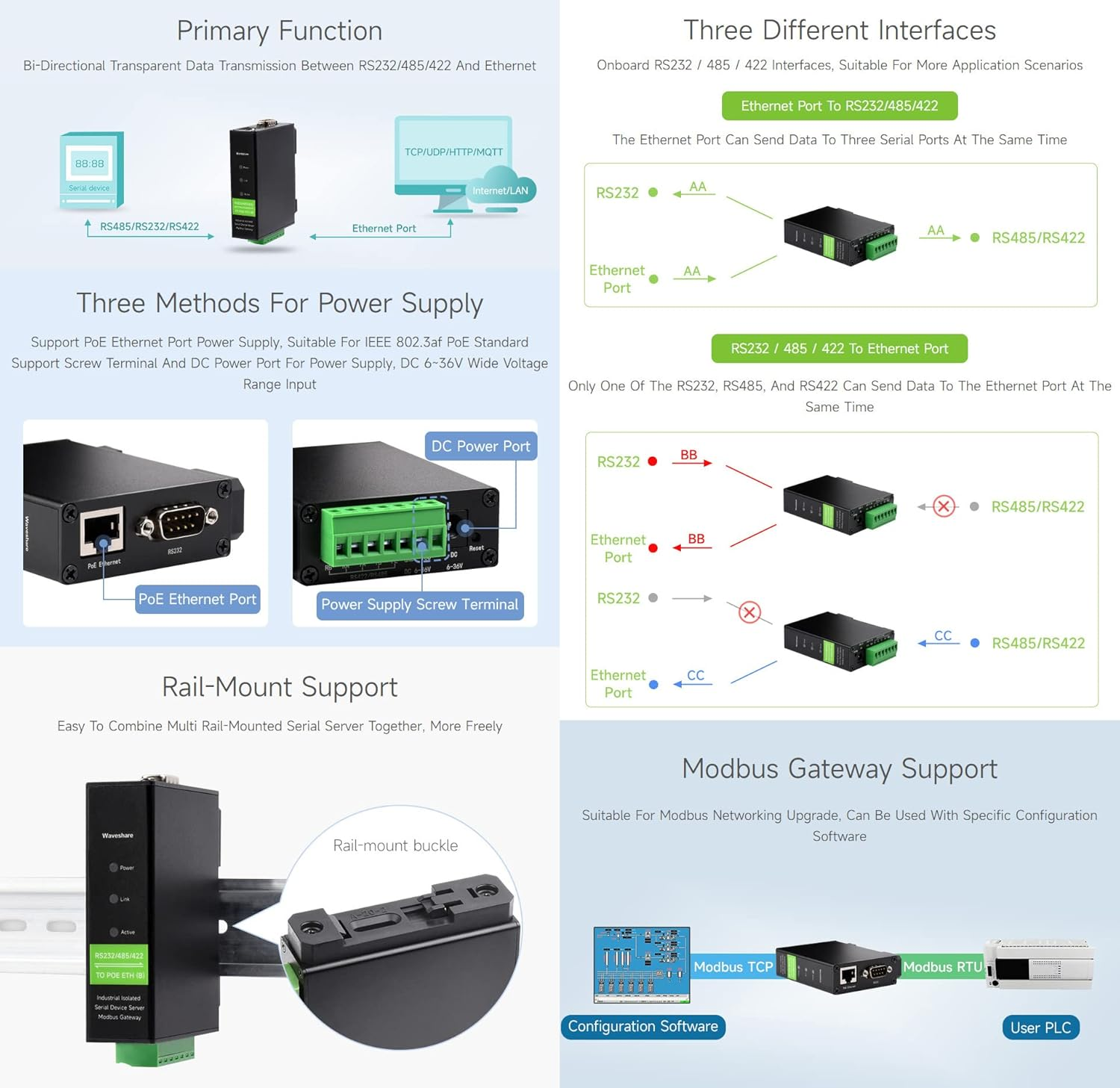

Rail-Mount Support

Easy To Combine Multi Rail-Mounted Serial Server Together, More Freely

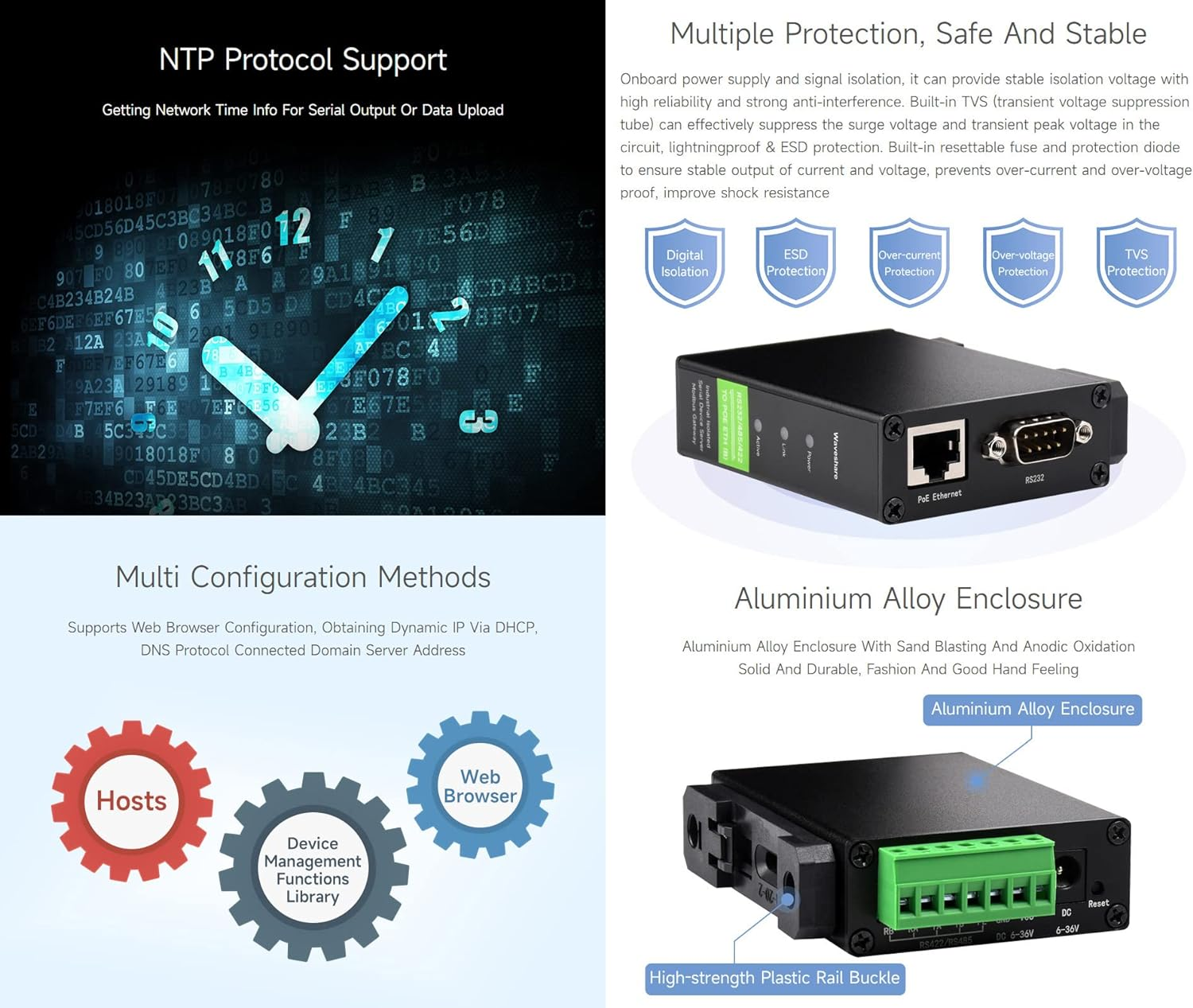

NTP Protocol Support

Getting Network Time Info For Serial Output Or Data Upload

Multi Configuration Methods

Supports Web Browser Configuration, Obtaining Dynamic IP Via DHCP, DNS Protocol Connected Domain Server Address

Multiple Protection, Safe And Stable

Onboard power supply and signal isolation, it can provide stable isolation voltage with high reliability and strong anti-interference. Built-in TVS (transient voltage suppression tube) can effectively suppress the surge voltage and transient peak voltage in the circuit, lightningproof & ESD protection. Built-in resettable fuse and protection diode to ensure stable output of current and voltage, prevents over-current and over-voltage proof, improve shock resistance

Online usage manual: waveshare.com/wiki/RS232/485/422_TO_ETH_(B)?amazon

  • Memory Storage Capacity: 32 GB
  • Processor Count: 1
  • Processor Brand: Intel or AMD
  • Wireless Type: 802.11b
  • Operating System: Linux
  • Brand: Waveshare
  • Ram Memory Technology: DDR4
  • Model Name: RS232/485/422 TO POE ETH (B)
  • Package Dimensions: 10.69 x 8 x 2.79 cm; 150 Grams
  • Manufacturer: Waveshare
  • Item Model Number: RS232/485/422 TO POE ETH Converter(B)
  • Batteries Included: No
  • Batteries Required: No
  • Ram Memory Installed Size: 32 GB
  • Connector Type: RS232, RS485, RS422, Ethernet
  • Item Weight: 150 g
  • Model: RS232/485/422 TO POE ETH Converter(B)
  • Part Number: RS232/485/422 TO POE ETH (B)
  • Total USB ports: 2
  • Mounting Hardware: Power adapter, Heatsink, Case
  • Compatible Devices: Personal Computer
  • Processor Type: MediaTek MT8125
