NETUM Wireless Hybrid RFID Imager, NFC HF RFID Tags Reader and 1D/2D QR Barcode Scan, Connection via Bluetooth for Retail Hospital System DS8100

NETUM Wireless Hybrid RFID Imager, NFC HF RFID Tags Reader and 1D/2D QR Barcode Scan, Connection via Bluetooth for Retail Hospital System DS8100

Brand: NETUM
3.2
A$156.45
Availability:
  • In Stock

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • You get NETUM's industry-leading scanning technology, seamless switching between modes and superior usability, along with a variety of innovative features that boost productivity. An RFID model combines a barcode scanner and RFID reader to extend the benefits of RFID to your sales centre.
  • Supports Bluetooth Dual Mode Technology: (Bluetooth LE V4.2 & Bluetooth 2.1 + EDR, Class 1) to give you the freedom and bring flexibility to your business. It is compatible with any smartphone, tablet or computer - the DS8100 connects easily to any mobile device or PC. It also allows the user to transfer data up to 100 metres from the base to the host.
  • With the DS8100 series, you can give buyers the cash register experience they expect: short lines, fast transaction, and attentive service. A unique hybrid design provides maximum flexibility and provides both handheld and hands-free scanning.
  • RF RFID performance: carrier frequency: 13.56 MHz (RFID HF), read/write speed: 26 kbps (ISO 15693), 106 kbps (ISO 14443), antenna: integrated
  • Supports main barcode scanning, such as QR code, Data Matrix, PDF 417, FedEx, USPS, VIN Scan the barcode on different media, not only printed barcodes, but also bar codes from the screen.

Product Description

NFC HF RFID Tag Reader DS8100

1.Equipped with its 640 x 480 CMOS sensor the device has a motion tolerance of 24 inches per second, offering fast and accurate scanning results.

2.The 2D scanning engine offers decoding capability for 2D barcodes like PDF417, Data Matrix, QR Code, MicroQR as well as common 1D barcodes.

  • Supported 1D symbologies

UPC / EAN ( UPCA / UPCE / EAN-8 / EAN-13, ISBN ( Bookland ), Code 39 , Code 32 ( Italian Pharmacode ), Code 128, Code 93, Codabar, Interleaved 2 of 5,Standard 2 of 5,lndustrial 2 of 5, Matrix 2 of 5 ( Japannese ), Code 11, Telepen, Pharmacode, Chinese post code, MSI Plessey, GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, Telepen.

  • Supported 2D symbologies

QR Code, Micro QR Code DataMatrix MaxiCode, Aztec, PDF417, MicroPDF417, PostNet, PLANET, Australia, Royal Post, CODABLOC F Composite Codes (CC-A, CC-B, CC-C)

  • 3 Trigger Modes
  1. Key Trigger Mode: Scanning light is only on when press the trigger.
  2. Continuous Scan Mode: Scanning light is always on when the scanner is electrified. Scanning barcode without pressing any button.
  3. Auto-induction mode: Scanning light is off until a barcode presented in front of the scanner. Once the barcode is detected, the scanning light will turn on automatically to read the barcode.

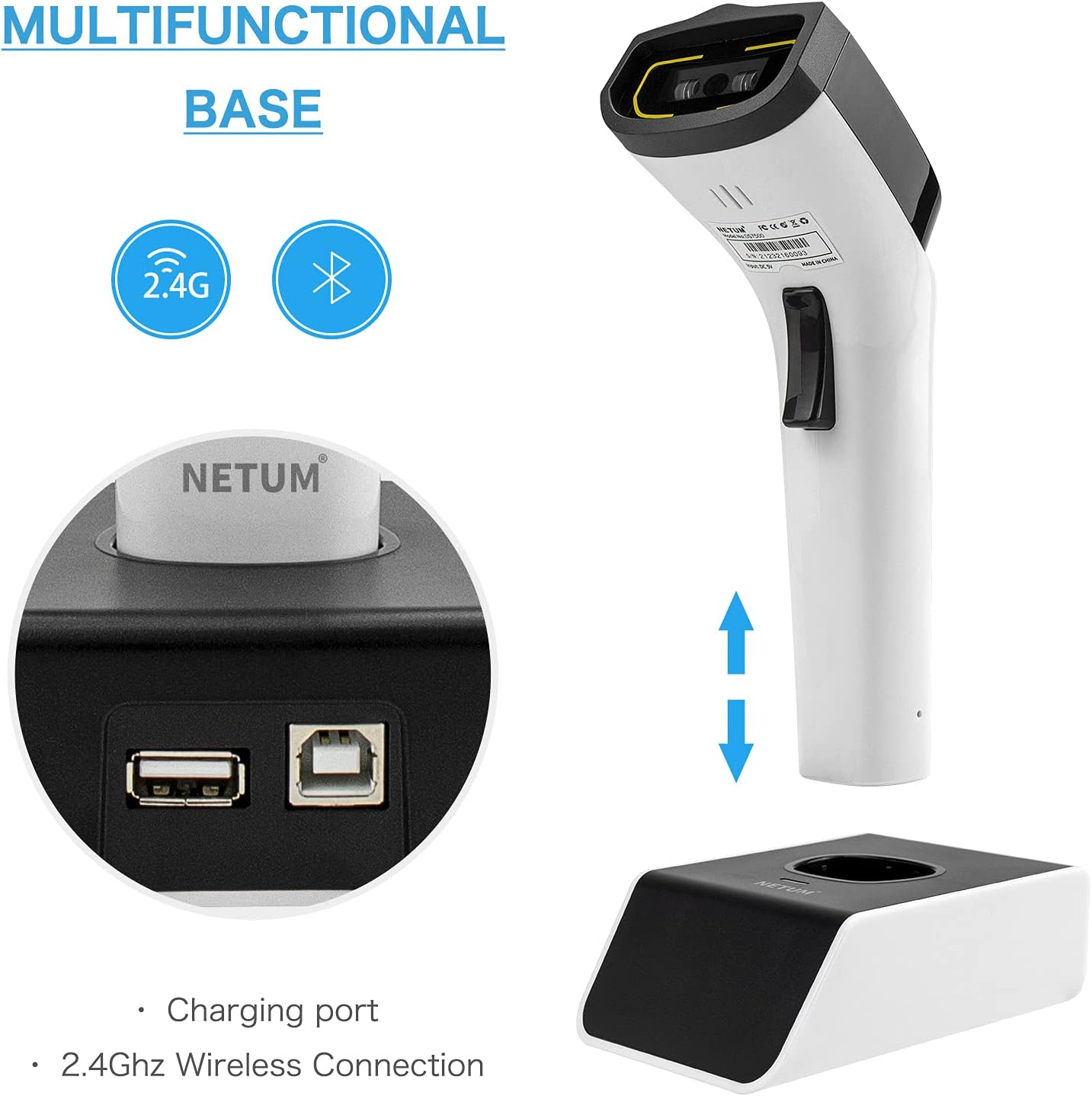

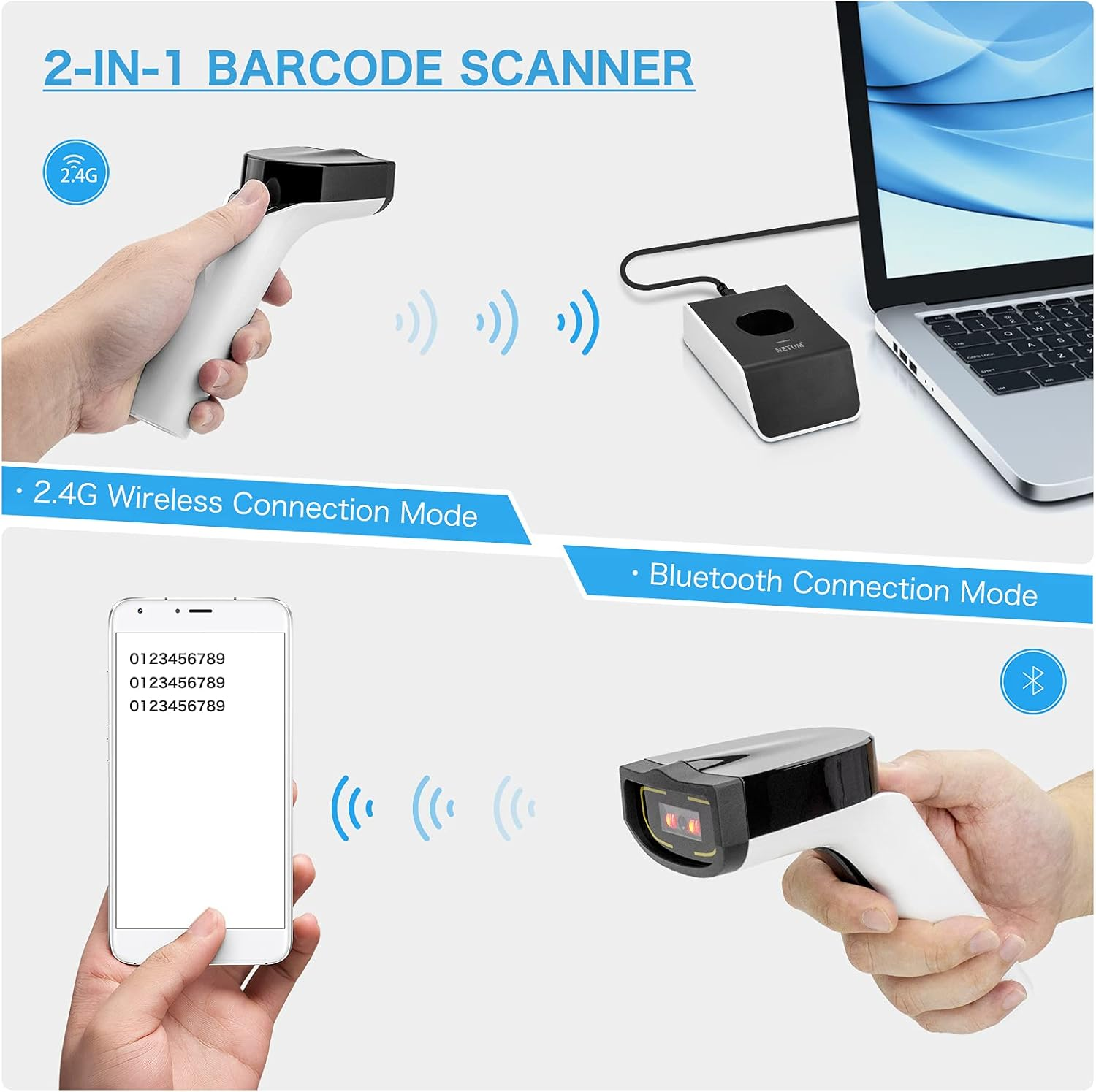

2-in-1 Connectivity Design

2.4G Wireless Connection

  • Support RF DONGLE HID-KBW and RF DONGLE AS VIRTUAL COM mode.
  • Connect the scanner to your device via the USB dongle.
  • Work with Windows XP/7/8/10, Mac OS, Linux.

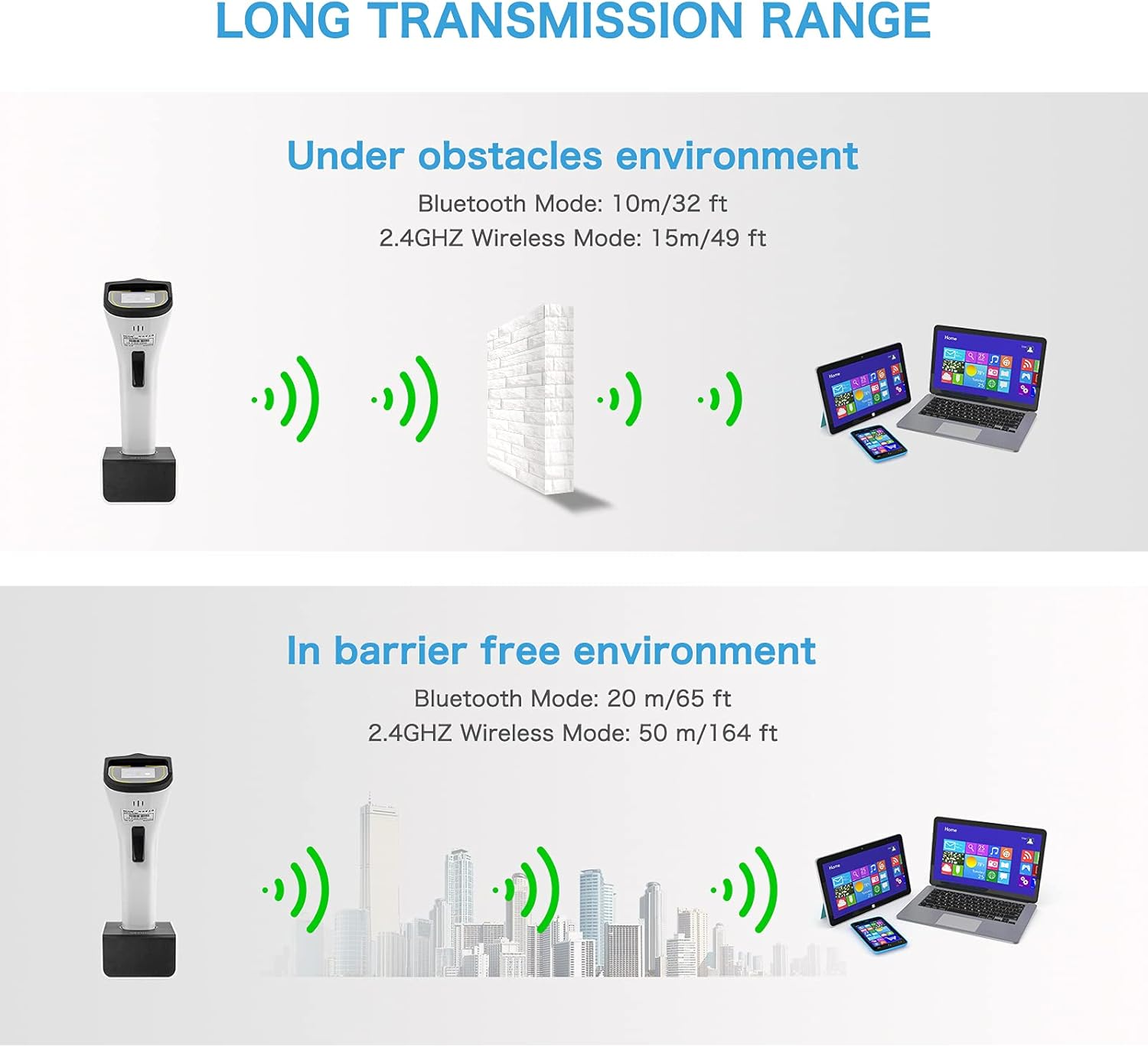

  • The tansmission in the environment without any obstacles can reach up to 100m / 330ft.

Bluetooth Connection

  • Support HID / SPP / BLE mode.
  • Easily connected with your laptop, PC, mobile phone, tablet, Iphone, Ipad, POS.
  • the transmission distance in the obstacle environment is about 10m / 33ft.

  1. RFID SCANNER

  2. STORAGE

  3. SUPERMARKET

  4. LOGISTICS COMPANY

  5. CLOTHING STORE

Reading Fast RFID reader (HF tags, tags, smart devices).
Carrier frequency 13.56 MHz (RFID HF)
Read/write speed 26 kbps (ISO 15693), 106kbps (ISO 14443)
High frequency RFIDtag IS015693:I code SL2, LRI512, my-d, taglt HF-I
Write mode Write mode is supported using PCSC protocol over BLE. Compatibility depends on card type, content
Antenna Integrated, 25mm x 14mm, balanced
Tag support ISO15693: Vicinity Card
Maximum RFID read range 0.4"- 2" (10- 30 mm)
ISO/IEC 144434 A and B Mifare, Sony FeliCA
Proprietary ICode SLI, PicoTag (without anti-collision), Tag lt HF ISO/IEC 14443 A and B compatible tags, all variants (Mifare, Sony FeliCA), tag reader mode

DS Series Barcode Reader

Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.3 out of 5 stars 12
4.0 out of 5 stars 24
4.1 out of 5 stars 241
4.1 out of 5 stars 241
4.1 out of 5 stars 241
Price
$149.00$149.00 $109.00$109.00 $109.00$109.00 $85.00$85.00 $132.94$132.94
Supported Barcode Types
1D & 2D Codes 1D & 2D Codes 1D & 2D Codes 1D Codes 1D & 2D Codes
Connection Method
Bluetooth, 2.4G wireless Bluetooth,Wi-Fi,Cloud server Bluetooth, 2.4G wireless Bluetooth, 2.4G wireless Bluetooth, 2.4G wireless
Scanning Technology
CMOS & HF RFID CMOS CMOS CCD sensor engine CMOS
Auto Sense Scan
✔ ✔ ✔ ✔ ✔
Supported Devices
Laptop,desktop,tablet,phone Laptop,desktop,tablet,phone Laptop,desktop,tablet,phone Laptop,desktop,tablet,phone Laptop,desktop,tablet,phone
  • Includes Rechargeable Battery: Yes
  • Part Number: DS8100
  • Operating System: Android, Linux, Windows, iOS
  • Number of items: 1
  • Power Source: Battery Powered
  • Batteries Included: Yes
  • Batteries Required: Yes
  • Brand: NETUM
  • Colour Name: DS8100 (RFID 2D)
  • Compatible Devices: Smartphone, Tablet, Computer
  • Connector Type: Bluetooth
  • Item Weight: 400 g
  • Batteries: 1 Lithium Metal batteries required. (included)
  • Battery cell composition: Lithium Ion
  • Item Model Number: DS8100
  • Model: DS8100
  • Package Dimensions: 22.7 x 12.3 x 9.9 cm; 400 Grams
  • Manufacturer: NETUM
