ECOWITT Wittboy Pro Weather Station HP2564, Includes 7 Inch HP2560 TFT Display Console and WS90 Outdoor Solar Powered Weather Sensor, Supports Wu/Weathercloud/Wow/Ecowitt Servers, 433 Mhz

ECOWITT Wittboy Pro Weather Station HP2564, Includes 7 Inch HP2560 TFT Display Console and WS90 Outdoor Solar Powered Weather Sensor, Supports Wu/Weathercloud/Wow/Ecowitt Servers, 433 Mhz

Brand: ECOWITT
4.1
A$357.00
Availability:
  • In Stock

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • 【Compact & Built to Last 7-in-1 Weather Station】: Ecowitt Wittboy pro (HP2564) weather station includes HP2560 TFT display console and WS90 7-in-1 outdoor weather sensor. The integrated outdoor weather sensor collects accurate temperature, humidity, wind direction and speed, light and UV levels as well as rainfall data and transmit them to the HP2560 display console. The live data can be viewed on the console, WS View Plus or Ecowitt APP after Wi-Fi configuration.
  • 【Haptic Rain Sensor】: Compared with traditional rain gauge sensor, WS90 outdoor sensor is equipped with a Haptic Rainfall Sensor at the top that accurately measures rainfall volume in detail: featuring rain detection and rain stop interpretation functions. This special sensor does not vibrate, it is not affected even by harsh weather conditions, and it’s designed to keep working with accuracy in any context.
  • 【Other Features】: Meets Waterproof IPX5 Standards, and it is made from Thermal Insulation Materials. Equipped with a built-in solar panel & backup batteries; Long transmission range up to 150m (500ft) of distance if there are obstacles within the range and up to 300m (1,000ft) of distance in open space. The bird spikes included allows you to say goodbye to the birds interference.
  • 【Easy to Install & Configure Wi-Fi】: Just install the weather station on the mounting tube and base and see how stable the device stays. This stability is critically important for the accuracy of the sensors and the reported data. It is easy for you to complete the Wi-Fi configuration according to the including quick start. There are three Wi-Fi configuration methods available.
  • 【Support Pairing With Ecowitt Developed and To Be Developed Sensors】: Except for pairing with WS90 outdoor sensor, the 7 inch HP2560 display console could work with all ecowitt developed and to be developed sensors, such as up to 8 × WH51 soil moisture sensors/ WN31(WH31) thermo-hygrometer/ WN36 pool thermometer/ WN34 thermometer, up to 4 × WH41/WH43 air quality sensors/ WH55 water leak detector, 1 × WH40 rain gauge sensor/ WH45 air quality sensor/ WS68 anemometer sensor and so on.
  • 【Support Uploading to Internet】: When finished Wi-Fi configuration, display console is capable of sending your sensor data to select internet-based weather services, such as Ecowitt Weather, Weather Underground, Weather Cloud, Weather Observation Website (WOW) or Customized Website(Supports uploading to your customized website, if the website has the same protocol with Wunderground or Ecowitt).
  • 【Graph/History Records on the Website & Email Alerts】: supports uploading all the sensors data to our free Ecowitt Weather server(ecowitt.net) to view all the data graph and download the history records on the website; Email alerts functions available for wittboy weather sensor.
  • 【NOTE】The daily rain deviation of WS90 is very small in the long run, but under certain conditions the deviation could be larger: As the rain drop size and wind speed can have different impacts on the sensor output which lead to this variance. The WS90 product suffer from this imperfectness. If you are very demanding on rain data accuracy, we recommend you purchase WH40 and use it with WS90. If there is no precise requirement on data of each rain, then WS90 is just fine.
  • 【RF Frequency】: 433 MHz

Product Description

HP2564 Weather Station, Includes WS90 Sensor Array and HP2560 Display Console

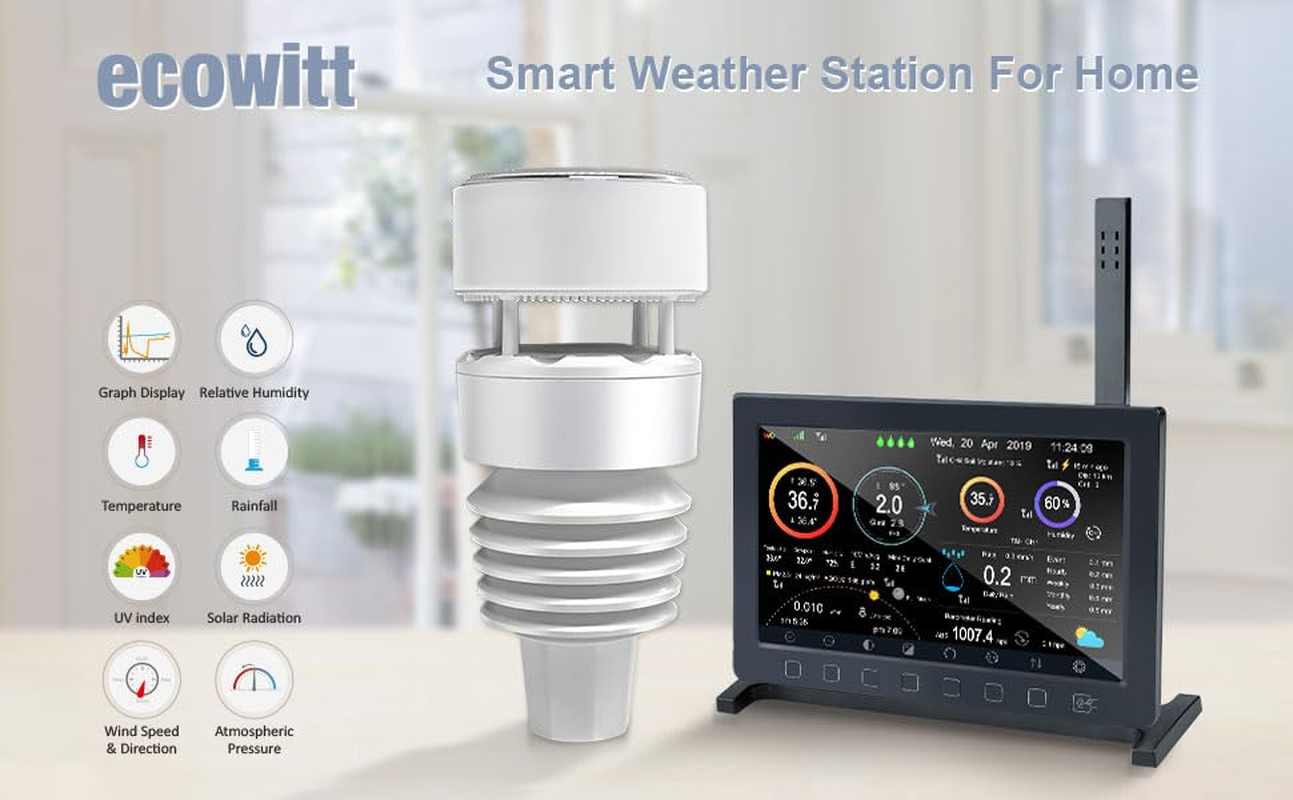

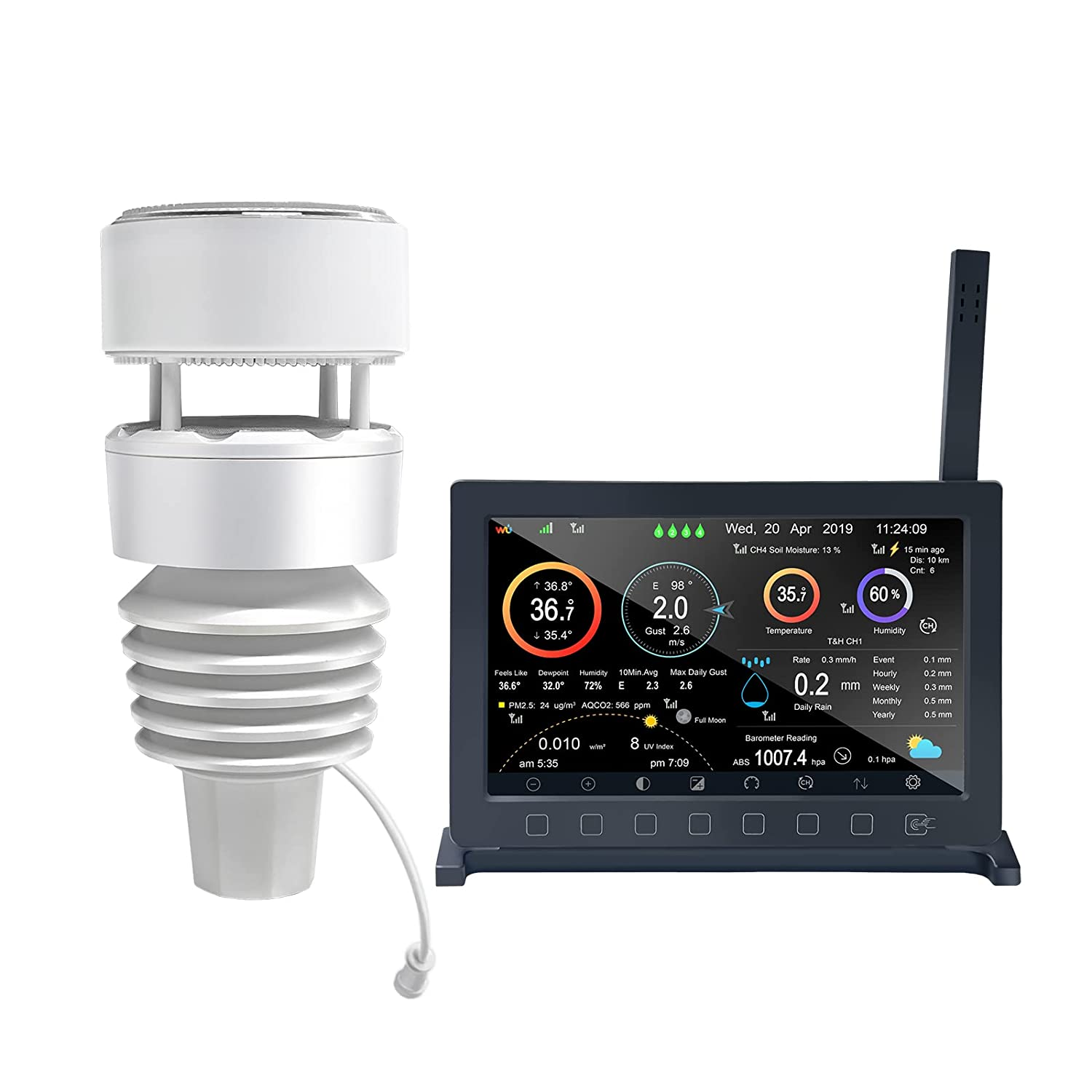

  1. HP2564 Weather Station

    Includes WS90 Outdoor Sensor Array and HP2560 Indoor Display Console

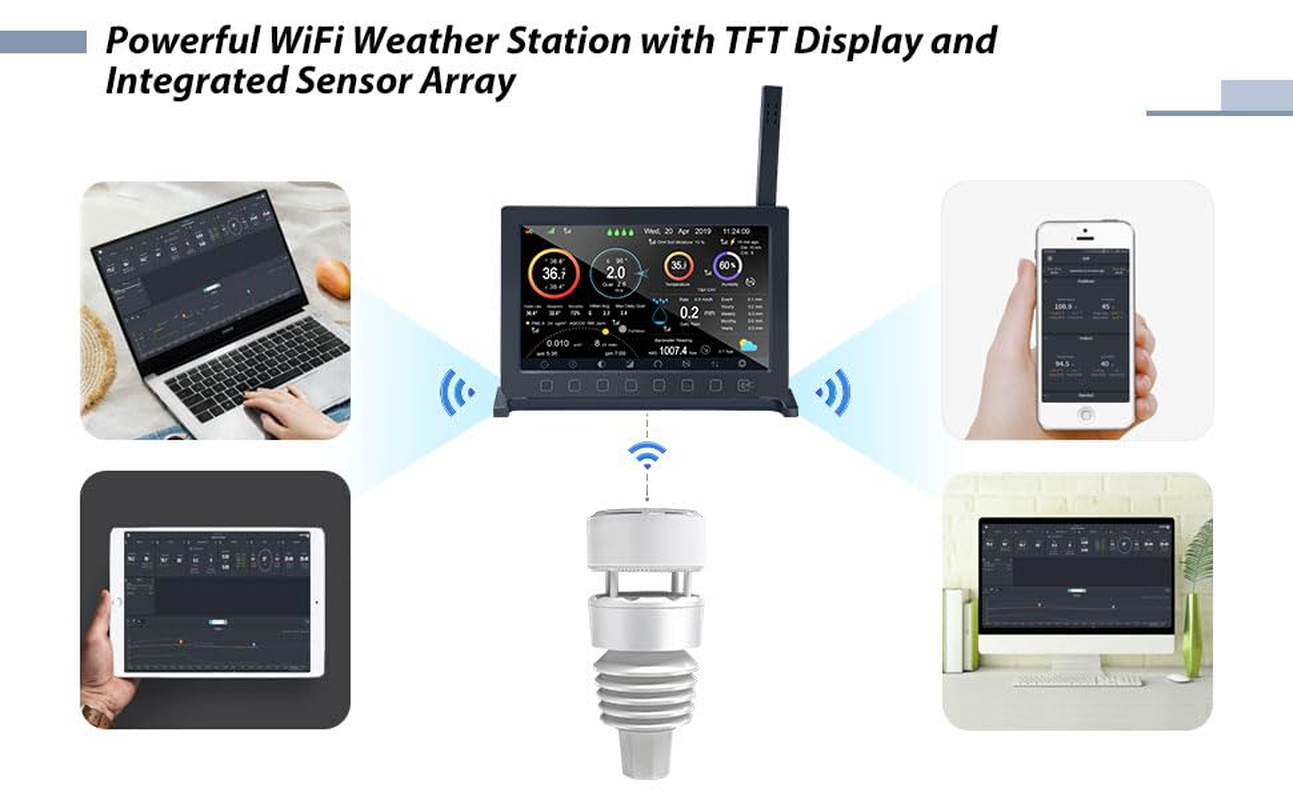

  2. How it works

  3. HP2560 Indoor Display Console

    • ✔ Indoor Temperature, Humidity, and Barometric Pressure.
    • ✔ Can work with Ecowitt Sensors except for the IoT devices.

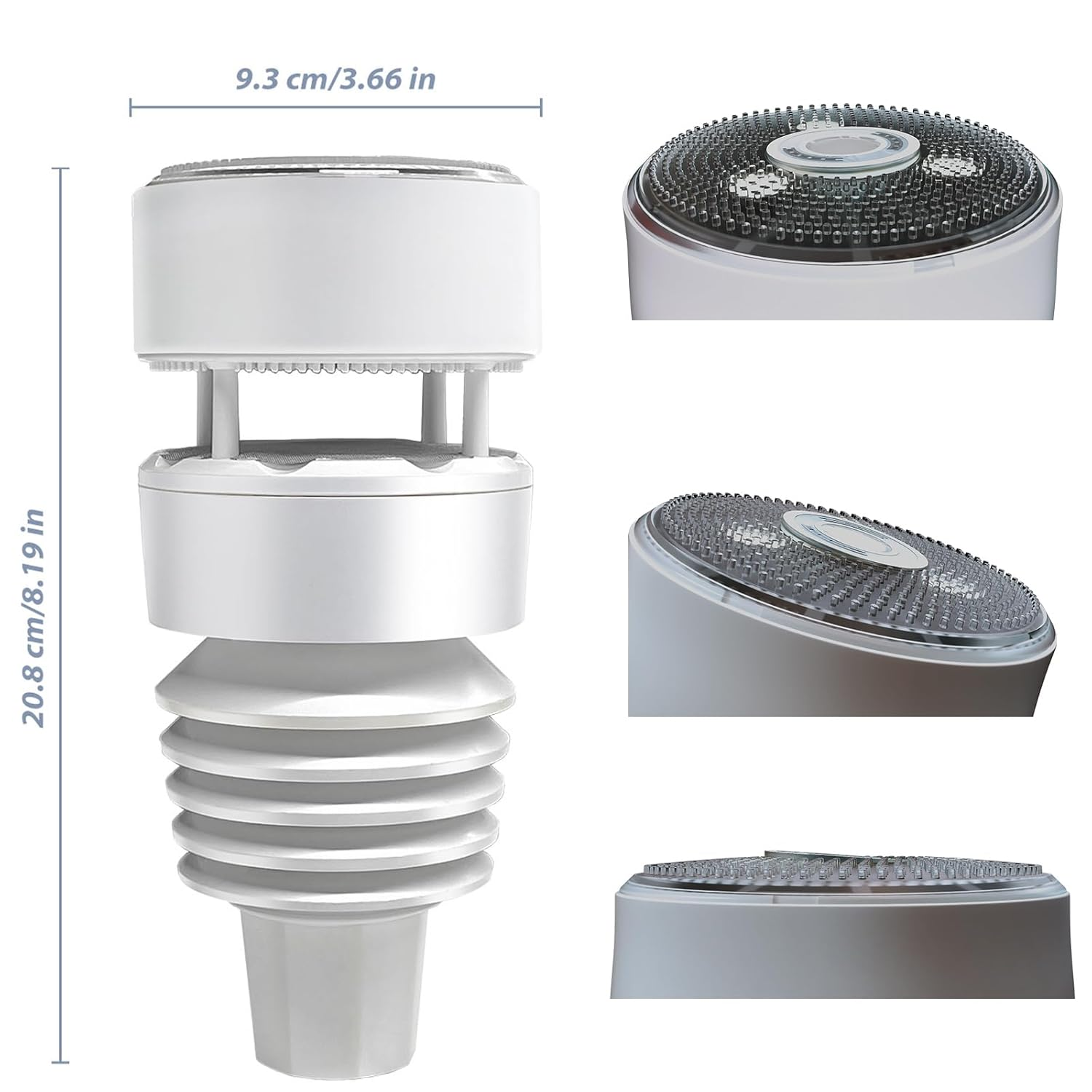

  4. WS90 Outdoor Sensor Array

    • ✔ Outdoor Temperature, Humidity, Piezo Rain Gauge, Wind Speed, Wind Direction, UV&Light
    • ✔ Waterproof IPX5
    • ✔ Can be connected with an external extension cable (Sold Separately) to power on or heat.
  • ✔ Measures Indoor Outdoor temperature&humidity, barometric pressure, rainfall, wind speed&direction, UV&lgiht.
  • ✔ Supports Weather Underground, WOW, Weather Cloud, Ecowitt Weather Server, and custom sites.
WS90 Outdoor Senso Array

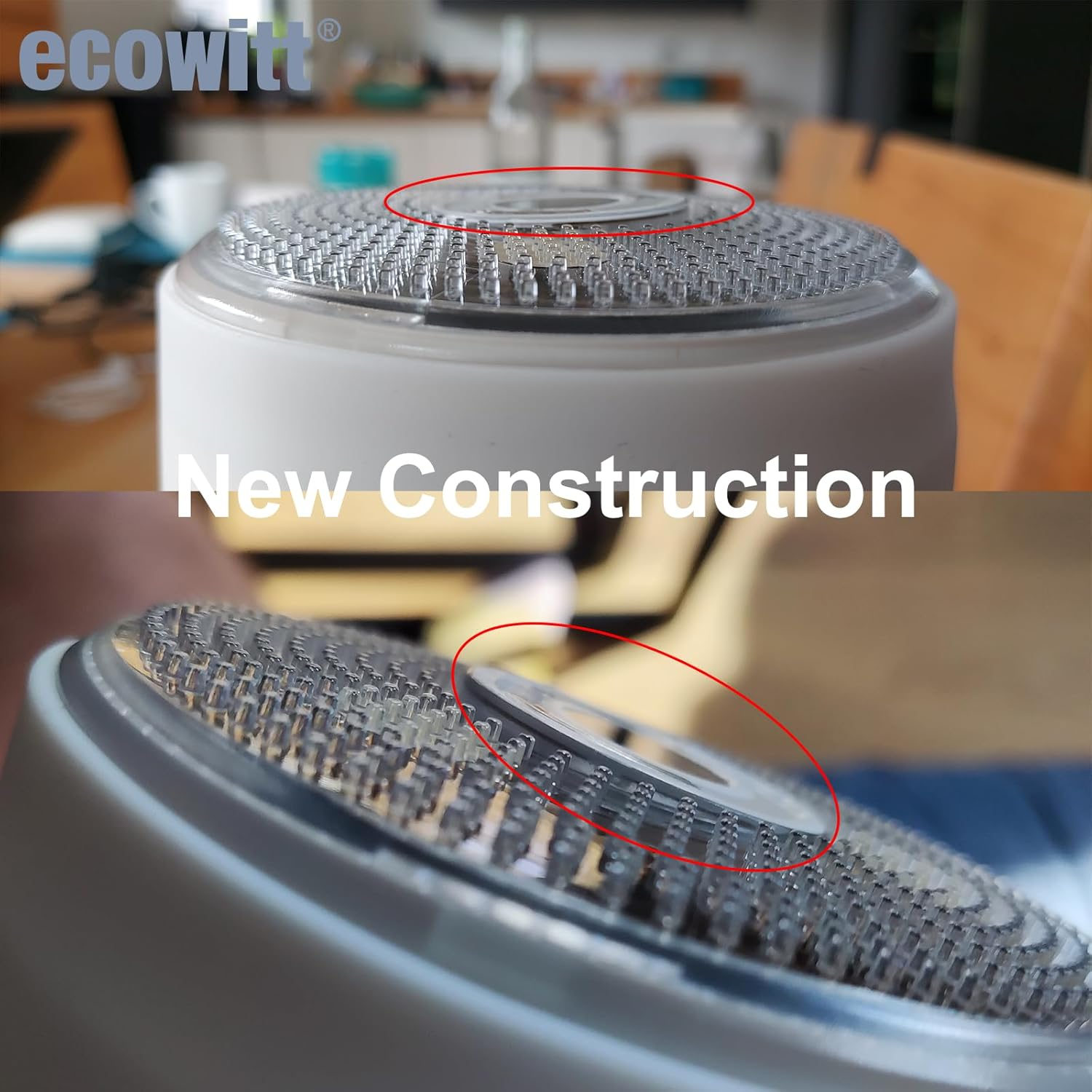

The Latest Technology

If you find the top of the haptic rain gauge has a slope, please do not worry; it is not a defect in the production process. It is our latest technology that this slope proves advantageous for accurately identifying precipitation status because the accumulated water at the top of the piezoelectric sensor can be influenced by wind, leading to potential misjudgments regarding rainfall.

Table 1 of the WS90 Outdoor Sensor Array's Specifications

Transmission distance 150 m (450 ft.) in open field
Temperature range -40°C – 60°C (-40°F - 140°F)
Temperature accuracy ±1°C (± 1.8°F)
Temperature resolution 0.1°C (0.2°F)
Humidity range 1%RH to 99%RH
Humidity Accuracy ±5%RH
Humidity Resolution 1%RH
Rainfall Measure range 0mm to 9999mm
Rainfall Measure accuracy ±20%, <5mm/h & >50mm/h; ±10%, 5mm/h to 50mm/h
Rainfall Measure resolution 0.1mm
Wind speed Range 0m/s to 40m/s
Wind speed accuracy ±1m/s, <10m/s; ±10%, ≥10m/s
Wind speed resolution 0.1m/s (starting speed > 0.5m/s)
Wind direction range 0° to 359°
Wind direction accuracy ±15°
Wind direction resolution 1°

Table 2 of the WS90 Outdoor Sensor Array's Specifications

Light Measure Range 0Klux to 200Klux
Light Measure accuracy ±25%
Light Measure resolution 0.1Klux
UV Measure range 1 to 15
UV Measure accuracy ±2
UV Measure resolution 1
Data reporting Interval 8.8 seconds
RF Frequency 433 MHz
RF Wireless Range Over 150 meters (500 ft.) in open areas
Operating TemperatureRange -40°C to 60°C(-40℉ to 140℉)
Protection Rating IPX5
Built-in Solar panel 7.5V±5%/30mA±10%
Power Supply 2*AA batteries (NOT Included) or Solar Power

HP2560 Indoor Display Console's Specifications

Temperature range -60℃— 150℃ (-76℉ - 302℉)
Temperature resolution 0.1°C, or 0.1°F
Humidity range 1% ~ 99%
Humidity resolution 1%
Barometric pressure range 300 – 1200 hPa (8.85 – 35.4 inHg)
Barometric pressure accuracy ± 3 hPa (700 – 1100 hPa)
Sensor reporting interval 60 seconds
Alarm Duration 120 seconds
Material of Plastic Casing ABS
Material of Screen TFT
WLAN 802.11b/g/n 2.4GHz (802.11n, Max 150 Mbps)
WLAN Range Over 30 meters (in open areas)
Console Operating Temperature 0°C to 50°C (32℉ to 122℉)
Reading Update Interval About 1 minute
Power Supply 3.5mm 5V DC to USB cable (included)

Package List

  • 1 * WS90 Outdoor Sensor Array (Do Not Include Installation Pole)
  • 1 * HP2560 Indoor Display Console
  • 1 * Bird Spike set
  • 1 * AC/DC Power Adapter
  • 1 * USB-DC Power Cable
  • 1 * Quick Start
  • 1 * User Manual for WS90
  • 1 * User Manual for HP2560
  • 1 * User Manual for Bird Spike
  • Item Model Number: HP2564CA
  • Product dimensions: 18.3 x 12.2 x 23 cm; 1.24 kg
  • Style Name: HP2564
  • Manufacturer: ecowitt
