Waveshare POE Hat,Power over Ethernet HAT Type E Compatible with Raspberry Pi 3B+/4B 802.3Af-Compliant, Mini Body, More Space-Saving
Waveshare POE Hat,Power over Ethernet HAT Type E Compatible with Raspberry Pi 3B+/4B 802.3Af-Compliant, Mini Body, More Space-Saving
Brand: Waveshare
A$37.80

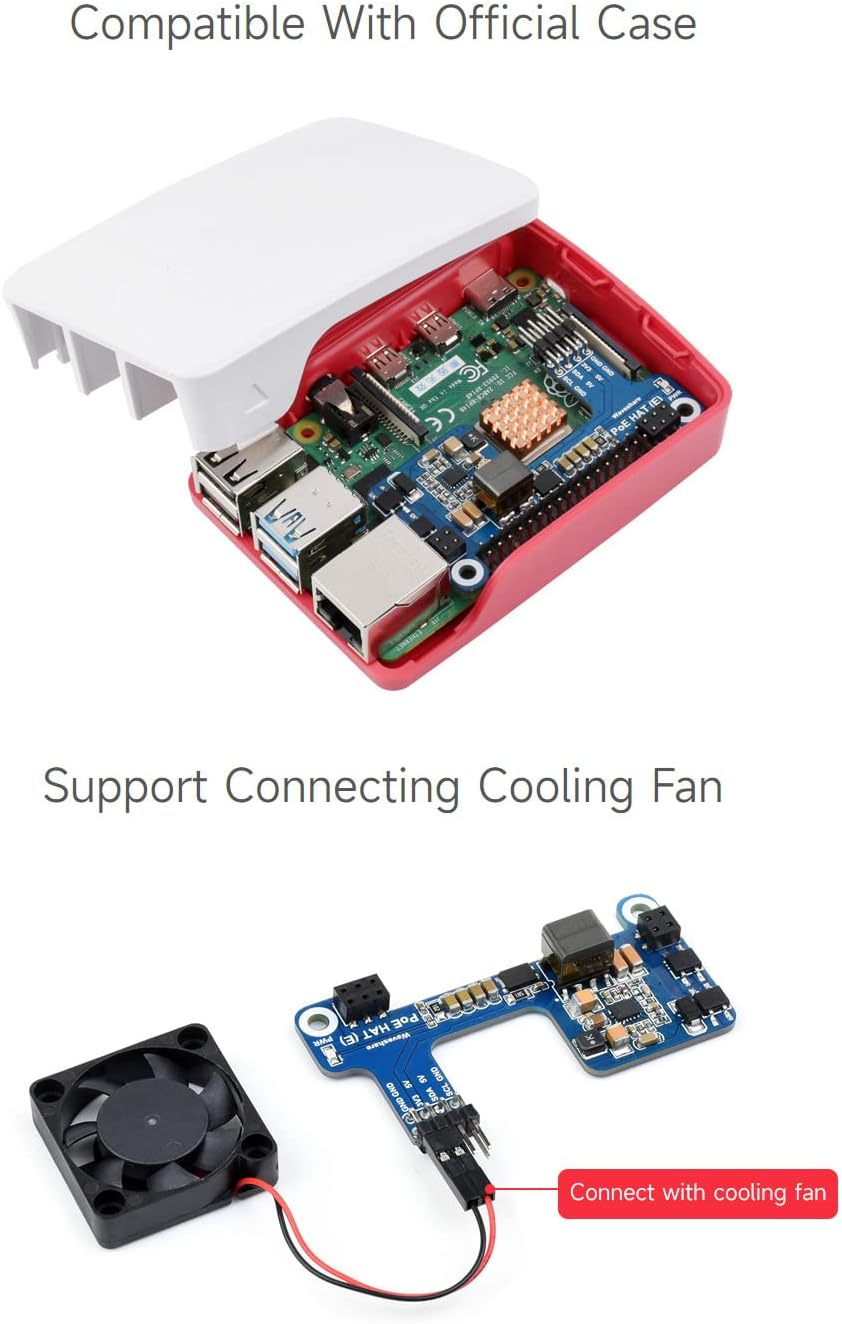

- Fully isolated switched-mode power supply (SMPS).Supports Raspberry Pi 3B+/4B, compatible with the Raspberry Pi official case.
- PoE (Power Over Ethernet) capability，Support 802.3af PoE Network Standard.
- Supports Raspberry Pi 3B+/4B, compatible with the Raspberry Pi official case.
- Smaller and more flexible with a more compact component layout

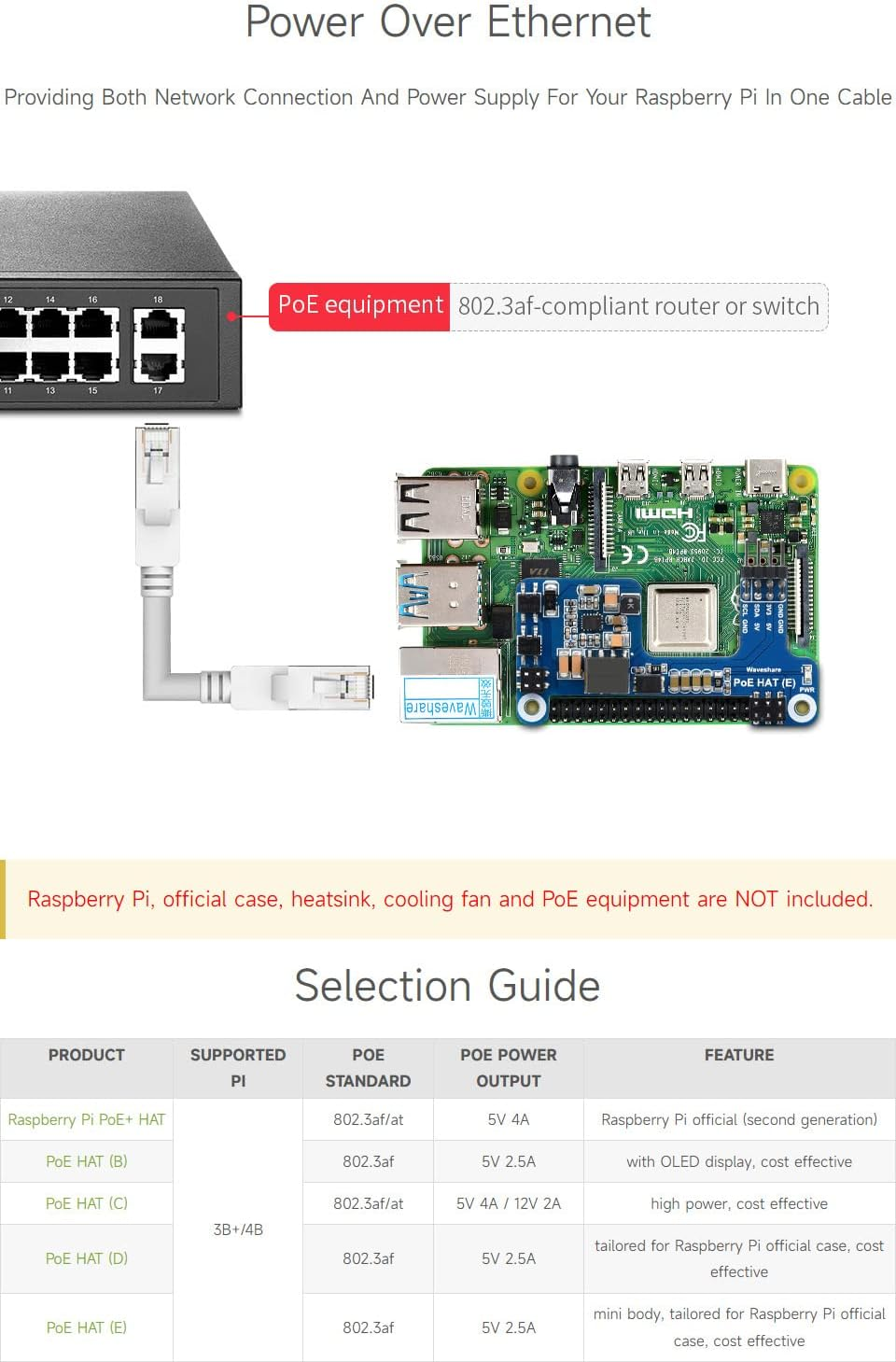

- If you already have an IEEE 802.3af-compliant PoE router or switch, with this HAT you can provide both network connection and power supply for your Raspberry Pi in one Ethernet cable
Product Description
Selection table
| Customer Reviews | 4.6 out of 5 stars 58 | 4.4 out of 5 stars 40 | 4.3 out of 5 stars 37 | 4.3 out of 5 stars 37 | 4.3 out of 5 stars 127 | 4.0 out of 5 stars 48 |
| Price | $35.99$35.99 | $42.99$42.99 | $45.60$45.60 | $35.99$35.99 | $50.50$50.50 | $39.99$39.99 |

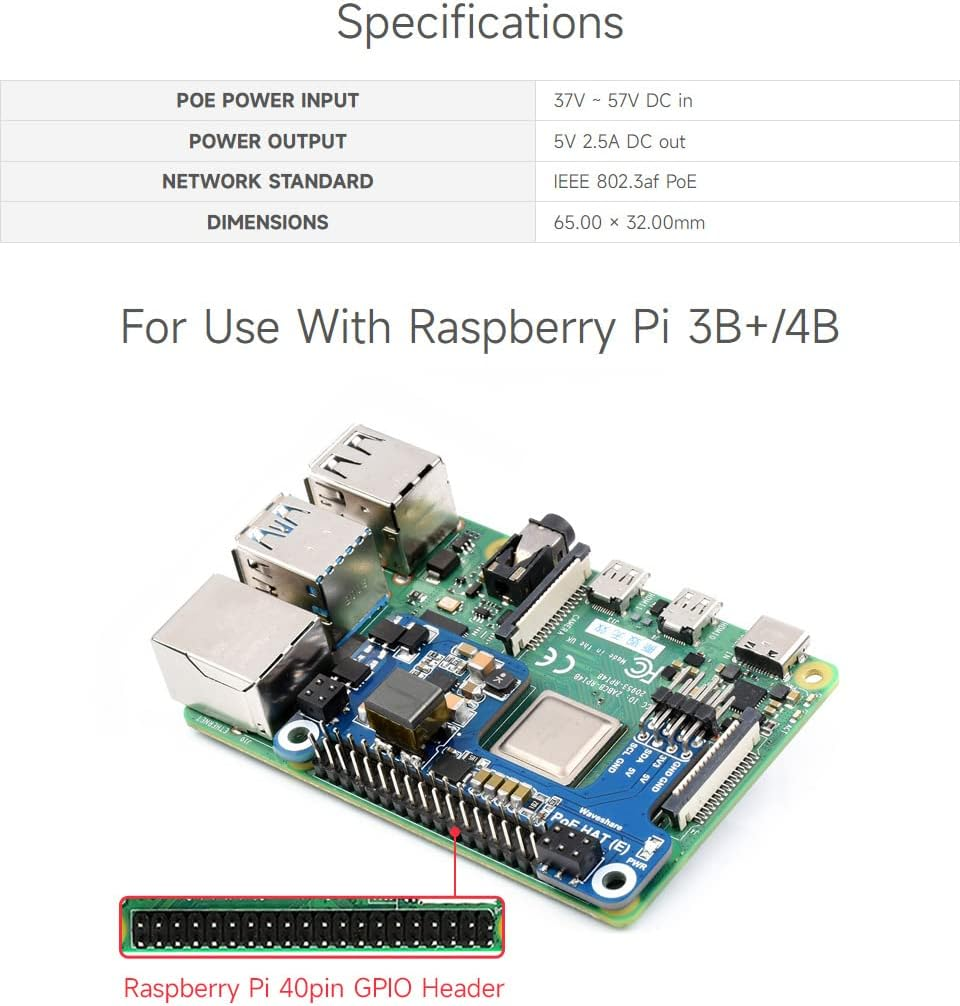

| POE POWER INPUT | 37V ~ 57V DC in | 37V ~ 57V DC in | 37V ~ 57V DC in | 37V ~ 57V DC in | 37V ~ 57V DC in | 38V ~ 57V DC in |
| POE POWER OUTPUT | 5V 2.5A DC out | 5V 2.5A DC out | USB-A: 5V 4A 2P: 12V 2A (MAX) | 5V 2.5A DC out | GPIO: 5V 4.5A 2P: 12V 2A (MAX) | GPIO header: 5V 5A (MAX) |
| NETWORK STANDARD | IEEE 802.3af PoE | 802.3af PoE | IEEE 802.3af/at PoE | IEEE 802.3af PoE | IEEE 802.3af/at PoE | IEEE 802.3af/at PoE |

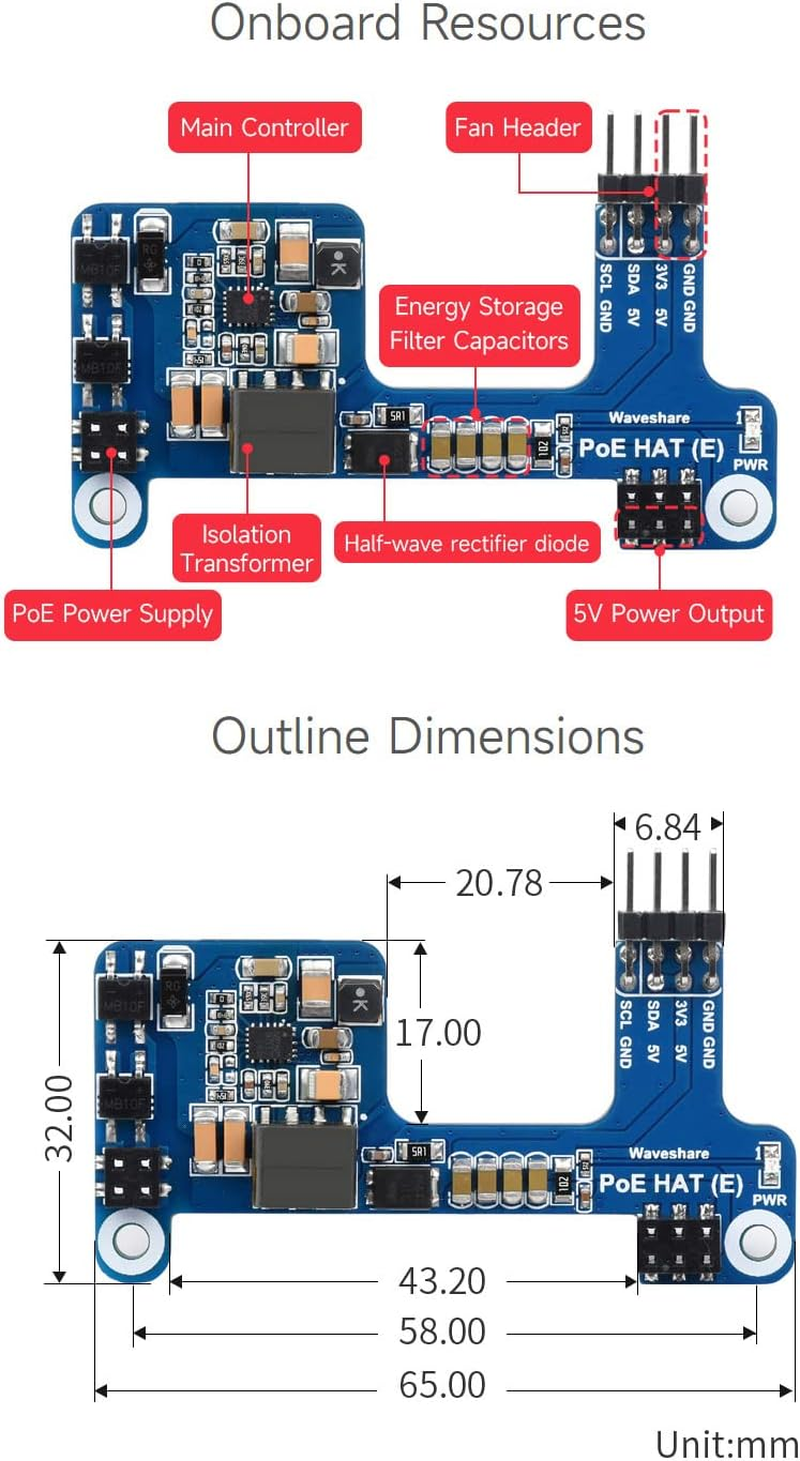

| DIMENSIONS | 65.00 × 32.00mm | 56.5 × 65mm | 56.5 × 65mm | 58.90 × 54.92mm | 56.5 × 70.0mm | 56.5 × 64.98mm |
| Compatible devices | RPi 3B+/4B | RPi 3B+/4B | RPi 3B+/4B | RPi 3B+/4B | RPI 5 | RPI 5 |
- Item Model Number: PoE HAT (E)
- Part Number: PoE HAT (E)
- Total USB ports: 2
- Operating System: Linux
- Model Name: Waveshare POE HAT
- Mounting Hardware: PoE HAT (E)
- Batteries Included: No
- Batteries Required: No
- Brand: Waveshare
- Compatible Devices: Raspberry Pi 3B+, Raspberry Pi 4B
- Connector Type: Ethernet
- Item Weight: 10 g
- Ram Memory Technology: LPDDR3
- Processor Count: 1
- Model: PoE HAT (E)
- Country/Region of origin: China
- Processor Brand: ARM
- Package Dimensions: 7 x 5 x 1.9 cm; 10 Grams
- Processor Type: Core i7
- Manufacturer: Waveshare
