Waveshare 7.5Inch E-Paper HAT Display Module Compatible with Jetson Nano/Raspberry Pi 4B/3B+/3A+/3B/2B/1B+/1A+/Zero 2 W/Zero W/Zero 800×480 Resolution Black and White
Waveshare 7.5Inch E-Paper HAT Display Module Compatible with Jetson Nano/Raspberry Pi 4B/3B+/3A+/3B/2B/1B+/1A+/Zero 2 W/Zero W/Zero 800×480 Resolution Black and White
Brand: Waveshare
A$105.00
- This product has been updated to V2 with 800 x 480 resolution (the V1 has a resolution of 640 x 384). The hardware structure and interface of V2 are compatible with the V1, but the software needs to be updated. If you purchase it for the first time, and there is a V2 label on the back of the screen, you can directly use the program for V2.
- This is an E-Ink display HAT for Raspberry Pi, 7.5inch, 800×480 resolution, with embedded controller, communicating via SPI interface. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
- No backlight, keeps displaying last content for a long time even when power down. Ultra low power consumption, basically power is only required for refreshing.
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano. SPI interface, for connecting with other controller boards like Raspberry//Nucleo, etc. Onboard voltage translator, compatible with 3.3V/5V MCUs.
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano//STM32).
Product Description
Same Module on another listing,(amazon.com.au/dp/B0BFQKDRLR?ref=myi_title_dp) Sometimes there will be stocks shipped faster by Amazon

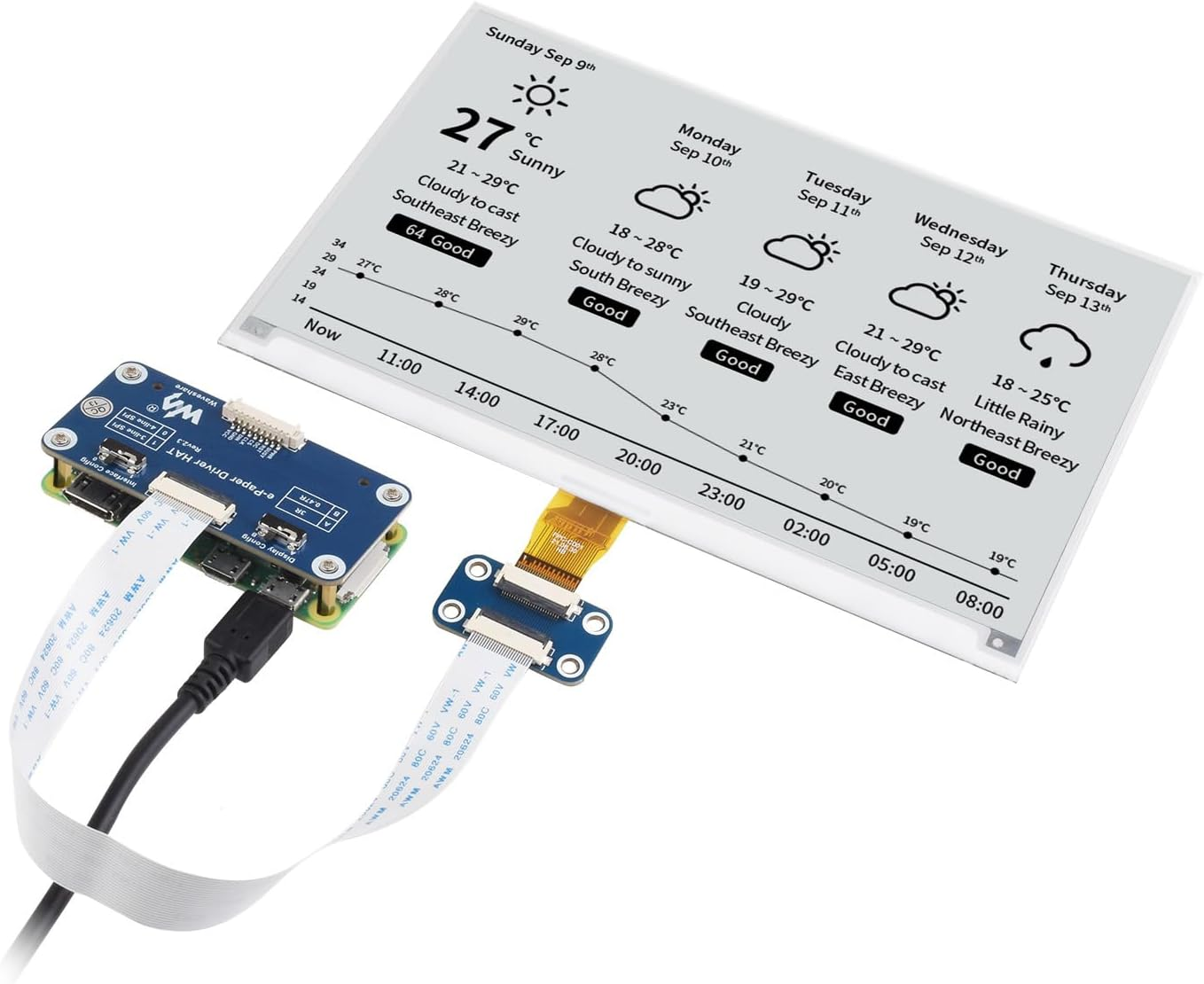

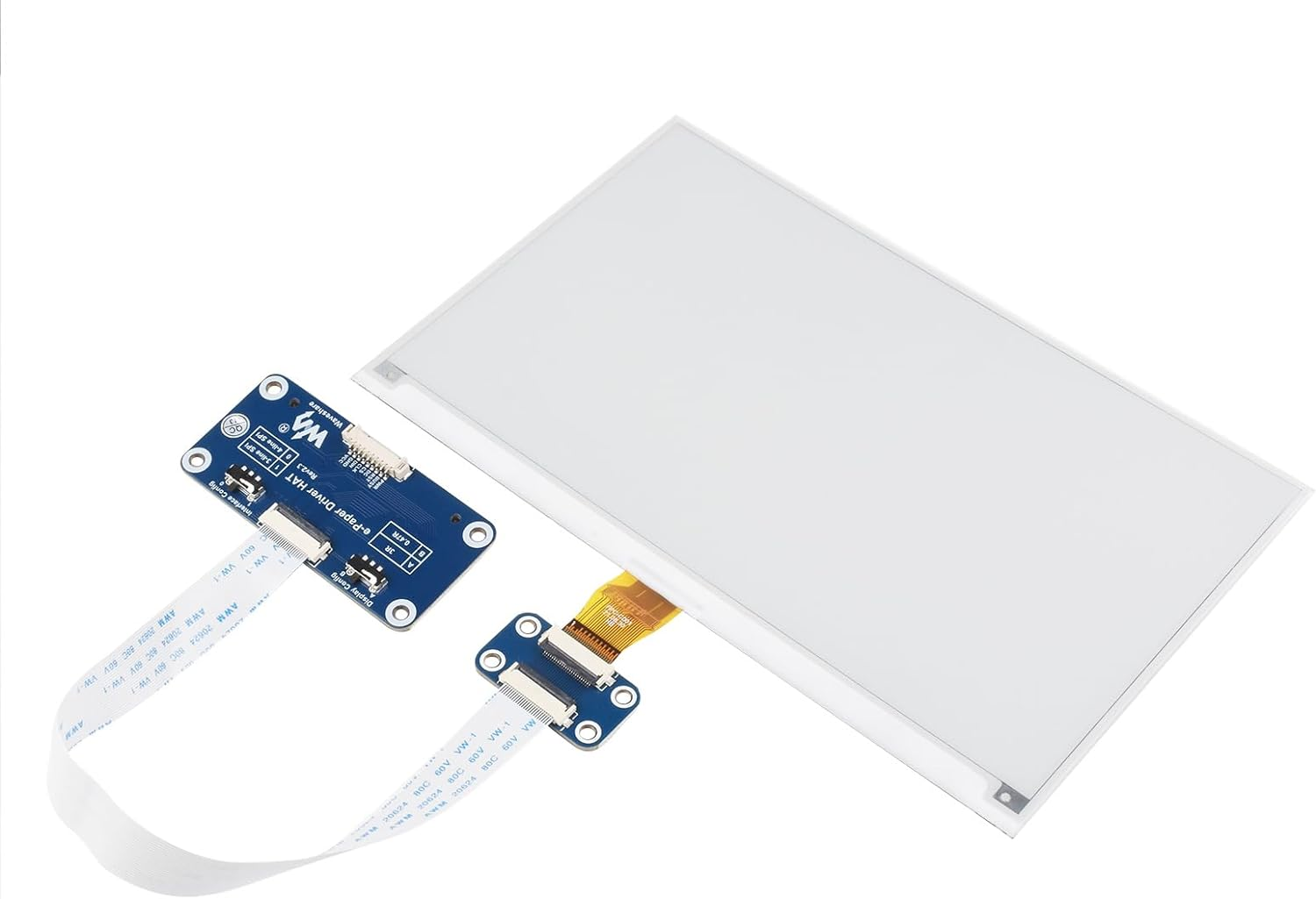

Waveshare 800×480, 7.5inch E-Ink Display HAT For Raspberry Pi, SPI Interface
This is an E-Ink display HAT for Raspberry Pi, 7.5inch, 800×480 resolution, with embedded controller, communicating via SPI interface.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

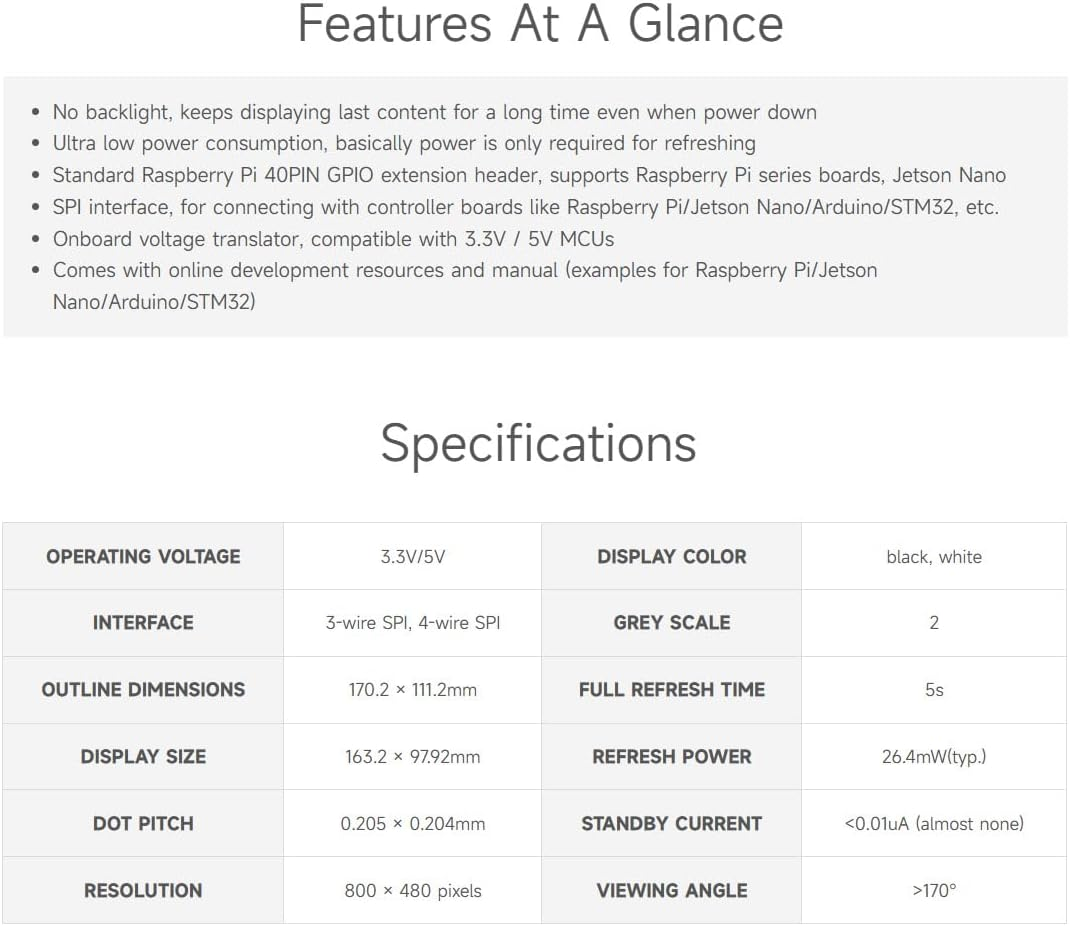

Features
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
- SPI interface, for connecting with other controller boards like Raspberry Pi, etc.
- Onboard voltage translator, compatible with 3.3V/5V MCUs
- With online development resources and user guide (examples for Raspberry Pi/Jetson Nano/STM32)
Specifications
- Operating voltage: 3.3V~5V
- Interface: SPI

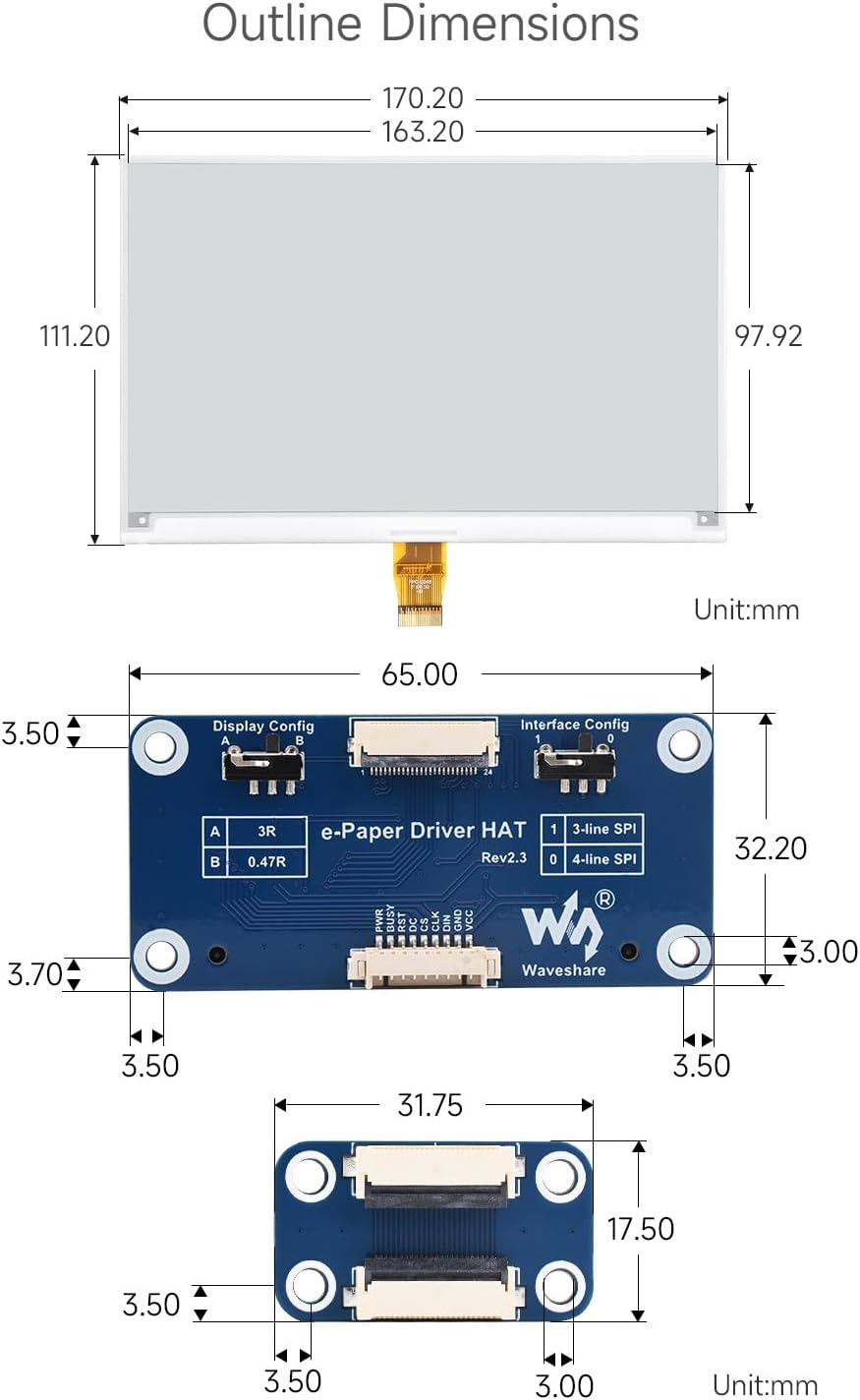

- Outline dimension: 170.2mm × 111.2mm
- Display size: 163.2mm × 97.92mm
- Dot pitch: 0.205 × 0.204
- Resolution: 800×480
- Display color: black, white
- Grey scale: 2
- Full refresh time: 5s
- Refresh power: 38mW(typ.)
- Standby power: <0.017mW
- Viewing angle: >170°
Revision History
Revision V2 has been released on 2019.11, the resolution is upgraded to 800×480, from 640×384 of V1. The hardware and interface of V2 are compatible with V1, however, the related software should be updated.
7.5inch e-Paper HAT
- Item Model Number: 7.5inch E-Paper HAT Display Module
- Part Number: WS-7.5inch e-Paper HAT (A)
- Graphics Card Interface: Integrated
- Operating System: Raspberry Pi OS
- Processor Socket: 40-pin GPIO header
- Batteries Required: No
- Brand: Waveshare
- Batteries Included: No
- Compatible Devices: Raspberry Pi, Jetson Nano
- Wireless Type: Infrared
- Item Weight: 150 g
- Number of Ports: 3
- Compatible processor types: [DOC]
- Ram Memory Technology: LPDDR4, LPDDR3
- Model: 7.5inch E-Paper HAT Display Module
- Total USB ports: 2
- Package Dimensions: 20.8 x 15 x 5.2 cm; 150 Grams
- Manufacturer: Waveshare
