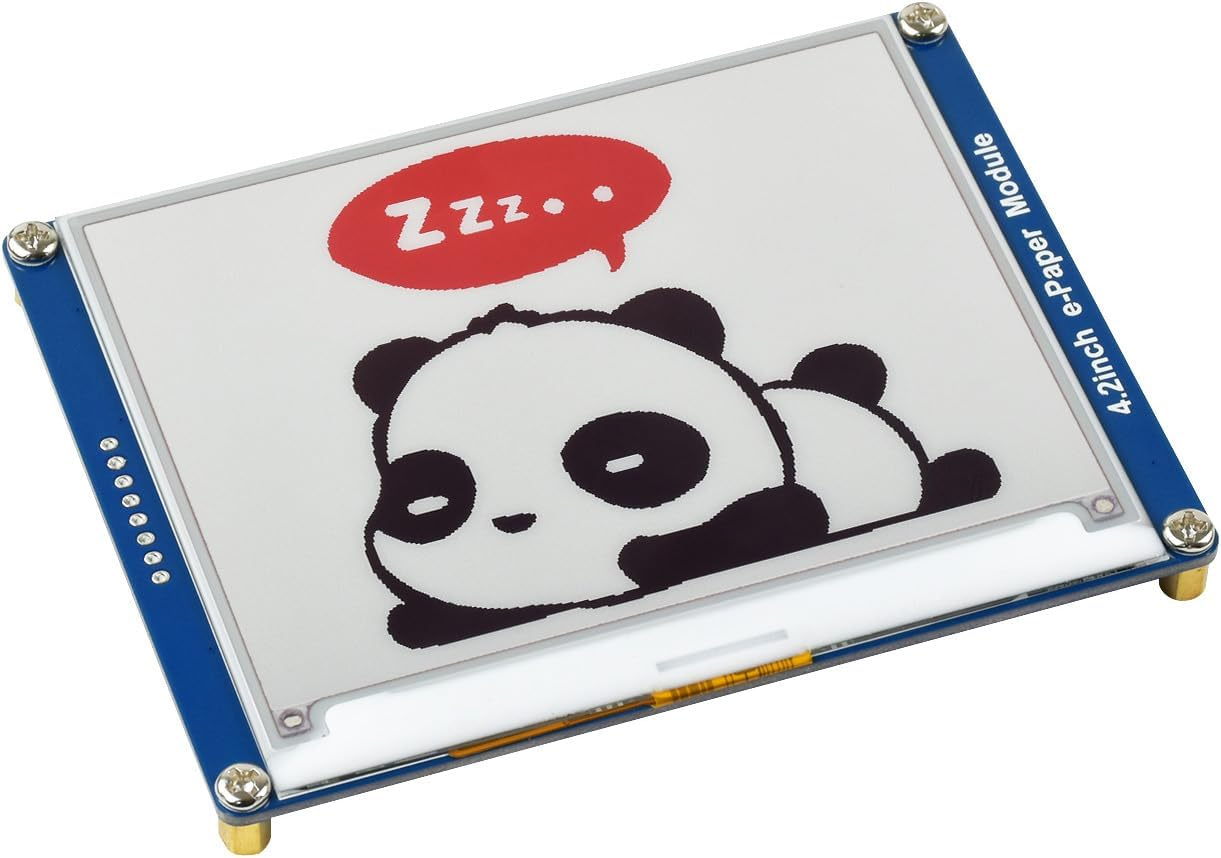

Waveshare 4.2Inch E-Paper Module, Red/Black/White 3Colors Display Module for Raspberry Pi/Jetson Nano/Nucleo Main Control Board，400X300 Resolution
Waveshare 4.2Inch E-Paper Module, Red/Black/White 3Colors Display Module for Raspberry Pi/Jetson Nano/Nucleo Main Control Board，400X300 Resolution
Brand: Waveshare
A$65.95
- An E-Ink display module, 4.2inch, 400x300 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.
- With advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
- No backlight is required, and the display content of the last screen can be maintained for a long time after disconnecting the power supply; the power consumption is very low, basically only power consumption during refresh
- SPI control interface, which can be connected to main control boards such as Raspberry Pi/Jetson Nano/STM32; on-board level conversion chip, compatible with 3.3V and 5V microcontroller interfaces
- Provide complete supporting information manual (example program for Raspberry Pi/Jetson Nano/STM32)
Product Description
Same Module on another listing,(amazon.com.au/dp/B0BFQFLJPQ?ref=myi_title_dp) Sometimes there will be stocks shipped faster by Amazon
Overview
This is an E-Ink display module, 4.2inch, 400x300 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features：
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- SPI interface, for connecting with controller boards like Raspberry Pi/Nucleo, etc.
- Onboard voltage translator, compatible with 3.3V/5V MCUs
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/STM32)
Specifications：
- Operating voltage: 3.3V~5V
- Interface: 3-wire SPI, 4-wire SPI

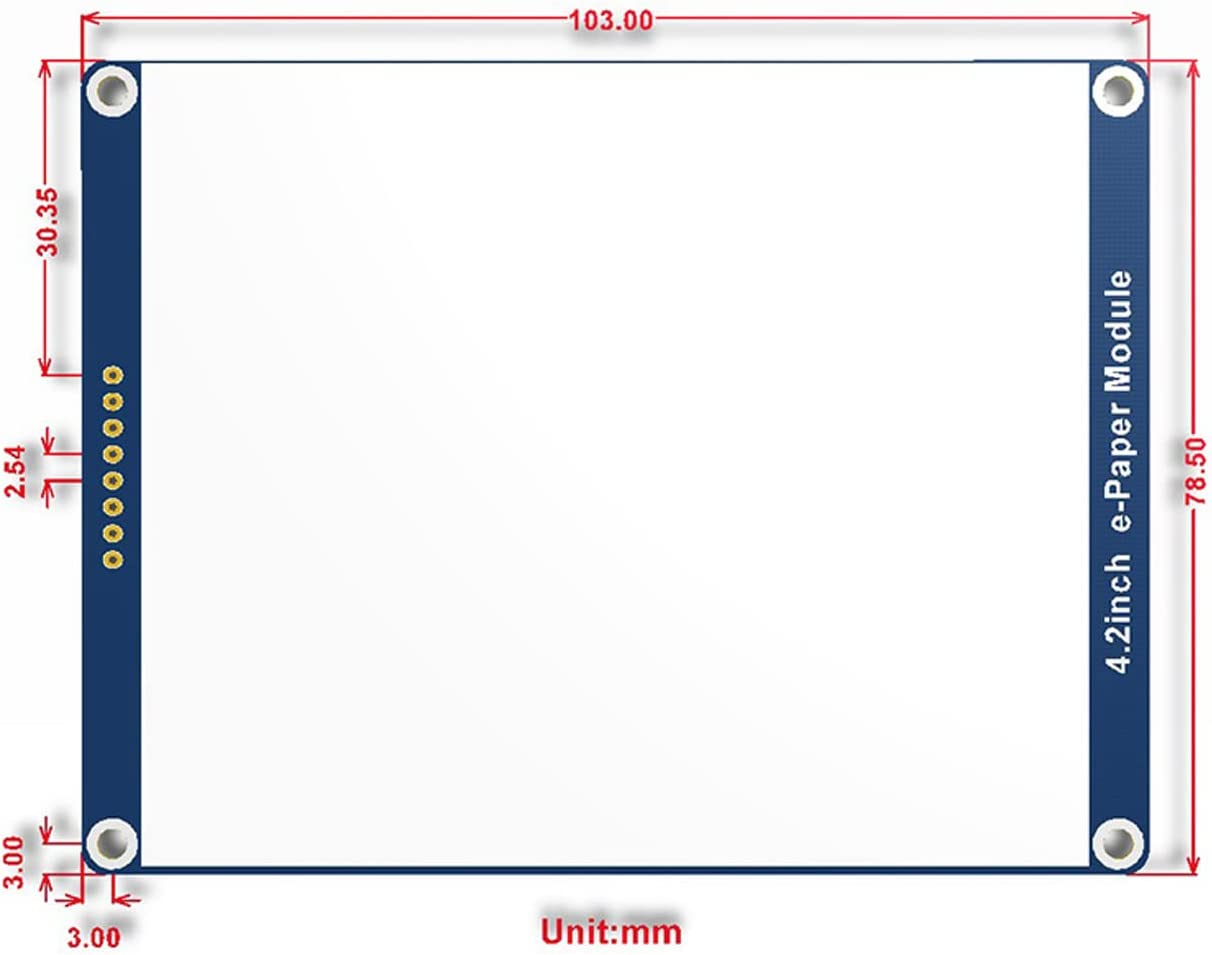

- Outline dimension: 103.0mm × 78.5mm
- Display size: 84.8mm × 63.6mm
- Dot pitch: 0.212 × 0.212
- Resolution: 400 × 300
- Display color: red, black, white
- Grey level: 2
- Full refresh time: 15s
- Refresh power: 26.4mW(typ.)
- Standby power: <0.017mW
- Viewing angle: >170°
Wiki：waveshare.com/wiki/4.2inch_e-Paper_Module_(B)?Amazon

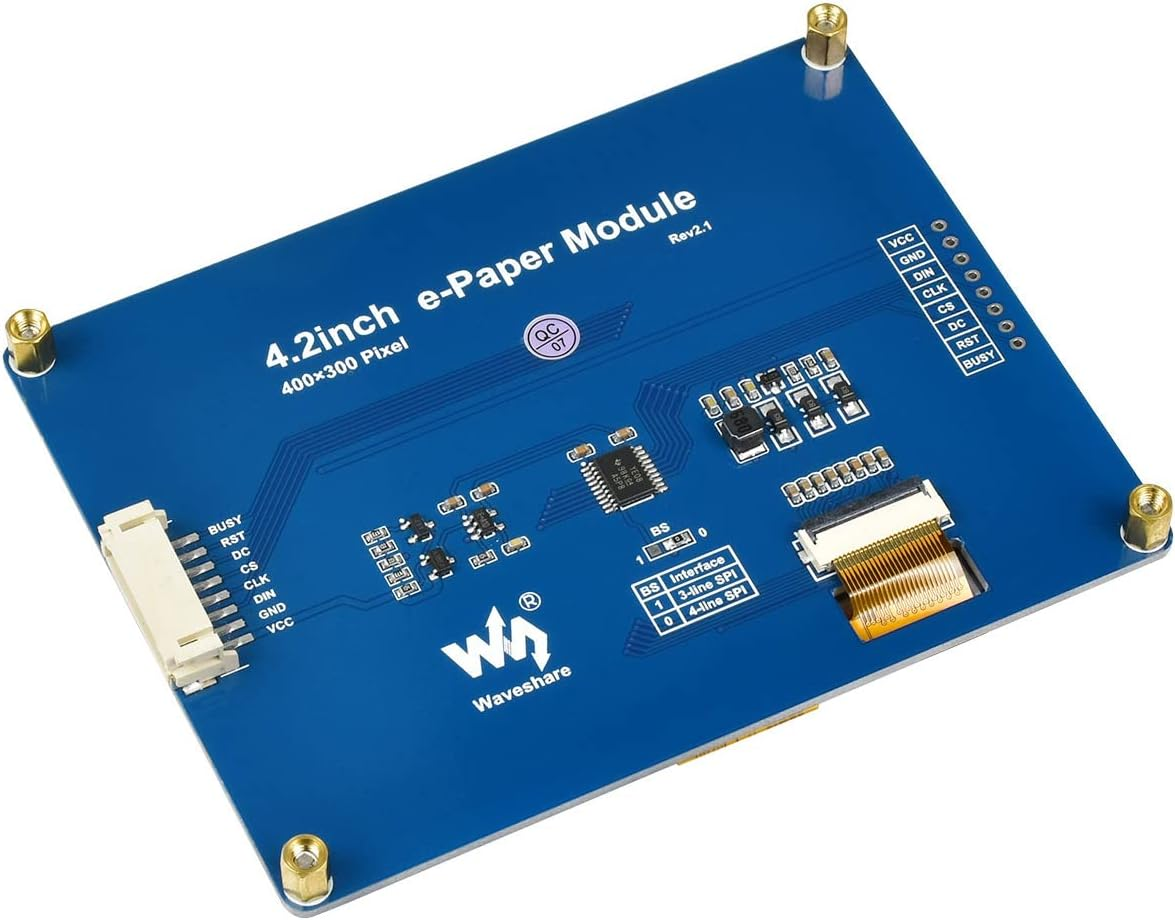

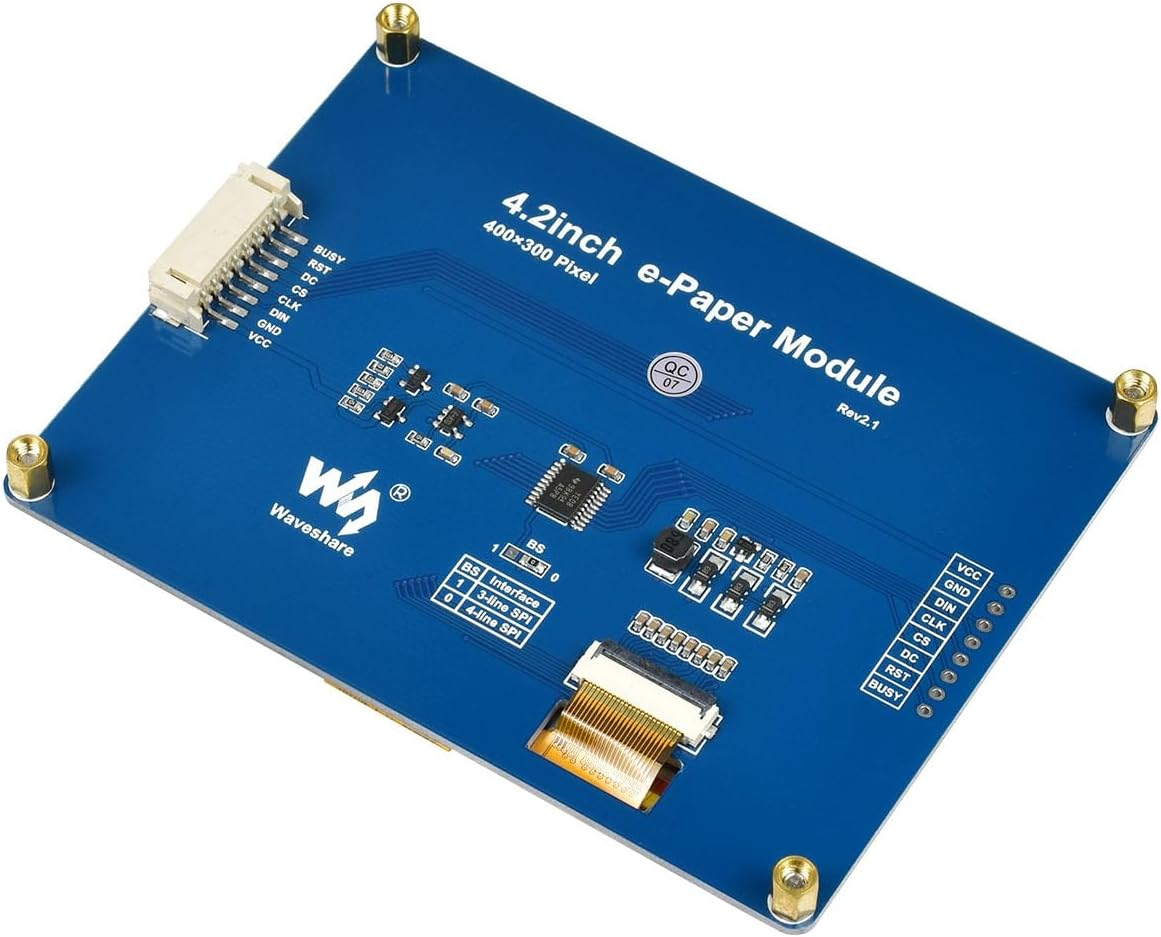

Interface
| SYMBOL | DESCRIPTION |
| VCC | 3.3V~5V |
| GND | Ground |
| DIN | SPI MOSI pin |
| CLK | SPI SCK pin |
| CS | SPI chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | External reset, low active |
| BUSY | Busy status output, low active |
- Part Number: WS-4.2inch Module (B)
- Operating System: Linux

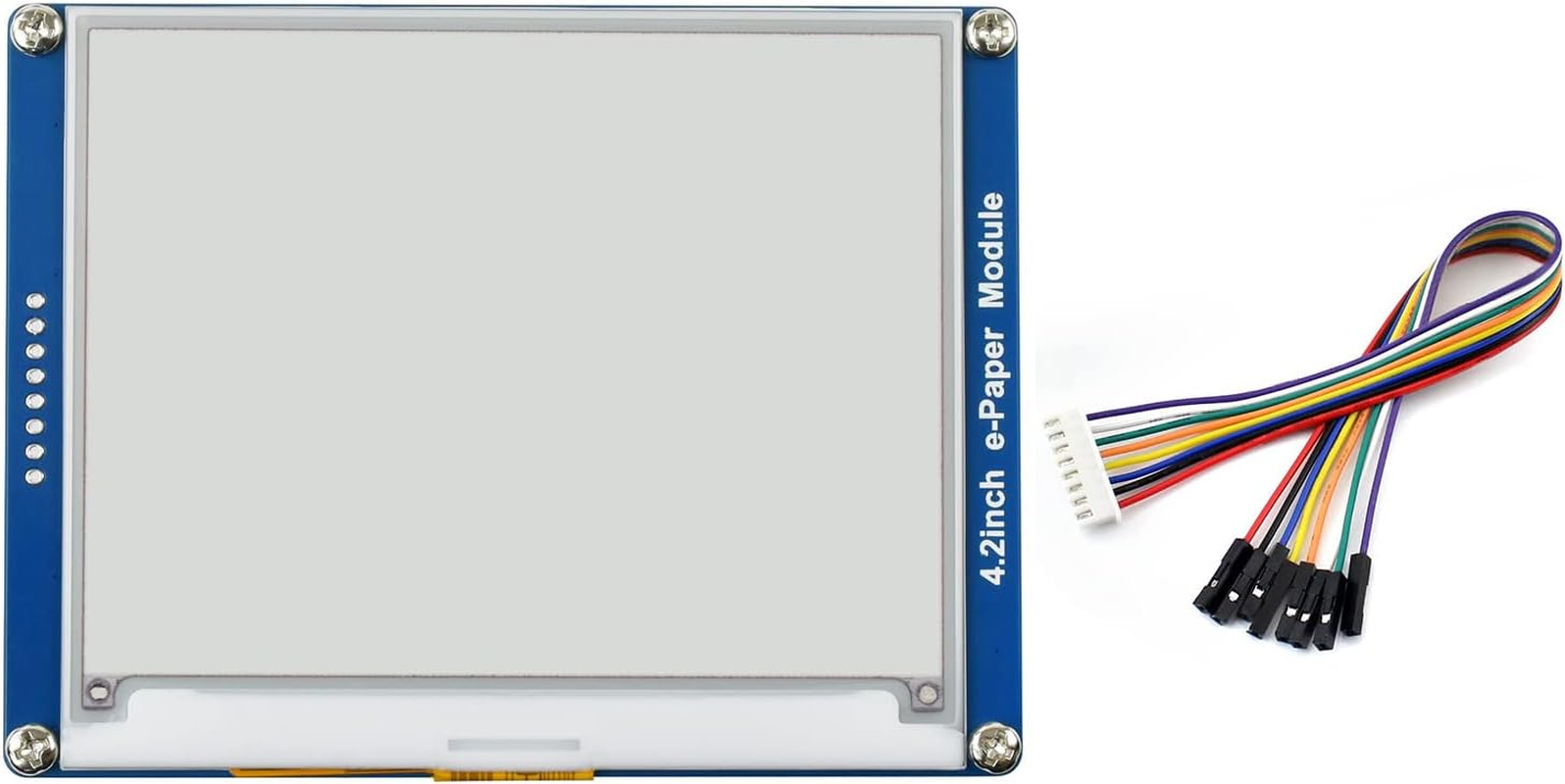

- Mounting Hardware: 4.2inch e-Paper Module (B), Cable
- Manufacturer reference: WS-4.2inch Module (B)
- Batteries Required: No
- Brand: Waveshare
- Compatible Devices: Raspberry Pi, Jetson Nano, STM32
- Connector Type: SPI
- Item Weight: 70 g
- Ram Memory Technology: LPDDR3
- Processor Count: 1
- Model Name: Waveshare 4.2inch E-Paper Module
- Package Dimensions: 10.6 x 10.6 x 2.8 cm; 70 Grams
- Manufacturer: Waveshare
