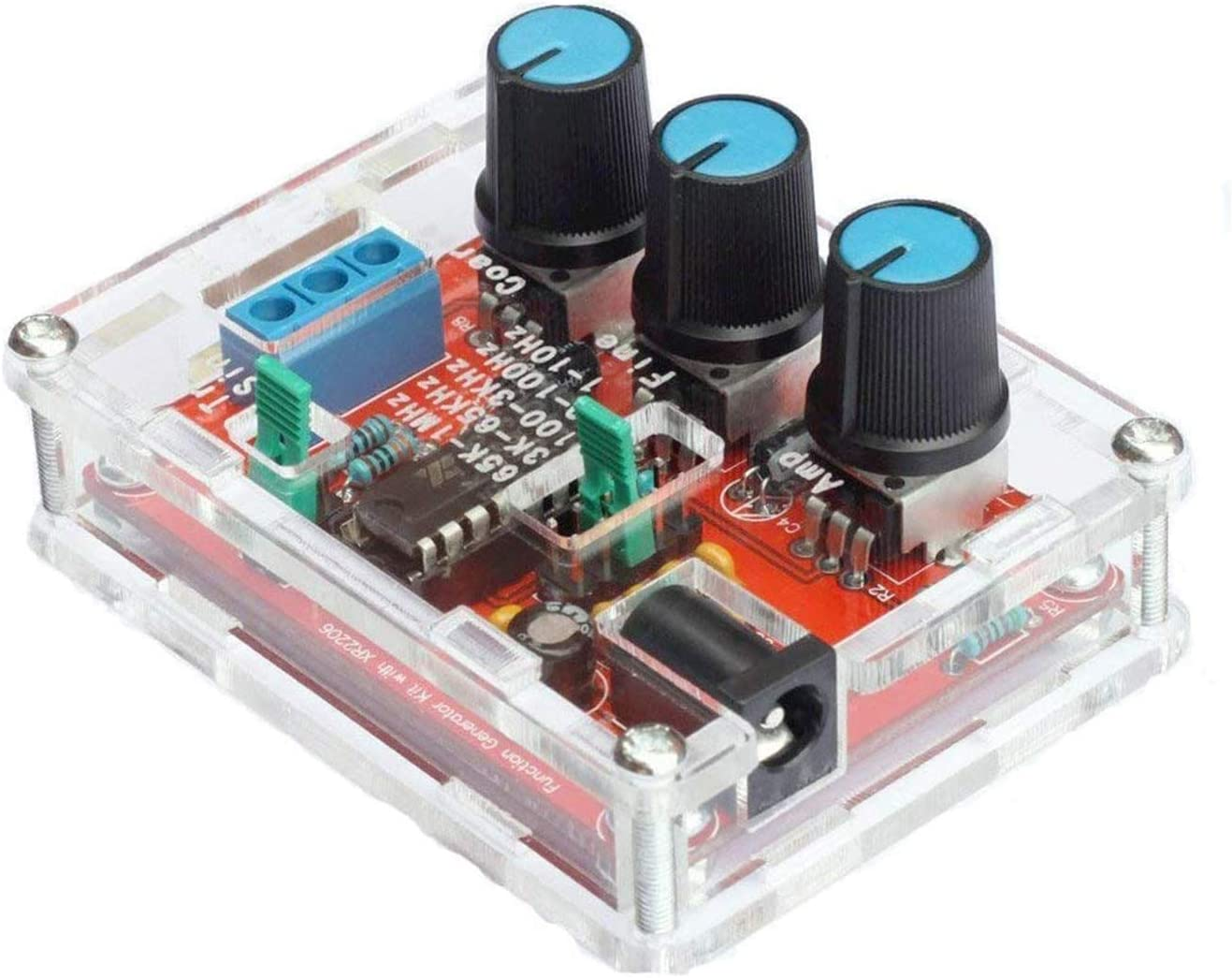

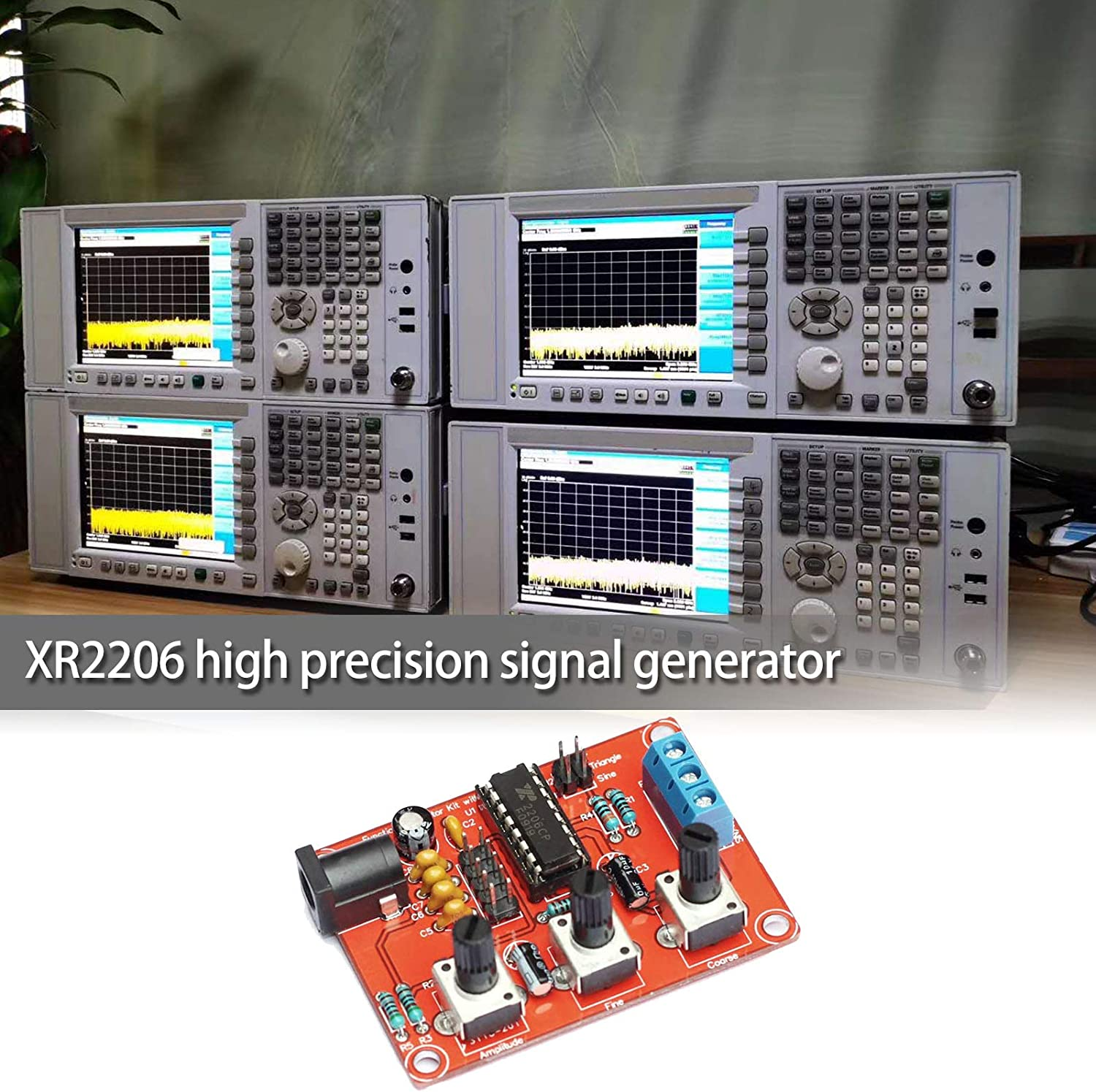

Emsea XR2206 High Precision Function Signal Generator DIY Kit with User Manual Sine/Triangle/Square Wave Adjustable Frequency Amplitude
Emsea XR2206 High Precision Function Signal Generator DIY Kit with User Manual Sine/Triangle/Square Wave Adjustable Frequency Amplitude
Brand: EMSea
A$21.00

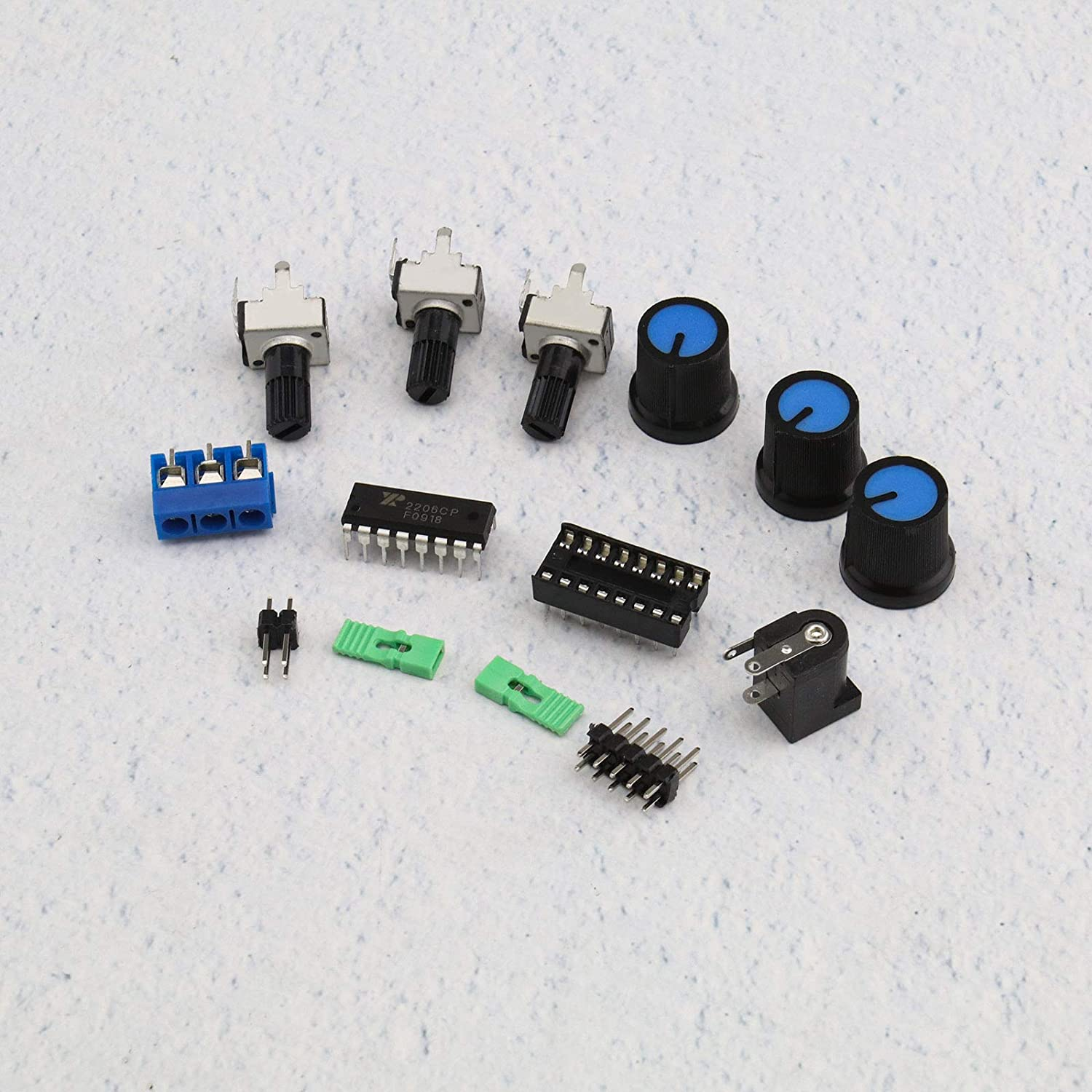

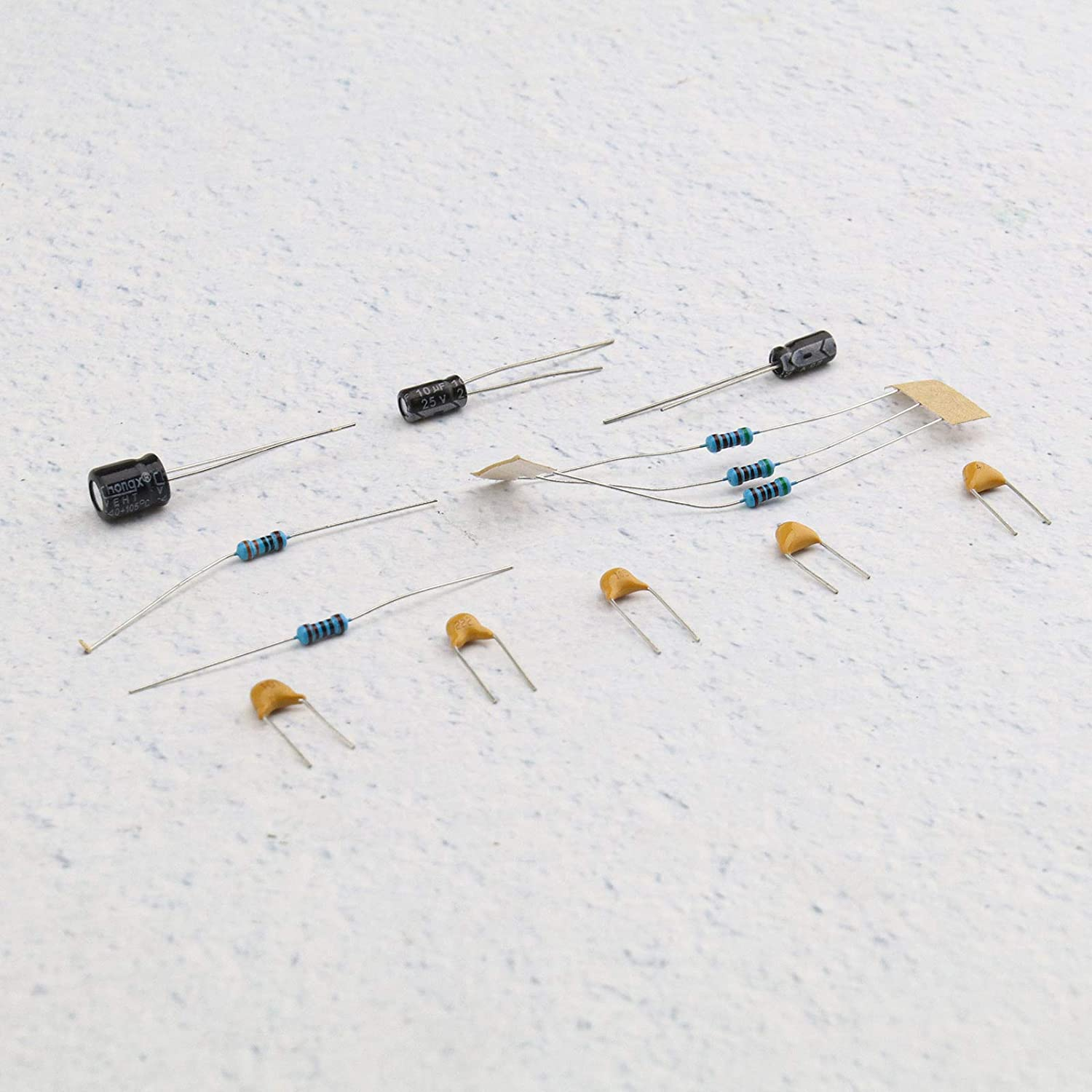

- [DIY Kit] : XR2206 high precision signal generator DIY parts, need to be assembled by yourself.
- [High Resolution] : Five precision resolution,can produce sine wave, triangular wave, square wave.
- [Sine Wave] : Amplitude : 0 - 3V at 9V DC input, Distortion : Less than 1% (at 1kHz), Flatness : +0.05dB 1Hz - 100kHz
- [Square Wave] : Amplitude : 8V (no load) at 9V DC Input, Rise Time : Less than 50 ns (at 1KHz), Fall Time : Less than 30 ns (at 1KHz), Symmetry : Less than 5% (at 1KHz)
- [Triangle Wave] : Amplitude : 0 - 3V at 9V DC input, Linearity : Less than 1% (up to 100kHz) 10mA.
Product Description
Item Specifications
Voltage Supply:9-12V DC Input
Impedance:600 Ohm+10%
Frequency:1Hz to 1MHz
Waveforms:Square,Sine,Triangle
Package

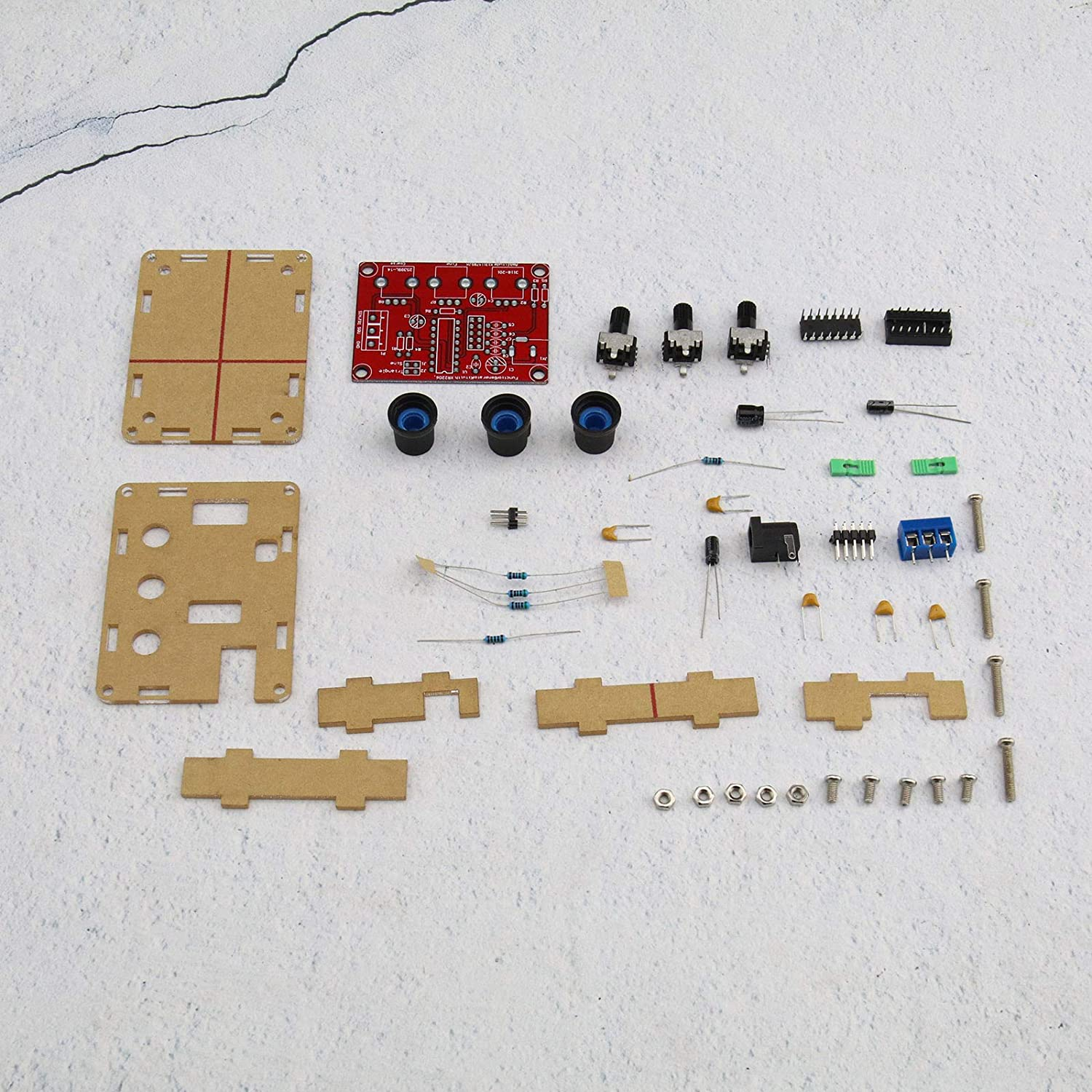

1x XR2206 High Precision Function Signal Generator DIY Kit
1x User Manual
- Part Number: BU|752
- Batteries Required?: No
- Manufacturer reference: BU|752
- Colour: Transparent
- Item Weight: 70 g
- Package Dimensions: 14.6 x 12.4 x 1.8 cm; 70 Grams
- Manufacturer: EMSea
