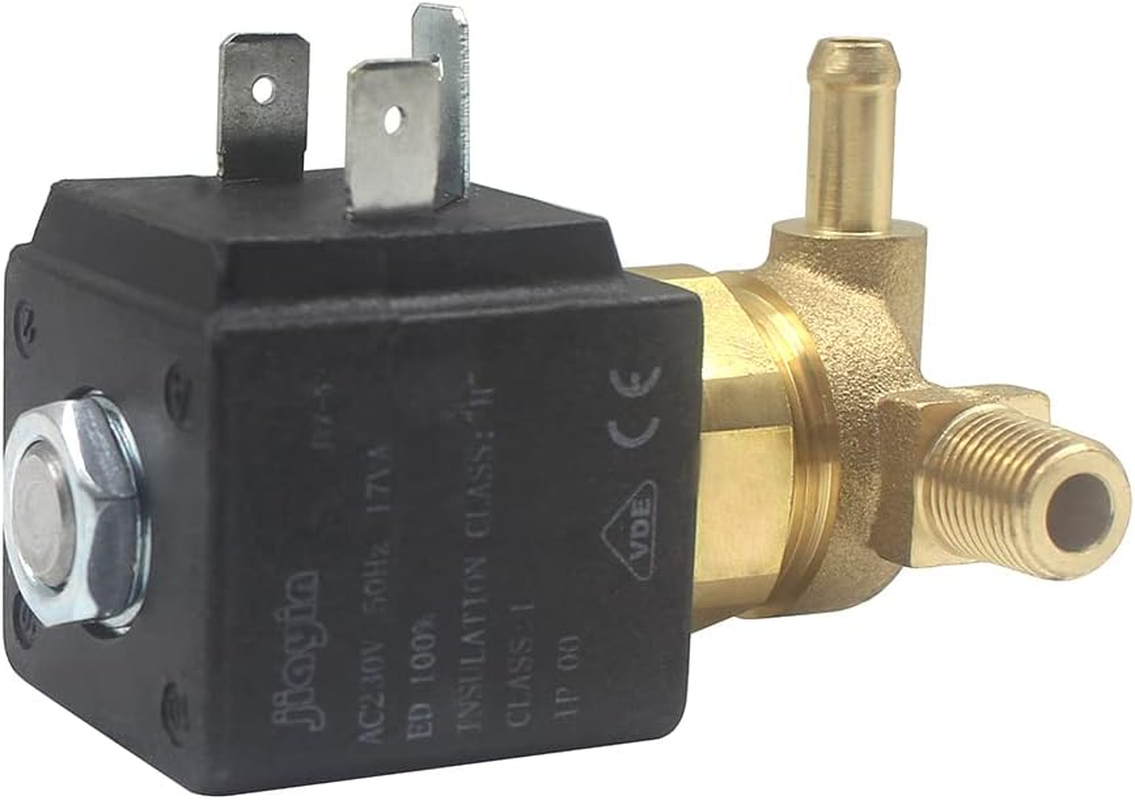

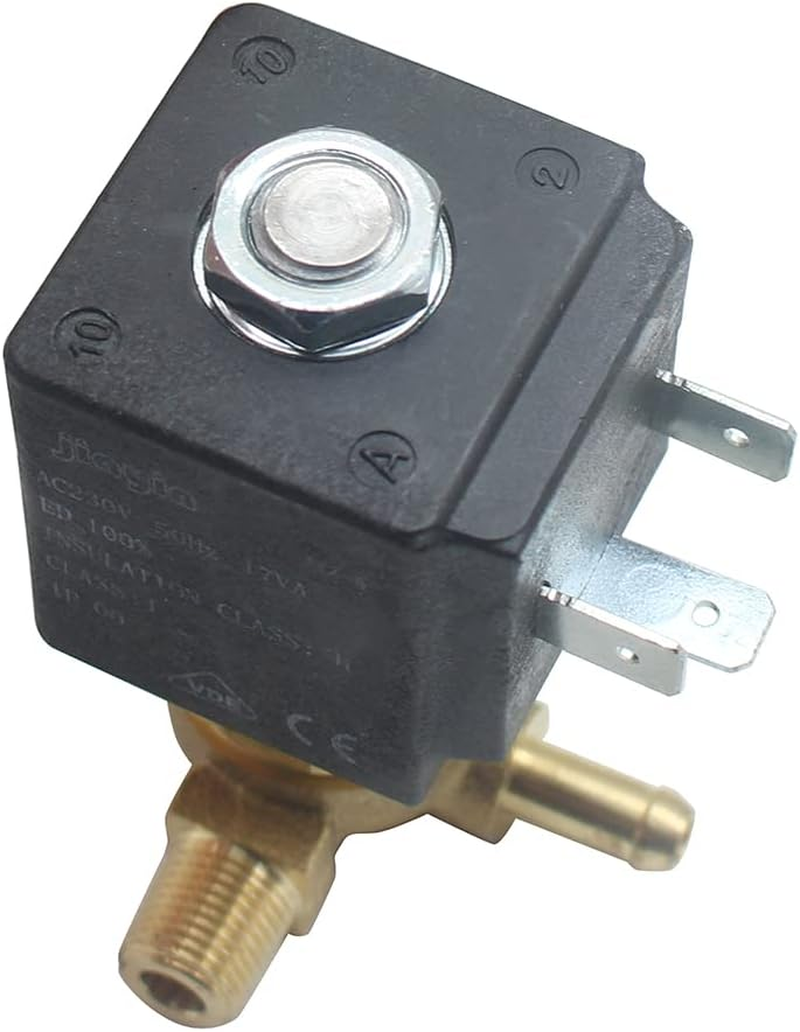

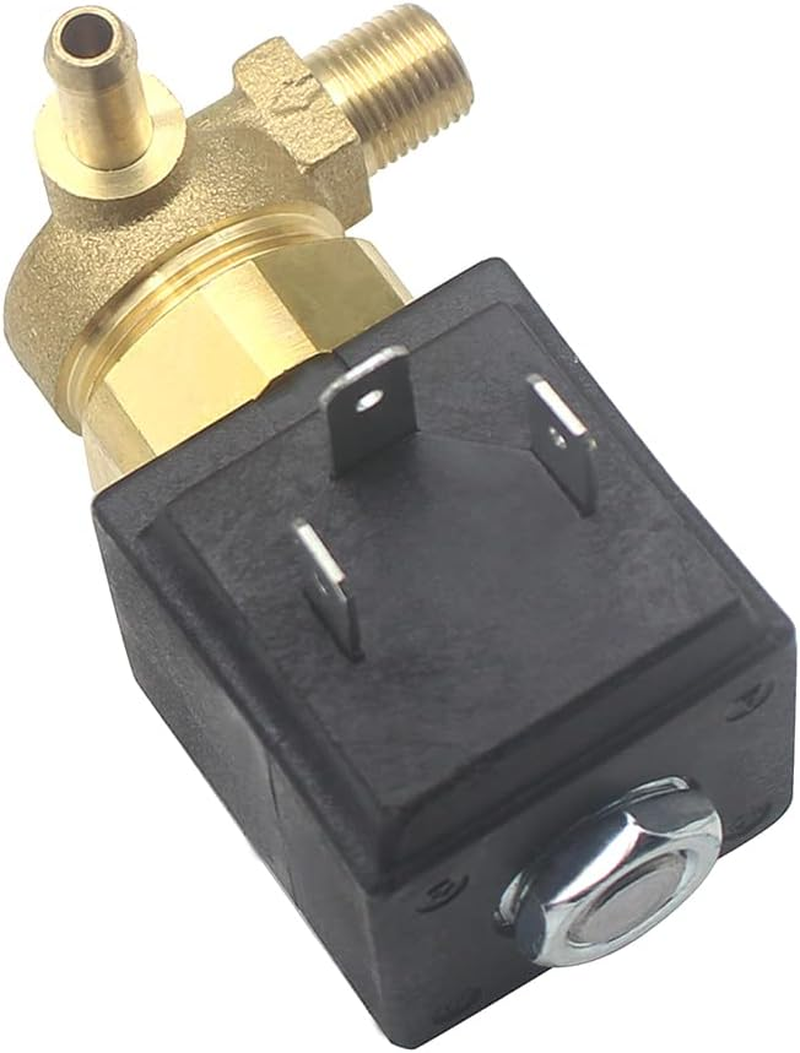

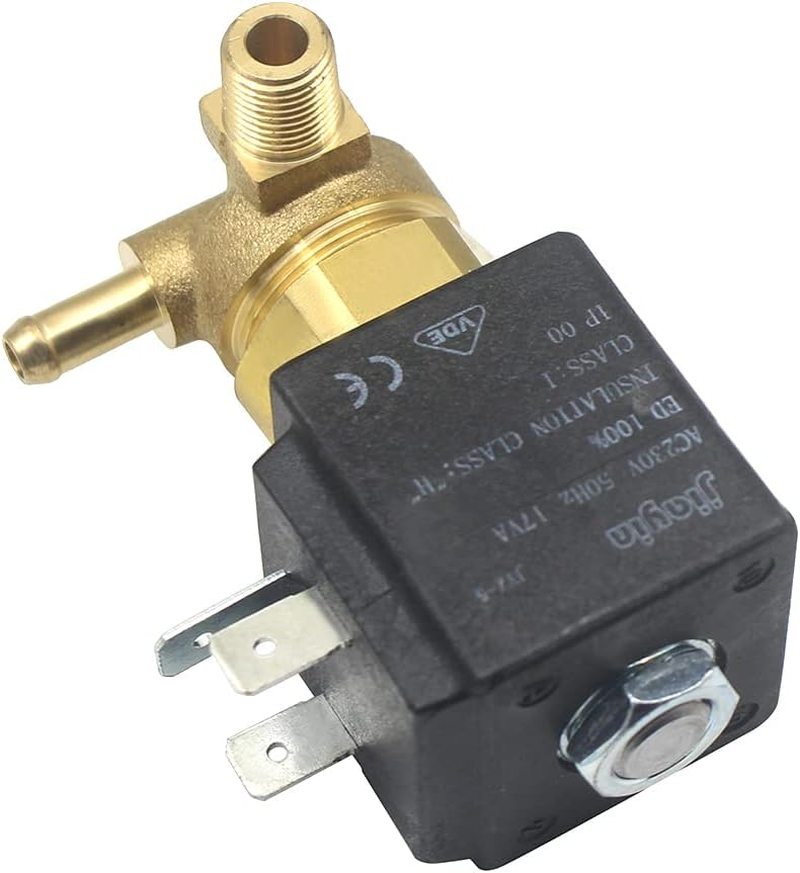

Jiayin JYZ-5 AC 230V 50Hz G1/8" Normally Closed 2 Position 2 Way Steam Generator Iron Gas Solenoid Electromagnetic Water Valve for GC9660 / GC9630 / GC9620
Jiayin JYZ-5 AC 230V 50Hz G1/8" Normally Closed 2 Position 2 Way Steam Generator Iron Gas Solenoid Electromagnetic Water Valve for GC9660 / GC9630 / GC9620
Brand: Jiayin
A$41.90
Availability:
-
This item is currently not available
Shop with confidence
- 1，No rust, no clogging, clear printing。
- 2，Valve port：Φ3。
- 3，Rated Voltage：AC 230V 50Hz 17VA。
- 4，Max. Pressure: 6.0bar。
- 5，Working medium: water/gas/steam。
100% Original Parts.
Voltage:AC 230V 50Hz.
Pressure:6 bar.
Fits for Model:
GC9620
GC9622
GC9624
GC9630
GC9642
GC9656
GC9660
GC9670
Connection method: G1/8" .
Type: Normally Closed.
Insulation Class: H .
Ambient temperature: Ta 140℃.
Fluid temperature: Tf 160℃. . Specifications:
Voltage/Frequency:AC120v 60Hz.
Power:5W
Liquid Extraction:Steam,gas,water.
Ambient Temperature:-20℃ to 80℃.
Operating Mode:Continuously working.
Insulation Level:H class.
Maximum Pressure:0-12bar.
Life:above 1000 hours.
Working Environment:not immersed in water.
Connection Method:Intubation ZG1/8".
Application:Influent,effluent,exhaust.
Material:copper.
- Item Model Number: JYZ-5
- Material: Copper
- Maximum Pressure: 6 Bars
- Manufacturer: JIAYIN TECHNOLOGY
