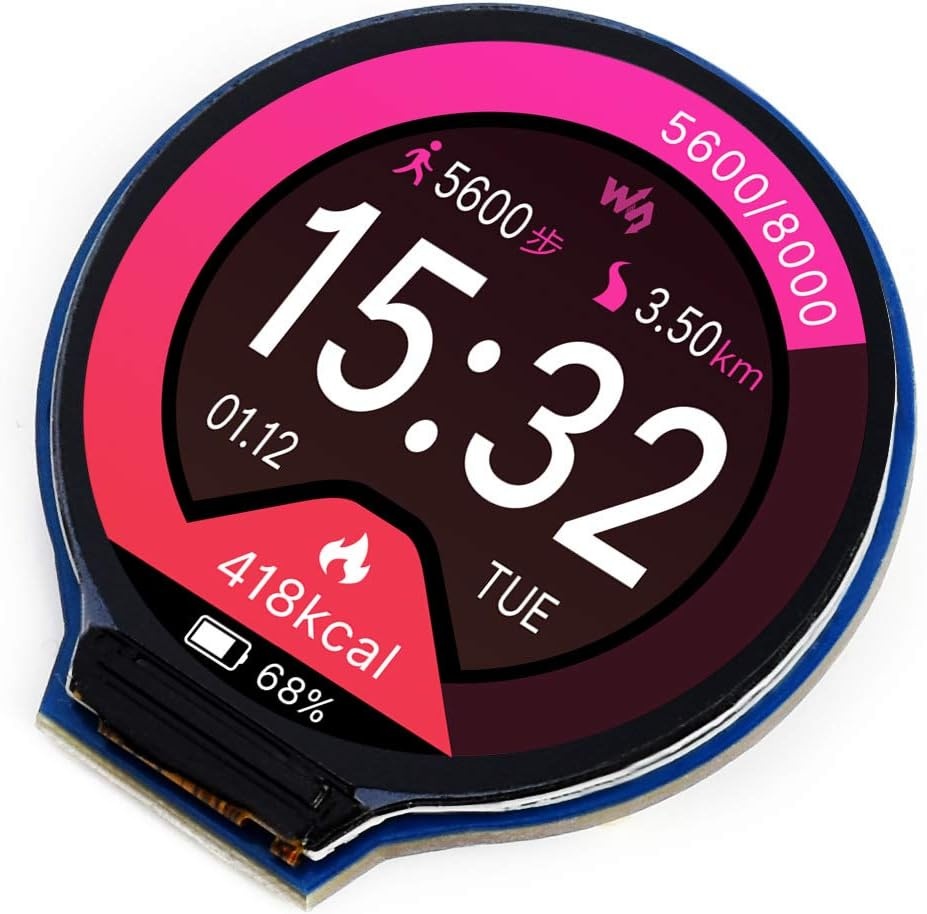

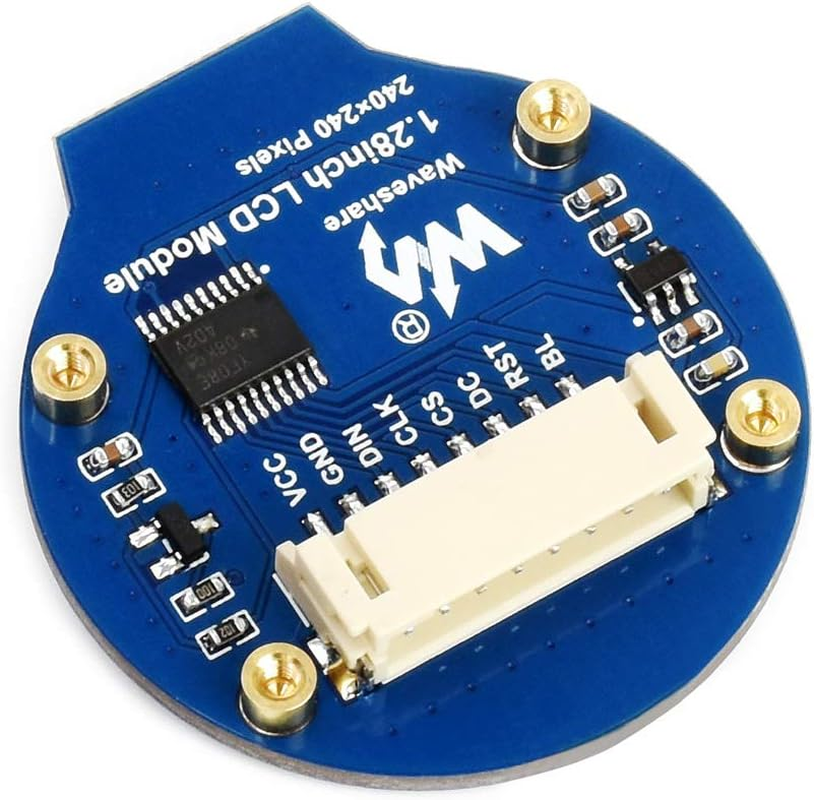

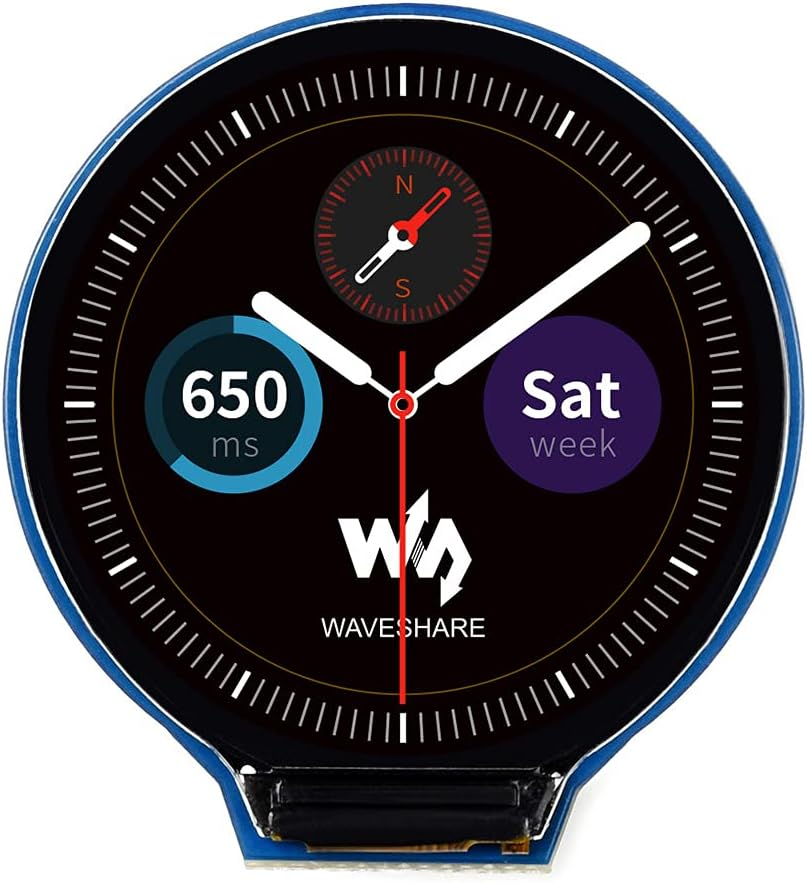

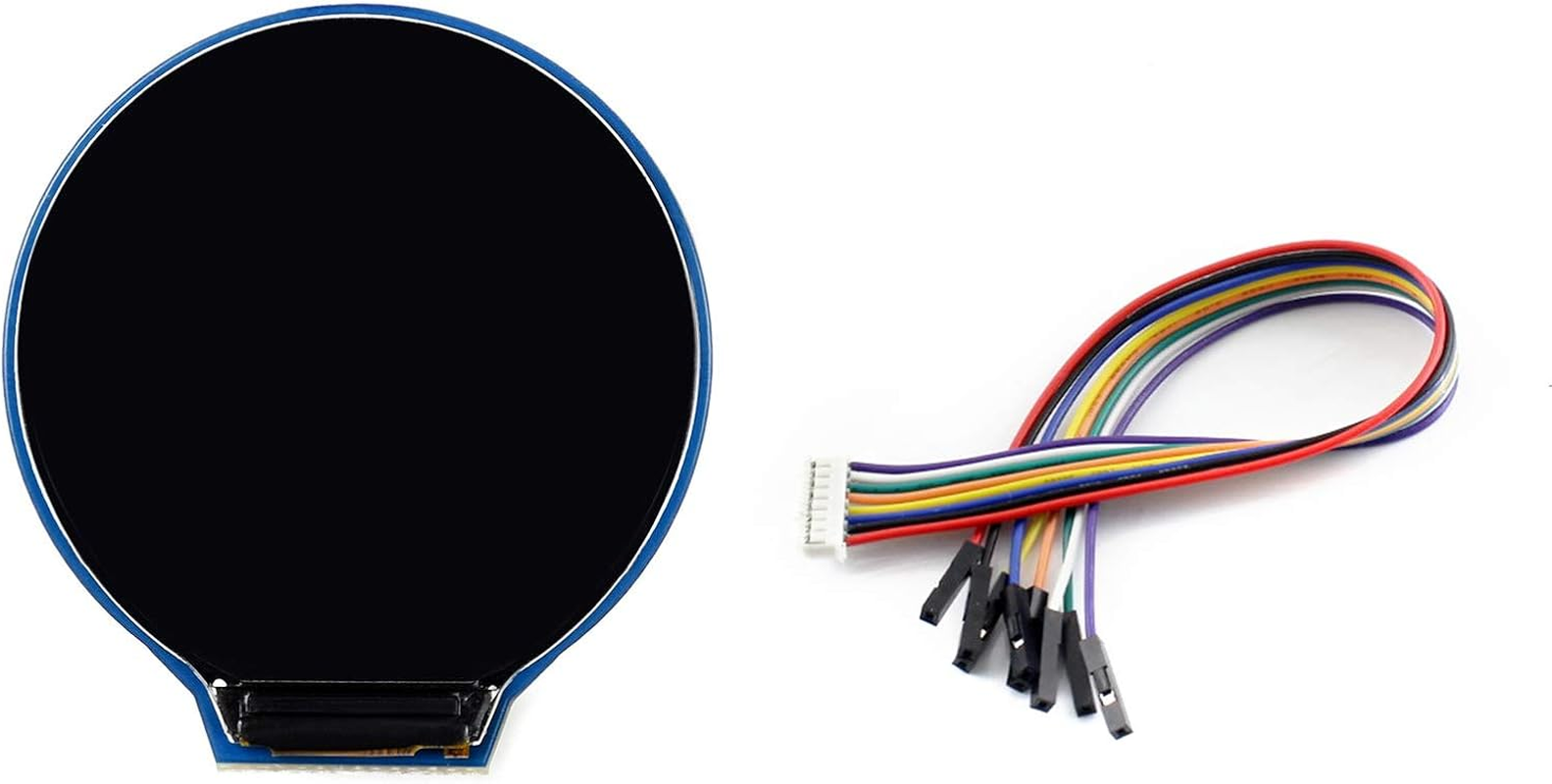

Waveshare 1.28Inch General Circle LCD IPS Display Module for Raspberry Pi/Jetson Nano Etc
Waveshare 1.28Inch General Circle LCD IPS Display Module for Raspberry Pi/Jetson Nano Etc
Brand: Waveshare
A$29.20
Availability:
-
This item is currently not available
Shop with confidence

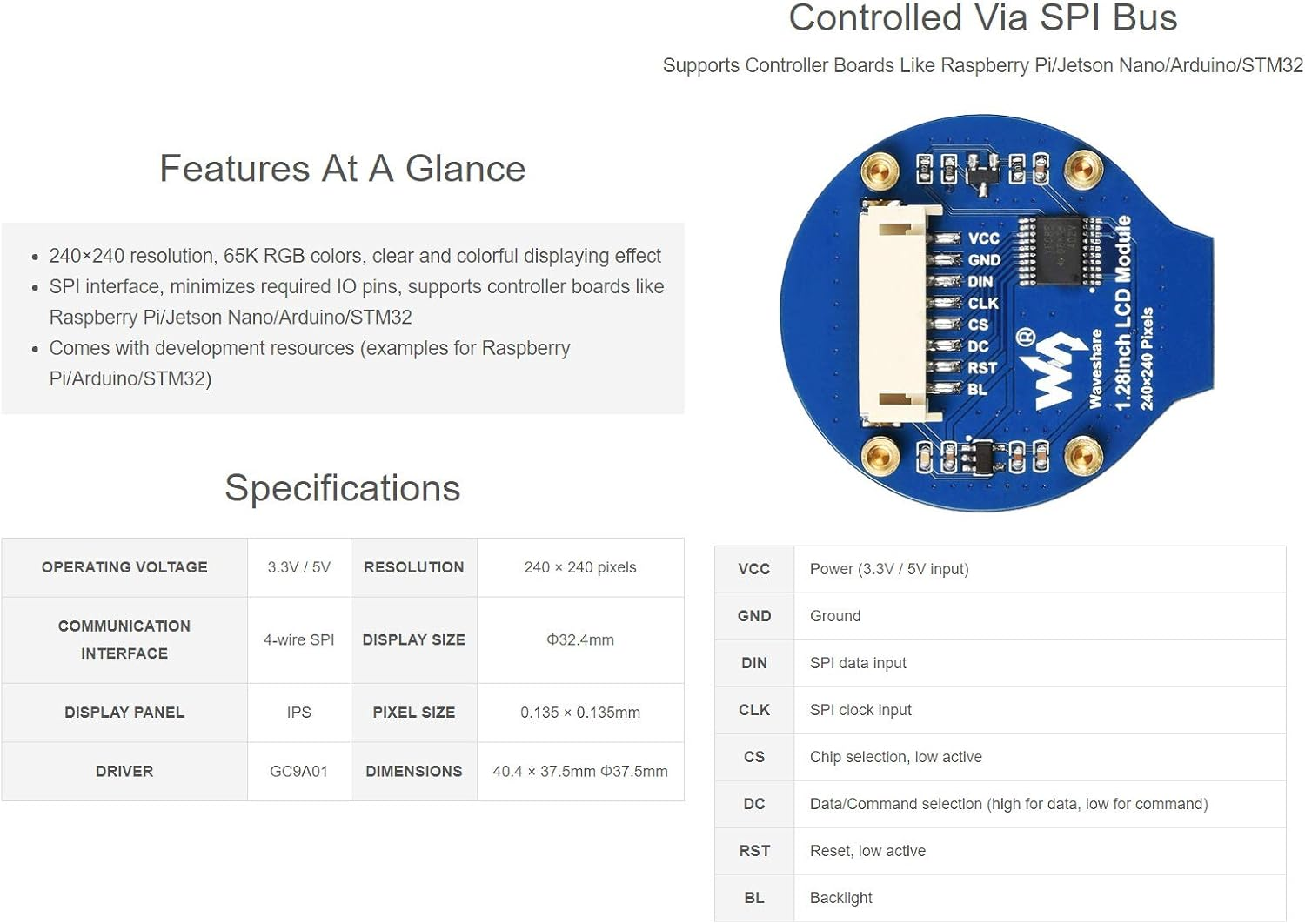

- 240×240 Resolution, 65K RGB Display Color, SPI Interface, GC9A01 Driver, Clear and Colorful Displaying Effect

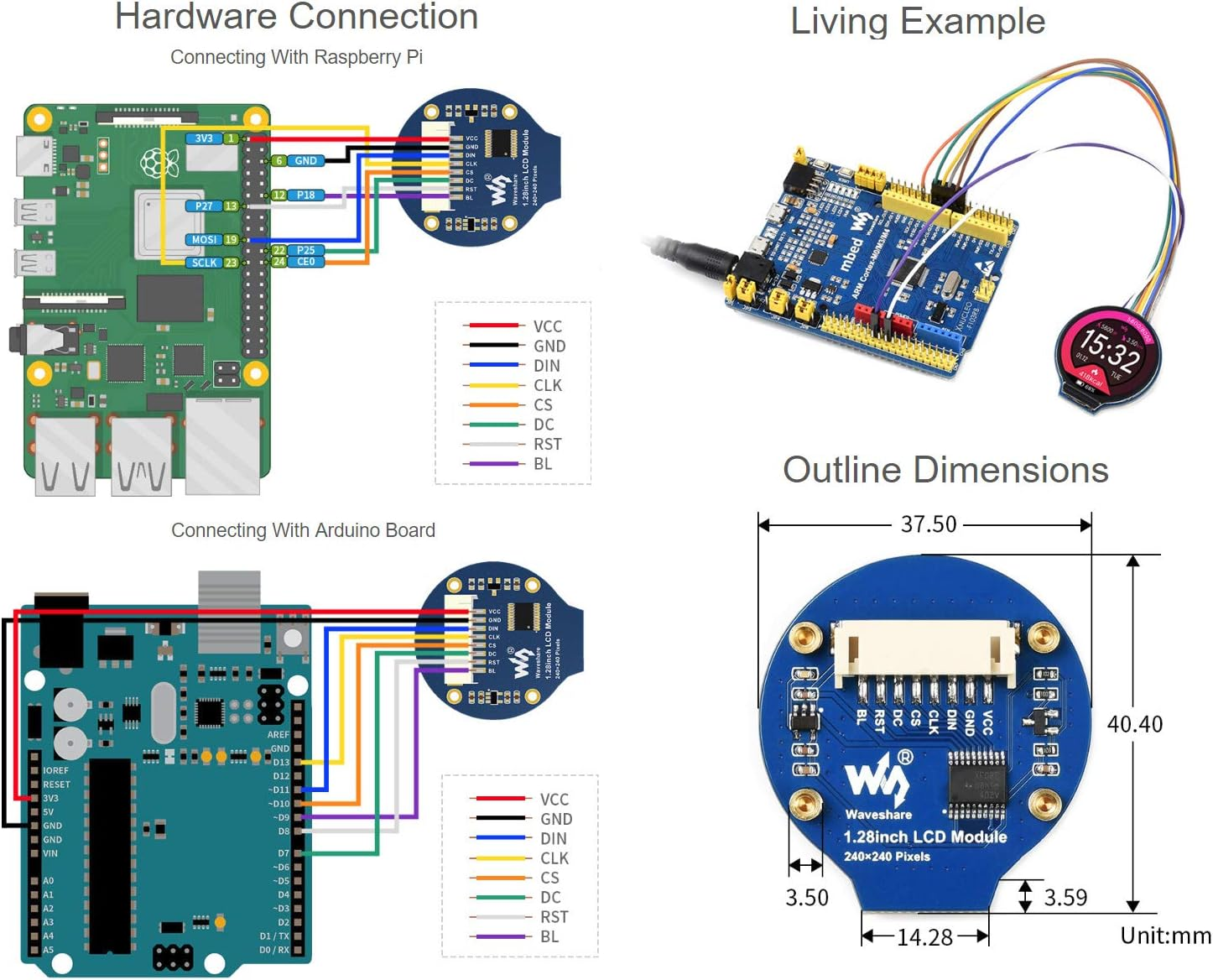

- 3.3V / 5V Operating voltage. 4-wire SPI Interface, minimizes required IO pins, supports Raspberry Pi/Jetson Nano, Compatible with Arduino controller boards
- Display size: Φ32.4mm, Pixel size: 0.135（H）x 0.135（V）mm, Dimension: 40.4 × 37.5(mm) Φ37.5(mm)
- Can provide with online development resources, manual (examples for Raspberry Pi/Jetson Nano etc.), pin definition table
Product Description
- Screen Resolution: 240×240
- Image contrast ratio: 1000:1
- Special Features: Multi-Device Compatibility
- Colour Screen: Yes
- Wireless Type: Infrared
- Operating System: Raspberry Pi OS
- Brand: Waveshare
- Aspect Ratio: Unknown
- Image brightness: m2
- Model Name: Circle LCD Display Module
- Hardware Interface: Serial Interface
- Package Dimensions: 7 x 5.1 x 2.4 cm; 10 Grams
- Manufacturer: Waveshare
- Item Model Number: Waveshare-LCDIPS-XXX
- Mounting type: Desk Mount
- Batteries Required: No
- Refresh rate: 60 Hz
- Connector Type: SPI
- Item Weight: 10 g
- Standing screen display size: 1.27 Inches
- Model: Waveshare-LCDIPS-XXX
- Resolution: 240×240
- Part Number: WS-1.28-Circle-LCD
- Display Type: LCD
- Scanner Resolution: 240x240
- Compatible Devices: Raspberry Pi, Jetson Nano, Arduino controller boards
- Voltage: 5 Volts
- Display Technology: LCD
