Purchase NOTICE:

There are three types of harnesses available for this model, please select the correct type when ordering.

The "A: without factory amplifier" option supports the following stock features

Support Factory USB, Factory Steering Wheel Control, Factory Reverse Camera, Factory Climate Control.

The “B: without factory amplifier” option supports the following stock features

Support Factory USB, Factory Steering Wheel Control, Factory Reverse Camera, Factory Lanewatch Camera, Factory Climate Control.

The “C: with factory amplifier“ option supports the following stock features

Support Factory USB, Factory Steering Wheel Control, Factory Reverse Camera, Factory Lanewatch Camera, Factory Amplifier, Factory Climate Control.

Built-in 4G Module

Insert the SIM card for Internet access, but it cannot support to make phone calls or send SMS.

Support the below types:

GSM: GSM850 EGSM 900 DCS1800 PCS1900

WCDMA: BAND1 BAND2 BAND5 BAND8

TD-SCDMA: BAND34 BAND39

TDD-LTE: BAND34 BAND38 BAND39 BAND40 BAND41

FDD-LTE: BAND1 BAND2 BAND3 BAND5 BAND7 BAND8 BAND20 BAND29A

Not supported types:

AT&T: BAND12 BAND14 BAND17 BAND29 BAND30 BAND66

Verizon Wireless: BAND13 BAND66

T-Mobile: BAND12 BAND66 BAND71

Sprint: BAND25 BAND26 BAND41

A Better-Than-Ever Listening Experience

Matches DSP sound effect processing chip with TDA7851 power amplifier output chip, and supports SPDIF digital audio output.Our car stereo has a good sound quality output standard. You can adjust the sound effect as needed when listening, to music, radio and watching movies. It brings you a feast of hearing. FR/FL/RR/RL 4-Channel Audio Output: 4 x 50W Max.

* 32-band equalizer: with independent front and rear speaker adjustment.

* Omni-directional stereo surround sound brings higher-order surround stereo hearing experience.

* Bass reinforcement: The bass of the front and rear speaker can be adjusted separately, and each hertz can be fine-tuned.

* Bass filtering: The front and rear speaker subwoofers can be independently amplified and output, high frequency can be directly blocked.

GPS Navigation

Precise GPS engines, more accurate positioning, including GPS antennas, can better receive satellite signals,thus ensuring faster real-time navigation.

Online maps:

Google maps app is preinstalled, you can use online maps after connecting the head unit to the network.

Offline maps:

If you are in an area where downloading the data of google offline map is supported, you can save the map data of that area to the car stereo in good map and use it offline.

Synchronize mobile phone map data to head unit via Carply/ Android auto

Steering Wheel Control

Comes with plug and play cable. Support factory steering wheel control, easy to switch songs, radio channel and adjust volume to provide you a safer and more enjoyable journey.

AM/FM Radio

Built in AM/ FM tuner radio, choose your favorite radio station get the latest news. Radio support for each country or region of the frequency band, comes with radio function DSP chip: SI47921. Support RDS (PT PA PTY RT)

Split screen multitasking

It allow to running two apps side by side. You can use YouTube while navigating, or visit the website while listening to the radio.

Fast boot

once put in car key,it will start up at once and enter into user interface in 2 seconds.(It need about 30-40 seconds in the first time boot up)

USB/Micro SD Card

Built-in 3 USB ports and 1 Micro SD card slot. Supports the storage up to 64GB.

(Notice: the model doesn’t support video out to headrests)

Video Formats: Supports AVI, MKV, MP4, WMV, RMVB, MPG...

Audio Formats: Supports MP3, WMA, WAV, AC3, OGG, FLAC, Web audio etc.

Picture Formats: Supports JPEG, BMP, PNG,TIFF etc.

More information

Operating System: Android 10.0

CPU Processor: UIS7862 12nm Dual ARM Cortex-A75 Six ARM A55

RAM+ROM: 4GB+64GB

Resolution: 1280*800

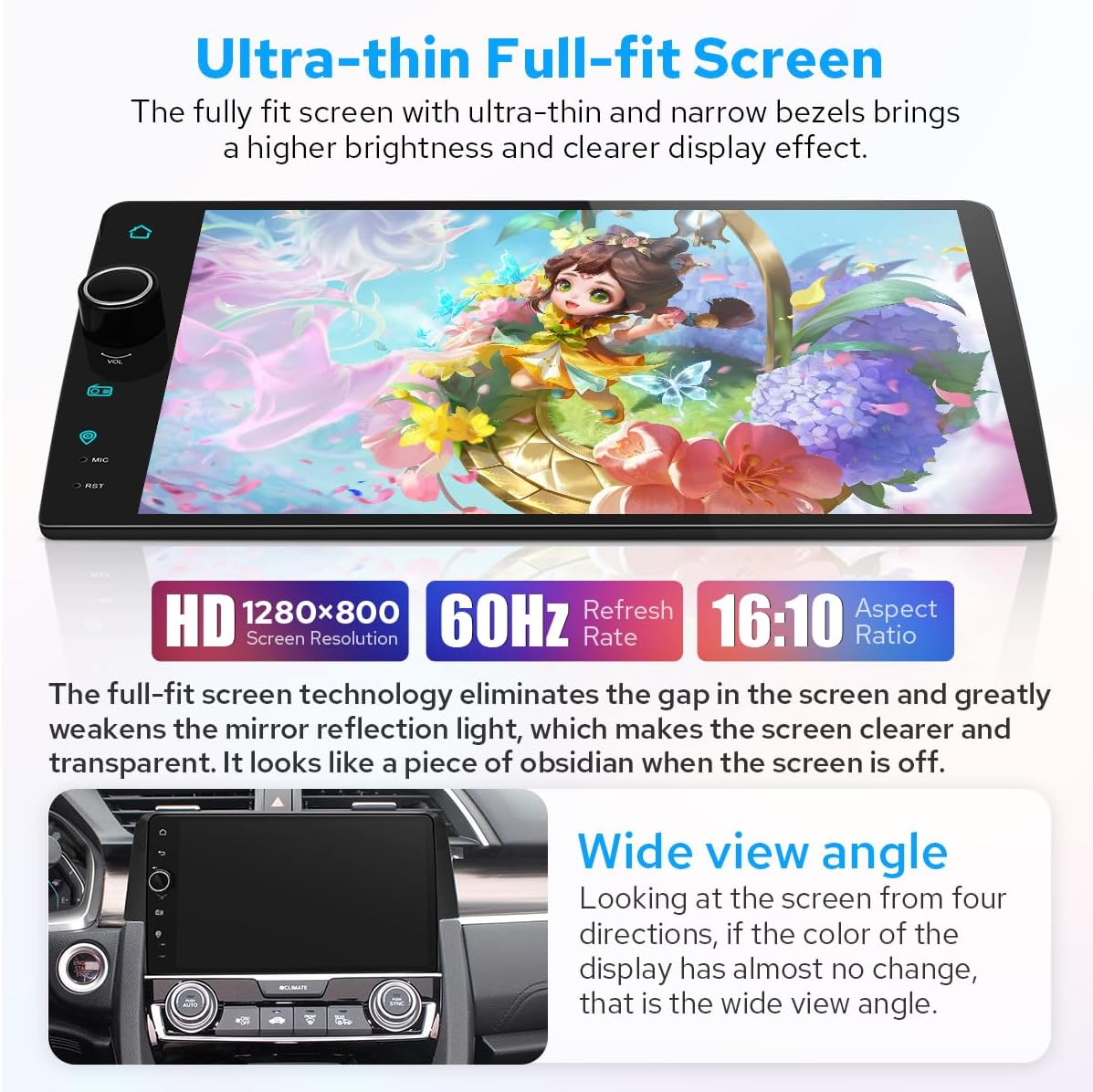

Screen Size: 9"

Bluetooth: Bluetooth 5.1, support hands-free phone call and Bluetooth music

Microphone: Built-in Microphone in the control panel also includes external Microphone

Working Voltage: 10V-14V

Working Temperature: -40℃-80℃

Radio Chip: TDA7786

Amplifier IC: TDA7851

Audio Power Output: 4X50W

USB/SD slot maximum compatibility: Supports USB flash drive and Micro SD card with up to 64GB of storage

HDD: Support external hard drive with up to 500GB storage

APP: Support most Android apps

Password for Setting: 3368

Boot up logo: Support to customize boot up logo

OSD Language: Support 50+ kinds of languages, including English/Spanish/French/German/Portuguese/Italian/Russian/Turkish/Hebrew/Polish, etc.

Touch Screen Type: Capacitive touch screen

Boot up Time: 15-20s

Support: Brightness Adjustment/FM/Subwoofer Output/Audio out/Video in

Not support: Video out

GPS: Build in Google map

SWC: Support factory steering wheel control, some vehicle may need special canbus harness

Reverse Camera: Can not support factory reverse camera, support aftermarket reverse camera type PAL, NTSC

Support (Optional): DVR/OBD2/DAB+

iPhone Carlink: Support wired/wireless CarPlay

Android auto: Support wired/wiress Android Auto
