DESCRIPTION
Opel/Vauxhall Chevrolet 1.0 1.2 1.4 Turbo Engine Timing Tools Set from 2009 - onwards
Application:
Vauxhall / Opel :
Adam 1.2 1.4 (2012- ), Ampera 1.4 (2011- ),
Astra-J 1.4 (2009),
Corsa-D 1.0 1.2 1.4 (2009-),Cascada 1.4 (2013-),
Insignia 1.4 (2011-), Meriva-B 1.4 (2010-),
Mokka 1.4 (2012-), Zafira-C Tourer 1.4 (2011-)
Aveo1.2 1.4 (2011-), Cruze 1.4 (2011-), Orlando 1.4 (2012-)
Item Description Designed to lock the cam and crank shafts in position to allow the removal and replacement of the timing chain fitted to the Vauxhall/Opel twin Cam engines below.
Removal of the timing chain will require the removal of the sump. Ensure the engine is at TDC No 1 cylinder. Ensure the chain tensioner is fully retracted and held in the retracted position using a suitable pin.
Remove the crankshaft pulley using an appropriate pulley holding tool.

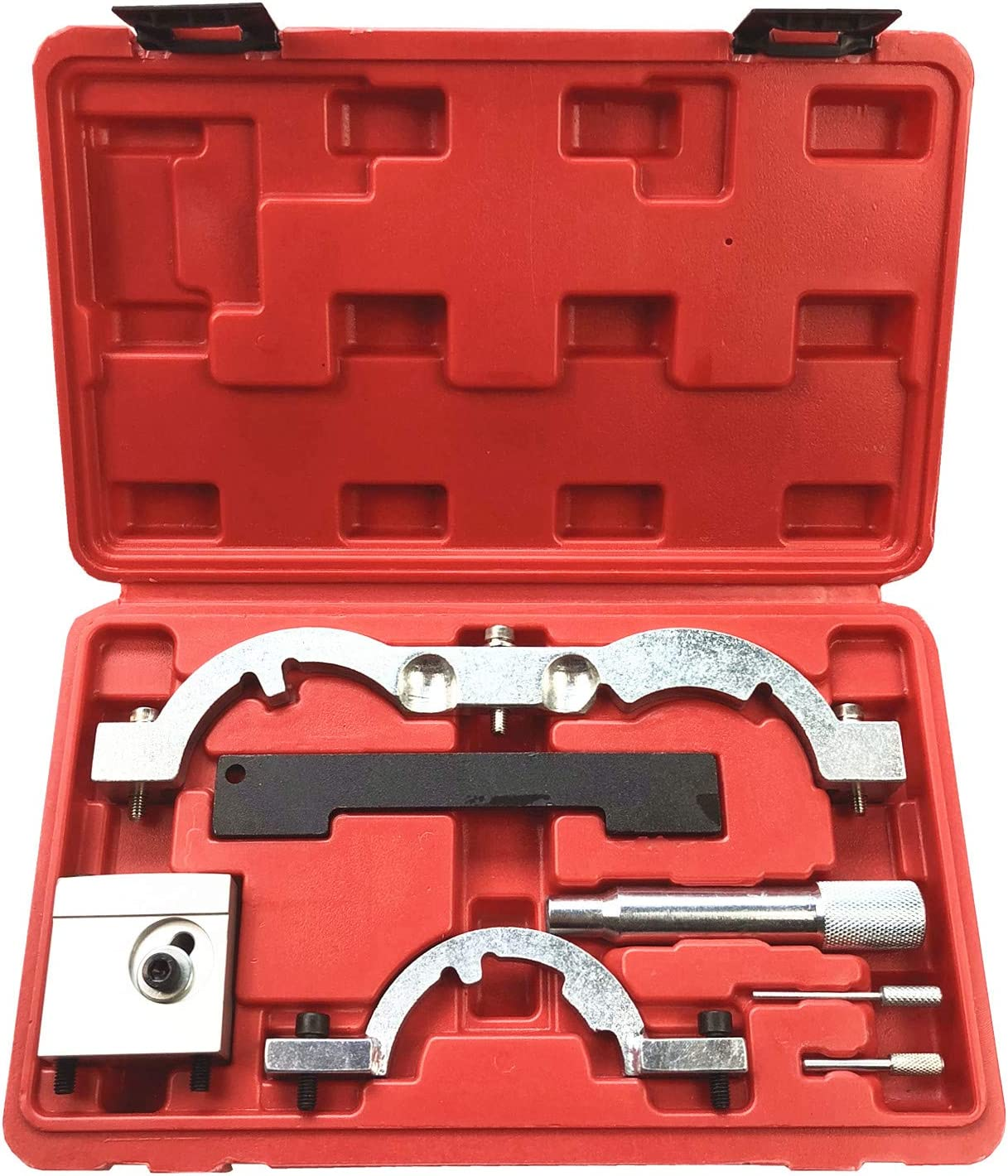

Content:

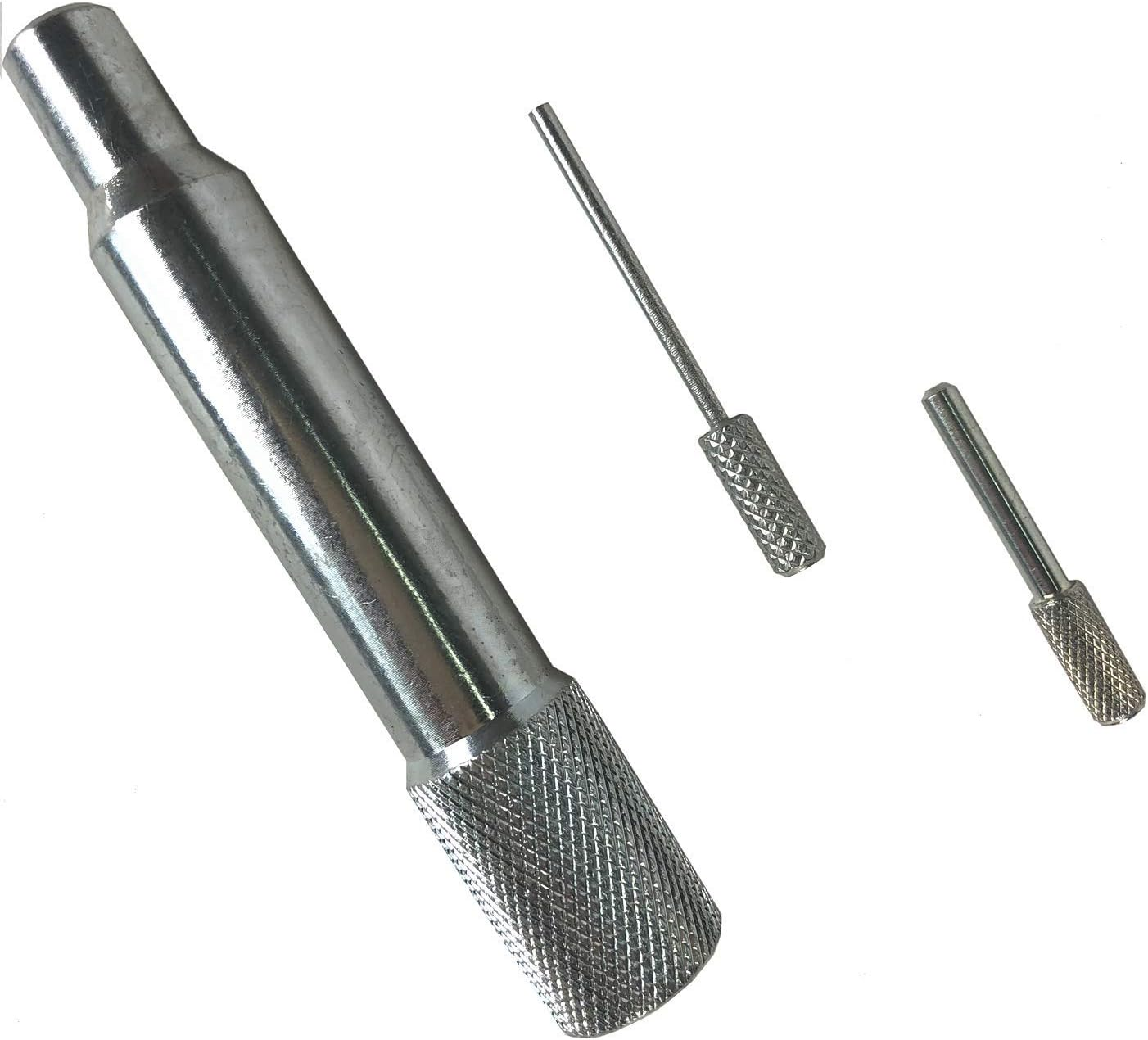

1. Crankshaft Locking Pin

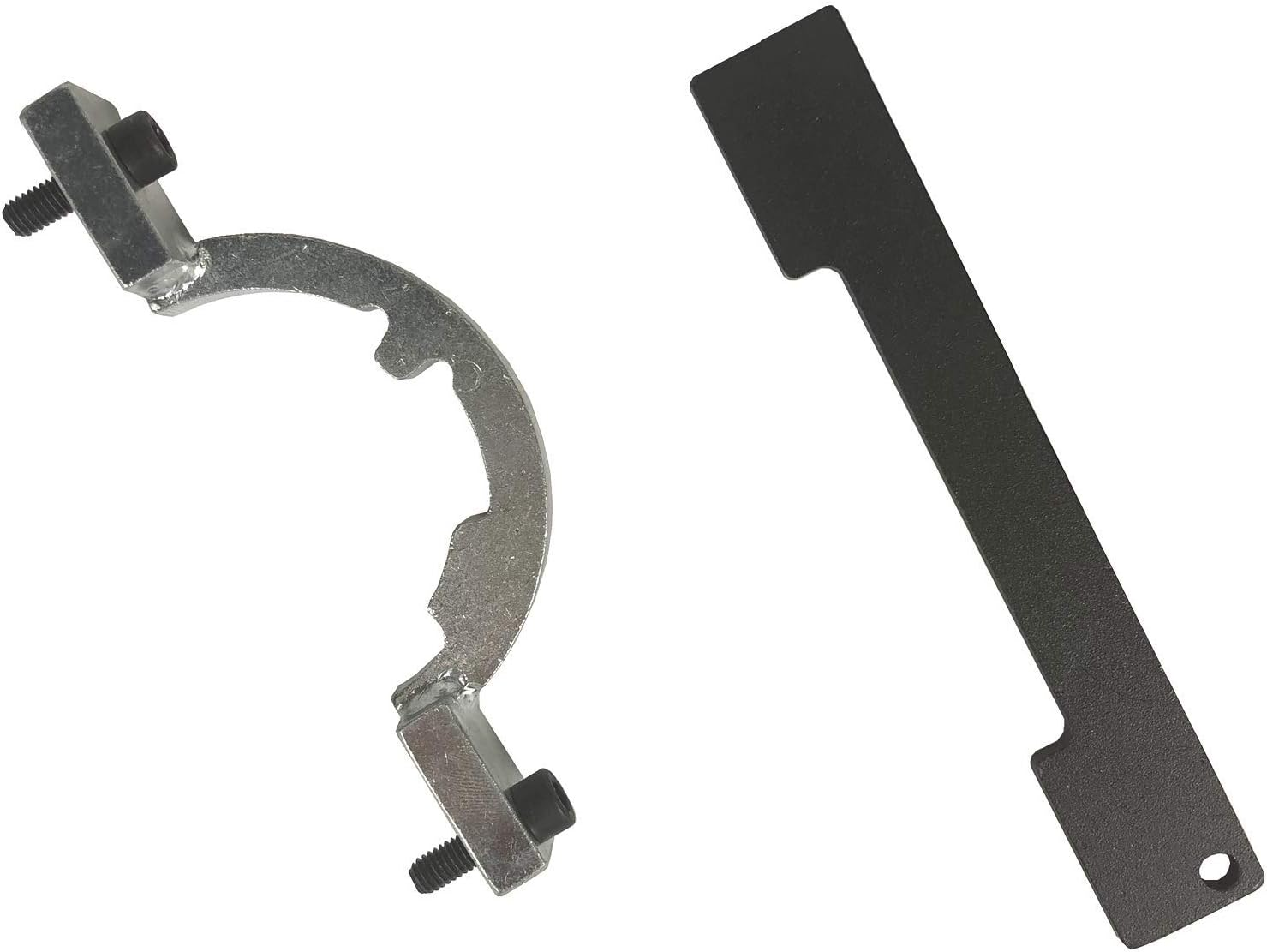

2. Camshaft Setting Plate

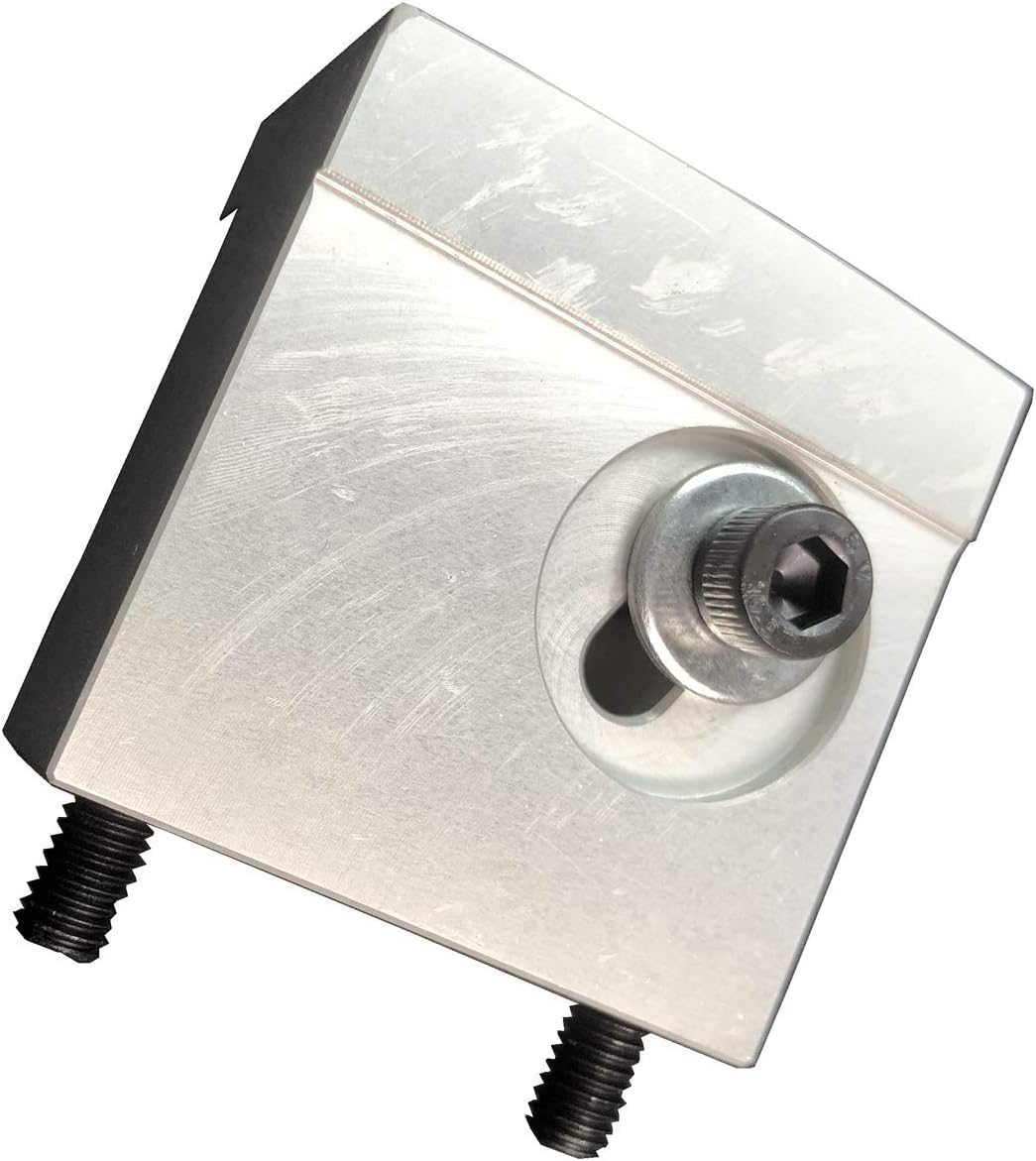

3. VVT Sensor Setting Tool (1.0L)
4. VVT Sensor Setting Tool (1.2 & 1.4L)

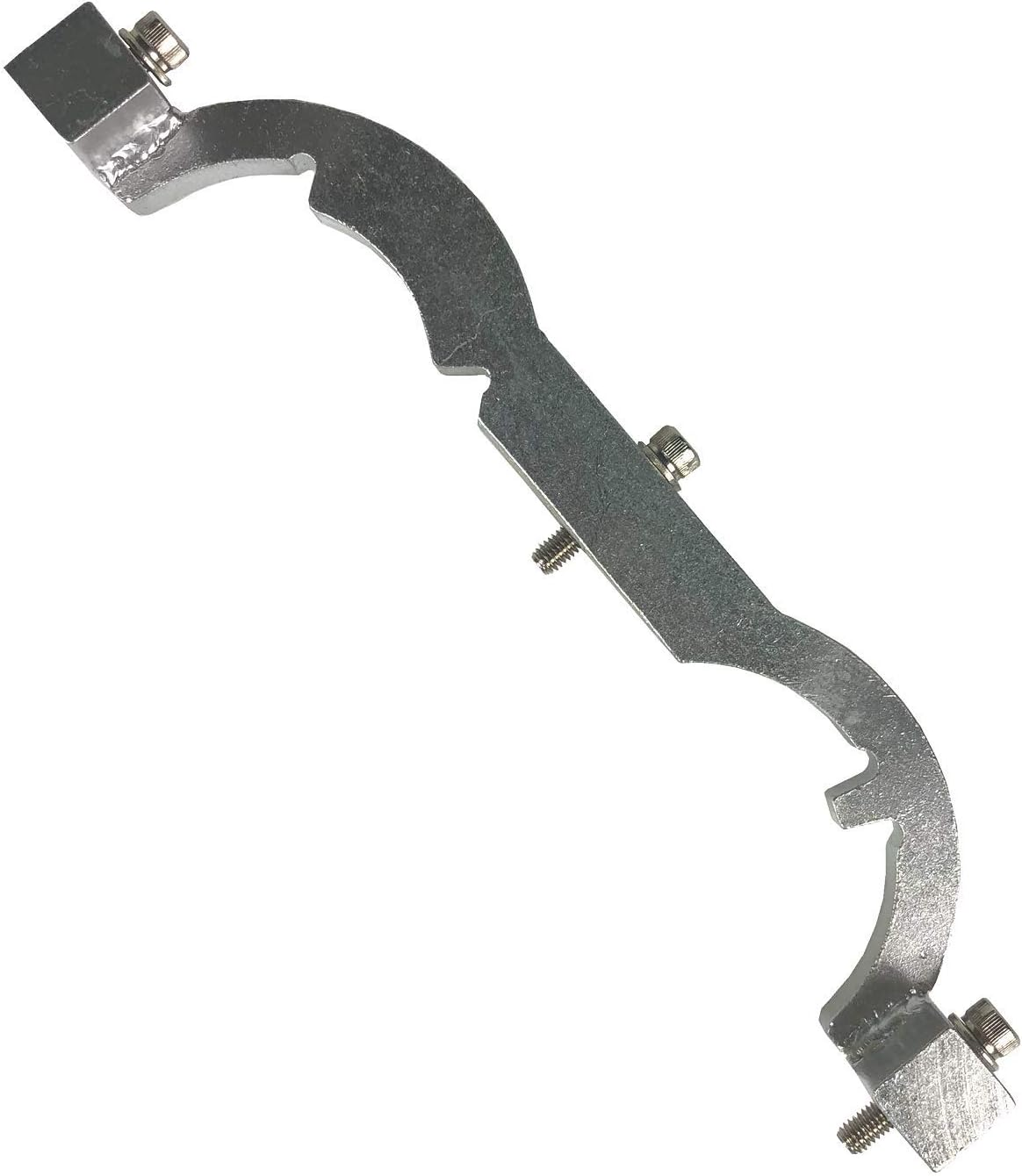

5. Camshaft Sprocket Holding Tool
6. Chain Tensioner Locking Pin
7. Belt Tensionet Locking Pin
