Treeligo DC 12V Universal Electric RV Truck Air Conditioner Camper A/C Unit 10000 BTU Fast Cooling for Motorhome Bus Tractor Automotive Air Conditioner （White）
Treeligo DC 12V Universal Electric RV Truck Air Conditioner Camper A/C Unit 10000 BTU Fast Cooling for Motorhome Bus Tractor Automotive Air Conditioner （White）
Brand: Treeligo
A$850.50
- Safety Designs Technology Use Multiple protection for air conditioner circuit safety using from affected by current surge , vibration, turbulence
- Mute Using Enjoy cooling air both driving and flame-out parking instead of noise drive traditionally, better experience feeling and focus driving
- Cooling Capacity: 12000 BTUs；Indoor Unit Air Volume: 350 CFM；Noise Level: 45 dB；Power: 350-1000W；Frozen Oil: POE68；Current: 21-42A
- Long Term Using When you are parking or waiting, use 480 AH car battery, can be used for 6-8 hours, does not require fuel to drive at all, saves a lot of fuel costs, and can still enjoy a comfortable, quiet and cool environment in hot summer
- Treeligo
- If you have any questions during installation and use, you can contact us at any time, and we will provide solutions and solutions that satisfy you
- Capacity156.0 pounds
Product Description
Why to choose our air conditioner?
Parking air conditioner
Prefectly runing after auto engine off. Meet the needs of car drivers for overnight rest in the car.
Split air conditioning

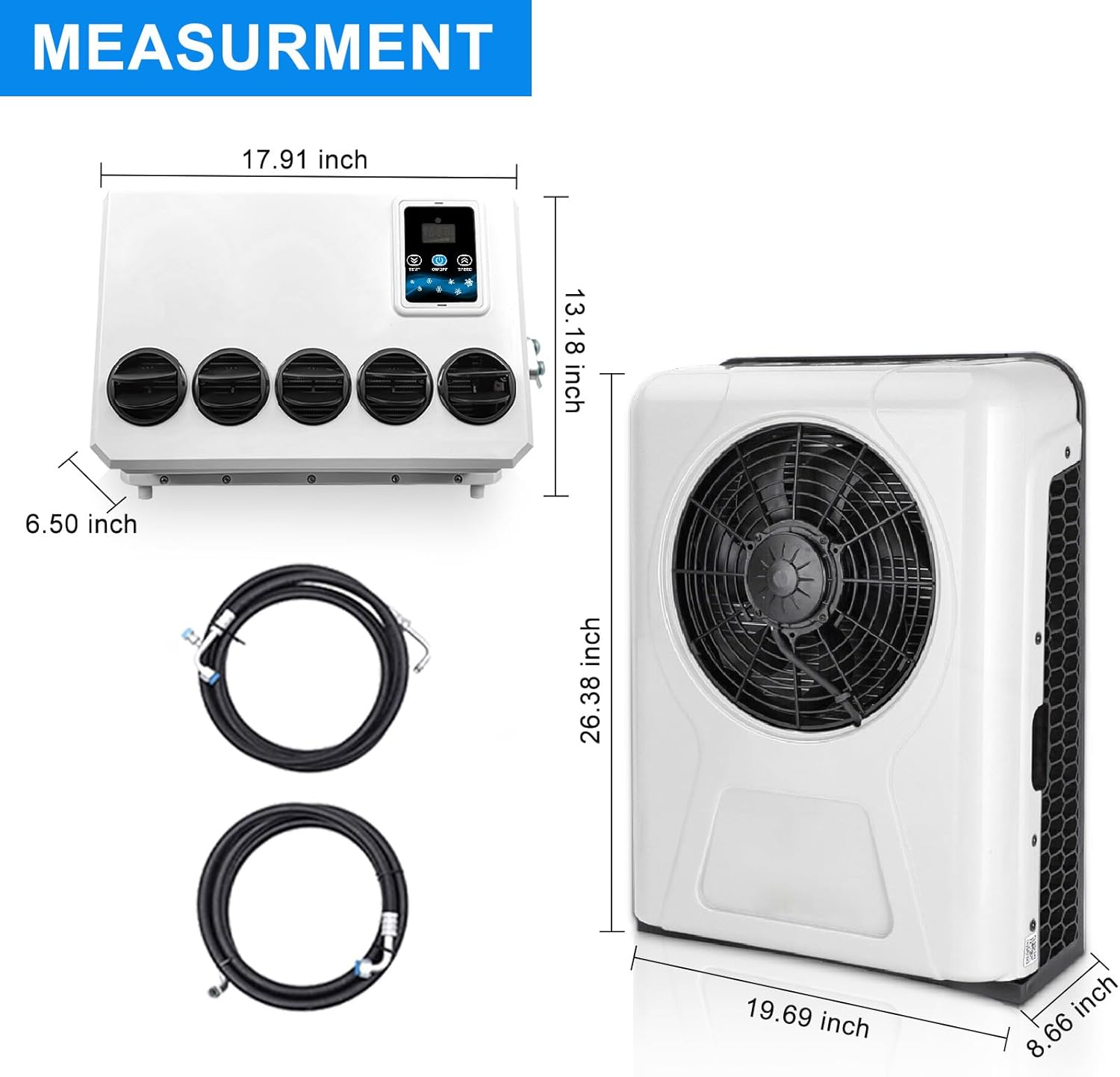

Designed with separate internal and external units, allowing for more rational use of car space. Size of indoor unit is 17.91 x 13.18 x 6.50 inch. Feel free to buy them.
Frequency Conversion
3 cooling mode: sleeping mode, fast cooling, energy saving.it will enter energy saving mode when the enviroment temperature go below seting temperature.

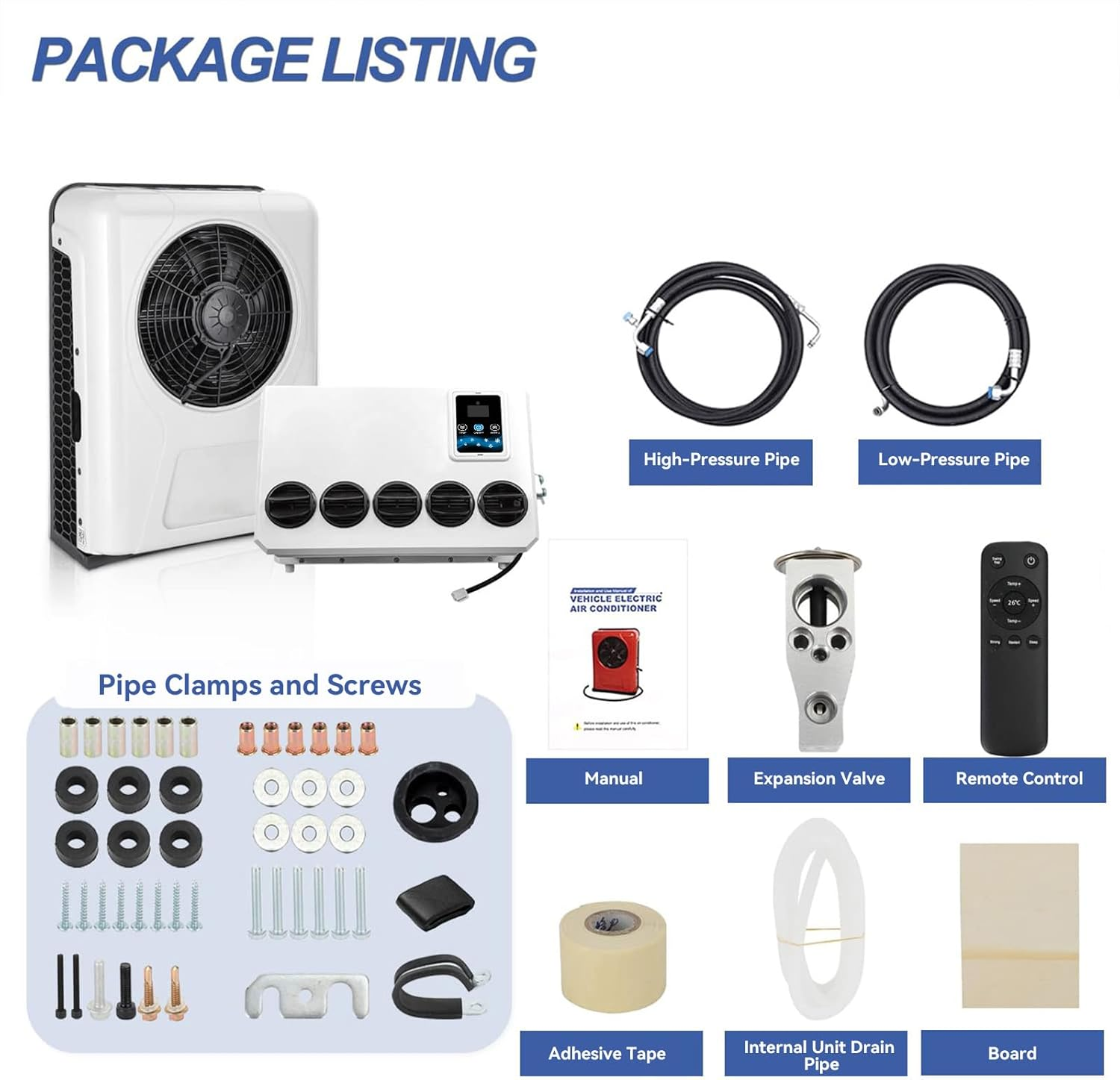

Product details
- External unit x1
- Internal unit x1
- Expansion valve
- Fixed wooden board
- Low pressure pipe & High pressure pipe (11.1FT)
- Power cord (11.1FT)
- Remote control
- Internal Unit Drain Pipe
Air Tuyere
Adjusting the wind direction by rotating the air vent.And the wind speed can be changed through the panel and remote control
Multiple Protection
IP67 waterproof certification In addition, there are overcurrent protection, overvoltage protection, low-voltage protection, high-temperature protection, and low-temperature protection. To prevent power damage during use
20CC Scroll compressor
Compressors with higher displacement have stronger cooling capacity. It can prevent the inability to lower the expected value due to insufficient cooling capacity in hot weather.
Common Q&A
Q:What are the precautions for maintaining air conditioning?
A: 1. cut off the power . 2. the surface of the air conditioner can be cleaned with a neutral cleaning agent. 3. remove the outershell and blowing out the dust with fast windy. 4.Check power of battery and blocking of the inlet and outlet during a/c unit idle.
Q: If the battery is during low power, how should I do make the a/c system work?
A: It will enter low-voltage protection with insufficient battery power , but if turn down the low-voltage protection and reduced and energy-saving mode, it will work period of time But you'd better to charge the battery ASAP.
Q: What should I do when the a/c unit show adnormal run?
A: Find out the error code at display or the compressor LED light Corresponding mean at manul. There are clear instructions how to do.

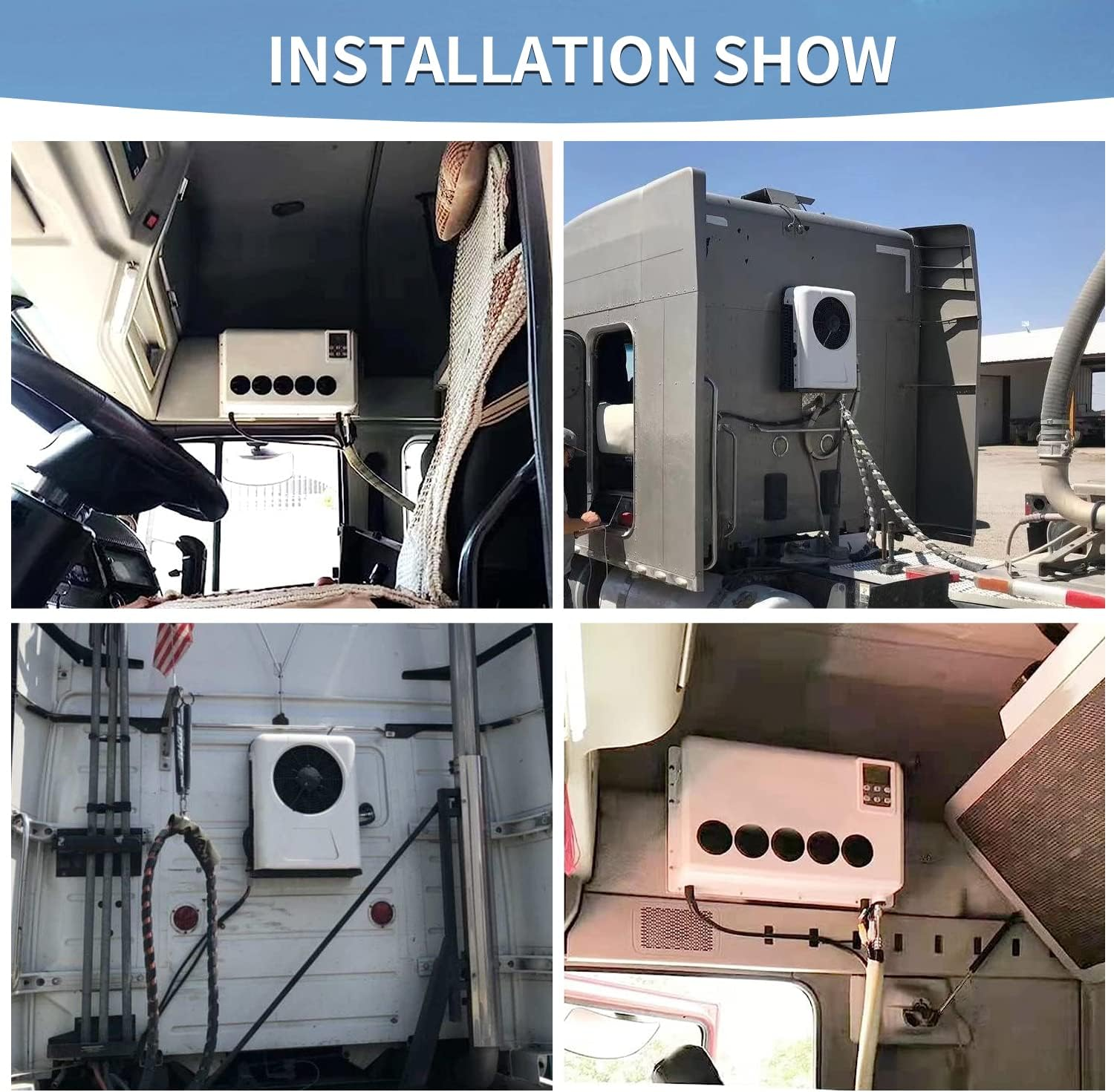

Installation steps
Installation steps
1. Outdoor unit mounting: Select a position for installation and then make at least 6 holeson the driving cab. The set screws shall be Grade 12.9 M8 bolts. There shall be dedicated shock absorber pad between the outdoor unit and the driving cab.
2. Indoor unit mounting: indoor unit could be mounted on the right side above the co-driver. First, mount the wood board on the driving cab . After the board is fixed, use self-tapping screws to fasten the indoor unit with the board. There are three screw holes on each side of the unit. Just drive the screws in.
3. After the indoor and outdoor units are fixed, connect them with pipes and install expansion valve.
About power cord wiring
1. All the connection lines of the indoor and outdoor units are equipped with dedicated plugs. Just plug them in.
2. Arrange the wiring to avoid any crossover. Use ties to fix wires.
3. During battery connection, do not reverse positive and negative electrodes (the positive electrode is red and negative electrode black). The set screws must be fastened.
4. If the power cord is not long enough, extend it with 10mm2 above power cord. The connection position shall be will wrapped for waterproofing.(The total length of the power cord shall not be longer than 5 meters)
- Part Number: EAC1009.12.W
- Capacity: 57 Pounds
- Item Height: 13.18 inches
- Item Width: 17.91 inches
- Brand: Treeligo
- Installation Method: Packaged
- EU Energy Efficiency Label: Low to Medium Efficiency
- Item Length: 6.5 inches
- Model name: Split A/C
- Energy star: 1 Star
- Form Factor: Tower
- Wattage: 850 watts
