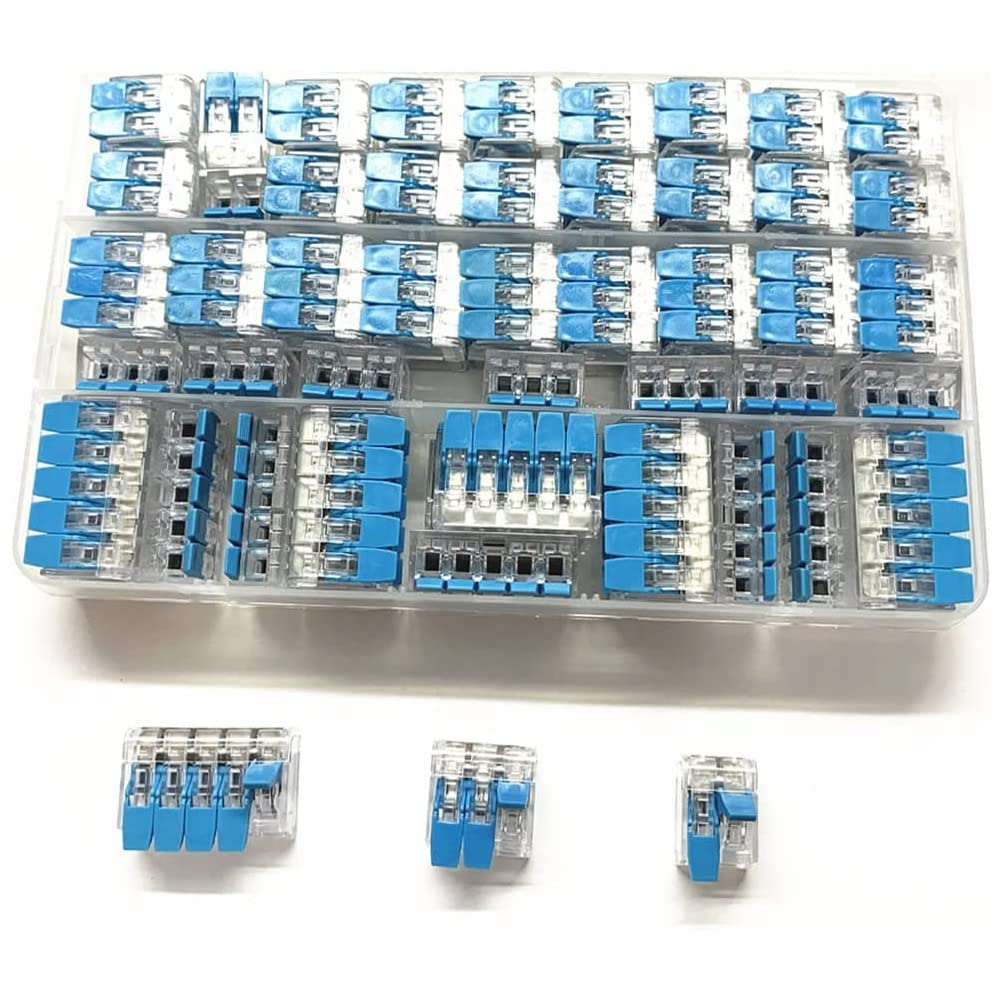

75 Pcs Lever Nut Assortment Splicing Connector Kit, Compact Splicing Connectors, Multi-Function Soft and Hard Wire Universal Electrical Connectors (2 Port 3 Port 5 Port) Blue
75 Pcs Lever Nut Assortment Splicing Connector Kit, Compact Splicing Connectors, Multi-Function Soft and Hard Wire Universal Electrical Connectors (2 Port 3 Port 5 Port) Blue
Brand: DACUAN
A$19.30
- Different Port of the Conductors: Total of 75pcs lever wire connectors, 3 different models (2 port 35pcs, 3 port 25pcs, 5 port 15pcs) comes with a transparent plastic box, which could meet for your daily use need.

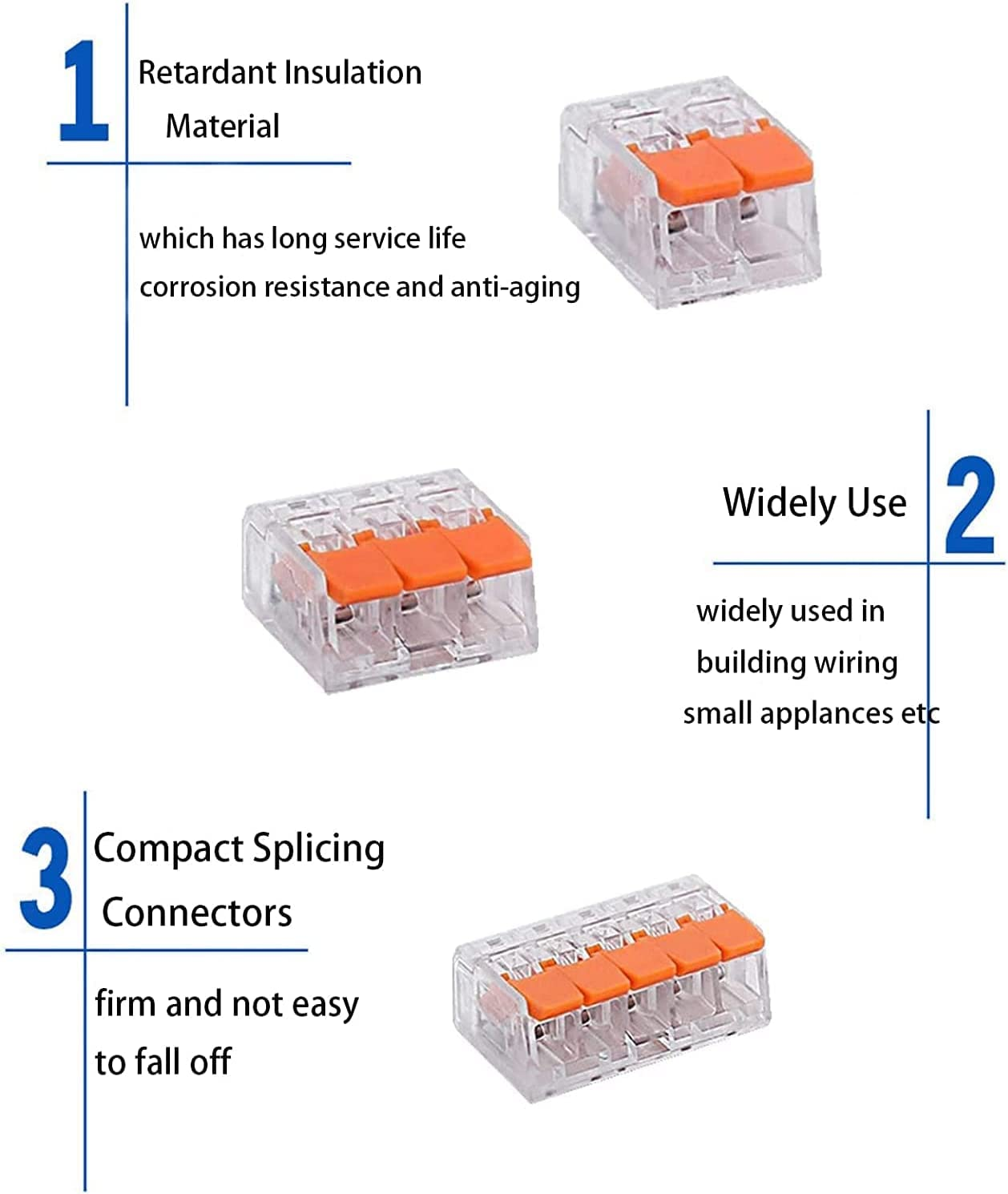

- High Quality: The conductor connector selects the best flame retardant insulation material modified Nylon, which has long service life, corrosion resistance and anti-aging. The internal shrapnel is made of red copper, which has better conductivity.Rate Voltage 450V, Rated Current 32A.So the lever nuts are safer than traditional wire nuts.
- Easy for Operation: Easy to install, easy to insert，do not need tools to operate, Just plug then finished.they can be used for AWG 22-12 wires. Suitable for solid copper wires size 0.4-2.5mm2 /22-13 AWG;and stranded Hard copper wires size 1.5-2.5mm²/ 16-14 AWG; stranded Soft copper wires size 0.4-4mm2 / 22-12 AWG.
- Convenient for Inspection: You can check the wire whether it is proper length, complete wire insertion or not through its transparent cover. It is easy to confirm whether the wires plug the jack or not. In addition, there is a test hole at the back of the connector. The test hole can be used to check whether the wires have electricity or not. All kinds of standard test probes can be used in the lever nuts.
- Widely Use: Lever nut kit can connect stranded, soft and solid wire. It is widely used in building wiring where space is at a premium for all connections requiring.
Product features:
PC Insulating material.
assortment pack can meet your different demand because it has 3different models (2 port, 3 port, 5 port). it can connect any combination of solid, stranded, and flexible copper wires.
All kinds of standard test probes can be used to check the lever nut.
There is a test hole at the back of the lever nut and the hole are designed to check whether the wires have electricity or not.
Don't need any tools to connect wires, just using your hands. It is easy to use and safe. Push the orange levers to 90 degree and plug the wires and put the clip back.

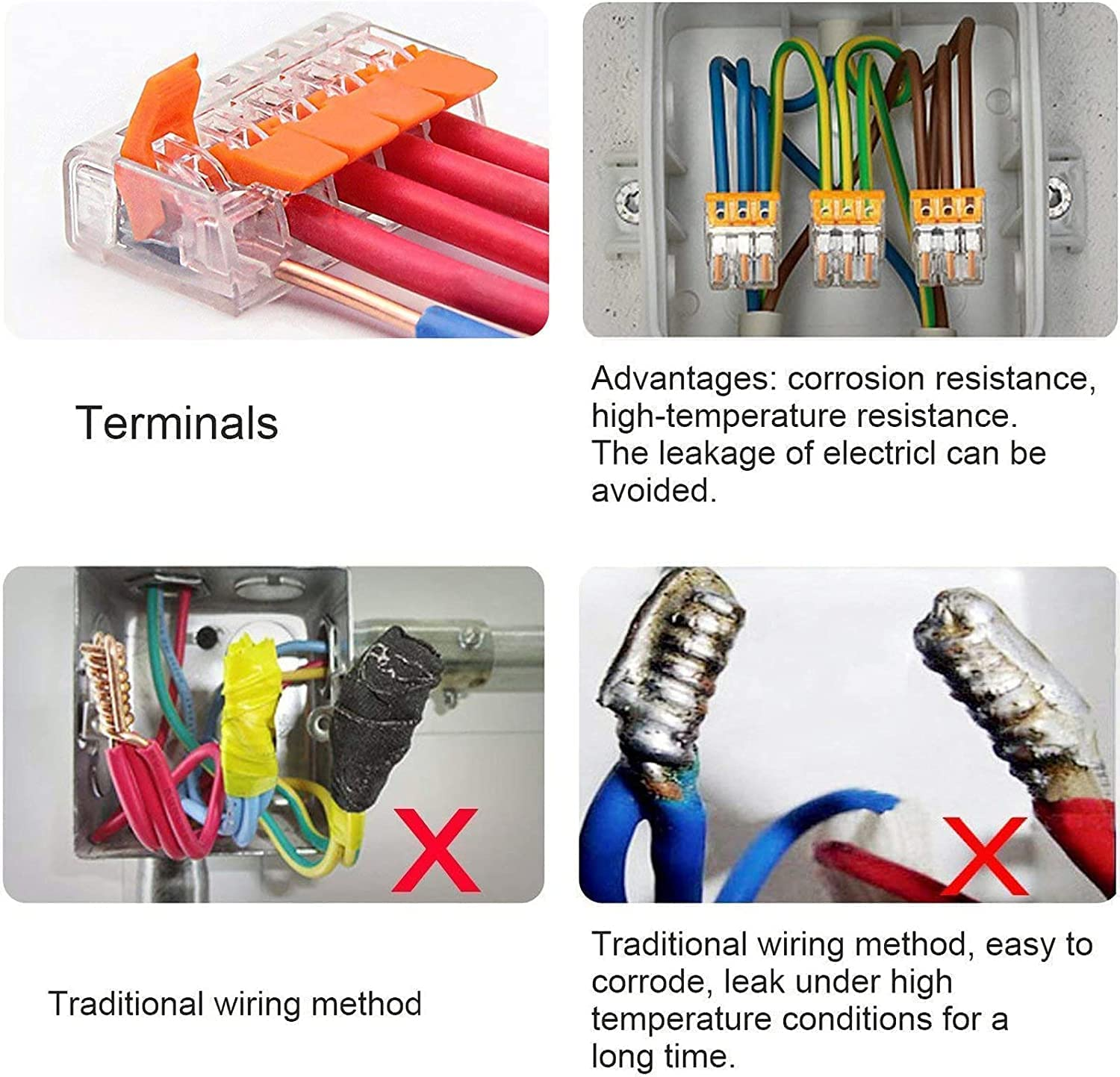

You don't need to worry about a twist between the wires when you combine the wires. These lever nuts are safer than other methods for connecting wires due to use PC insulating material.
Transparent and high quality cover, which can make you check the wire length, complete wire insertion through its transparent cover. It is convenient to confirm whether the wires plug the jack or not.
Usage method:
1.Open the housing of wire to 0.35-0.47in
2.Push the orange levers to 90° and insert the wires
3.Three is a test hole on the back of the connector
4.Replacing wires method.Push the operating levers to pull the wires out
Package List:
2 Port,A221-412 (35pcs)
3 Port,A221-413 (25pcs)
5 Port,A221-415 (15pcs)

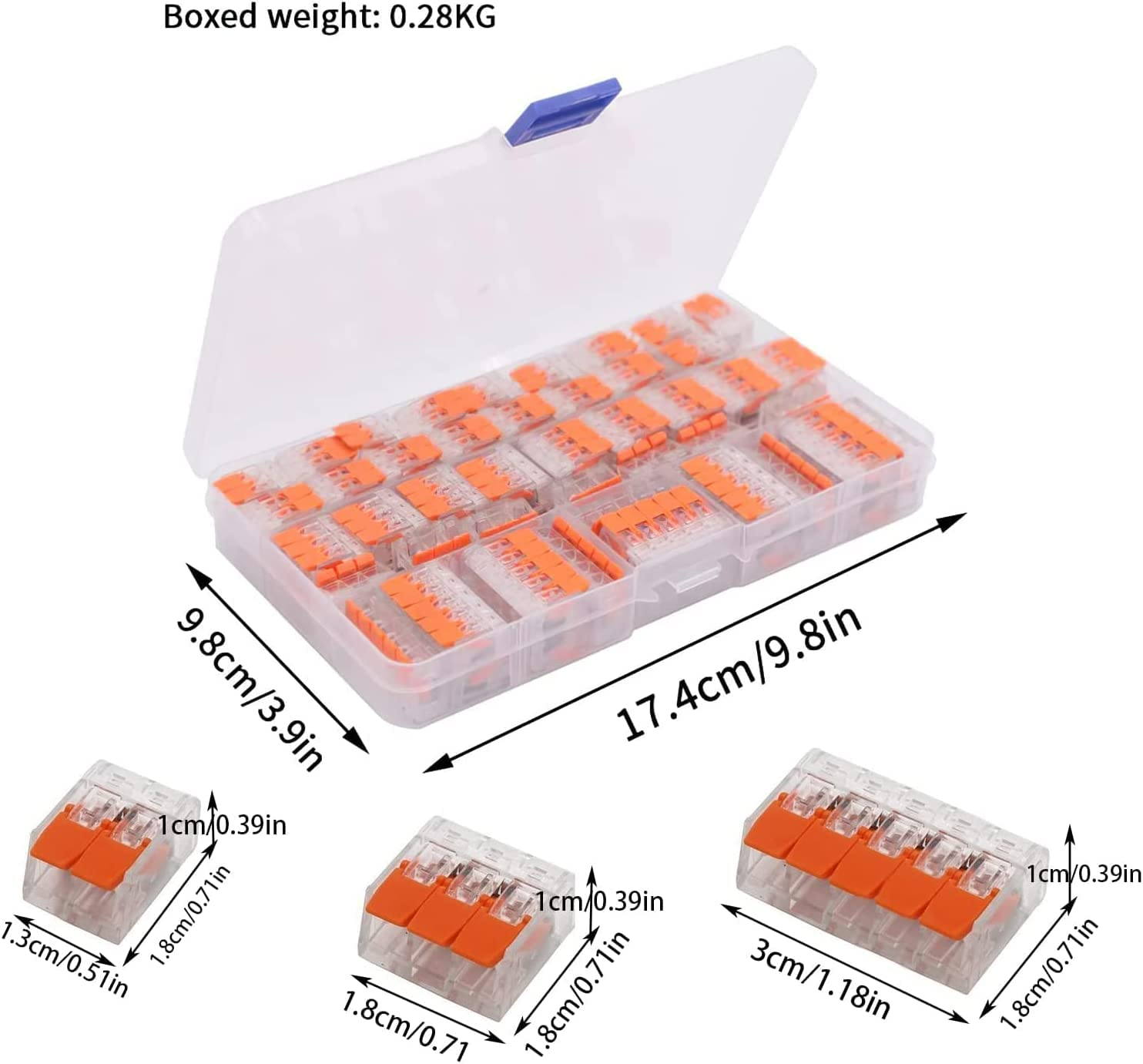

- Package Dimensions: 17.2 x 9.9 x 2.4 cm; 270 Grams
- Manufacturer: DACUAN
