Topping E30 II DAC 2 X AK4493S Chip Hifi DAC DSD512 32Bit/768Khz XMOS XU208 Home Audio Decoder USB/SPDIF to L/R RCA Converter for PC (Black)

Topping E30 II DAC 2 X AK4493S Chip Hifi DAC DSD512 32Bit/768Khz XMOS XU208 Home Audio Decoder USB/SPDIF to L/R RCA Converter for PC (Black)

Brand: AOSHIDA
5.0
A$250.95
Availability:
  • In Stock

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • Two AK4493S decoding chips: TOPPING E30 II uses two AK4493S chips. With dual upgraded DAC chips, it achieves better SINAD, SNR, dynamic range, and noise level.
  • Plug and Play: Turn your PC into a HIFI source just by connecting it to the E30 II with a USB cable. E30II applicable to a variety of PC systems. USB input support up to 32 bit/768 kHz, DSD512(Active), DSD256(Dop).
  • Optical and Coaxial Inputs: Provides flexible connectivity options via the optical and coaxial inputs, enjoy 24 Bit/192 kHz hifi audio. Breathe new life into your digital turntables, disk players, set-top boxes, and game consoles.
  • Discrete LNRD: TOPPING has implements discrete LNRD circuits in E30 II. This circuit modes out all kinds of noise input by 5V power supply, and effectively lowering the noise floor to <1.5uV.
  • Pure DAC application: In pure DAC mode, DSD signal will bypass the DATT Soft Mute and ∆E Modulator to provide you a pure/direct DSD performance.
  • DAC + Preamp application: E30II use the built-in volume control function to adjust the volume from –99dB to 0dB. Directly connect the E30 II to a power amplifier or active speakers, and control the volume with the remote control.

Product Description

TOPPING E30II HiFi DAC 2 x AK4493S Chip DSD512 32bit/768kHz XMOS XU208 Audio Decoder

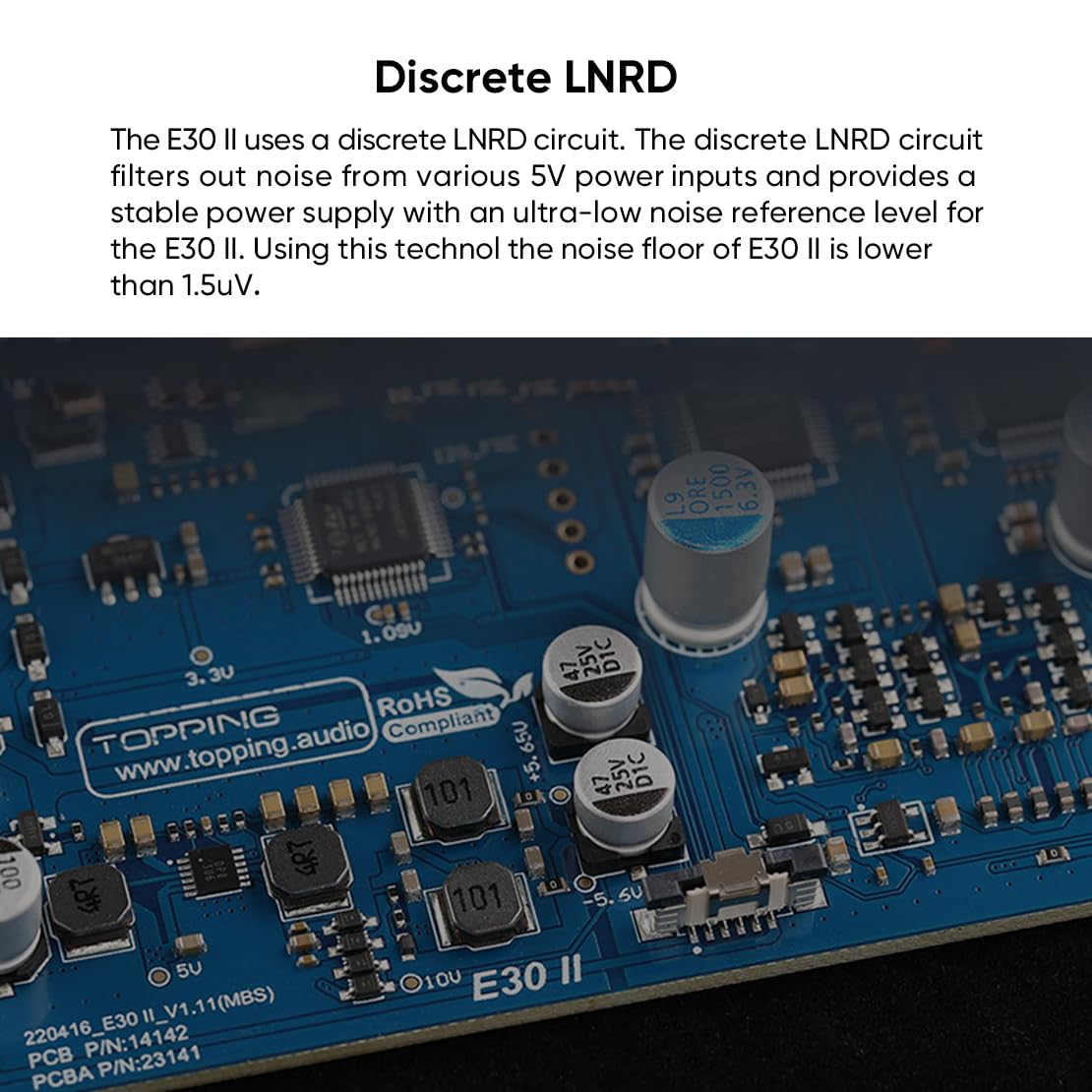

  • Discrete LNRD Circuit
  • To solve the noise problem that can be caused by the 5 V power supply, the E30 II includes a discrete LNRD (Low Noise Reference Driver) circuit. It filters noise from the 5 V power supply to provide a stable, very low-noise electrical signal to the audio circuits. Therefore, the E30 II's noise floor is less than 1.5µV.

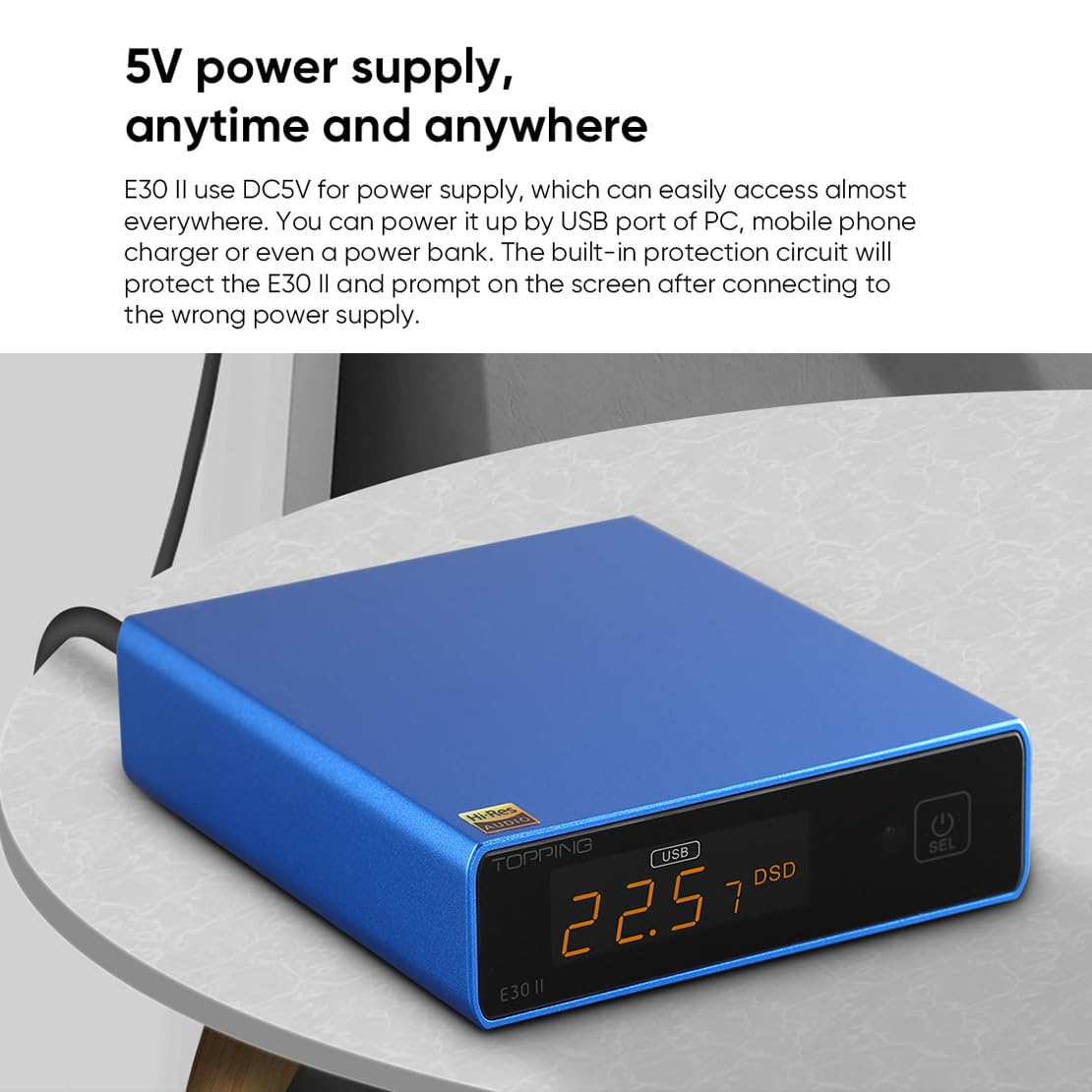

  • 5V power supply
  • Practical, the E30 II is powered by 5VDC. It can be used almost anywhere and can be connected to a computer, phone charger or powerbank. The integrated protection circuit protects the E30 II and will display an error message in case of a bad power supply.
  • Volume Control
  • Topping's DAC also includes a volume control, which allows the volume to be adjusted in a range from -99dB to 0dB using the remote control. The E30 II can therefore be connected directly to a power amplifier or active speakers.

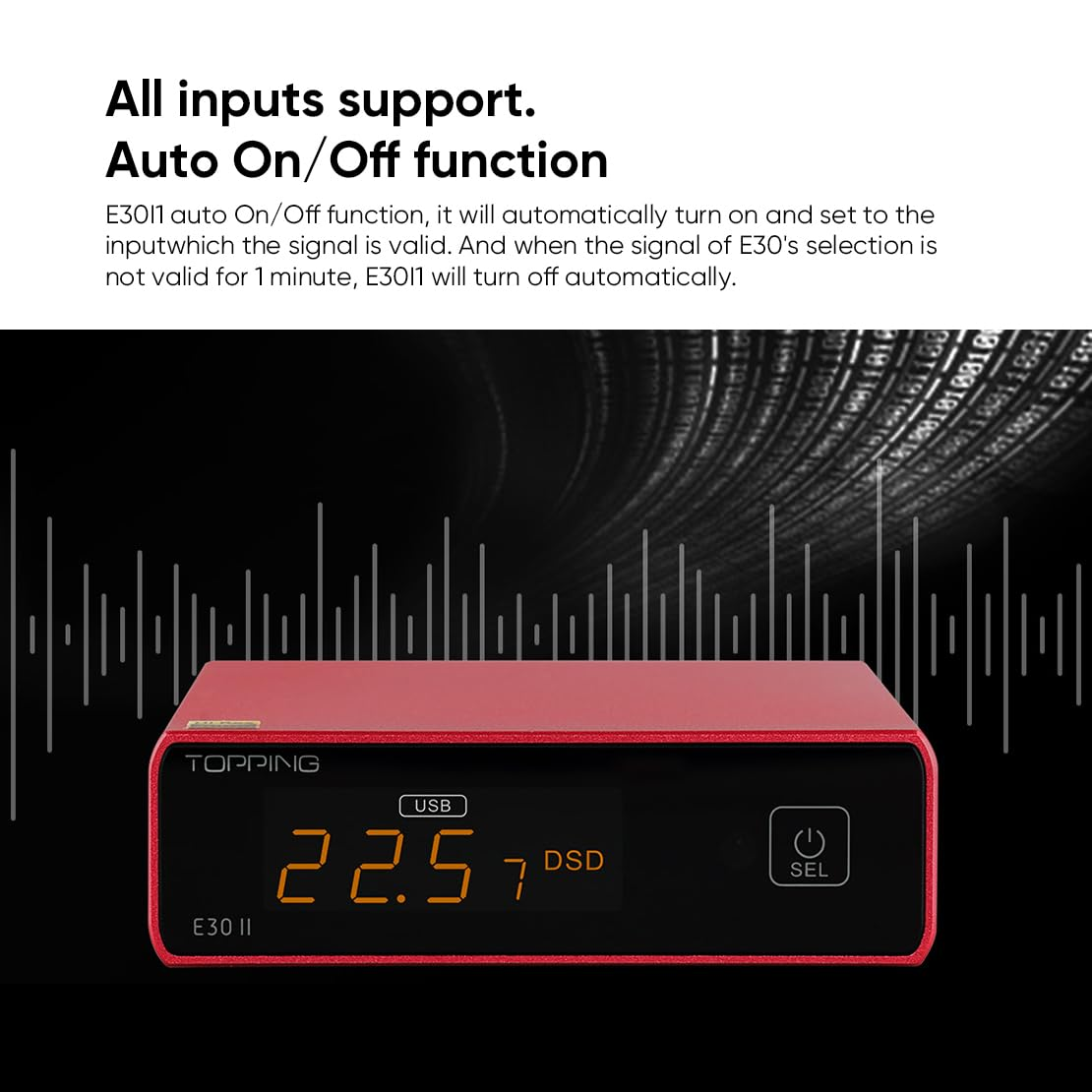

  • Auto ON/OFF function
  • With its Auto ON/OFF function, the E30 II automatically switches on and selects the input that receives a valid audio signal. likewise, if the device receives no signal for one minute, it automatically switches off.

Specification

USB
PCM 44.1kHz-768kHz/16bit-32bit
DSD DSD64-DSD512(Native), DSD64-DSD256(Dop)
Optical/Coaxial
PCM 44.1kHz-192kHz/16bit-24bit
THD+N@1kHz (A-wt) <0.00015%
THD@90kBw (No-wt) <0.00060% @20-20kHz
SNR @A-wt 123dB @1kHz
Dynamic range @A-wt 123dB @1kHz
Frequency Response 20Hz-20kHz (±0.3dB), 20Hz-40kHz (±0.8dB)
Output Level 2.1Vrms@0dBFS
Noise@A-wt <1.5uVrms
Channel Crosstalk@1kHz -132dB
Channel Balance <0.3dB
Output Impedance 20Ω

Interfaccia USB XMOS XU208

  • The E30 II's USB input supports connection to PCs, tablets and smartphones. The USB hardware is based on customised XMOS XU208 and Thesycon drivers. Furthermore, this input determination extremely low jitter levels. Combination of this interface with DAC AK4493S, up to 32-bit 768kHz PCM and DSD512.

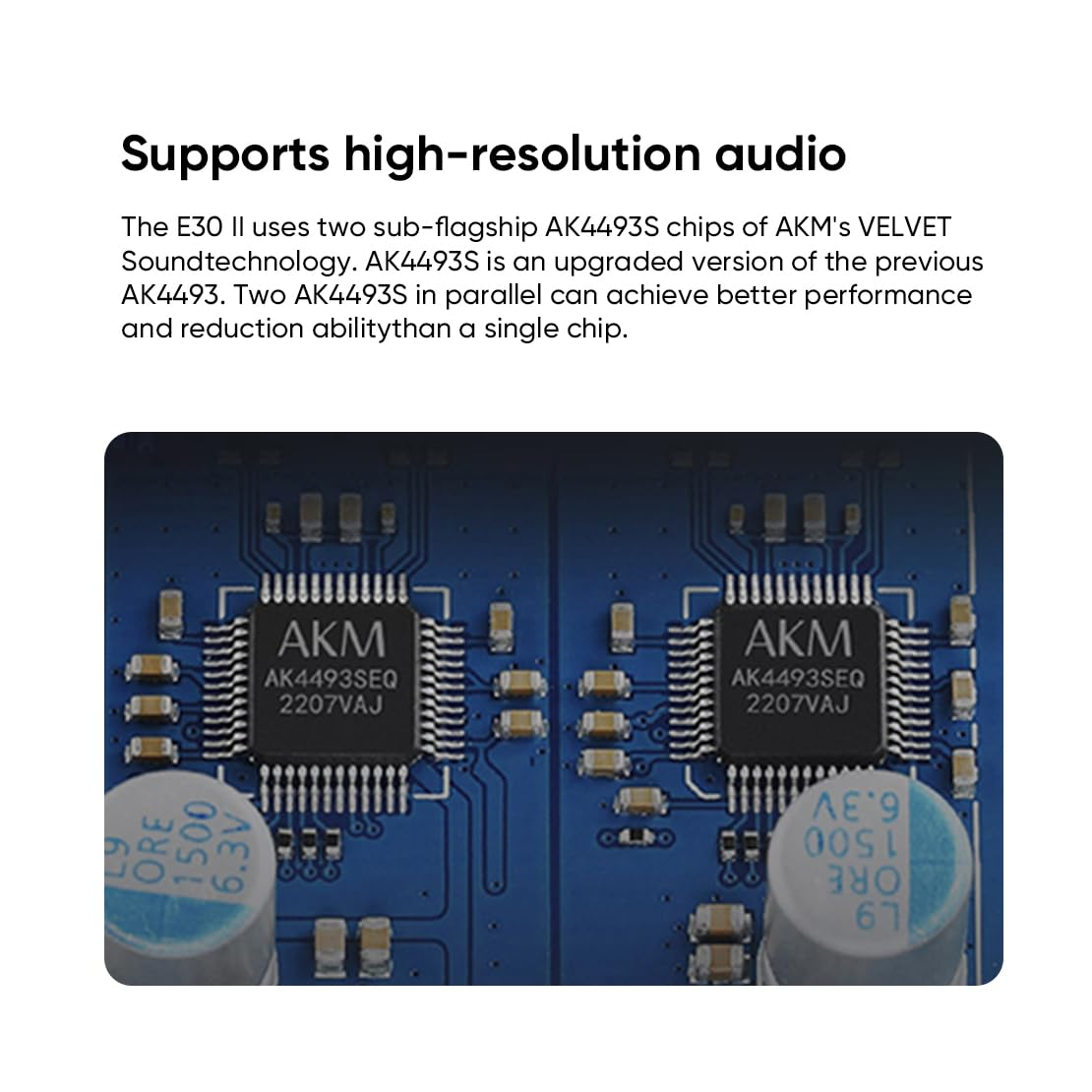

Dual DAC AKM AK4493S

  • The main improvement of the E30 II is its digital-to-analogue conversion stage. It now uses two AKM AK4493S DAC chips connected in parallel, each dedicated to one channel, thus offering much improved performance. These chips are themselves improvements of the AK4493 chip. They ensure accurate and richly detailed sound reproduction.
  • Item Weight: 300 g
  • Item Model Number: TOPPING E30 II Black
  • Product dimensions: 10 x 12.5 x 0.1 cm; 300 Grams
  • Country of origin: China
  • Manufacturer: TOPPING
