3Pcs BTS7960 43A H-Bridge High Power Motor Driver Module DIY Smart Car Current Diagnostic Current Limit
3Pcs BTS7960 43A H-Bridge High Power Motor Driver Module DIY Smart Car Current Diagnostic Current Limit
Brand: QCCAN
A$43.45
- Dual bts7960 high current (43A) H-bridge drive; The power supply voltage is 5.5 to 27V; Isolation chip 5V power supply( can share 5V with MCU).
- It is isolated from the single-chip microcomputer 5V to effectively protect the single-chip microcomputer.
- It can realize the forward and reverse rotation of the motor, and the maximum frequency of two PM inputs is 25kHz; Two over-current thermal error signal outputs.
- Just need four lines from MCU to driver module (GND. 5V. PWM1. PWM2).

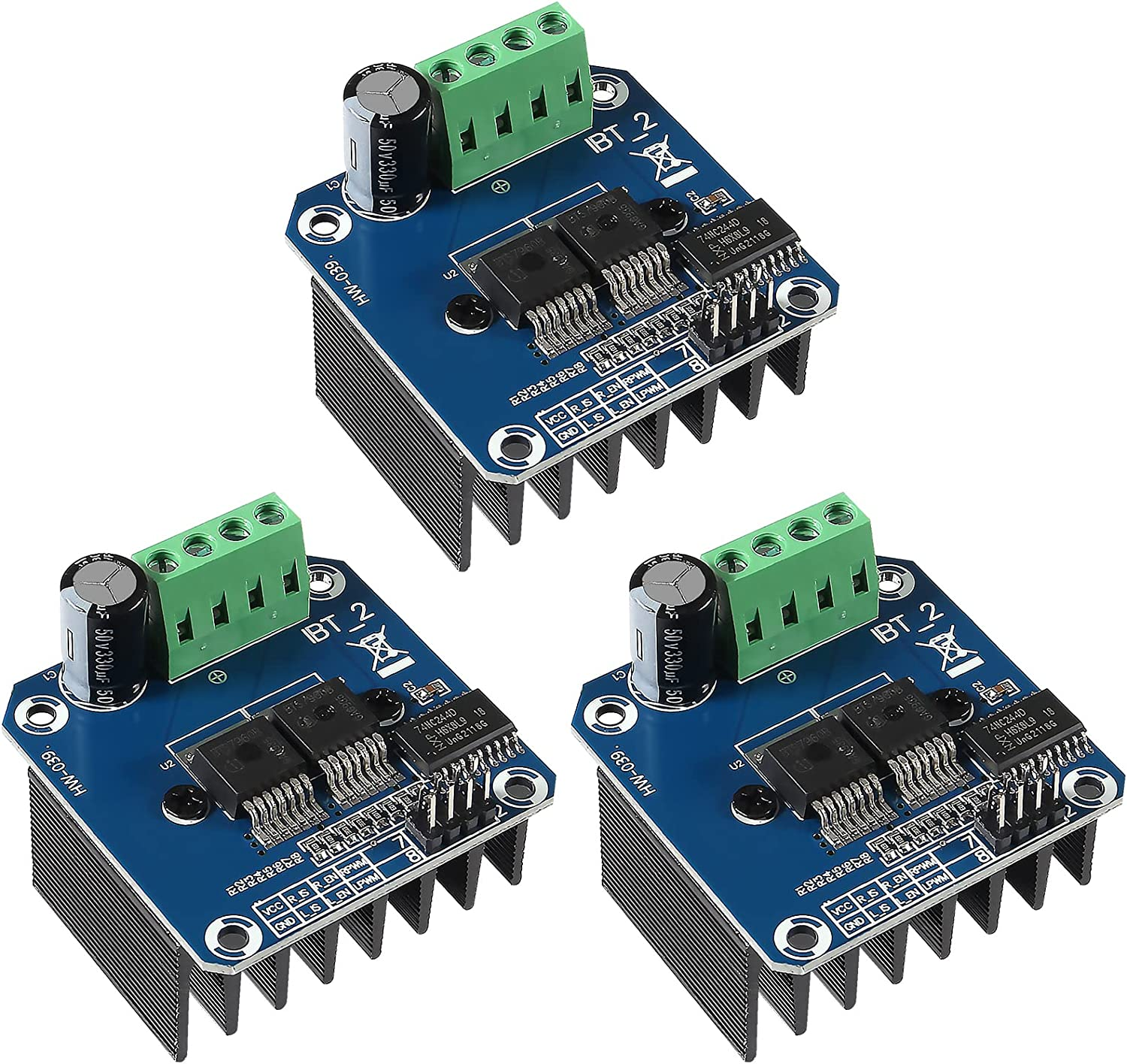

- Package included:3pcs BTS7960 43A High Power Motor Driver Module/ Smart Car Driver Module.

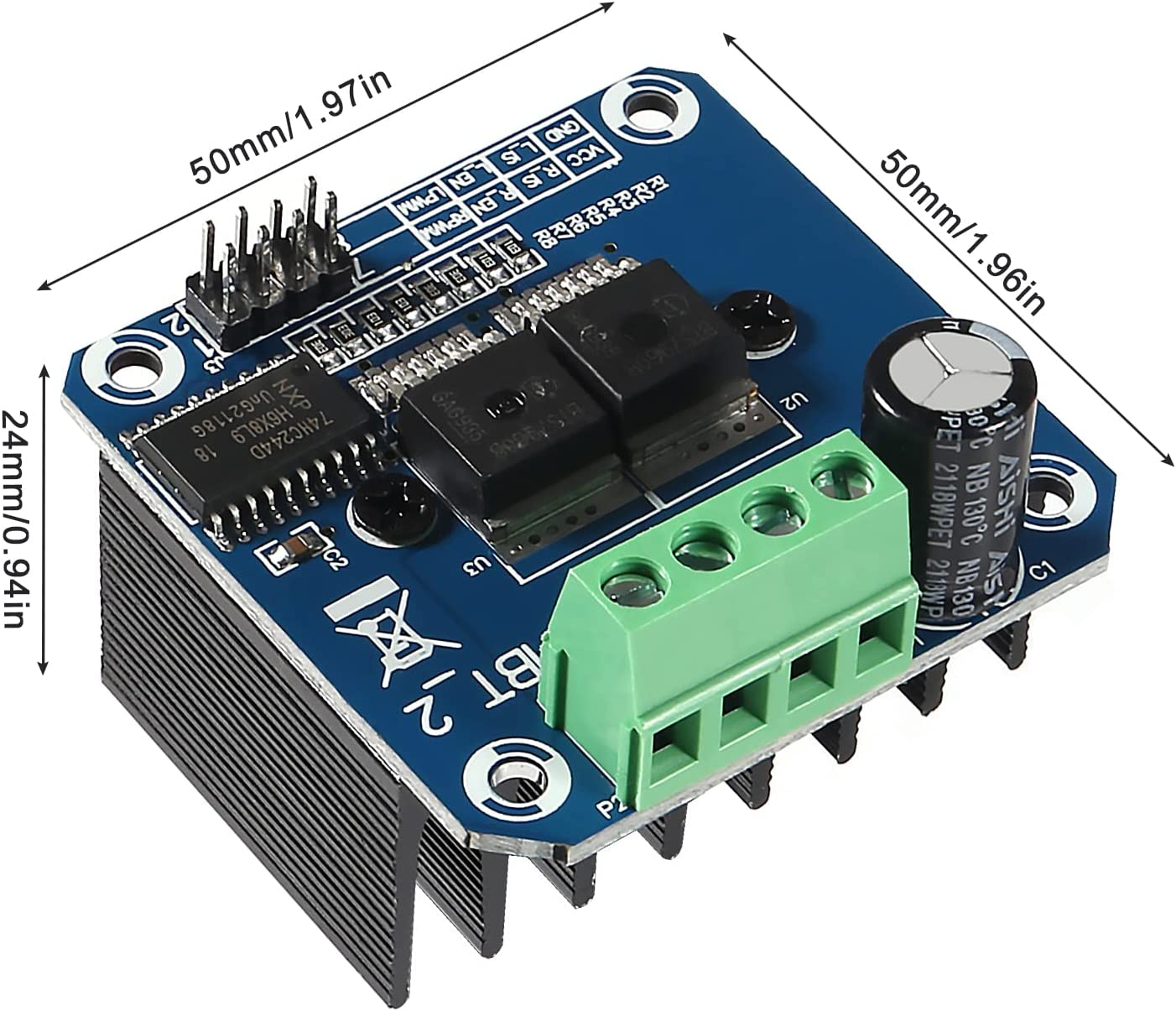

BTS7960B H-bridge 43A high-power motor driver Module Overview:
This driver uses chips BTS7960 composed of high-power drive full H-bridge driver module with thermal over-current protection. Double BTS7960 H-bridge driver circuit, with a strong drive and braking, effectively isolating the microcontroller and motor driver! High-current 43A
Features:

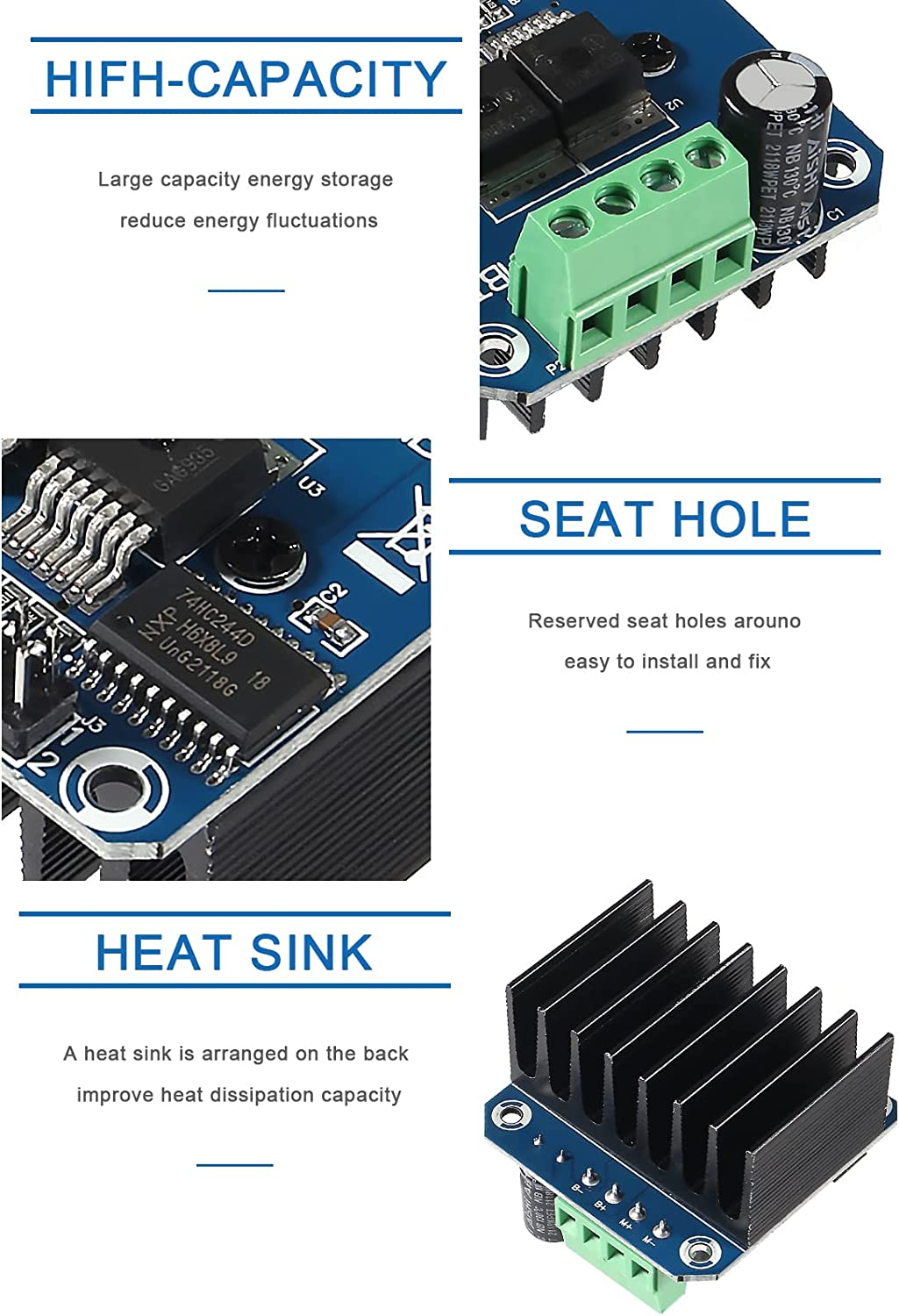

-Double BTS7960 large current (43 A) H bridge driver.
-5V isolate with MCU, and effectively protect MCU.
-5V power indicator on board.
-Voltage indication of motor driver output end.

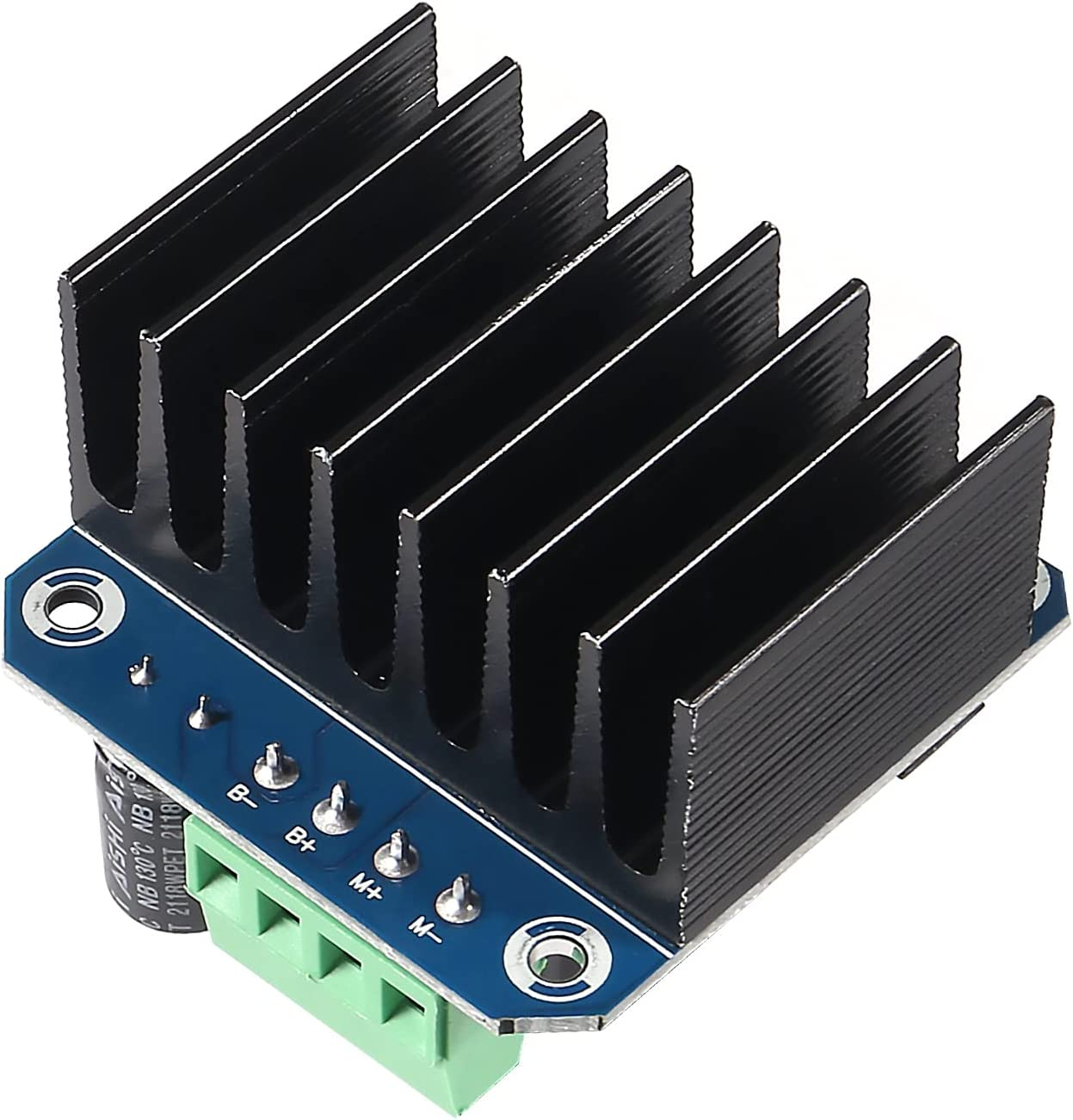

-Can solder heat sink.

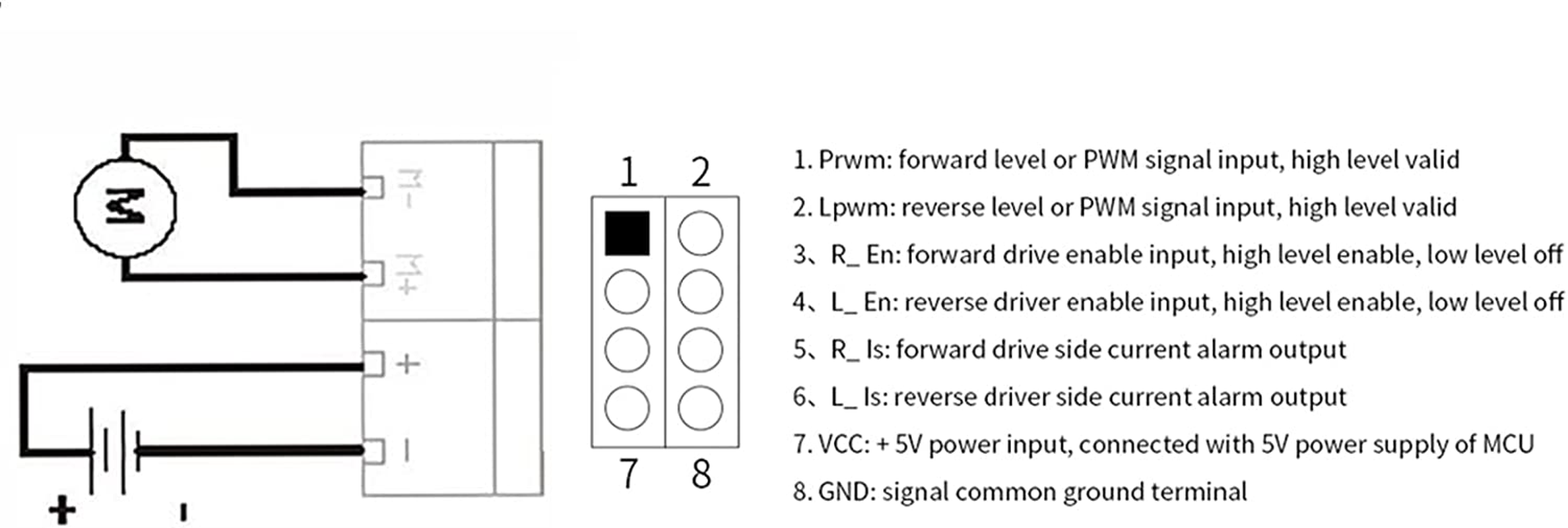

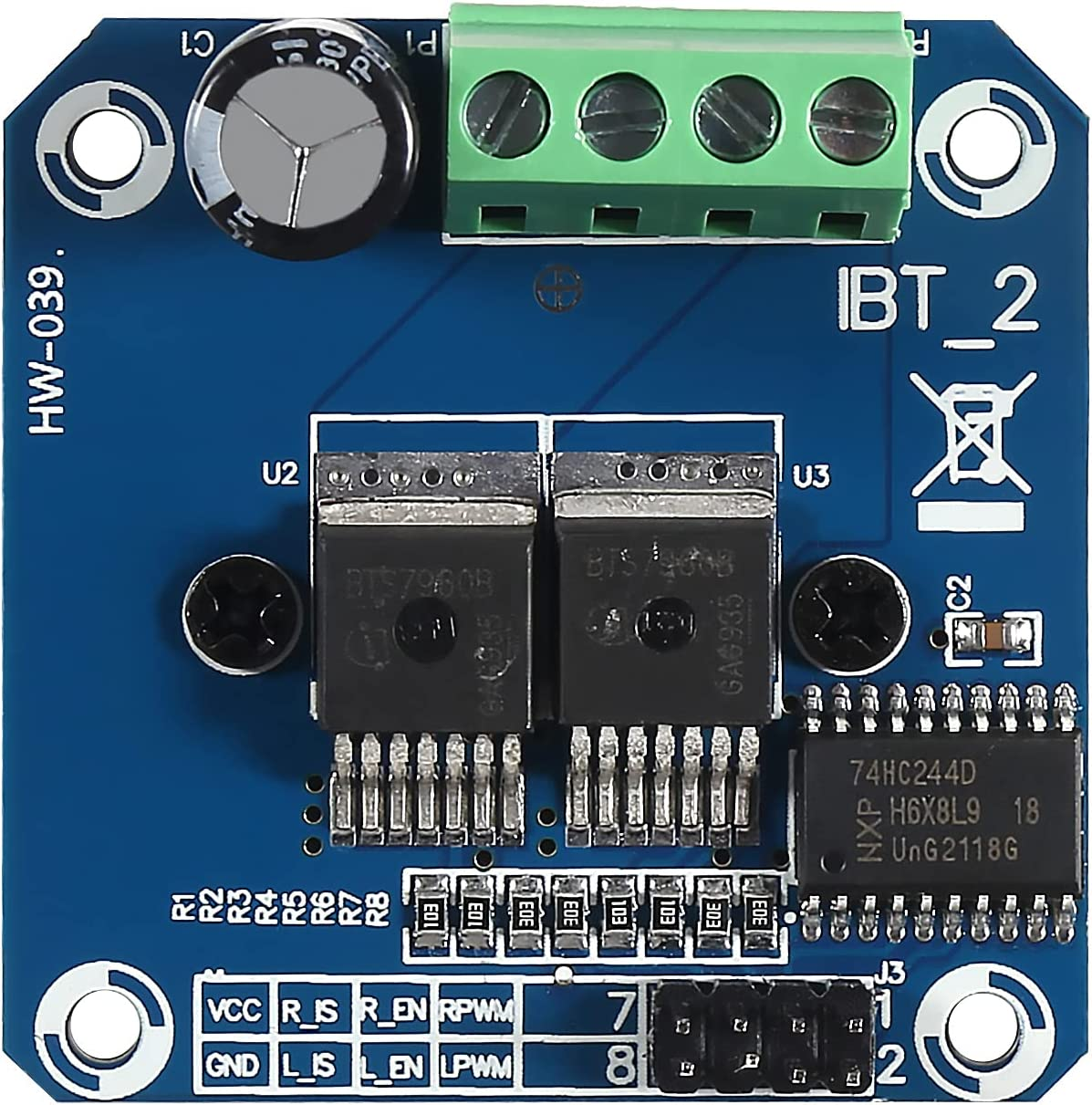

PIN Definition:
1. RPWM: Right Turn PWM
2. LPWM: Left Turn PWM
3. R_EN: Right Turn Enable (High Active)
4. L_EN: Left Turn Enable (High Active)
5. R_IS: Right Turn Current Warning (May Leave Floating)
6. L_IS: Left Turn Current Warning (May Leave Floating)
7. VCC: (5V)
8. GND
Connections:
Method 1:
VCC: 5V from Microcontroller(MCU)
GND: GND from Microcontroller(MCU)
L_PWM: PWM or 5V from Microcontroller(MCU) for CCW(CW) Turns
R_PWM: PWM or 5V from Microcontroller(MCU) for CW(CCW) Turns
R_EN and L_EN: 5V from Microcontroller(MCU)
Method 2:
VCC: 5V from Microcontroller(MCU)
GND: GND from Microcontroller(MCU)
L_PWM: 5V from Microcontroller(MCU) for CCW(CW) Turns
R_PWM: 5V from Microcontroller(MCU) for CW(CCW) Turns
R_EN and L_EN: PWM from Microcontroller(MCU)
Package Included:
3PCS BTS7960 43A High Power Motor Driver Module/ Smart Car Driver Module
- Batteries required: No
- Manufacturer: QCCAN
