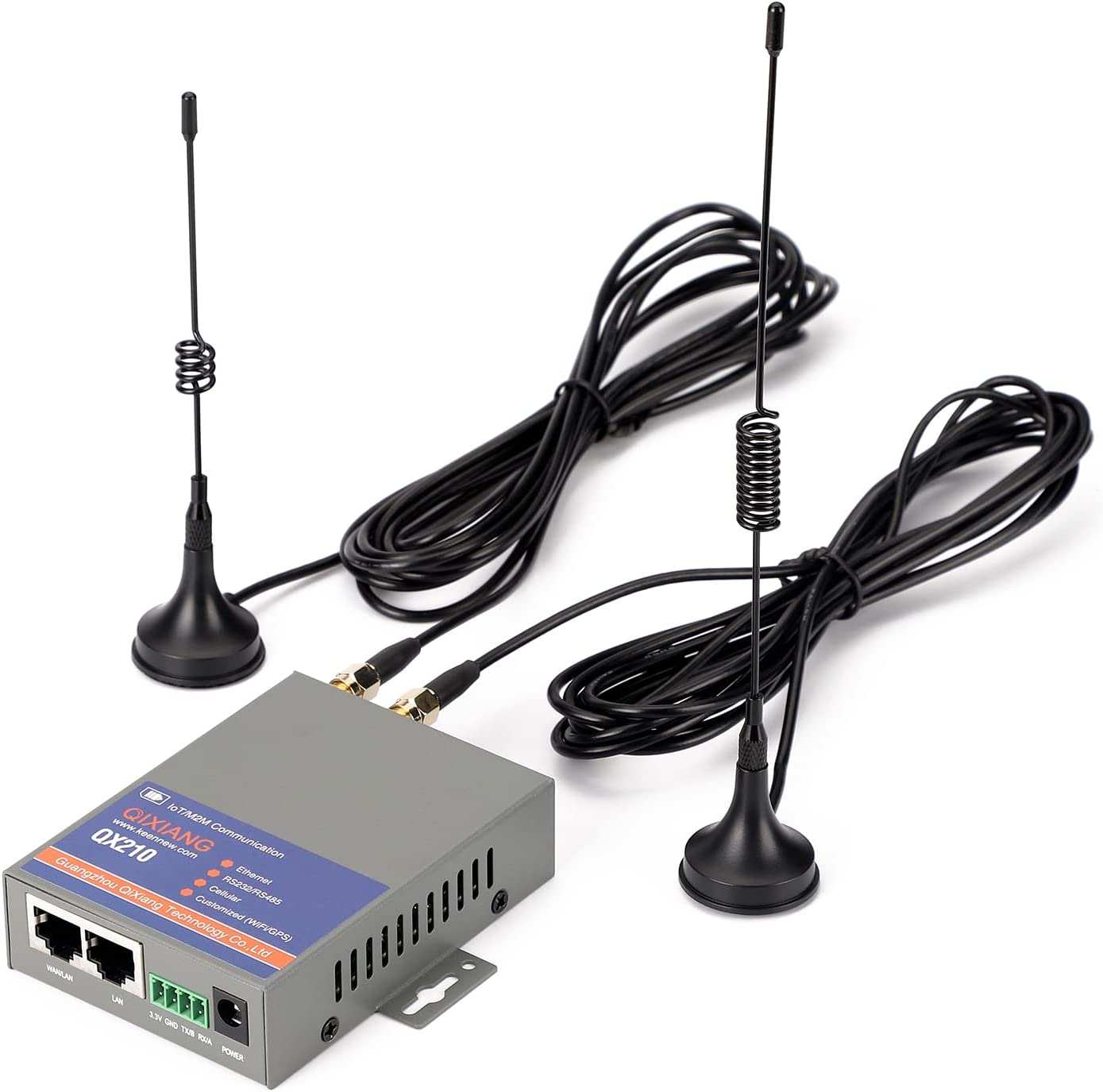

QX210 Router Applicable Scenarios

This is a robust LTE/4G router (modem) that is designed to provide a flexible internet network for IoT/M2M devices, its key advantages are: provides a mobile network to help clients avoid building high cost wired network, super reliable network connection (keep always connected with internet, auto reboot when internet breakdown), security data transmission (RS232 data transmission, VPN Client Modes, DDNS...).

It adopts CAT4 cellular module, the speed is lower than cell phone speed, but it is well meets camera and most machines' transmission requests, also it is more flexible to provide 7/24 hours internet for machines than cell phone hot spot. Here are the Applicable Scenarios and Inapplicable Scenarios for your reference:

APPLICABLE SCENARIOS: Video Surveillance, CCTV, Remote Camera, Access Control, Industrial Automation Devices, ATM, Smart Package Locker, Charging Station, Smart Grid, Energy (Power Substation, Solar PV System, Wind Power Station), Electrical Substation, RVs, Backup Internet, Vending Machine, Digital Signage, kiosk, Auto Gate, Bus, Fleet Management, Environmental Monitoring Equipments, Smart Agriculture, Smart Cities, Smart Metering, ... and so on.

INAPPLICABLE SCENARIOS: Request faster speed than the cell phone, Very Low Cellular Signal Strength Area.

NOT SUPPORT SSH ACCESS

Convert 4G Signal To Remote Home Business Industrial Travel Wi-Fi Ethernet Internet

1. Unlocked and Wide 4G/3G Bands Compatible with all Frequency Bands of Australia and New Zealand

- 4G/LTE supports bands: B1/3/5/7/8/28/40

- 3G supports bands: B1/5/8

- It is unlocked and covers all frequency bands of Australia and New Zealand cellular carriers

2. Multiple Internet Access

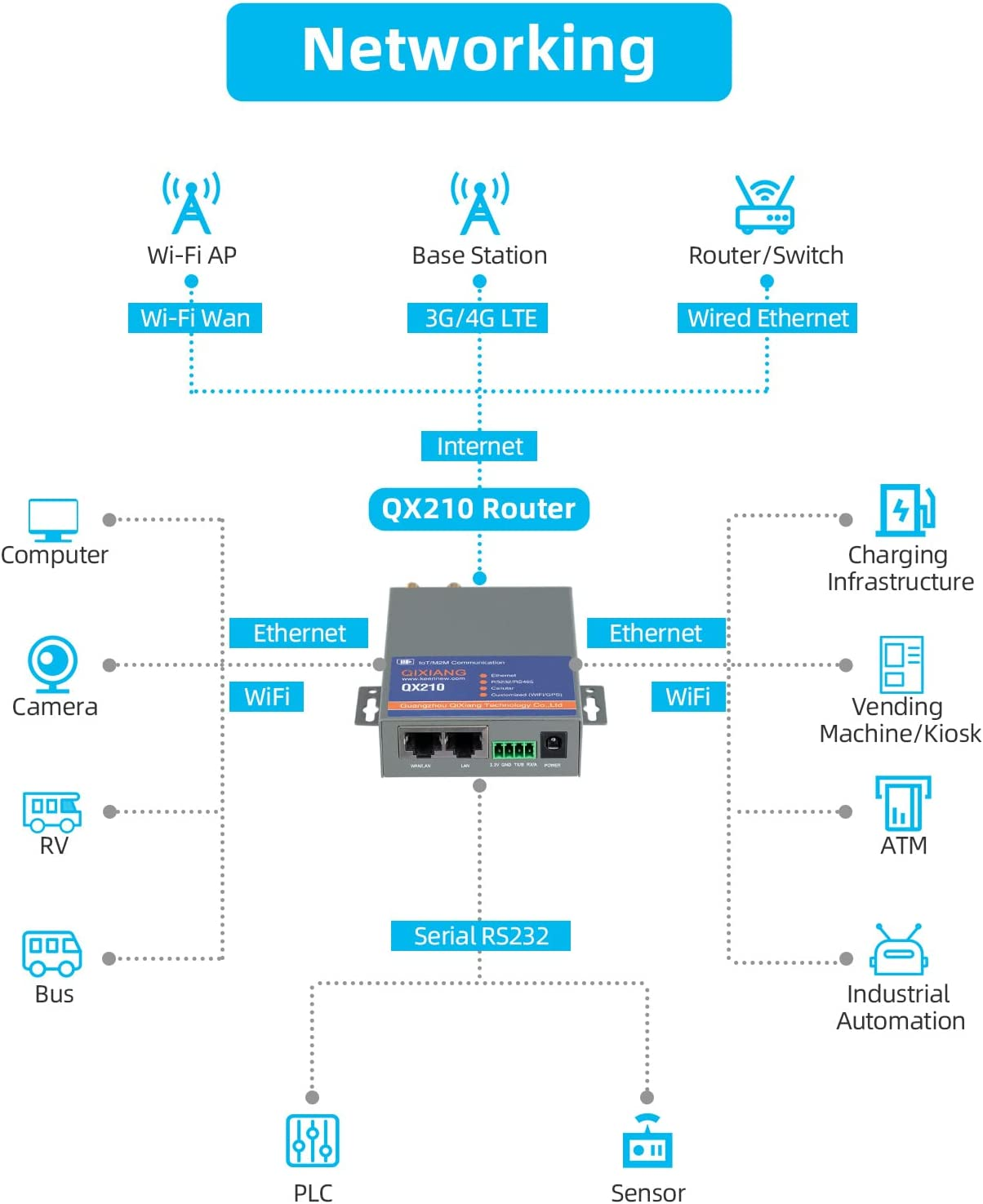

This modem router has two Ethernet ports (RJ45), Wi-Fi (2.4Ghz, 802.11b/g/n, AP and Client mode), and Serial Port (RS232), which enables your devices easily to find a way to connect it to get internet via 4G LTE network.

3. See What Our Clients Said:

- If you have an RV, or a vacation cabin, and don't have access to the internet but do have a cell signal, this could be a great option to give you connectivity.

- I use this for a remote camera installation, they performed well in harsh environments.

- Deployed this device to my fleet and provide Wi-Fi for passengers and cameras.

- It served as a very handy backup when my ADSL line went down.

- We used it in an industrial automation project to provide internet, super reliable to keep machines online, and handles extreme heat and cold well.

- Built in our smart kiosk, it will use super market’s WiFi network first, and use 4G network as backup with fail over function.

Industrial Grade Design, Security and Powerful functions for Professional Applications

1. Industrial Grade Design

- Rugged metal casing, handles extreme heat and cold well.

- Wide working voltage DC 7.5V to 32V. ESD and lightning protection.

- Both hardware and software watchdog, multi-layer link detection mechanisms

2. Security Data

- VPN client mode (NOT SERVER MODE): GRE, PPTP, L2TP, IPSec, EOIP, N2N, OpenVPN. Qos, DMZ, Firewall (Domain Filter, Keyword Filter, Blacklist, Whitelist).

3. Serial DTU

- RS232 DTU function, MQTT. Serial passthrough, Modbus RTU/TCP protocols. Serial Master/Client modes.

4. Powerful Functions for Professional Application

- Port Forwards, Static NAT, DDNS, SNMP.

- Load Balancing, enables network failover between Wired/Wi-Fi and Cellular.

- Timing/Auto reboot function.

QX210 Industrial 4G Router Datasheet
