AUTENS IR Illuminator is a great choice to installed with your wide angle IP cameras, CCTV camera. It helps producing better night vision image and greatly improve the performance of night vision cameras.

Warm Tips:

1. Camera and illuminator should be installed to the same horizontal and vertical direction
2. To protect the sensor, please set the senor head down to avoid direct sun exposure
3. For same quantity of LEDs, when the LED view angle is wider, the IR distance will be shorter

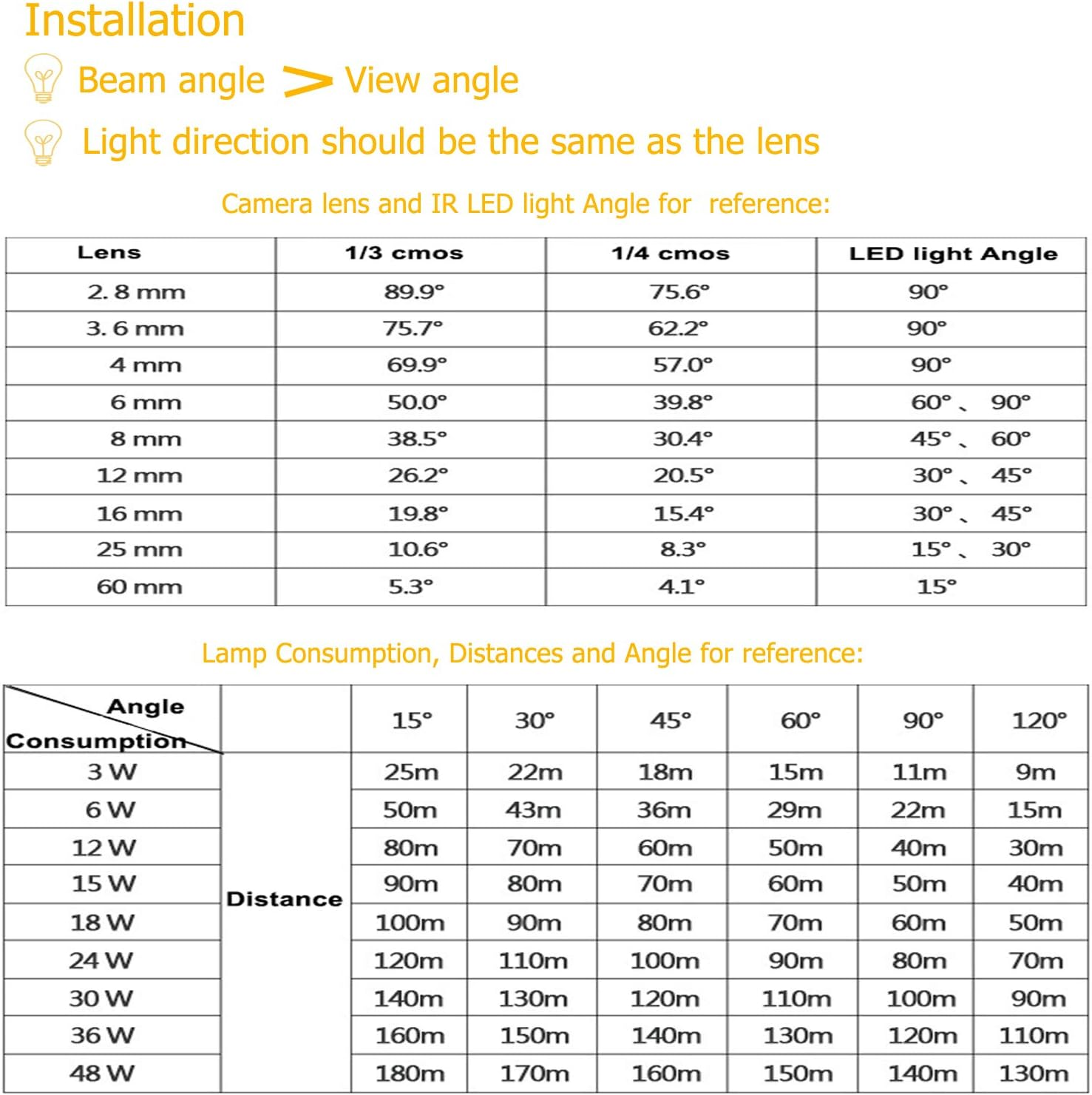

4. The IR distance and view angle are for your referance, the final view distance & angle is depend on your camera lens, please check with our specification chart carefully before buying
5. For 850nm LED infrared light, after power is on, if you look straightly at the lens of ir illuminator, you could see the faint red glow on each led, but YOU COULD NOT SEE any light emitted from it

IR LEDs: 8 Pcs High Power IR Array LEDs

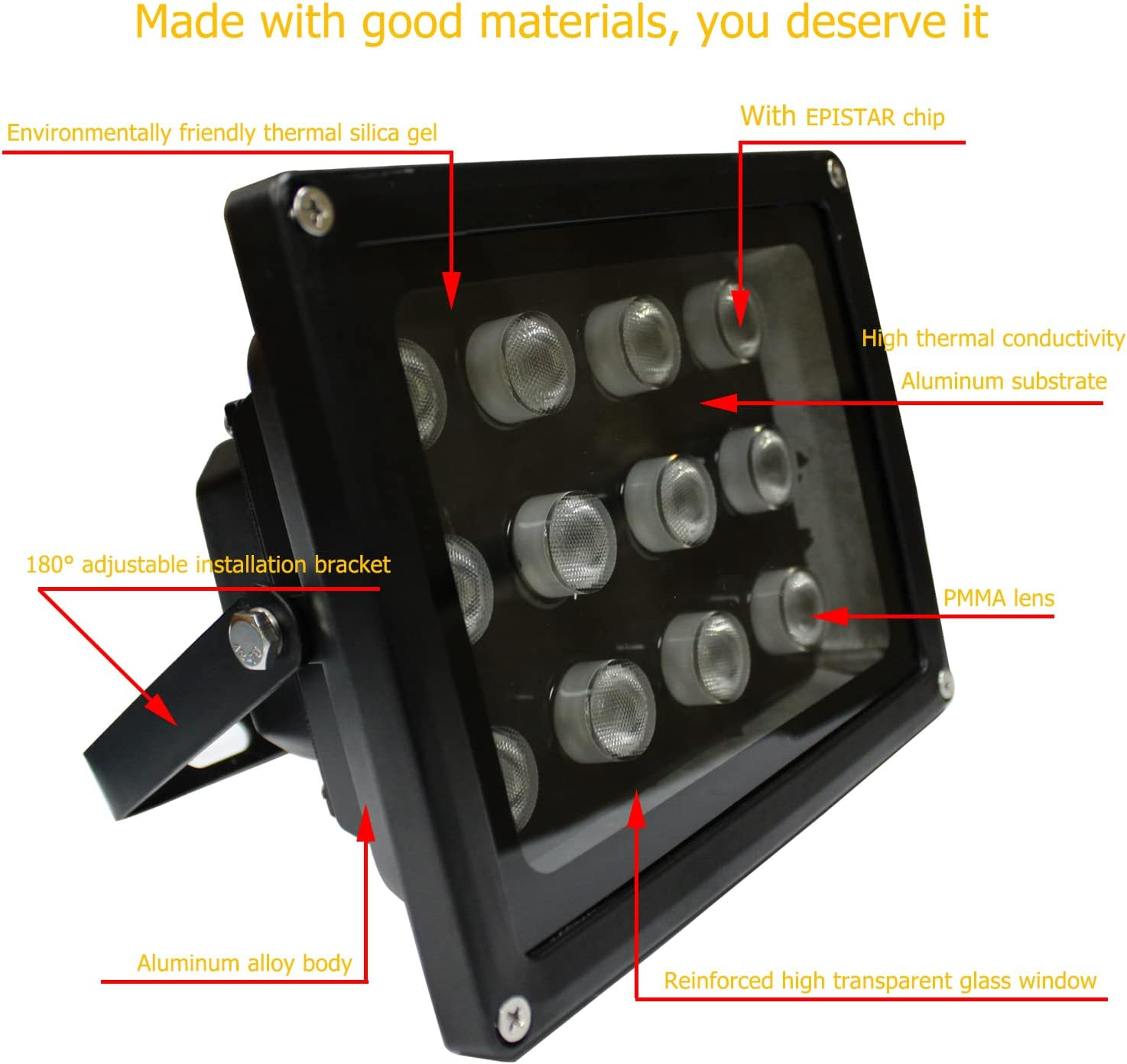

Housing Material: Aluminum Frame + Reinforced Glass
Type of Infrared Light: 850nm Wavelength

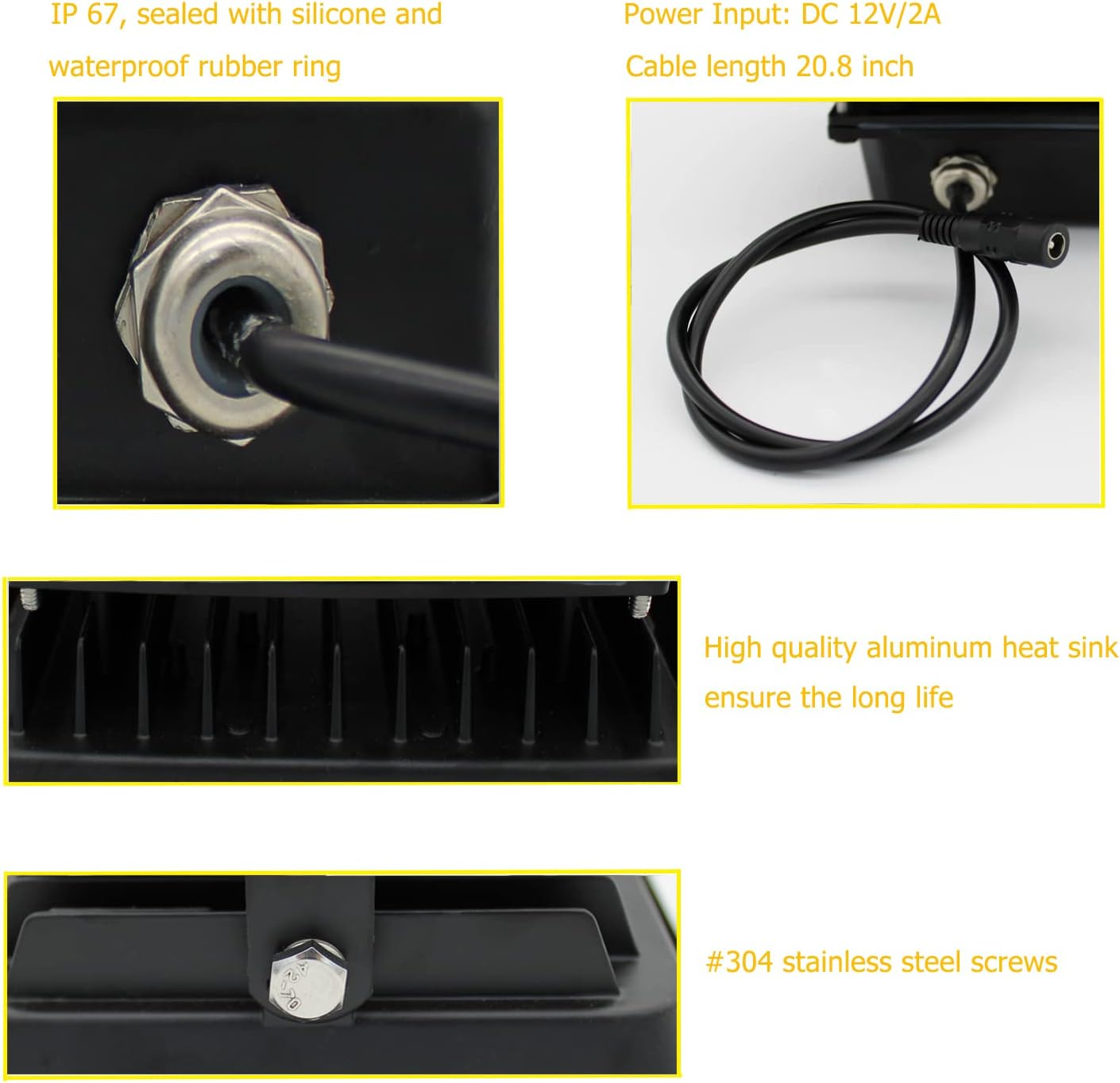

Dustproof & Waterproof Rating: IP67
Power Consumption: 8W
Product Dimensions: 112*83*76mm
Power Input: DC 12V/1A
Working Tmperature: -20 ℃ to 55℃
Housing Color: Grey
IR Distance:30 degree - 141ft; 60 degree - 95ft; 90 degree - 72ft

Package:

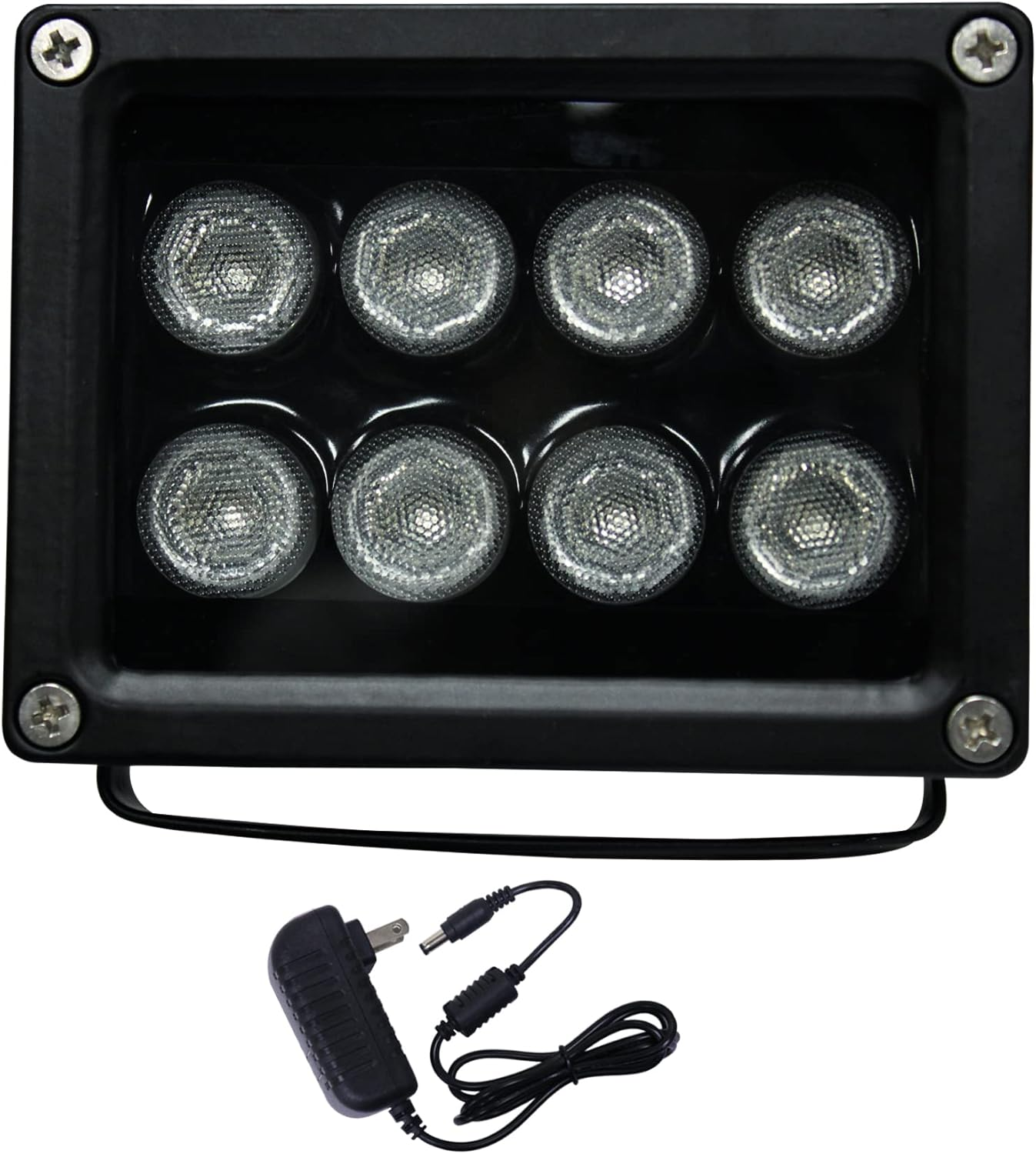

1 x 8-LEDs IR Illuminator
1 x DC 12V/2A Power Adapter
