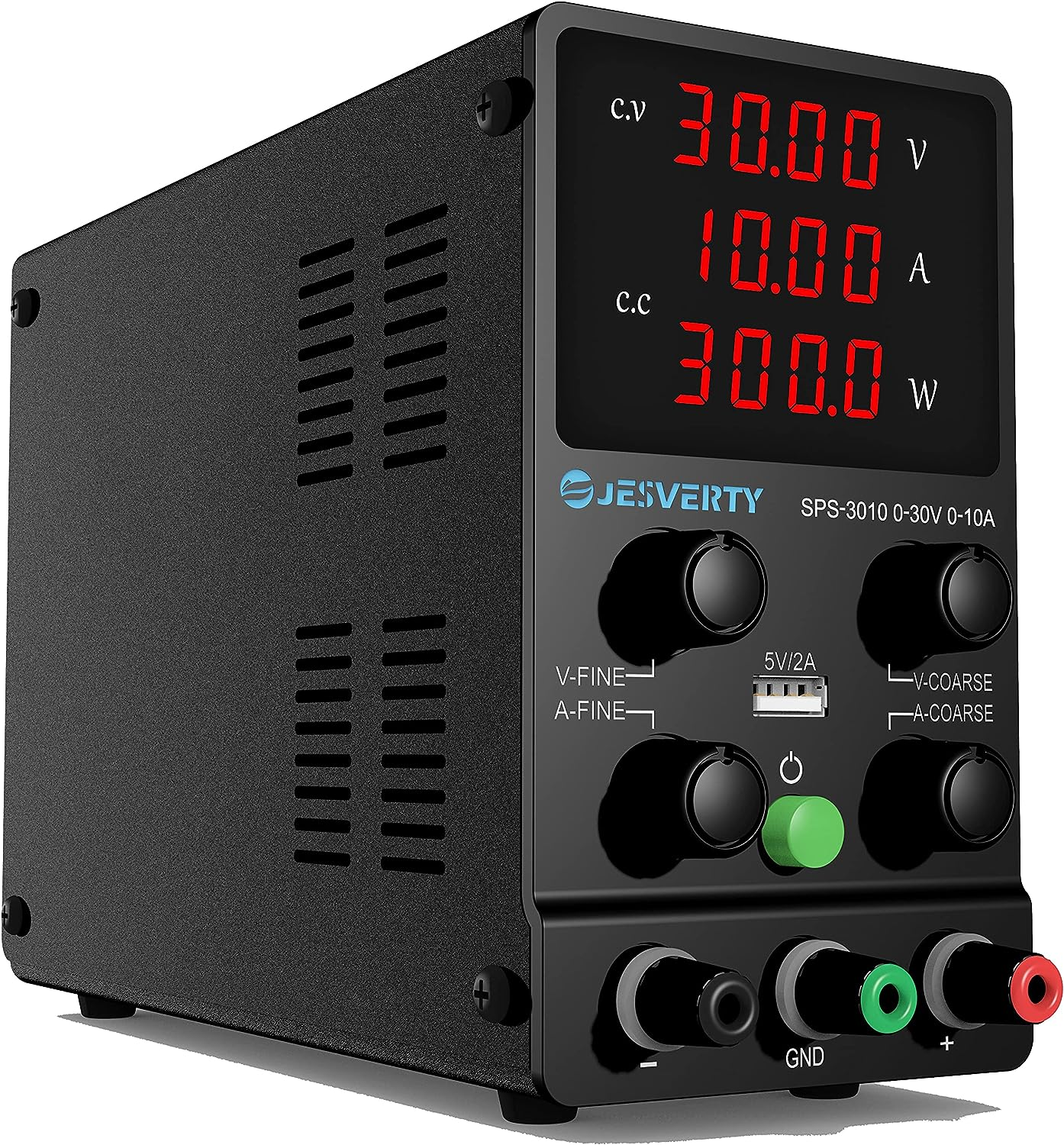

DC Power Supply Variable, 30V 10A Adjustable Switching Regulated DC Bench Power Supply with High Precision 4-Digits LED Display, 5V/2A USB Port, Coarse and Fine Adjustments AC240V Jesverty SPS-3010
DC Power Supply Variable, 30V 10A Adjustable Switching Regulated DC Bench Power Supply with High Precision 4-Digits LED Display, 5V/2A USB Port, Coarse and Fine Adjustments AC240V Jesverty SPS-3010
Brand: Jesverty
A$89.25
- 1️⃣【4-Digit Display & Power Calculation】: Jesverty bench power supply features a big bright 4-digit LED display that shows measured values of V／A／W that the unit outputs in real-time. The display resolution is up to 0.01V, 0.001A, and 0.1W.
- 2️⃣【Auto C.V. and C.C. Mode】: Jesverty variable power supply can be used as a constant-voltage*(C.V.) power supply and constant-current*(C.C.) power supply even when the load is changed. It switches automatically between CV mode and CC mode according to the changes in the load.
- Note: The V and A settings you set are the crossover point at which the mode switches.
- 3️⃣【Compact Body & Lightweight】: Jesverty DC power supply variable measures only 7.1(D)x3.35(W)x6.1(H)inches and weight of approx. 1.2kg. It saves space on your workbench and can be moved around without any frustration.
- 4️⃣【Reliability and Safety】: Jesverty benchtop power supply is built with high-quality materials and reliable circuit designs that include multiple protection functions, such as short-circuit protection, over-load protection, grounding terminal, temperature-regulated fan, etc. to ensure performance and extend the lifespan.
- 5️⃣【Items you get & Customer service】: 1 x SPS Unit, 1 x Power Cord*, 1 set of test leads*, 1 x instruction manual (contact information included). We provide professional technical support. Should you have any problems or questions about your order, please feel free to contact the Jesverty Customer Service via Amazon or email.
- Note: Power cords and the AC input settings vary depending on the destination for the product at the factory-shipment.
- Note: The test leads that come with the unit are merely a give-away, we recommend that you prepare test leads with sufficient current capacity if your project needs long-term use of high current.
Product Description
Jesverty Adjustable DC Power Supply
The Jesverty SPS series adjustable regulated DC power supply is designed for use in laboratories, schools, and production lines. Both output voltage and output current are continuously adjustable between 0 and nominal. The stability and ripple factor of the power supply are excellent and have a perfect protection circuit. Can work at full load for a long time. This power supply can be used as both a regulated power supply and a regulated current supply.
Pcaking List
Items You Get
- 1x SPS Power Supply
- 1x Power Cord (AU Standard)
- 1x Output Test Leads
- 1x User's Manual (Contact info included.)
Switching-Type DC Power Supply
- Display Accuracy: 0.5% ± 2 digits
- Display Resolution: Voltage: 0.01V Current: 0.001A
- Fuse Standard: T5A/250V
DC Bench Power Supply
The Jesverty DC bench power supply provides clean AC to DC power conversion using reliable circuit designs. Perfect for applications such as laboratories, educational sites, factory manufacturing tests, maintenance repairs, battery charging, anodizing, electronic work DIY, etc.
DC Regulated Power Supply
- Output Voltage: 0~30V
- Output Current: 0~10A
- Input Voltage: 230V ± 10% 50Hz
- Working Temperature: 0℃～40℃; Relative Humidity: ＜80%RH
- Storage Temperature: -10℃～70℃; Relative Humidity: ＜70%RH
- Constant Voltage Mode: Voltage stability ≤ 0.1% ± 3mV; Low voltage: 0.2% ± 3mV; Load stability ≤ 0.5% ± 3mV
- Constant Current Mode: Current stability ≤ 0.2% ± 3mA; Load stability ≤ 0.2% ± 3mA; Ripple noise ≤ 20mArms (Valid value)

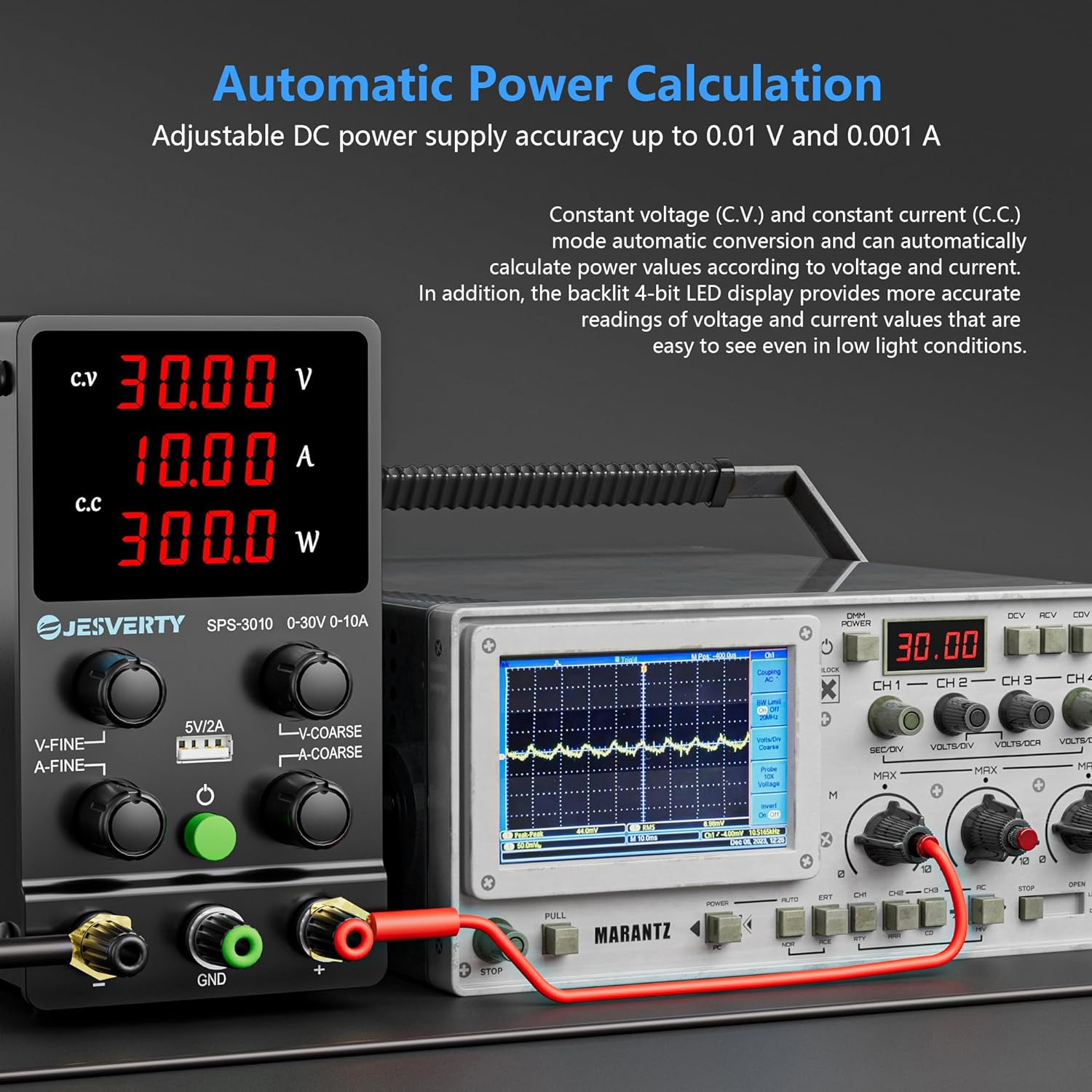

High Resolution
A professional power regulator with high resolution of 0.01V and 0.001A. You can easily adjust it in 0~30V and 0~10A ranges. The backlit 4-digit LED display provides more accurate voltage and current readings, making it easy to view even in low light conditions.
Intelligent Cooling Fan
The temperature-regulated intelligent fan can effectively heat the machine, prolong the service life of the machine can also effectively reduce noise, and provide reliable working status. The power supply is rugged and compact. Multiple protections include over-current protection, over-load protection, short-circuit protection, etc.

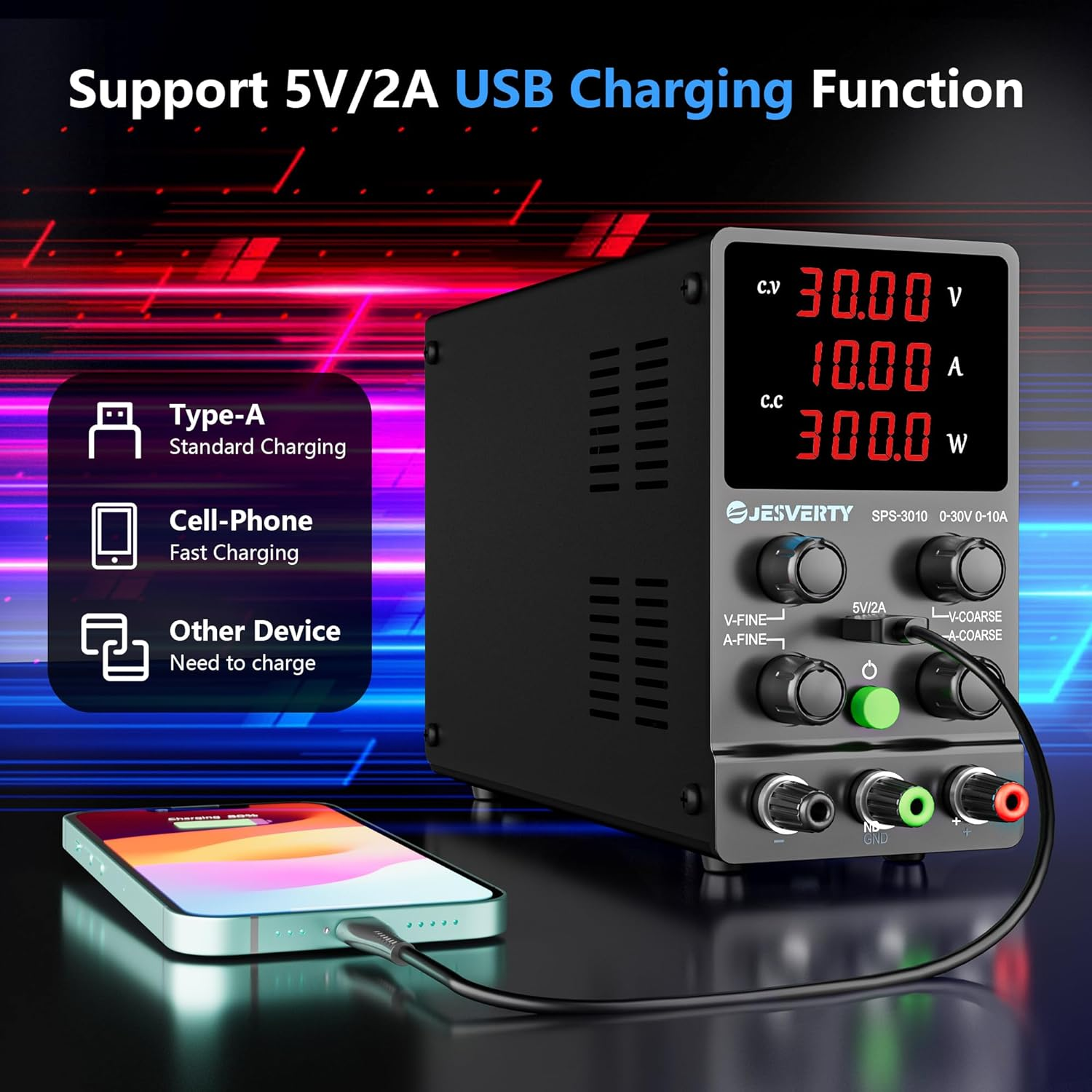

USB-A Charging Port
A standard 5V/2A USB-A charging port convenient for charging your smartphones and powering up your Arduino UNO, Raspberry Pi, or other electronic DIY modules for your projects.
- Item Model Number: SPS-3010
- Part Number: Jesverty002
- Country/Region of origin: China
- Batteries Included: No
- Batteries Required: No
- Brand: Jesverty
- Material Type: Aluminium
- Compatible Devices: Personal Computer
- Item Weight: 1.1 kg
- Voltage: 115 Volts (AC)
- Wattage: 100 watts
- Output Wattage: 300
- Model: SPS-3010
- Form Factor: benchtop
- Product dimensions: 8.51 x 15.49 x 18.01 cm; 1.1 kg
- Does it contain liquid?: No
- Manufacturer: Jesverty
