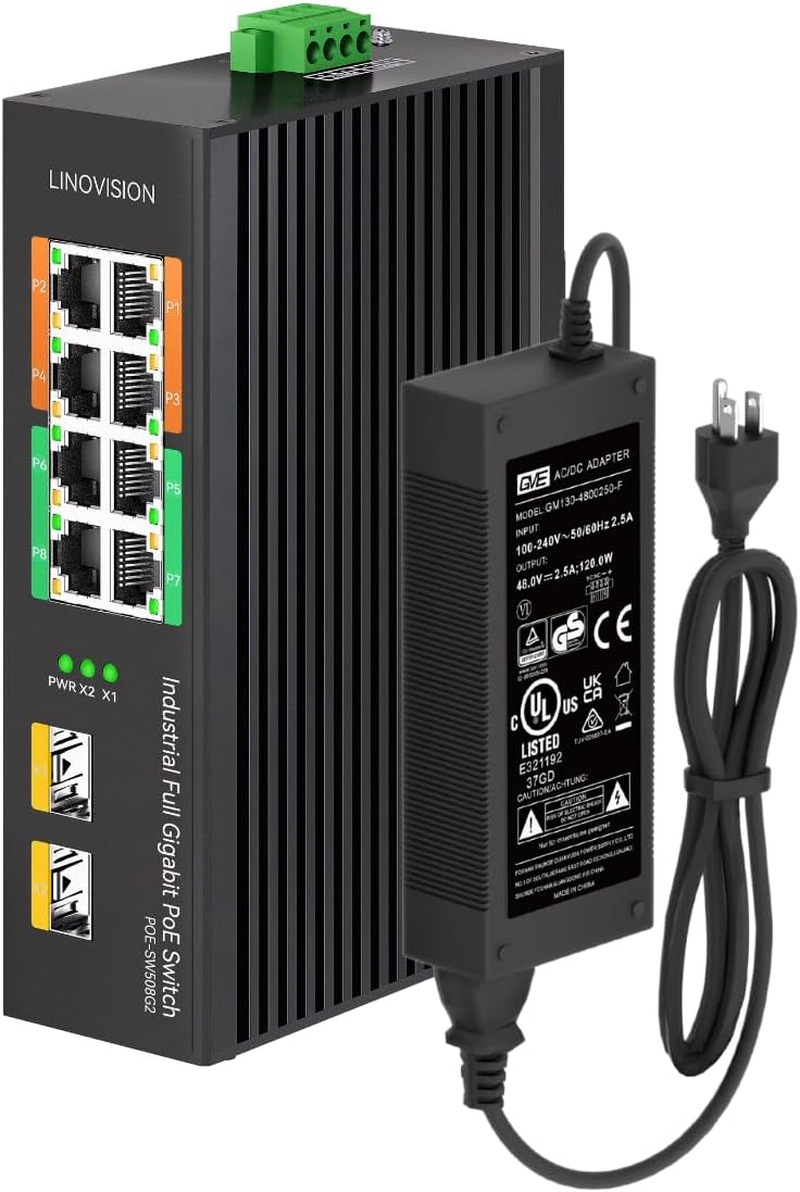

LINOVISION Industrial 8-Port Full Gigabit POE++ Switch with 4 BT 90W Poe Ports, 2 Gigabit SFP Uplinks, POE Budget 120W, POE Watchdog, Din-Rail POE Switch for PTZ Camera/Poe Lighting/ POE Monitor
LINOVISION Industrial 8-Port Full Gigabit POE++ Switch with 4 BT 90W Poe Ports, 2 Gigabit SFP Uplinks, POE Budget 120W, POE Watchdog, Din-Rail POE Switch for PTZ Camera/Poe Lighting/ POE Monitor
Brand: LINOVISION
A$208.95

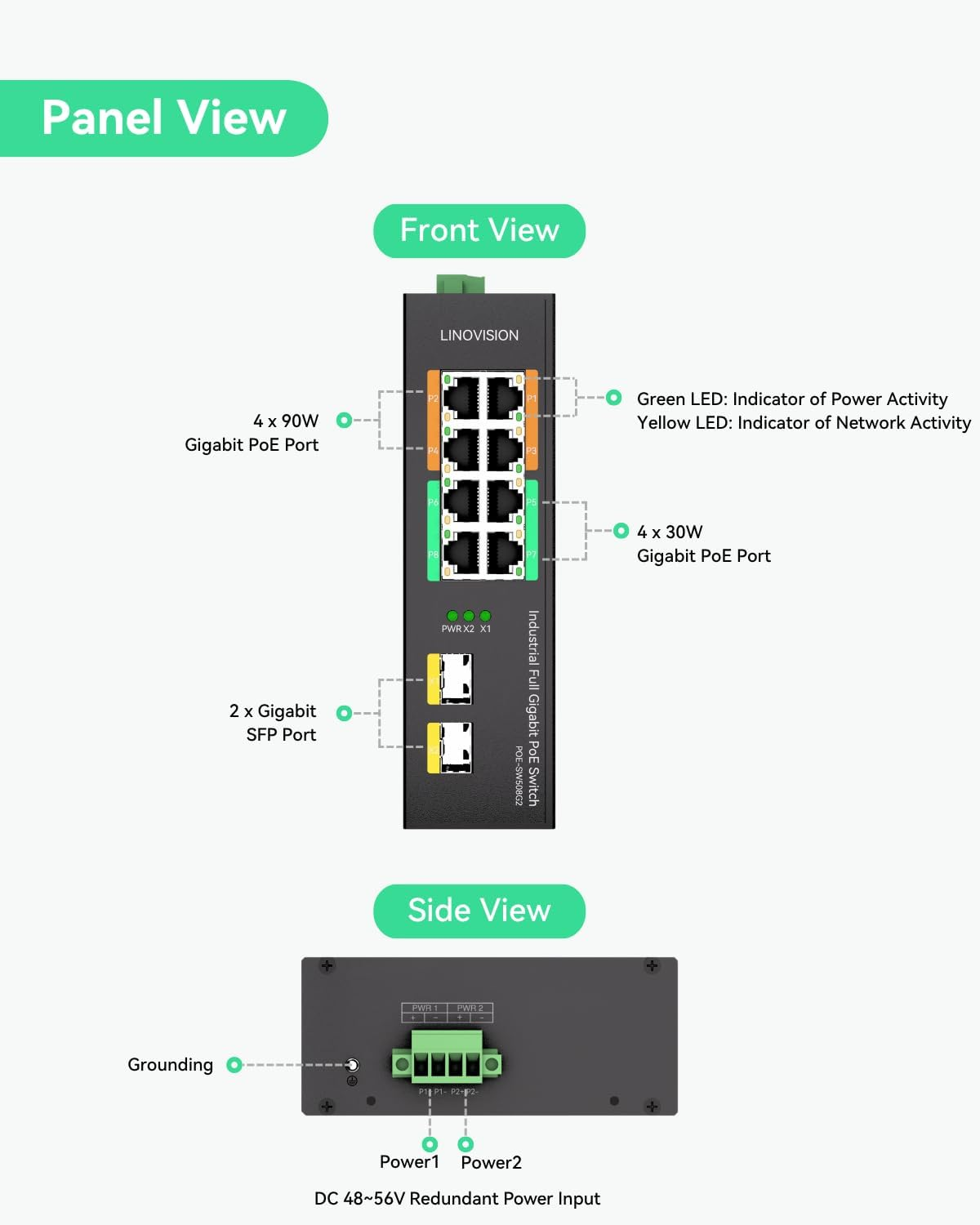

- 【8 PORT FULL GIGABIT POE SWITCH】 - Providing 8*10/100/1000Base-T Ethernet PoE ports and 2*1000Base-X SFP Ports.

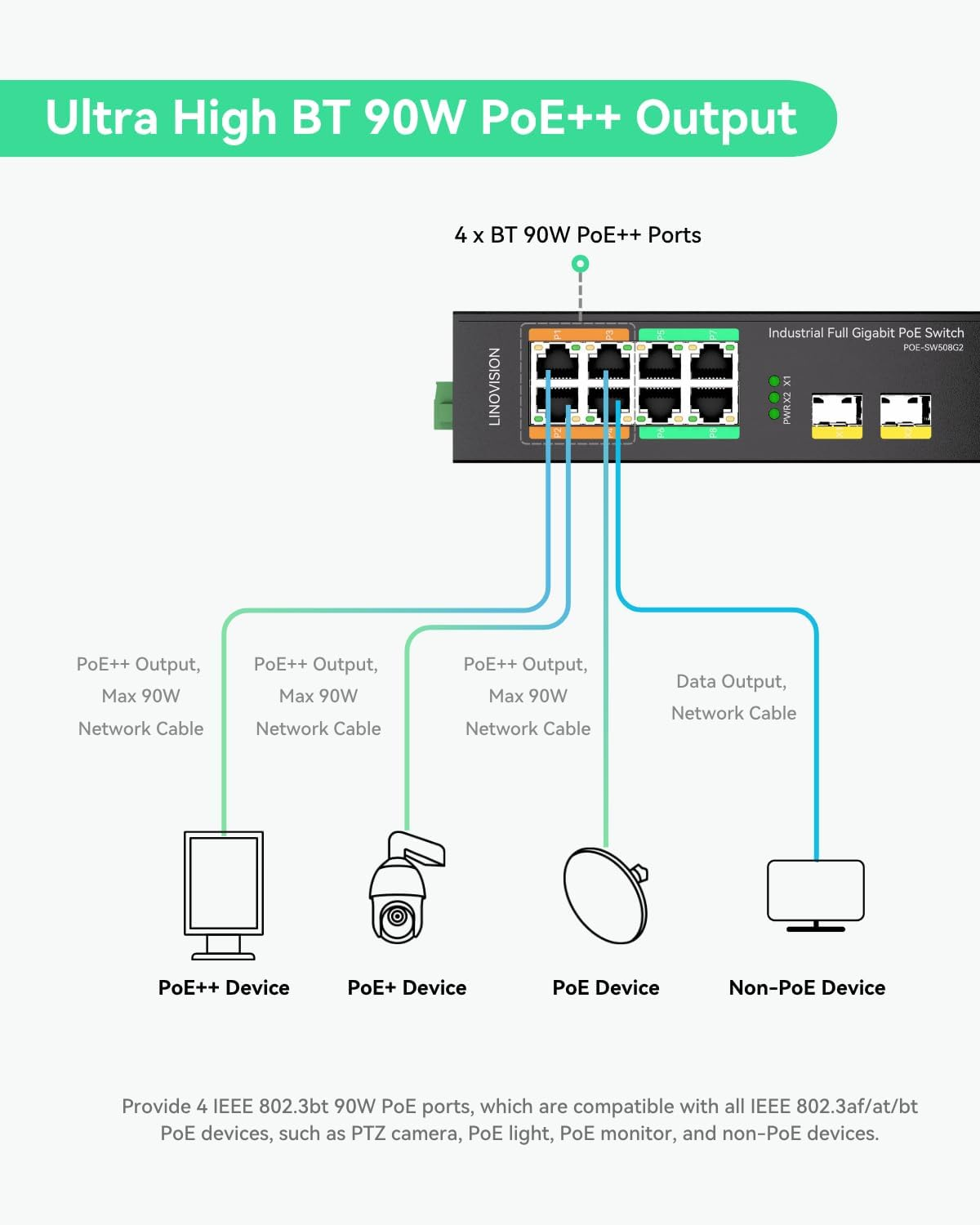

- 【4 BT90W PORTS 】-The 1~4 ports complying with IEEE802.3af/at/bt POE++ standards, deliver up to 90W power per port, suitable for high-power POE devices, like POE monitor, POE lighting, PTZ camera, etc. The 5~8 ports support the IEEE802.3af/at POE+ standards, deliver up to 30W (PoE+) power per port. The total POE budget is 120W.
- 【POE WATCHDOG】-Realtime monitoring POE load device's status and will automatically reboot POE port when the connected device is not active.

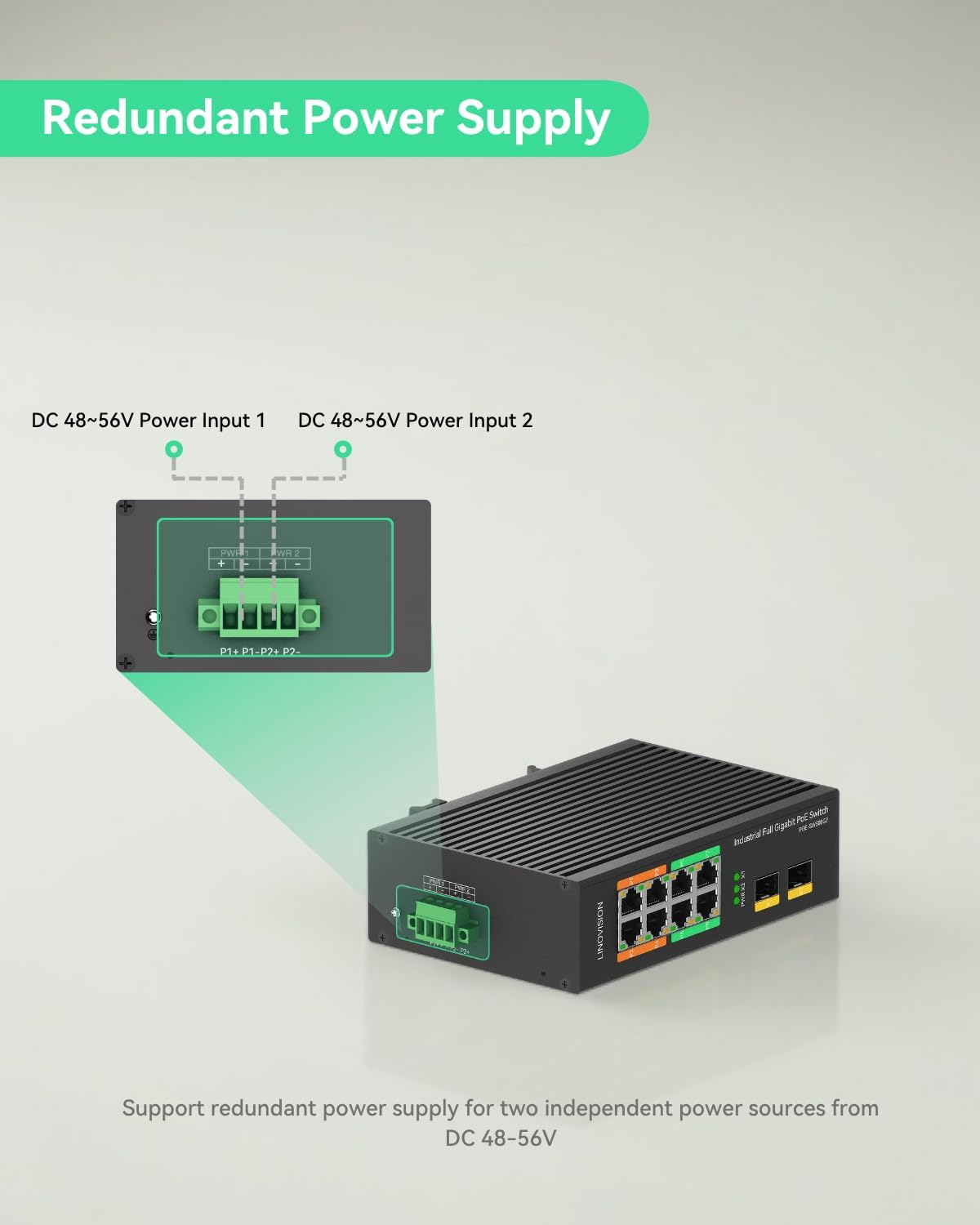

- 【REDUNDANT POWER SUPPLY】-Support 2 channel DC48-56V redundant power inputs. Supports 8-pin simultaneous power supply (1/2/4/5 positive, 3/6/7/8 negative) and POE Mode A/B output.
- 【INDUSTRIAL DESIGN】- PoE Switch designed with the IP40 metal industrial case, supports Wide working temperature -40 °F to +167 °F (–40 °C to +75 °C ); DIN Rail mounting; 6KV surge protection; Suitable for harsh environments such as factory, refinery and traffic light control box.
- 【WORRY FREE SERVICE】Worry free purchasing with 2-year warranty and Tech Support.
Product Description
The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.
LINOVISION Industrial 5 Ports Gigabit Solar POE Switch with DC12V-48V to DC48V Voltage Booster, Supports 4 x IEEE802.3af/at 30W POE Ports @120W, Compact POE Power Supply for Solar Power/RV Truck/VoIP Systems.
Wide Voltage Input
- The 1~4 ports are BT90W Ports, deliver up to 90W power per port, suitable for high-power POE devices, like POE monitor, POE lighting, PTZ camera, etc. The total POE budget is 120W.
Full Gigabit PoE Switch
- Providing 8*10/100/1000Base-T Ethernet PoE ports and 2*1000Base-X SFP Ports.
PoE Watchdog
Realtime monitoring PoE load device's status and will automatically reboot PoE port when the connected device is not active

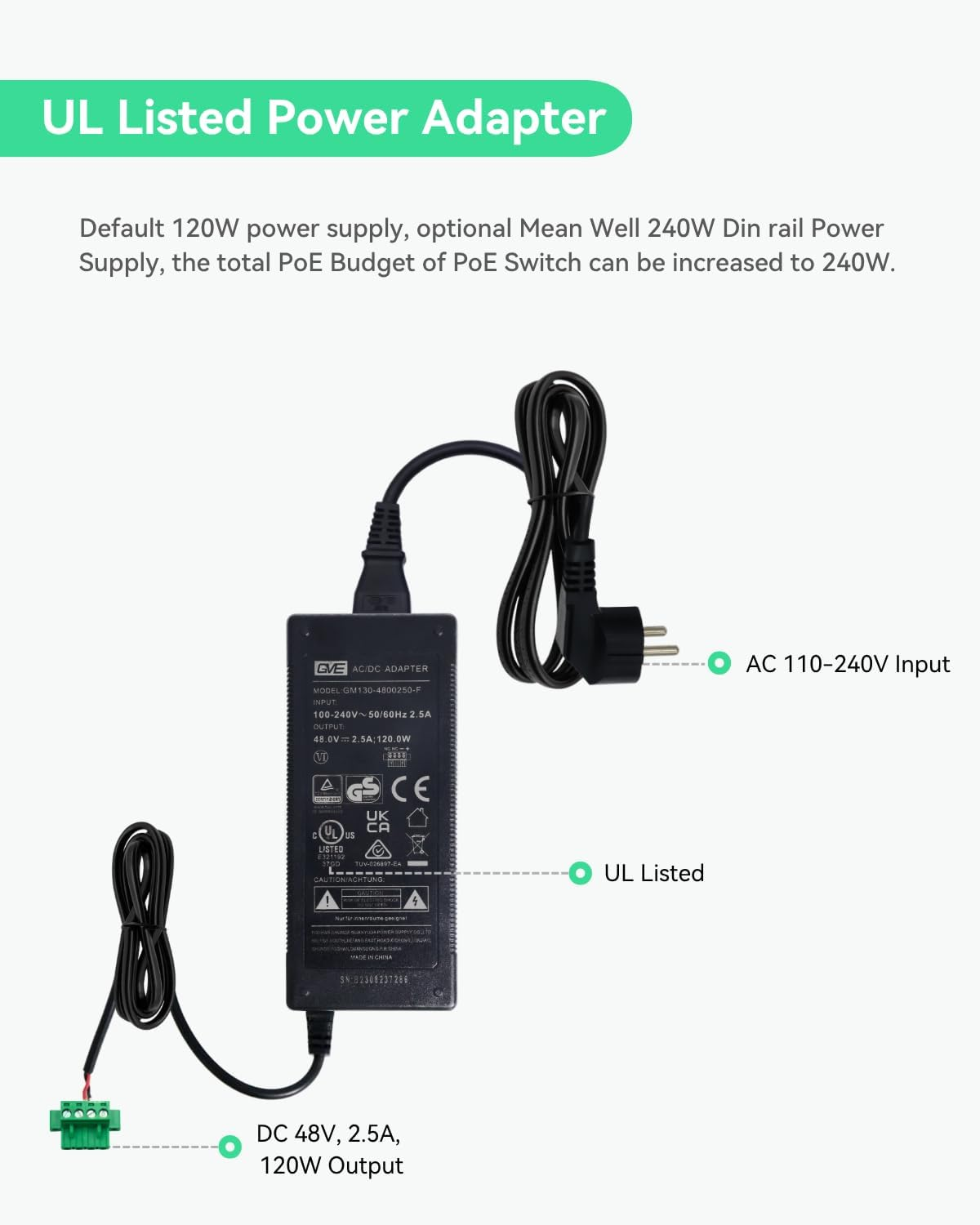

SAA certificated Power Adapter
Default 120W power supply, optional Mean Well 240W Din rail Power Supply, the total PoE Budget of PoE Switch can be increased to 240W.
LINOVISION POE Switch for your choice！
| Customer Reviews | 4.5 out of 5 stars 89 | 4.4 out of 5 stars 116 | 3.8 out of 5 stars 13 | 2.8 out of 5 stars 2 | 3.4 out of 5 stars 6 | 2.0 out of 5 stars 2 |
| Price | $199.00$199.00 | $149.99$149.99 | $329.99$329.99 | $609.99$609.99 | $209.99$209.99 | — |
| Input | Dual DC Input: 48V~56V DC | Dual DC Input: 9V~54V DC | Dual DC Input: 9.5V~57V DC | Dual DC Input: 12V~57V DC | Dual DC Input: 48-57V DC | Dual DC Input: 48V~57V DC |
| Output | 48V POE Standard | 48V POE Standard | 48V POE Standard | 48V POE; 12/24V DC Output | 48V POE Standard | 48V POE Standard |
| Uplink Ports | Gigabit Uplink + Gigabit SFP | 1 Gigabit Uplink | 2 Gigabit SFP | 2 Gigabit SFP | 4 Gigabit SFP | 2 Gigabit SFP |
| POE Ports | 8×Gigabit PoE Ports | 4×Gigabit PoE Ports | 8×Gigabit PoE Ports | 8 Gigabit PoE Ports | 8 Gigabit PoE Ports | 8×Gigabit PoE Ports |
| POE++ Ports | 4 × BT 90W Ports | / | / | 1 * BT 90W Port | / | 4 × BT 90W Ports |
| POE budget | 120W | 120W (DC24V/48V), 60W (DC12V) | 240W (DC48V), 120W (DC24V ) | 240W (DC48V), 120W (DC24V ) | 180W | 360W |
| L2 Management | / | / | / | VLAN, QoS, SNMP, Fast-Ring | VLAN, QoS, Fast-Ring | VLAN, QoS, SNMP, Fast-Ring |
| PoE Port Control | / | / | / | Turn On/Off PoE | Remote Cloud or Local WEB GUI | Turn On/Off PoE |
| Installation Method | DIN-Rail/Wall-Mount | DIN-Rail/Wall-Mount | DIN-Rail/Wall-Mount | DIN-Rail/Wall-Mount | DIN-Rail/Wall-Mount | DIN-Rail/Wall-Mount |
- Item Model Number: POE-SW508G
- Part Number: B09XDY8R9G
- Data transfer rate: 1000 Megabits Per Second
- Maximum power: 90 Watts
- Number of items: 1
- Country/Region of origin: China
- Batteries Included: No
- Batteries Required: No
- Upper temperature rating: 167 Degrees Fahrenheit
- Product dimensions: 15.01 x 10.01 x 3.18 cm; 1.51 kg
- Item weight: 1.51 Kilograms
- Item Weight: 1.51 kg
- Interface type: RJ45, SFP
- Case material type: Metal
- Voltage: 56 Volts (DC)
- Model: POE-SW508G
- Does it contain liquid?: No
- Manufacturer: LINOVISION
