Specification:

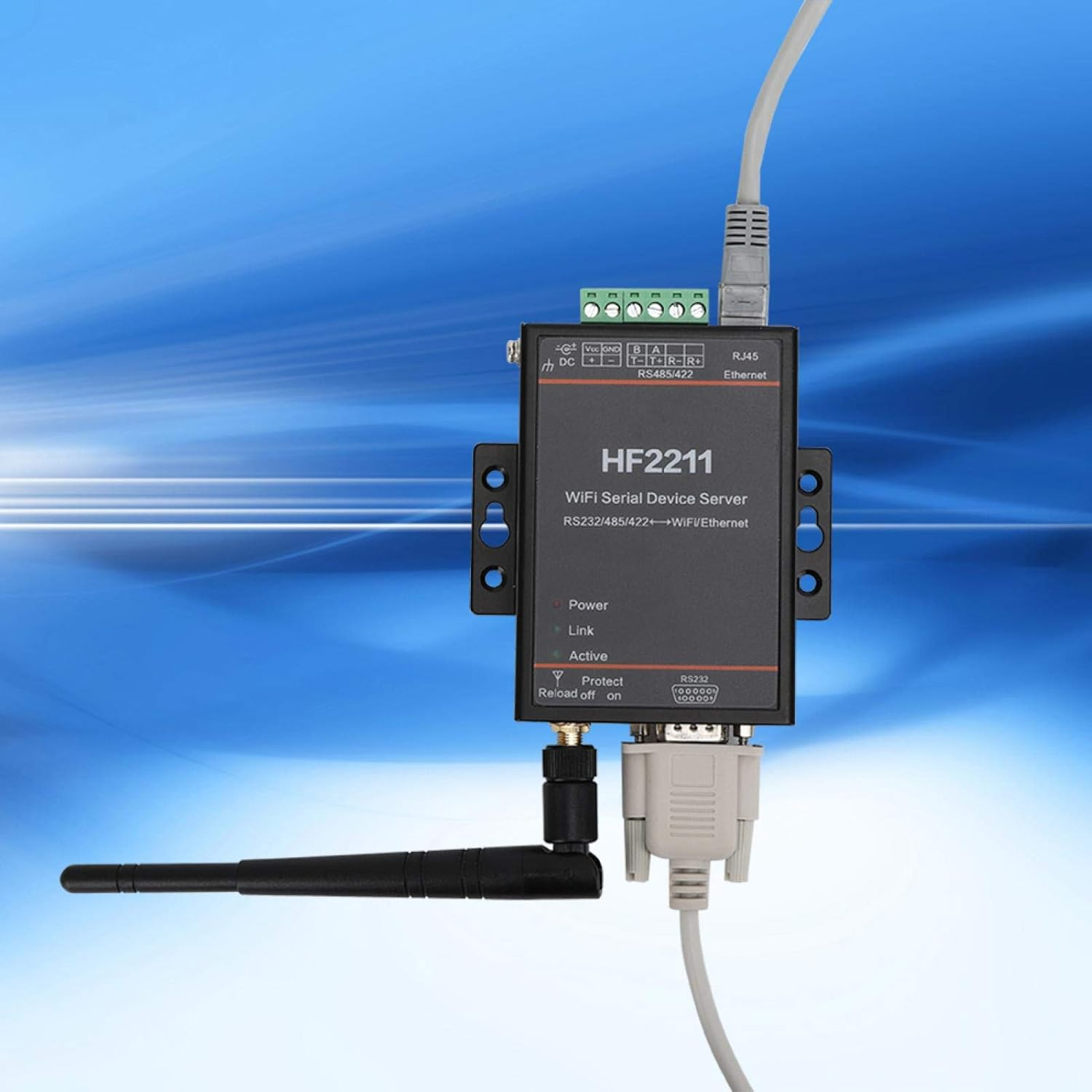

Model: HF-2211
Input Voltage: Wide voltage 5 ～ 36VDC

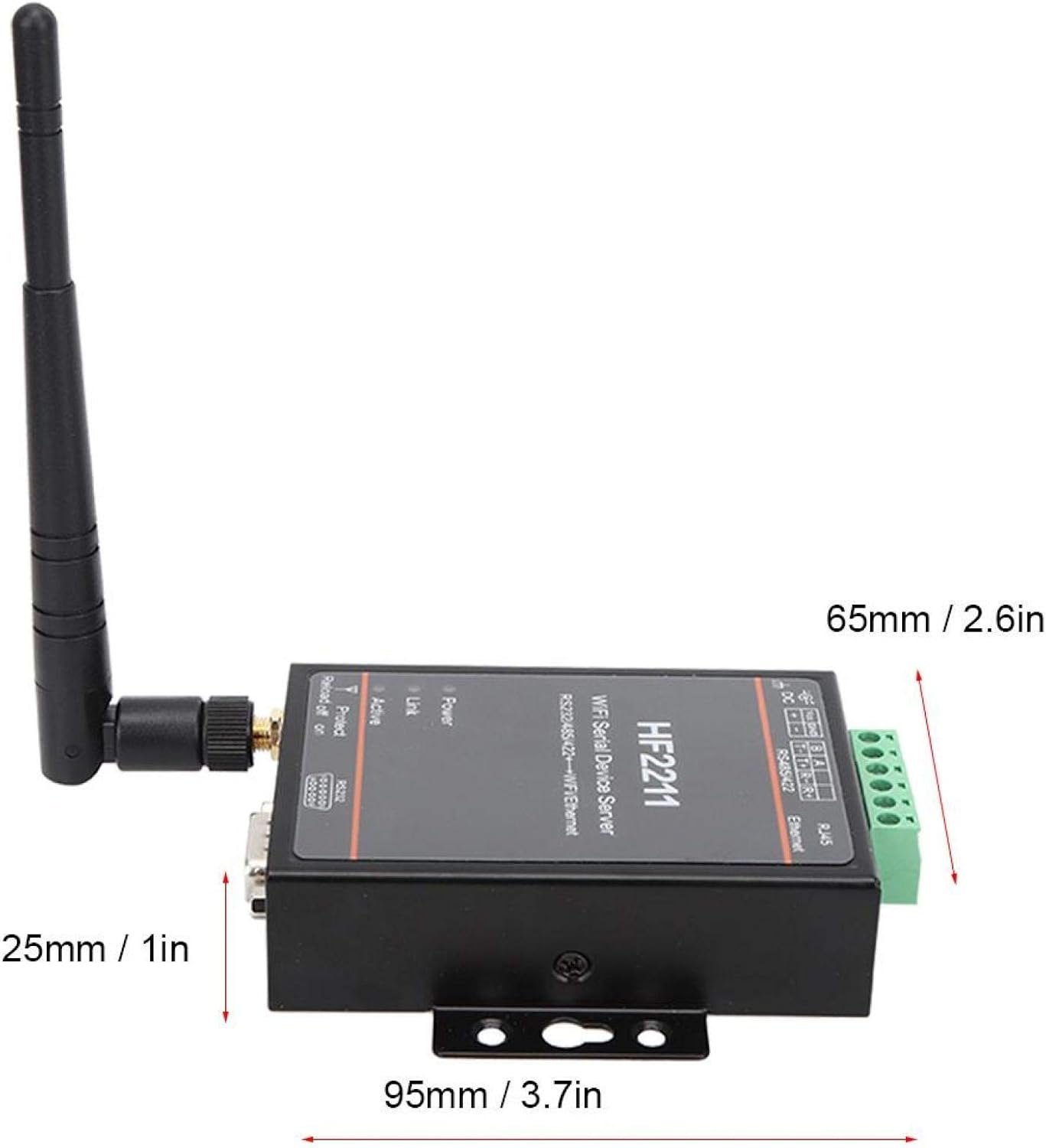

Size: Approx. 95 x 65 x 25mm / 3.7 x 2.6 x 1in
Working Temperature: -45-85 ℃

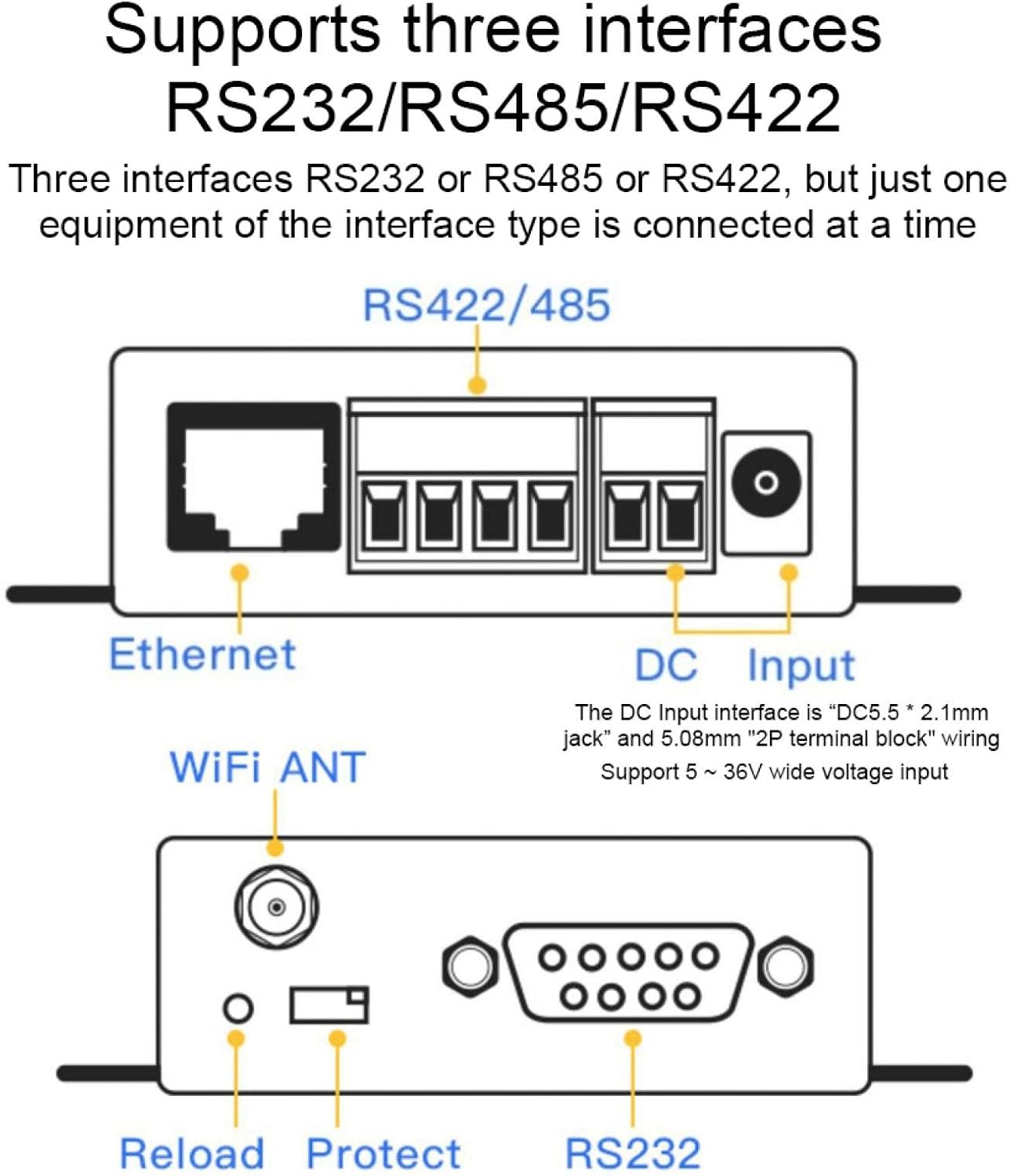

Interface Form: Ф5.5 x 2.1mm socket and 5.08mm terminal block
Working Current: 200mA
Power Consumption: <700mW
Core Resources:
Operating System: For Ecos
FLASH Resources: 4MB
RAM: 8MB
Ethernet Interface Parameters:
Ethernet Interface Form: 1 RJ45
Interface Standard: 10/100 Base-T auto-negotiation
Network Port Protection: Static: 8KV contact discharge, 15KV air discharge
Network Protocols: For IP, for TCP, for UDP, for DHCP, for DNS, for HTTP Server / for Client, for ARP, for BOOTP.AutolPJCMP.Telnet.uPNP
Security Protocol (data Communication): for TLSV1.2, for AES-128Bit, DES3, for SSL
Serial Interface Parameters:
Number Of Serial Ports: 1 (RS232 / 485/422)
Interface Standard: RS232: DB9 pin type
RS485 / RS422: 5.08mm terminal block
Baud Rate: 600-230400bps
Data Bits: 8
Stop Bits: 1, 2
Parity: None, Even, Odd, Space, Mark
Wi-Fi Wireless Interface Parameters:
Wireless Standard: 802.11 b / g / n
Network Mode: for STA / for AP / for STA + AP
Network Protocol: For TCP / for UDP, etc.
Maximum Number Of Connections: Maximum 15 STA
Frequency Band: 2.412GHz-2.484GHz
Network technical parameters
Working Mode: TCP Server TCP Client UDP unicast UDP multicast
UDP broadcast
Maximum Number Of Network Connections: 20
IP Acquisition Method: DHCP or static IP, AutolP
WEB Page: Standard web page or custom web page
Failure Alarm: Syslog / SMTP
Configuration Method: WEB page, CLI command, for XML file import, Telnet configuration, IOTService software
Product Features:
Virtual Serial Port Software: For Windows XP / for Vista / 7/8/10 (32bit \ 64bit), for Win Server 2003/2008/2012
