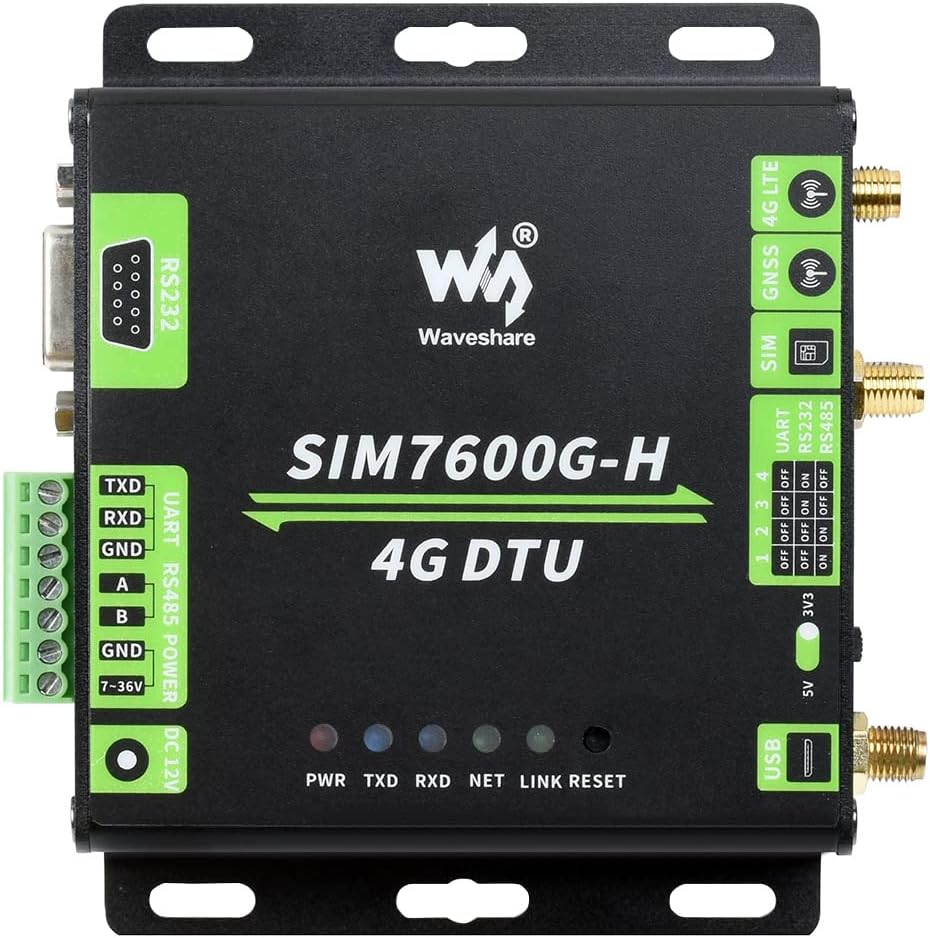

Waveshare Industrial Grade SIM7600G-H 4G DTU USB UART/RS232/RS485 Multi Interfaces Communication LTE Global Band Support

Waveshare Industrial Grade SIM7600G-H 4G DTU USB UART/RS232/RS485 Multi Interfaces Communication LTE Global Band Support

Brand: Waveshare
5.0
A$174.30
Availability:
  • This item is currently not available

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

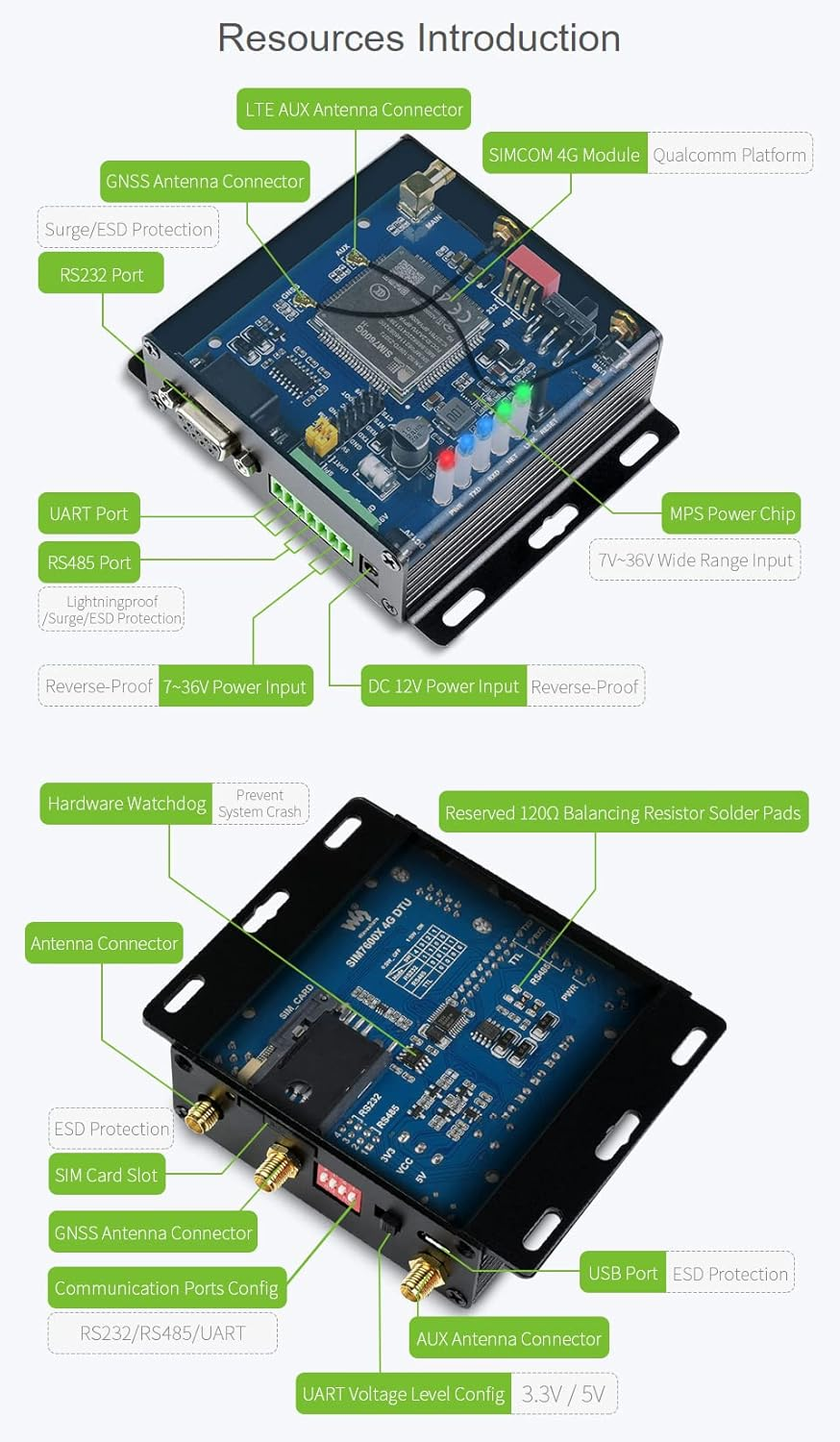

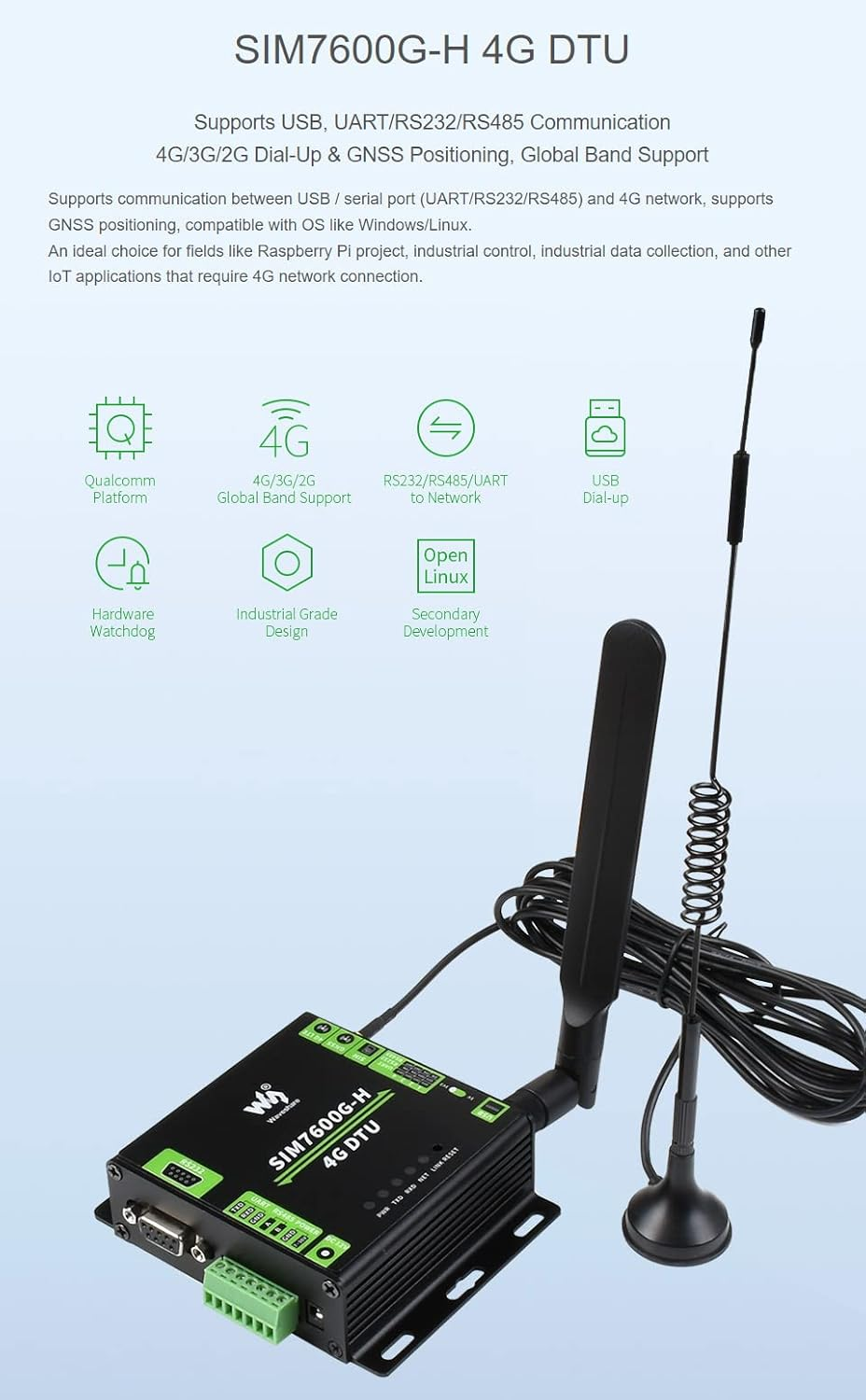

  • 4G DTU development kit designed for industrial applications, allows direct integration or secondary development. Based on SIM7600G-H communication module, supports global coverage of 4G/3G/2G network

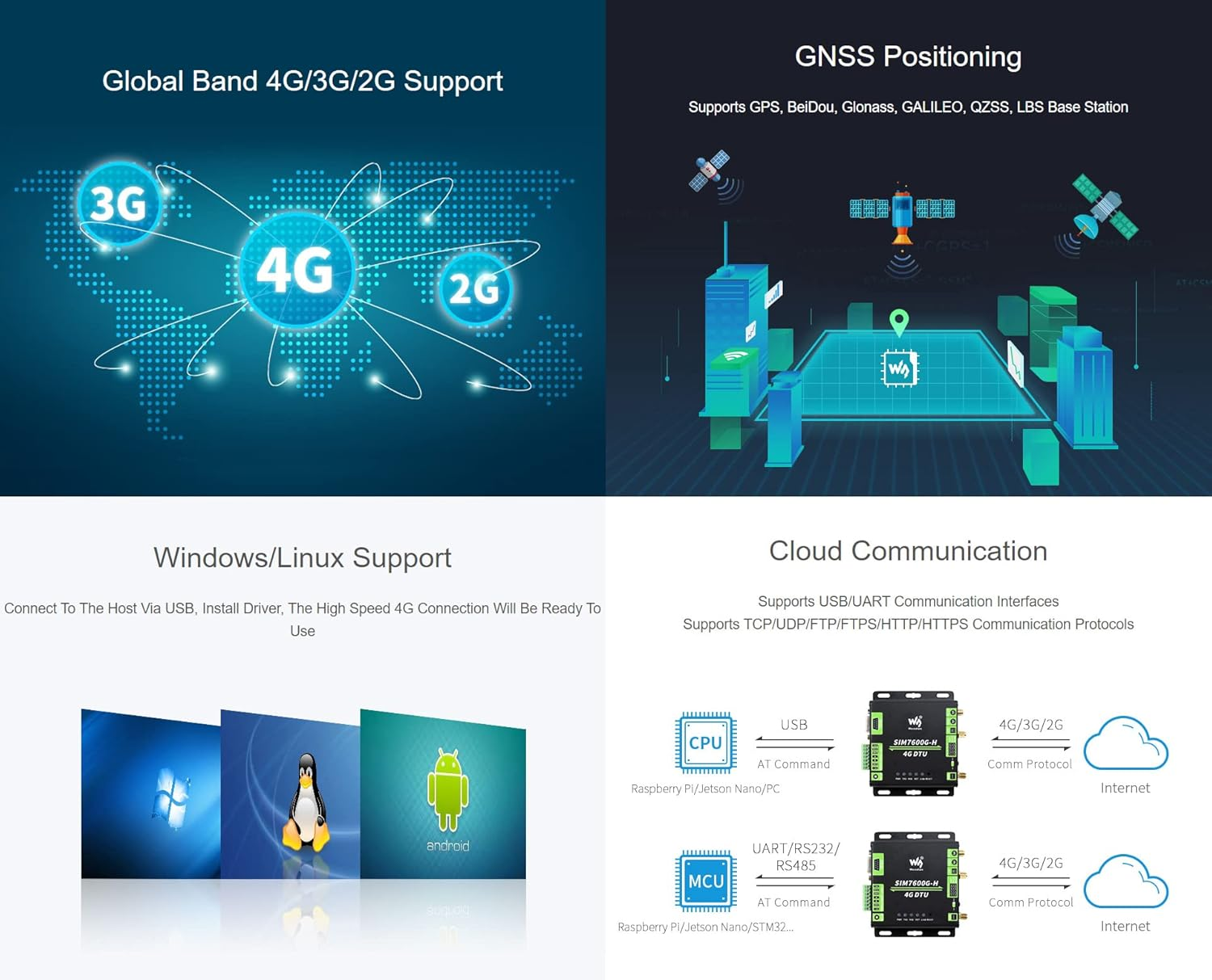

  • Supports GPS, Beidou, Glonass, GALILEO, QZSS, and LBS base station positioning. USB to 4G communication, UART/RS232/RS485 to 4G communication
  • 7 ~ 36 V wide range power supply, ideal for industrial applications. Onboard STM8 MCU for hardware watchdog, allows auto rebooting while the DTU encountering exception
  • Multi protection circuits, such as ESD protection, anti-surge, stable and safe communication performance. Baudrate: 300bps ~ 4Mbps (115200bps by default)
  • AT commands support (based on 3GPP TS 27.007, 27.005 and V.25TER command set). Aluminum case, oxidized dull polish surface, CNC numerical control opening processing, rugged & elegant

Product Description

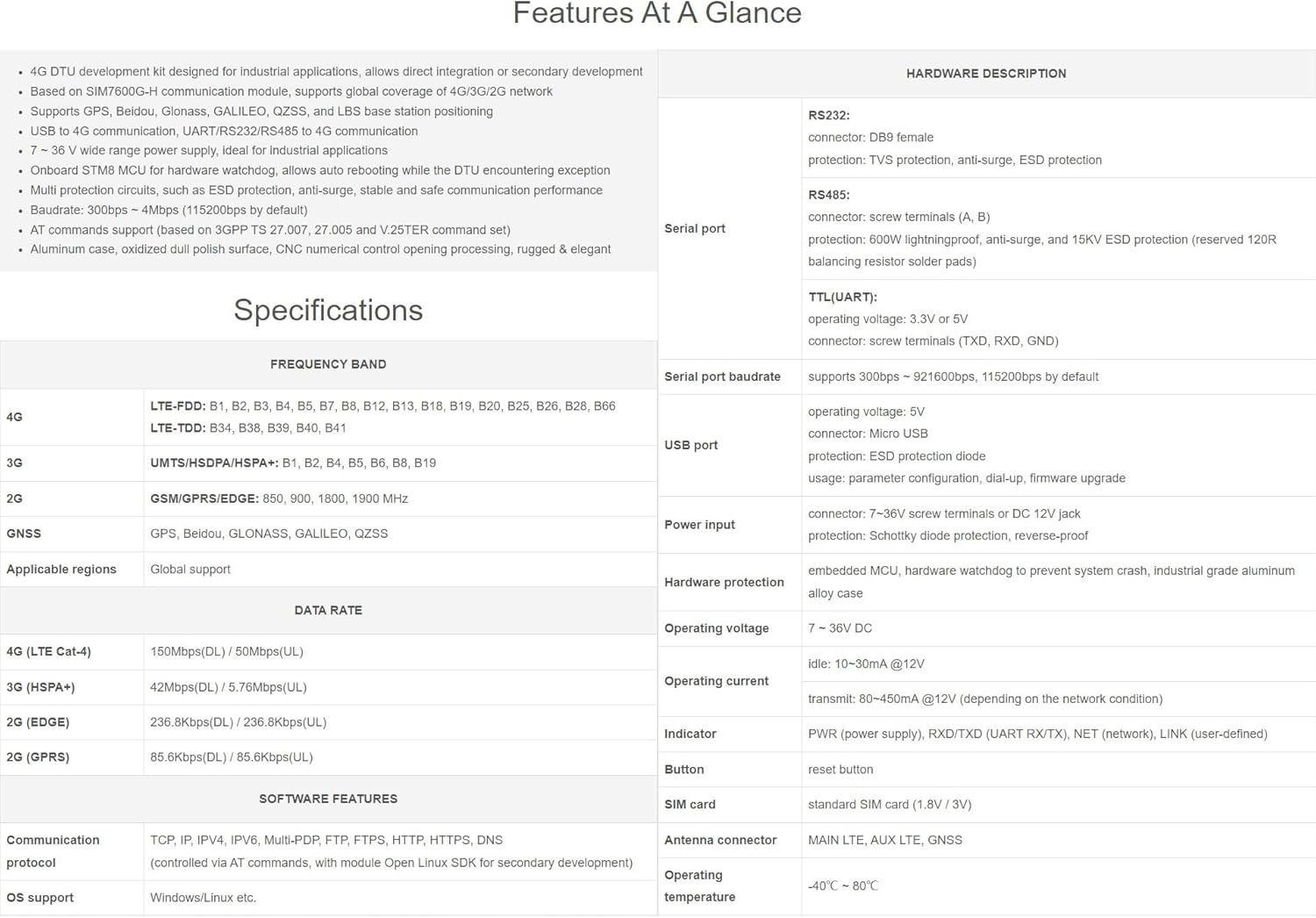

Features At A Glance

  • 4G DTU development kit designed for industrial applications, allows direct integration or secondary development
  • Based on SIM7600G-H communication module, supports global coverage of 4G/3G/2G network
  • Supports GPS, Beidou, Glonass, GALILEO, QZSS, and LBS base station positioning
  • USB to 4G communication, UART/RS232/RS485 to 4G communication
  • 7 ~ 36 V wide range power supply, ideal for industrial applications
  • Onboard STM8 MCU for hardware watchdog, allows auto rebooting while the DTU encountering exception
  • Multi protection circuits, such as ESD protection, anti-surge, stable and safe communication performance
  • Baudrate: 300bps ~ 4Mbps (115200bps by default)
  • AT commands support (based on 3GPP TS 27.007, 27.005 and V.25TER command set)
  • Aluminum case, oxidized dull polish surface, CNC numerical control opening processing, rugged & elegant

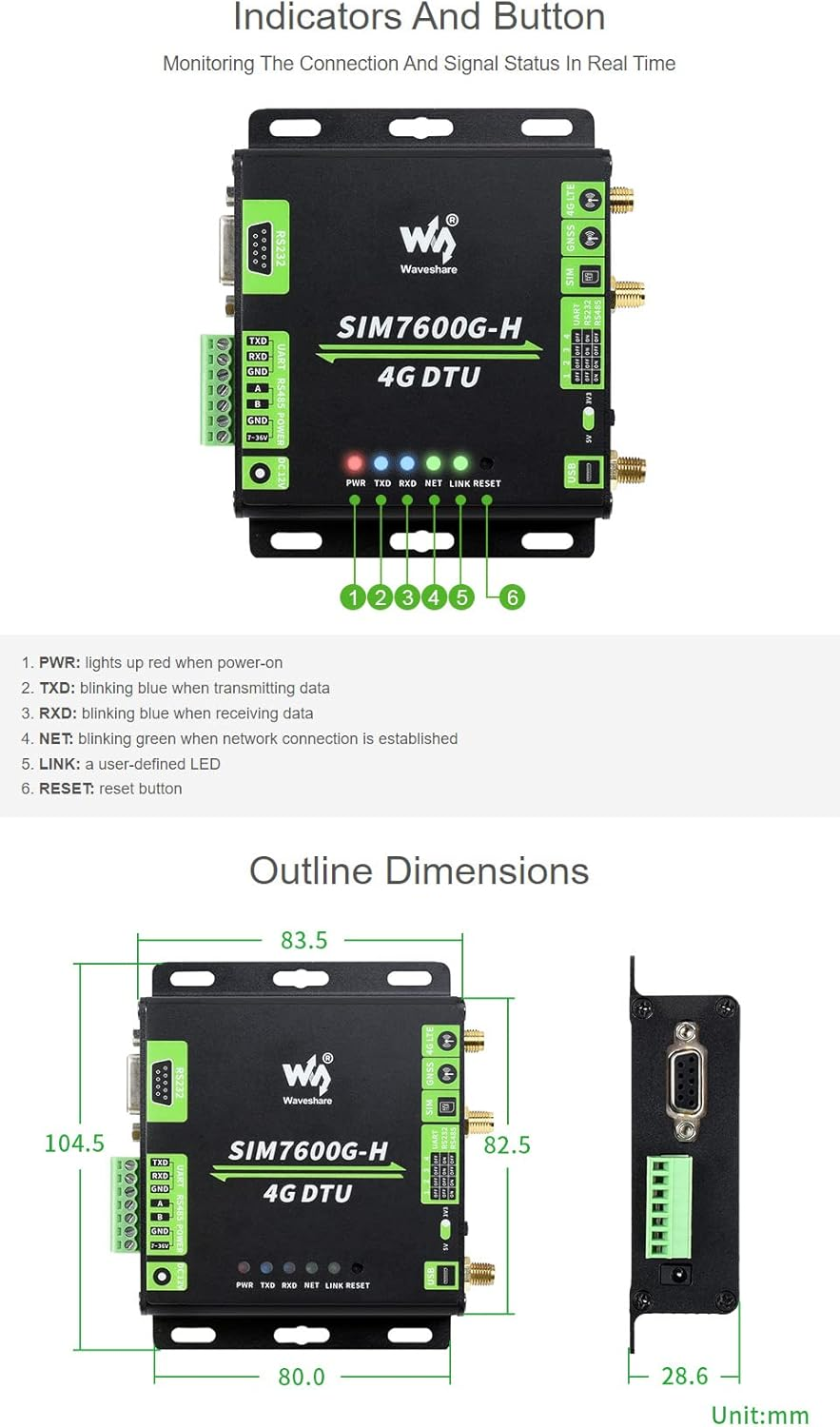

Indicators And Button-Monitoring The Connection And Signal Status In Real Time

  1. PWR: lights up red when power-on
  2. TXD: blinking blue when transmitting data
  3. RXD: blinking blue when receiving data
  4. NET: blinking green when network connection is established
  5. LINK: a user-defined LED
  6. RESET: reset button

Learn more: waveshare.com/wiki/SIM7600G-H_4G_DTU?Amazon

  • Item Model Number: SIM7600G-H 4G DTU
  • Part Number: SIM7600G-H 4G DTU
  • Graphics Card Interface: Integrated
  • Model Name: SIM7600G-H
  • Mounting Hardware: SIM7600G-H communication module, STM8 MCU, Aluminum case, USB, UART, RS232, RS485 cables
  • Batteries Included: No
  • Batteries Required: No
  • Brand: Waveshare
  • Wireless Type: Radio Frequency
  • Compatible Devices: Personal Computer, Microcontroller, Industrial Equipment
  • Connector Type: USB
  • Item Weight: 595 g
  • Number of Ports: 2
  • Total USB ports: 2
  • Ram Memory Technology: LPDDR4
  • Processor Count: 1
  • Model: SIM7600G-H 4G DTU
  • Hardware Interface: USB
  • Package Dimensions: 33.9 x 12 x 5.6 cm; 595 Grams
  • Country/Region of origin: China
  • Manufacturer: Waveshare
