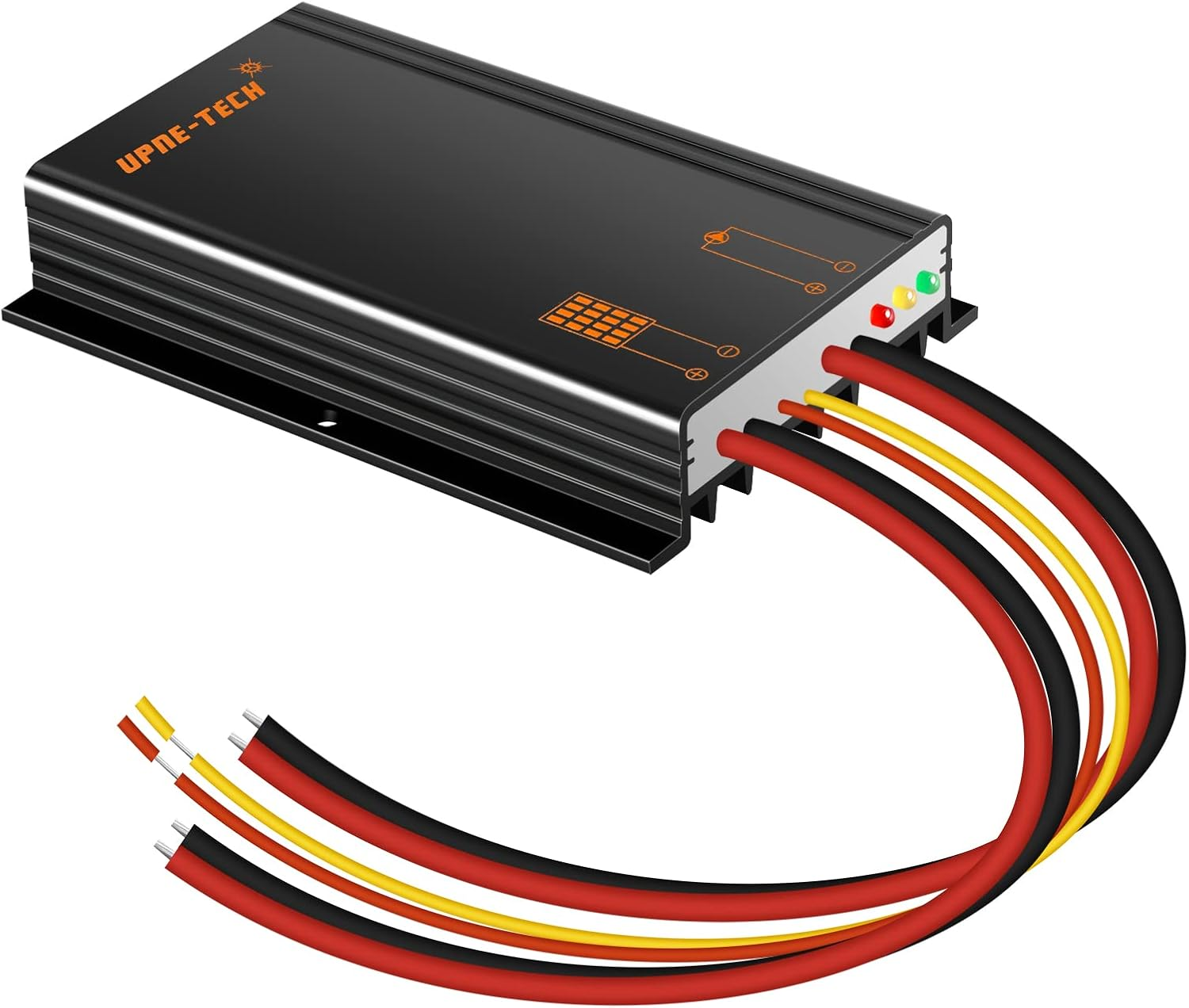

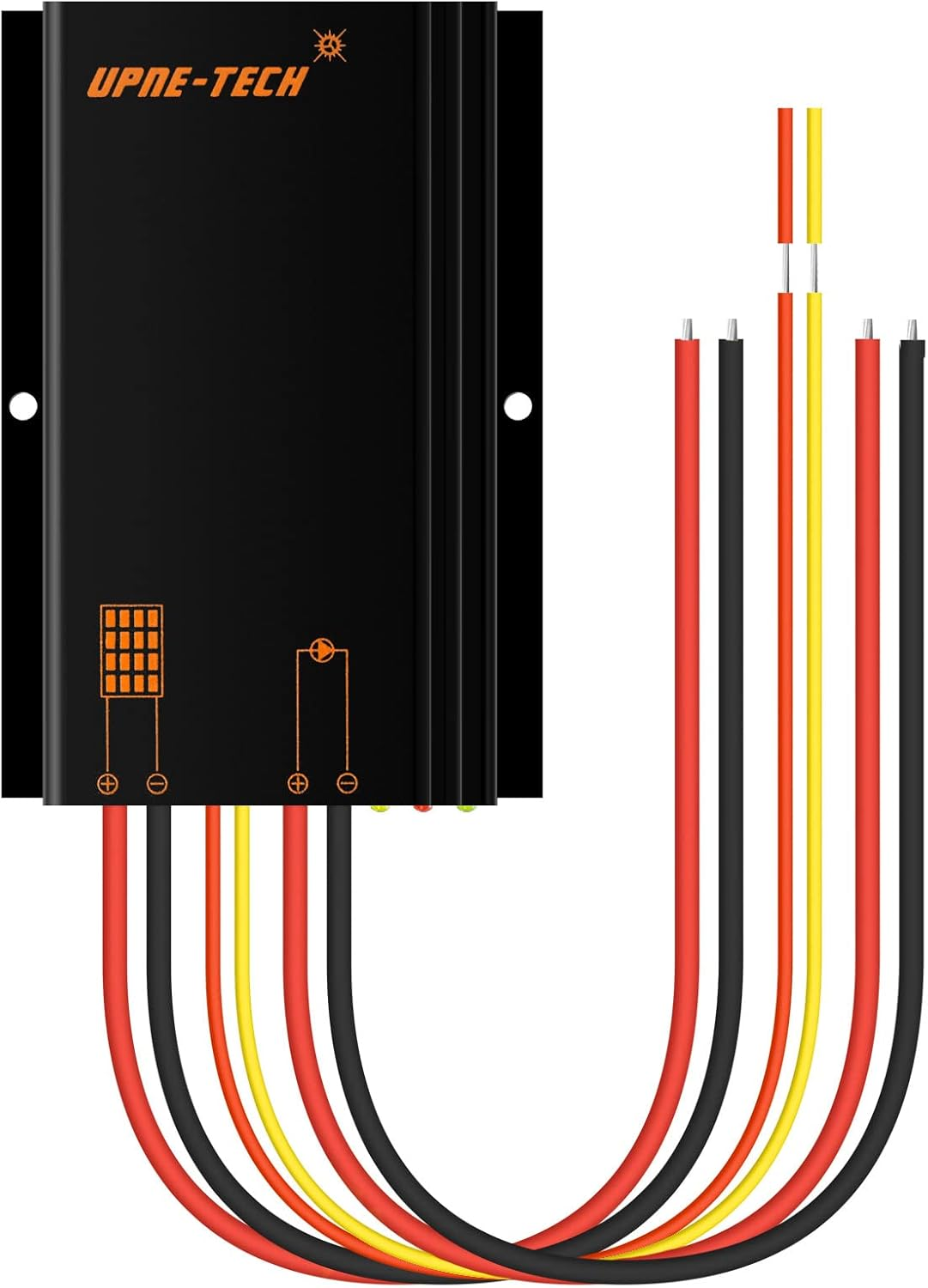

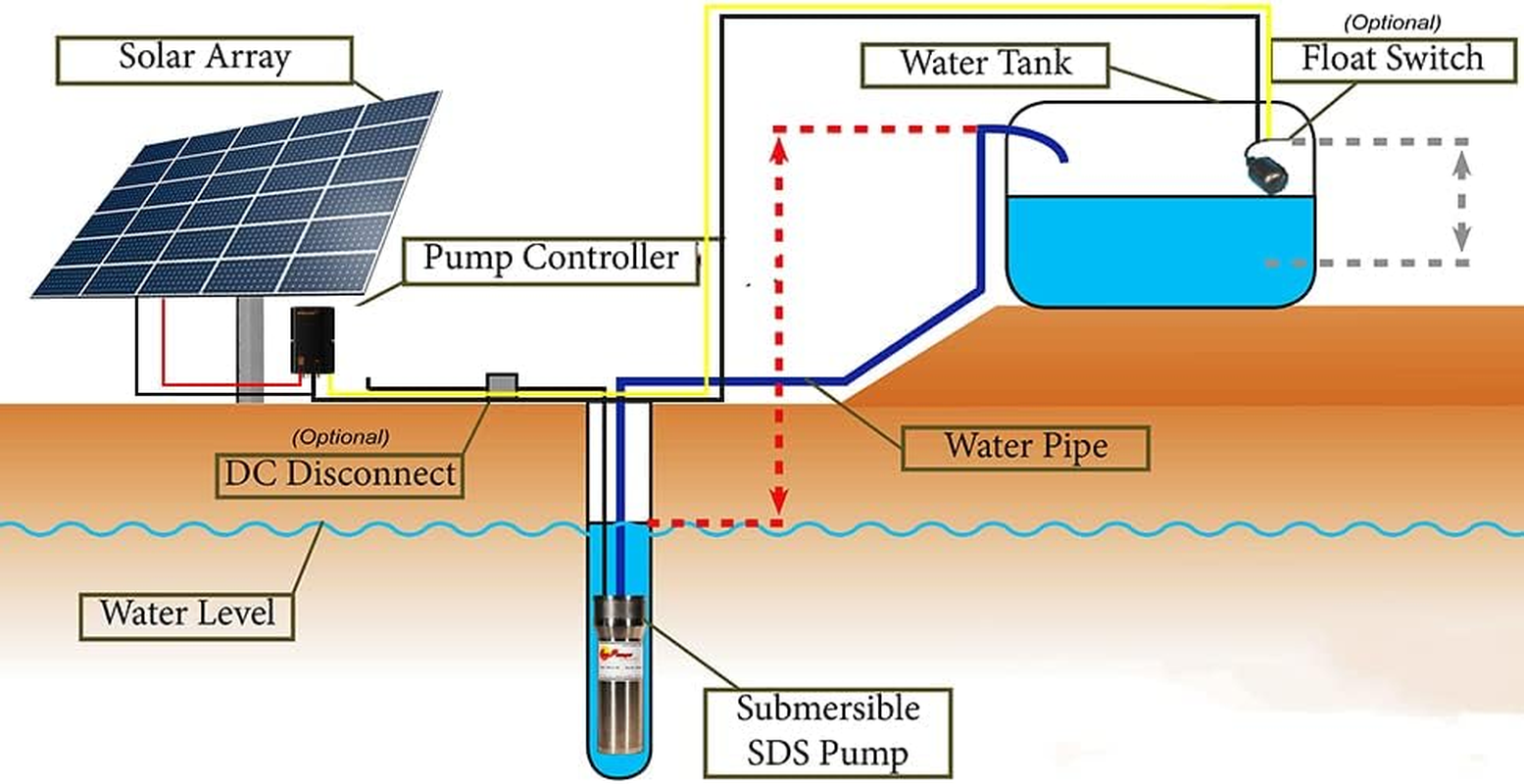

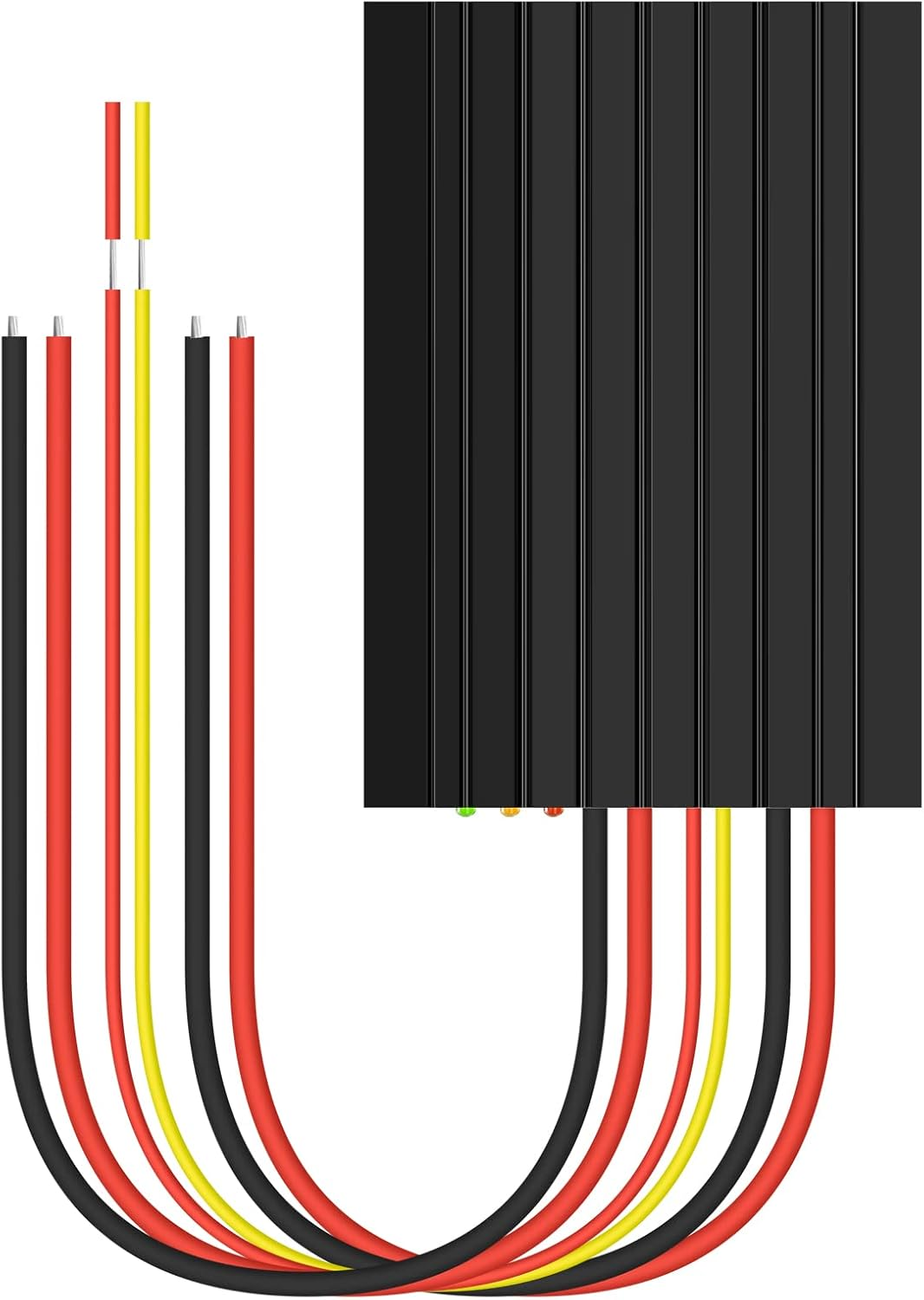

1.Linear Current boosters used in solar direct pumping applications ; Potting epoxy resin
2. DC power converters which are designed to be an interface between a DC solar pump and solar panels.;
3.The controller can be used in both 12V and 24V systems .
4.They can achieve a 30-90% increase in water pumped compared to connecting the pump directly to the solar modules.
5. Controller optimizes your solar water pumping system by translating the current and voltage available from your photovoltaic panels.
6.Maximum of 400-watt of solar recommended for most applications.
6.Increases daily water output up to 30-90 percent.
7. Maximum Current Output 10 Amps.
8. Maximum Solar PV Array Input Voltage 50VDC Open Circuit.,
9. Input Voltage: 16 - 50 DC volts PV Array,
10. Current: 0 - 10 DC amps
