Feature:

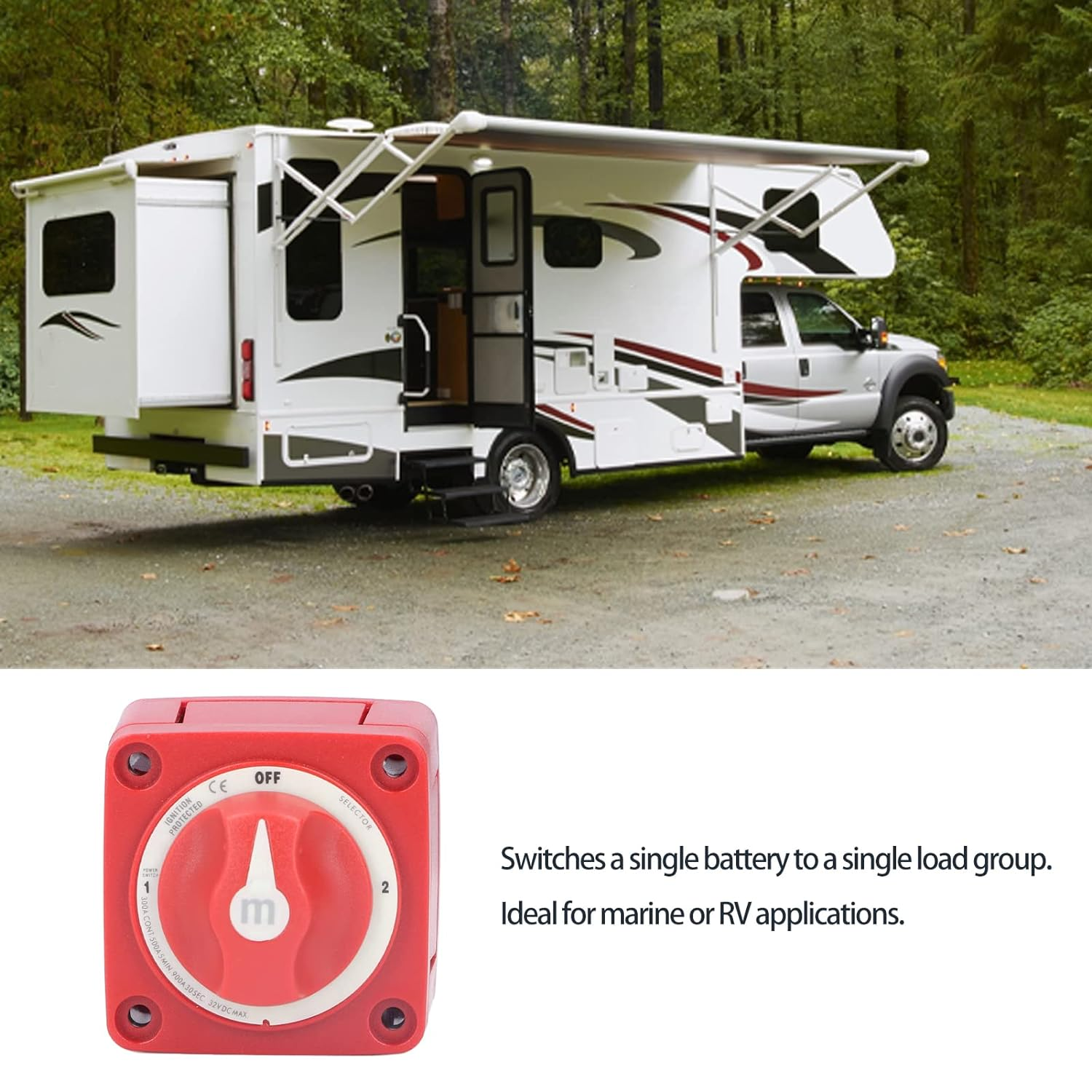

1. Powerful Function : 3‑position 3‑stud dual‑circuit battery switch, switches a single battery to a single load group. Ideal for marine or RV applications.
2. Flexible Installation: Safe ignition protection for installation aboard gasoline powered boats. Case design allows surface, front panel, or rear panel mounting.

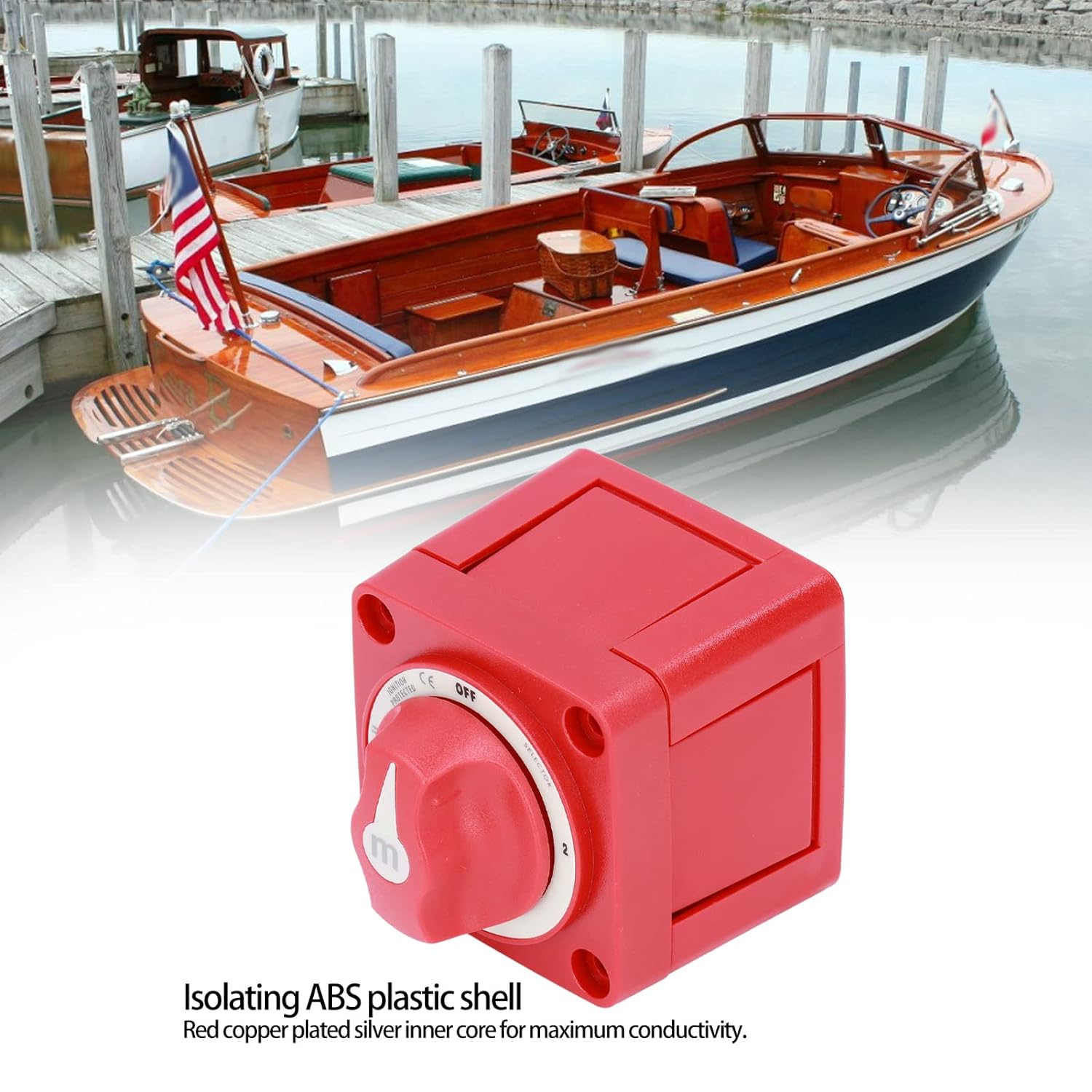

3. Good Conductivity: Isolating ABS plastic shell and red copper plated silver inner core for maximum conductivity.
4. Stable Performance: 300A battery switches can isolate the potentially destructive energy in the battery banks when boat is not in use or during emergencies.

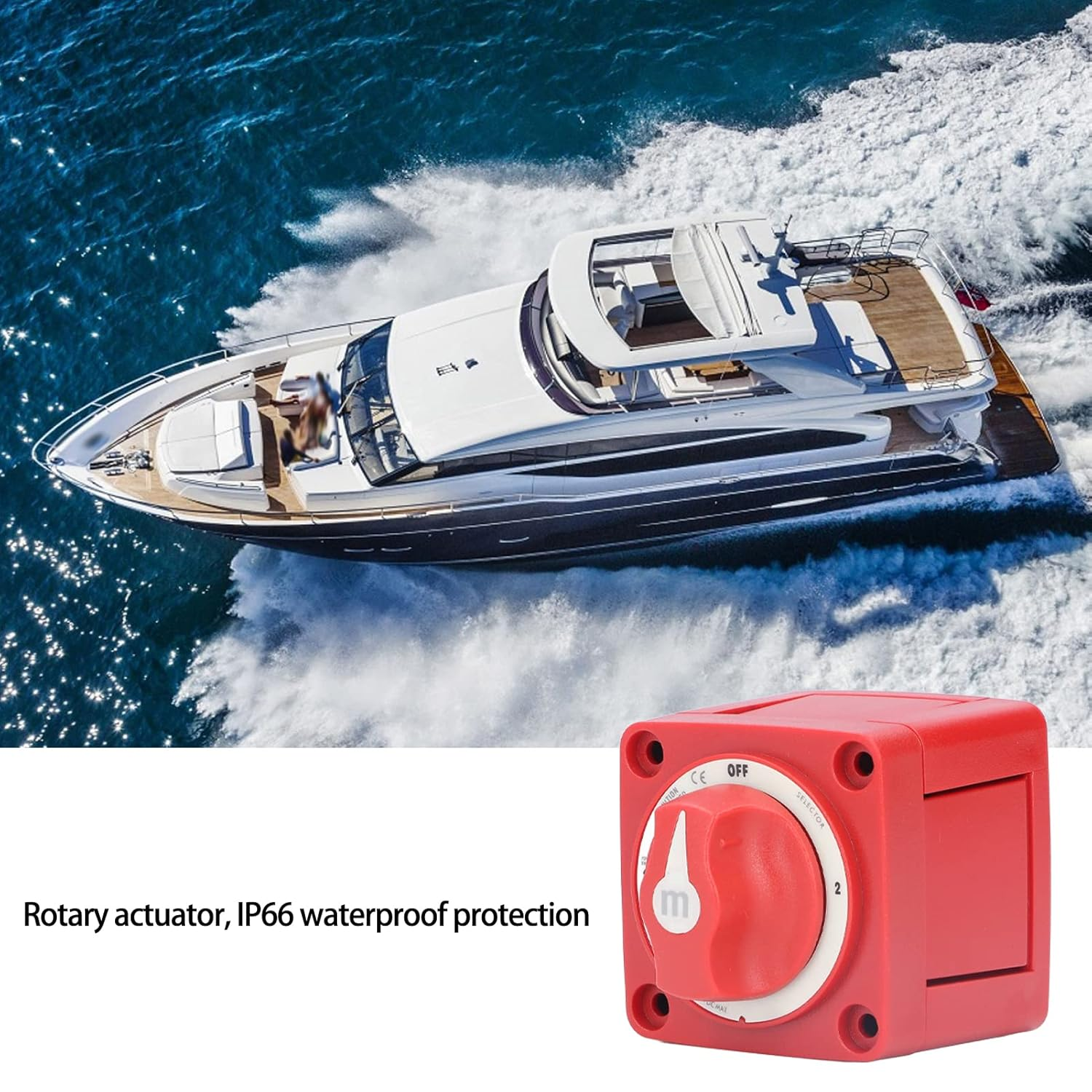

5. Circuit Identification: Label with OFF‑1‑2, actuator, IP66 waterproof protection. Installed in the circuit, directly installed for use.
How to Use:
Direct installation and use
Specification:

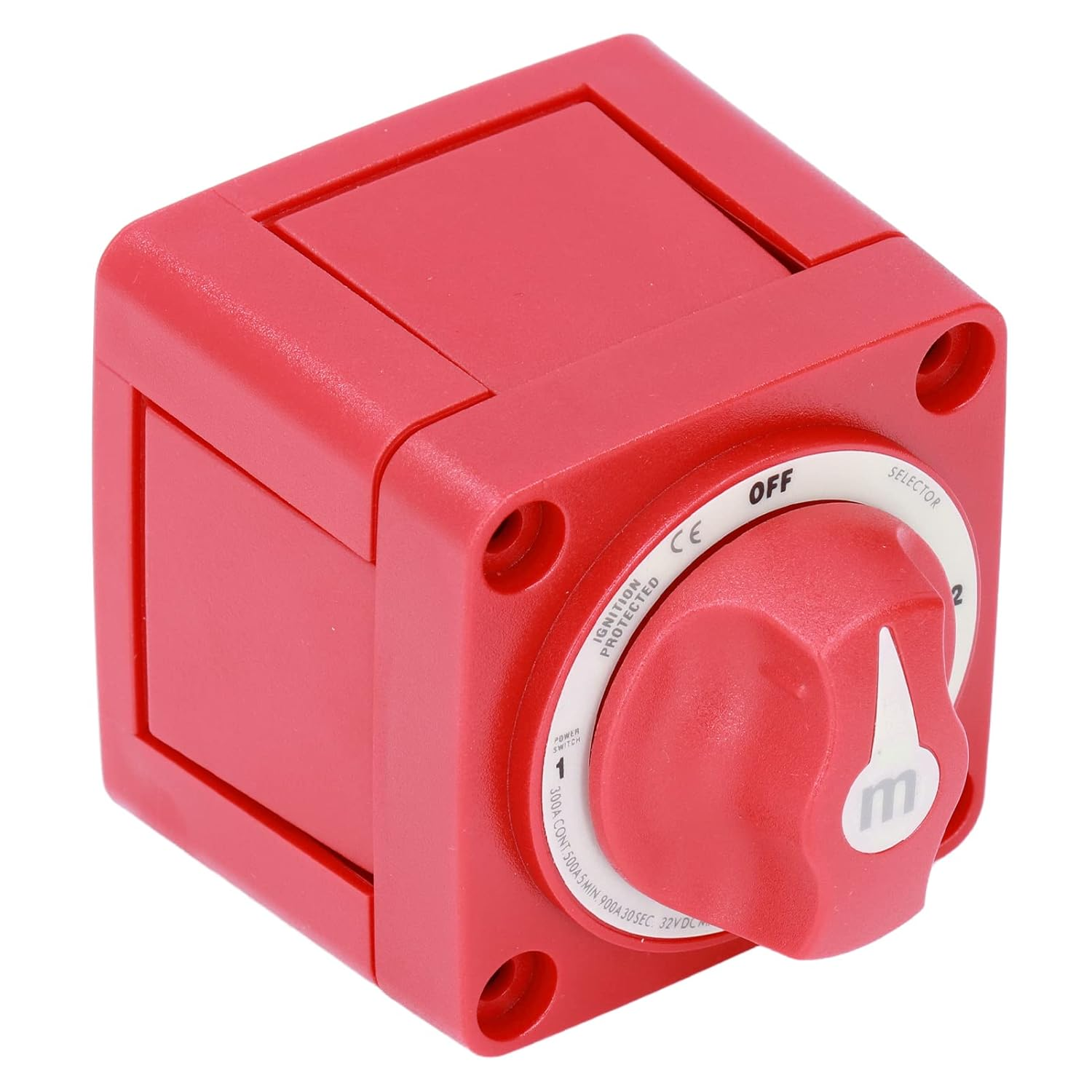

Item Type: Battery Switch
Material: ABS plastic shell, red copper plated silver inner core
Continuous Current: 300A (500A 5min, 900A 30SEC)
Maximum voltage: 32V DC
Line Post: 3xM10

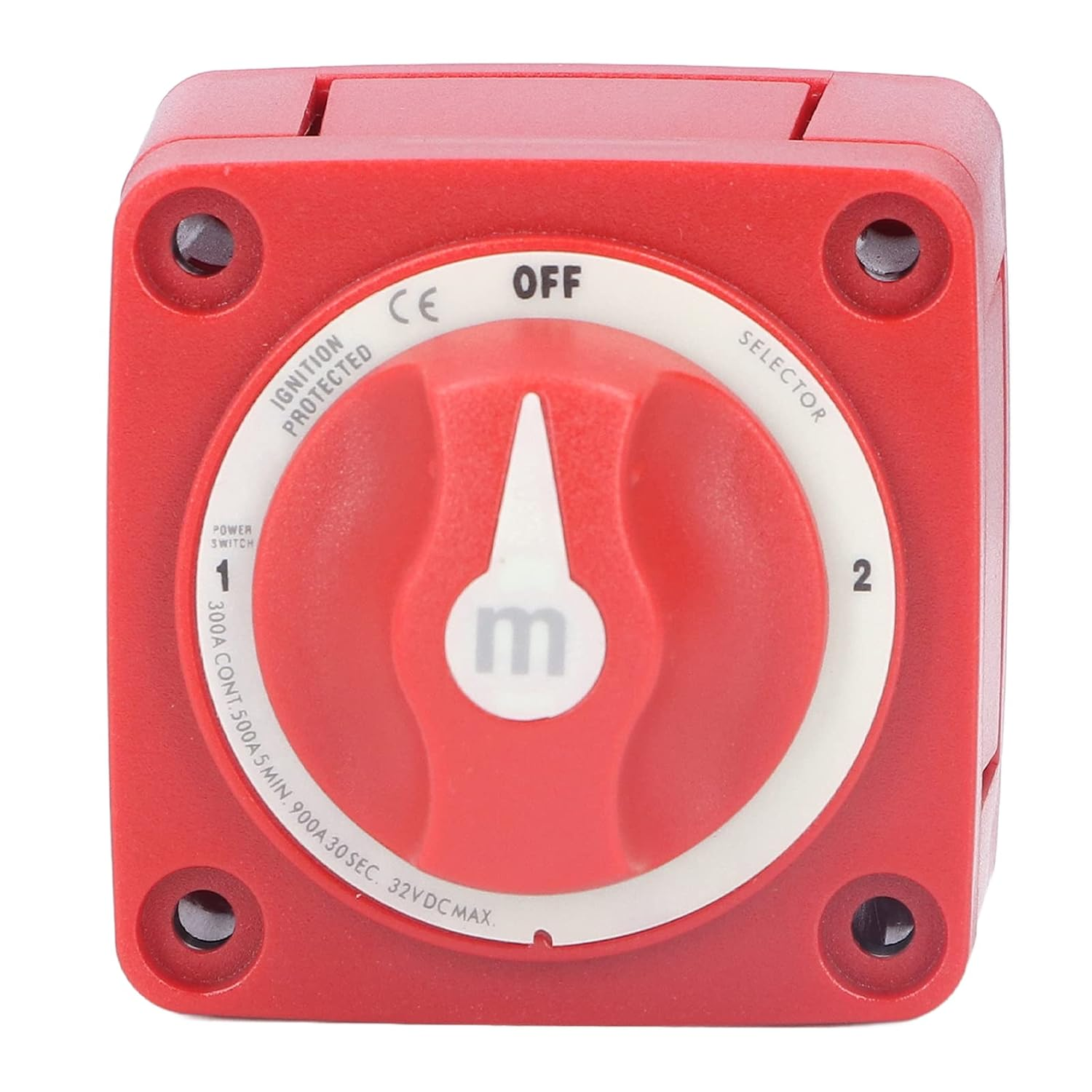

Gear Position: 3 gear position (OFF-1-2)
Contact Type: Normally Closed
Circuit Type: 2-way
Mounting Type: Panel Mount
Actuator Type: Rotary
Waterproof Rating: IP66
Application: Ships, yachts, RVs, large trucks, modified vehicles
Package List:
1 x Battery Switch
