Feature:

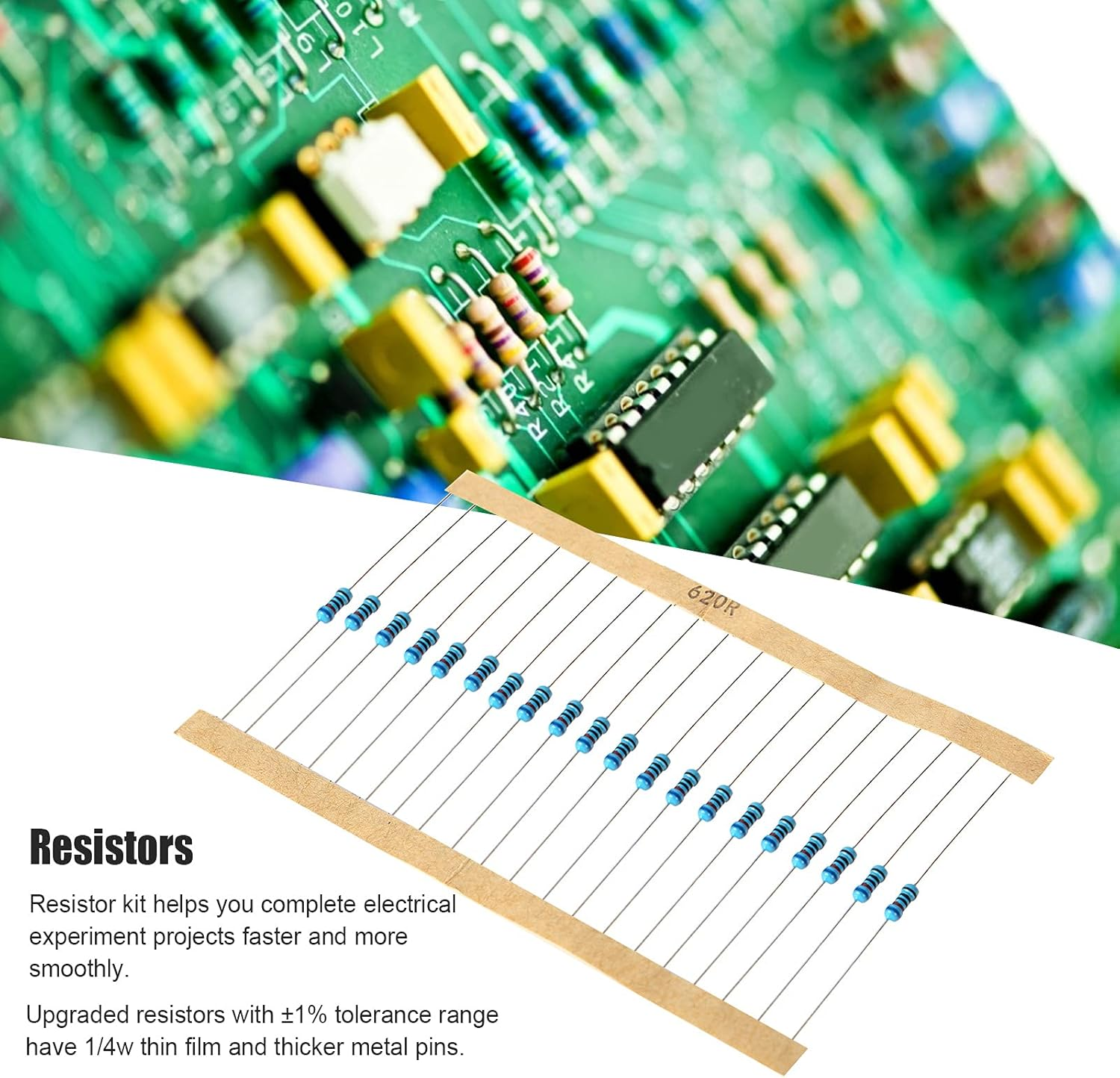

1. Upgraded resistors with ±1% tolerance range have 1/4w thin film and thicker metal pins.
2. With better connections and stable performance characteristics, resistor kit helps you complete electrical experiment projects and more smoothly.

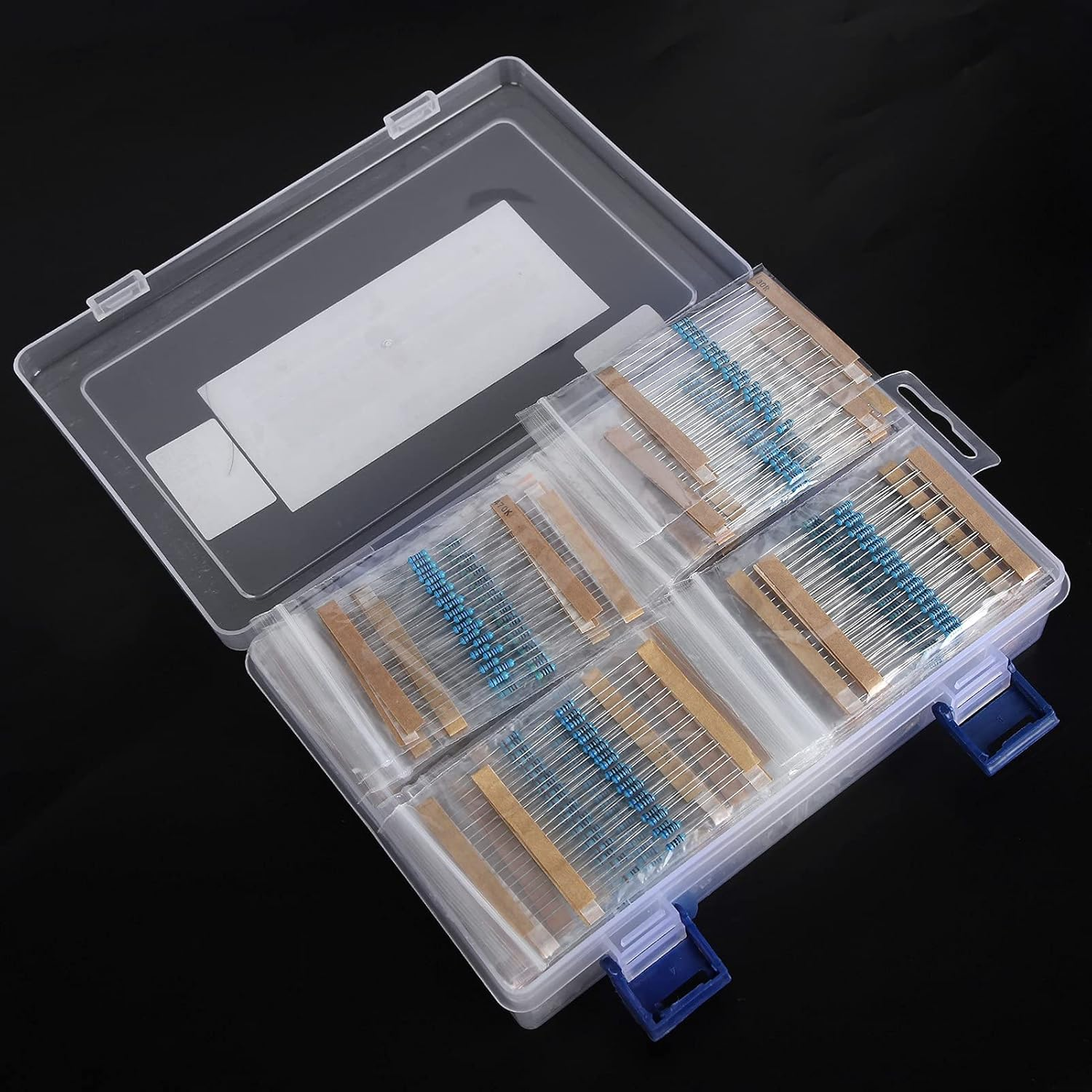

3. Each resistor is individually packaged in a clearly labeled zip lock bag and collected in a plastic storage box.

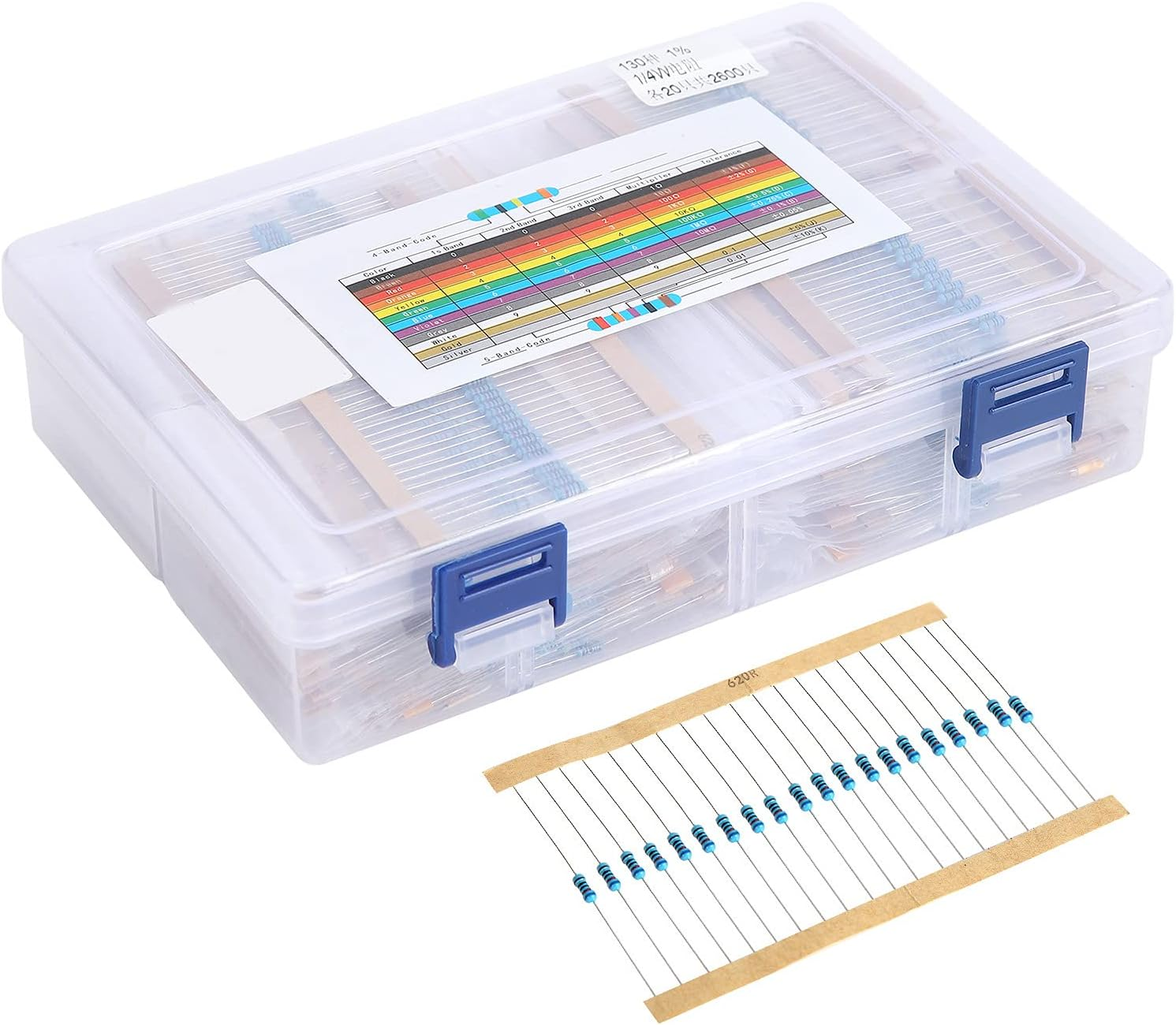

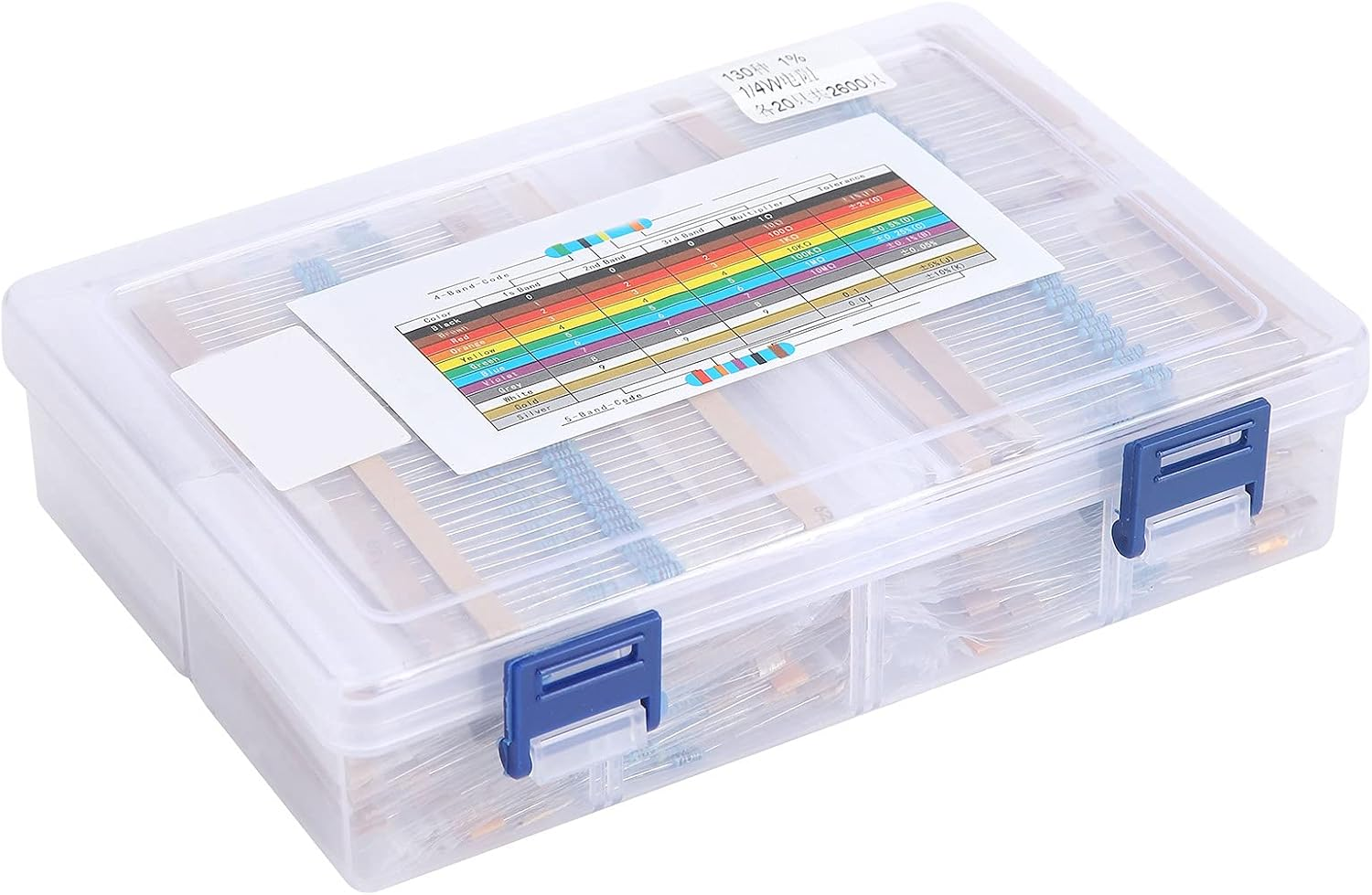

4. Upgrade resistor comes with color codes guide to help you read the correct value.
5. Good performance, high accuracy, heat and corrosion resistance, high insulation, waterproof.
Specification:
Item Type: Resistors
Material:metal Film
Error: ±1%
Rated Power: 0.25W
Maximum Working Voltage: 250V
Maximum Overload Voltage: 500V
Insulation Withstand Voltage: 350V
Working Temperature: -30℃～+155℃
Quantity: 2600pcs (20pcs for Each Type) 1Ω, 1.2Ω, 1.5Ω, 1.8Ω, 2Ω, 2.2Ω, 2.4Ω, 2.7Ω, 3Ω, 3.3Ω, 3.6Ω, 3.9Ω, 4.3Ω, 4.7Ω, 5.1Ω ,5.6Ω,6.2Ω,6.8Ω,7.5Ω,8.2Ω,9.1Ω
10Ω, 12Ω, 15Ω, 18Ω, 20Ω, 22Ω, 24Ω, 27Ω, 30Ω, 33Ω, 36Ω, 39Ω, 43Ω, 47Ω, 51Ω, 56Ω, 62Ω, 68Ω, 75Ω, 82Ω, 91Ω
100 Ω, 120 Ω, 150 Ω, 180 Ω, 200 Ω, 220 Ω, 240 Ω, 270 Ω, 300 Ω, 330 Ω, 360 Ω, 390 Ω, 430 Ω, 470 Ω, 510 Ω, 560 Ω, 620 Ω, 680 Ω, 750 Ω, 820 Ω, 910 Ω
1kΩ, 1.2kΩ, 1.5kΩ, 1.8kΩ, 2kΩ, 2.2kΩ, 2.4kΩ, 2.7kΩ, 3kΩ, 3.3kΩ, 3.6kΩ, 3.9kΩ, 4.3kΩ, 4.7kΩ, 5.1kΩ, 5.6kΩ, 6.2kΩ, 6.8kΩ ,7.5kΩ,8.2kΩ,9.1kΩ
10kΩ, 12kΩ, 15kΩ, 18kΩ, 20kΩ, 22kΩ, 24kΩ, 27kΩ, 30kΩ, 33kΩ, 36kΩ, 39kΩ, 43kΩ, 47kΩ, 51kΩ, 56kΩ, 62kΩ, 68kΩ, 75kΩ, 82kΩ, 91kΩ
100kΩ, 120kΩ, 150kΩ, 180kΩ, 200kΩ, 220kΩ, 240kΩ, 270kΩ, 300kΩ, 330kΩ, 360kΩ, 390kΩ, 430kΩ, 470kΩ, 510kΩ, 560kΩ, 620kΩ, 680kΩ, 750kΩ, 820kΩ, 910kΩ, 1mΩ, 1.5mΩ, 2mΩ
Uses: Widely Used in Electronic Equipment, Used in Audio Equipment, DIY Projects, Computers,
