12V Dimmer Switch, RV Light Dimmer High Side PWM Dimming Switch for Boat Camper Trailer Van Truck Cars, Works with LED Light Fixture, Halogen, Incandescent, Strip Lights
12V Dimmer Switch, RV Light Dimmer High Side PWM Dimming Switch for Boat Camper Trailer Van Truck Cars, Works with LED Light Fixture, Halogen, Incandescent, Strip Lights
Brand: acegoo
A$75.15
- PWM Dimmer: Adopt most power efficient high side PWM dimming method, no buzz flicker-free and save battery drain. Dims up to 48 watts (4 amps) under 12v condition
- Perfect for Retrofit Projects: This dimmer switch enables quick, flicker-free dimming for existinglights. Upgrade on/off fixtures to dimmable, reducing battery drain. From bright to dim, it offers asmooth transition, ending with a satisfying click sound
- Easy Installation: Small size dimmer easy integrated into custom control panel or install it on the places you want with the front panel (included in the package)
- Versatile, for DC12V Application: Compatible to halogen, incandescent, non-regulated LED light fixture, strip light, supports maximum output 6A.Used for lights in RVs, camper trailers, boats, cars, marine, trucks, vans or any dimmable DC 12V LED lights
- Installation Assistance: We stand behind our products. For further assistance, please don't hesitate to reach out. lmportant: Some LED lights don't support dimming control, like RGB light, multi-color led lights, some LED filament bulbs
DC 12 Volts Light Dimmer Switch

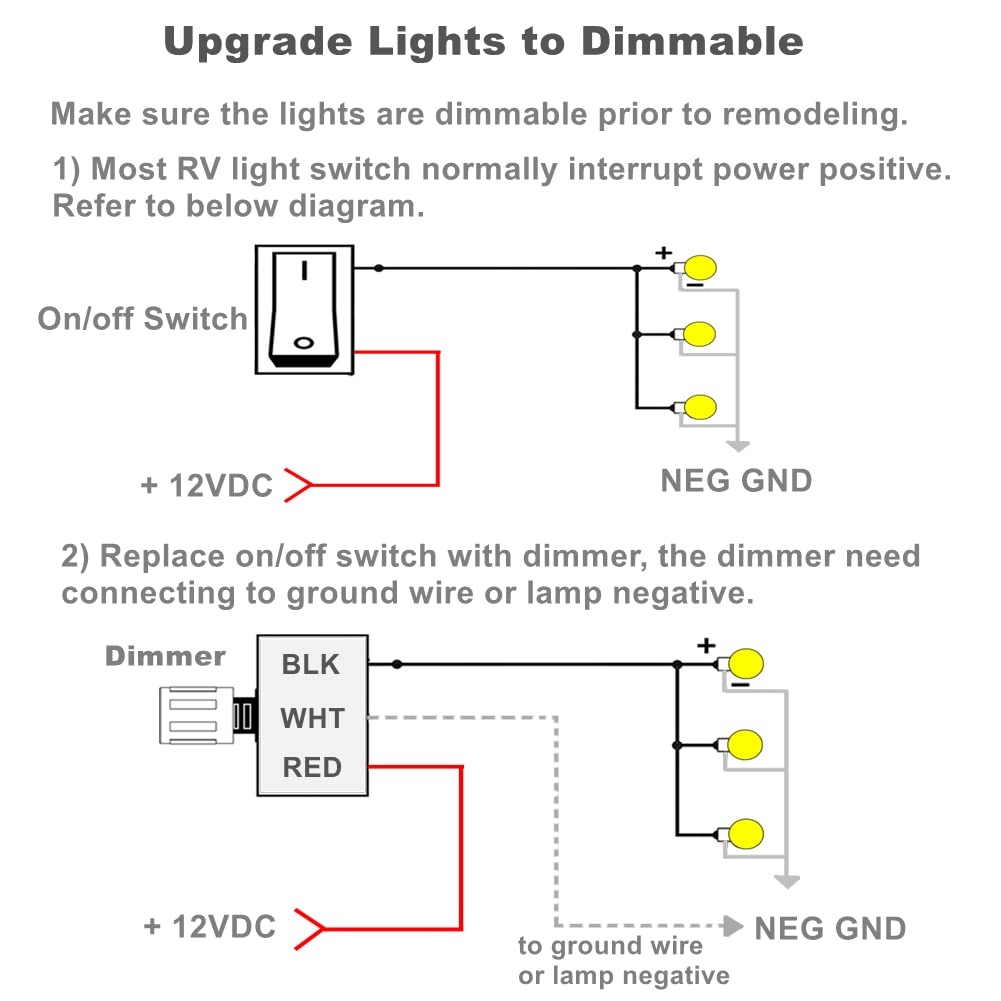

Upgrade On/off Switch Into Dimmable Ones
New custom installation or to replace an existing on/off switch in an RV boat lamp fixture to create low-light ambiance and save battery drain.
Has Built-in Off Switch
The dimmer switch already integrated with off switch, no additional on/off switch needed. Great for RV boat truck trailer interior or exterior lighting control

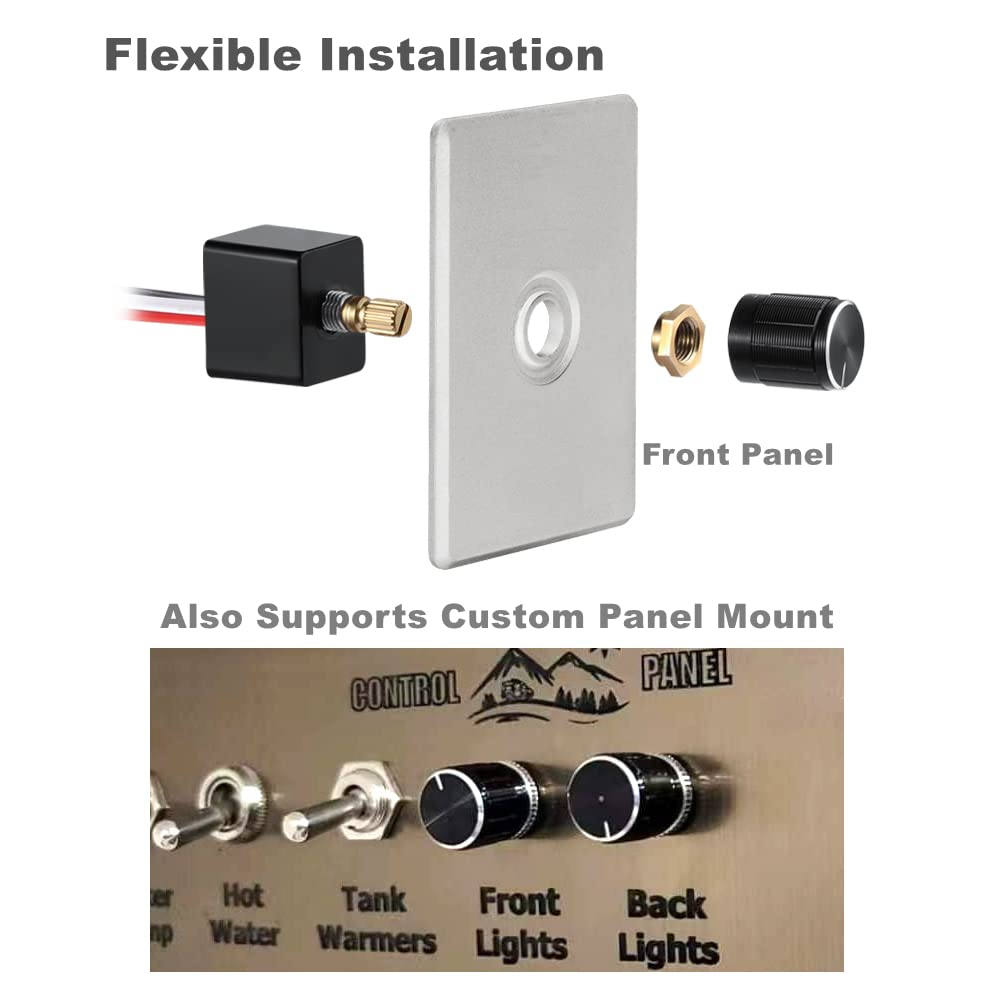

Flexible Mount Ways
Small size easily fits in custom/OEM control panel or mount neatly behind front plate (front plate included in box) to replace existing on/off switch.
Specifications:
Switch Type: Rotary dimming control
Rated Current: 4 Amps
Working Voltage: DC 12-24V
Control Type: High side PWM
Works with: LED lights, incandescent, halogen
Cutout: 15/16" x 13/16" x 3/4" (Depth)
Dimension: 15/16" (W) x 13/16”(L) x 1-1/2”(H)
Front Panel Size: 2” x 2-3/4” x 1/8”
Packing List:
1 x Dimmer Switch
1 x Front Plate
1 x Instruction
1 x Mount Screw Set
- Item Model Number: AX-12V-DS-M
- Product dimensions: 3.81 x 2.54 x 2.03 cm; 28.35 Grams
- Manufacturer: acegoo
