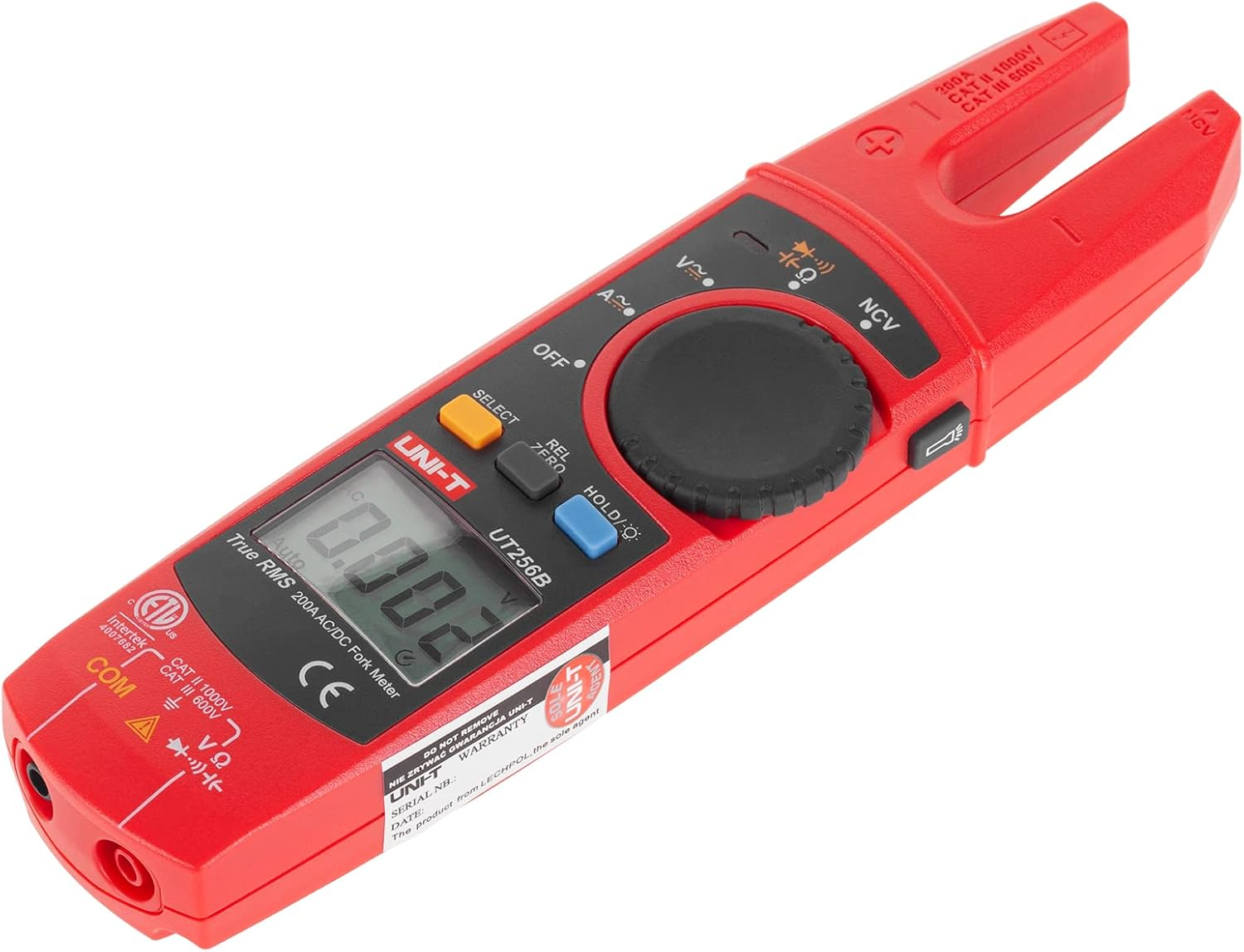

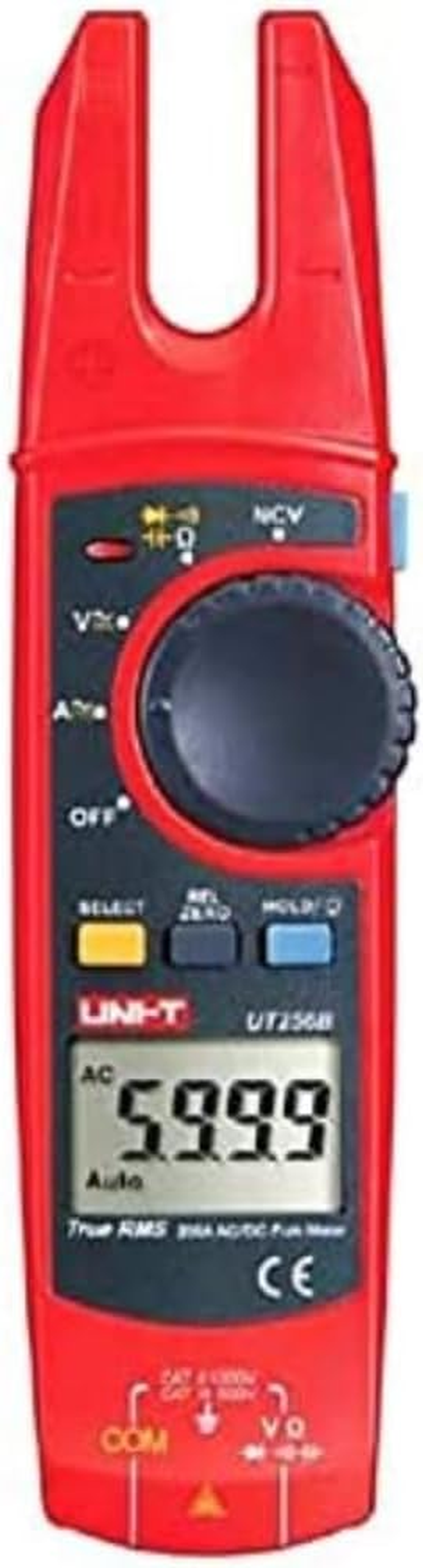

Clamp Meter Model UT256B 200A True RMS/LCD MIE0190
Clamp Meter Model UT256B 200A True RMS/LCD MIE0190
Brand: UNI-T
A$135.95
- Automatic adjustment of measuring ranges
- Electric field detection
- Freezing the last display
- True RMS measurement
- Relative measurement mode
Current clamp UT256B 200A True RMS
Technical specifications:
Measuring ranges:
DC voltage: 6V/60V/600V/1000V; ±(0.8%+3)
AC voltage: 6V/60V/600V/750V; ±(1.2%+3)
DC current: 200A; ±(2.5%+5).
AC current: 200A; ±(2.5%+5).
Resistance: 600 Ohm/6 kOhm/60 kOhm/600 kOhm/6 MOhm/60 MOhm; ±(1%+2)
Capacity: 60nF/600nF/6µF/60µF/600µF/6mF/6mF/60mF; ±(4%+20)
Diode test
Continuity test
ADDITIONAL FEATURES
Automatic change of measuring ranges.
Electrical field detection (NCV).
True RMS.
Freeze last display
Reset function
Relative measurement mode.
Max Read: 6000
Illuminated LCD screen.
Automatic switch-off: after approx. 15 minutes.
Low battery indicator
General features:
Input impedance: >= 10 MOhm.
Power supply: 2 x 1.5 V (R03).
Span width: 14.7 mm.
Display size: 36.5 x 24 mm.
Product size: 210 × 53 × 35 mm
Item Package Weight:0.6 lbs

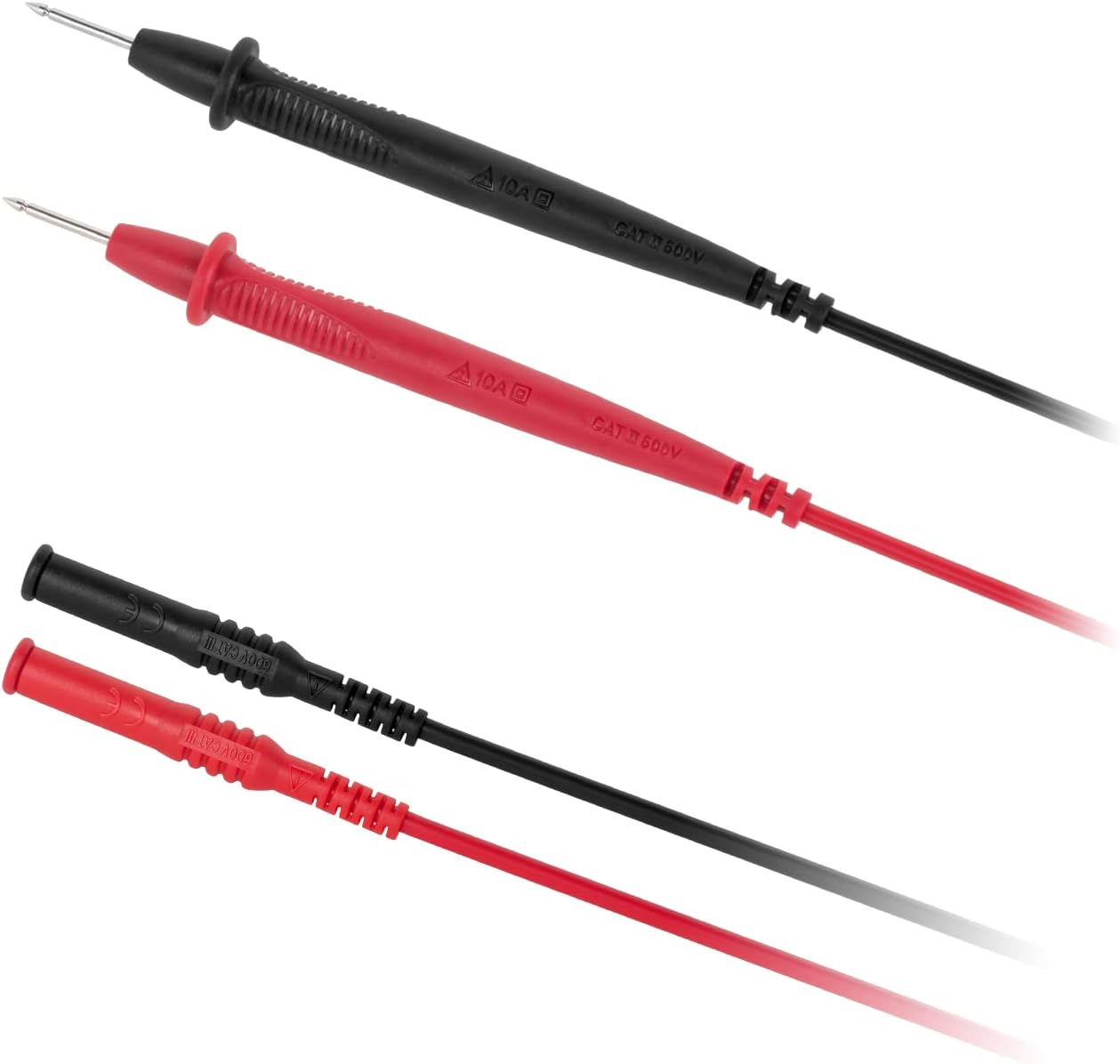

Accessories: batteries, test leads, case.
- Item Model Number: UT256B
- Part Number: UT256B
- Style: Modern
- Power Source: Battery Powered
- Item Package Quantity: 1
- Product dimensions: 21 x 5.3 x 3.5 cm; 168 Grams
- Batteries Required?: No
- Item Weight: 168 g
- Batteries: 2 AAA batteries required. (included)
- Batteries Included?: Yes
- Measurement Accuracy: +/- 0.8%
- Battery Cell Type: Alkaline
- Included Components: Batteries, test leads, case, measuring device
- Colour: Black/red
- Manufacturer: UNI-T
