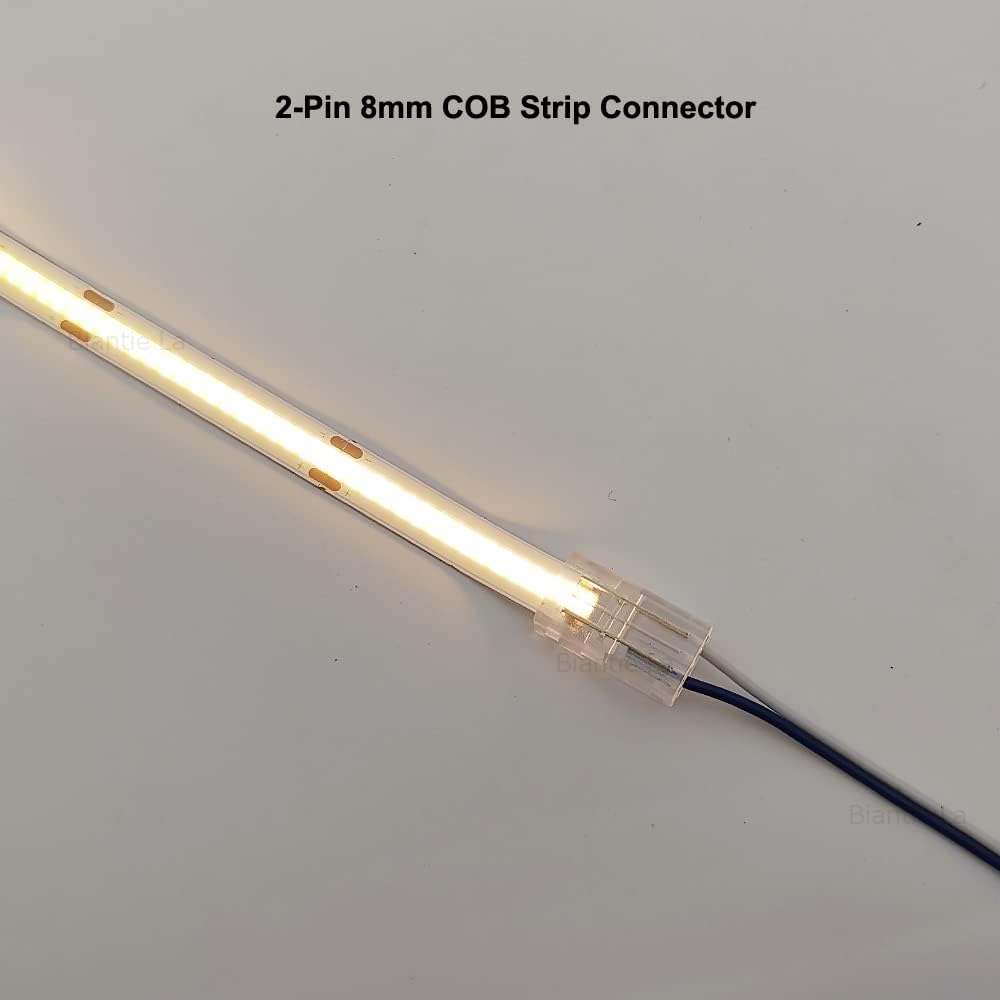

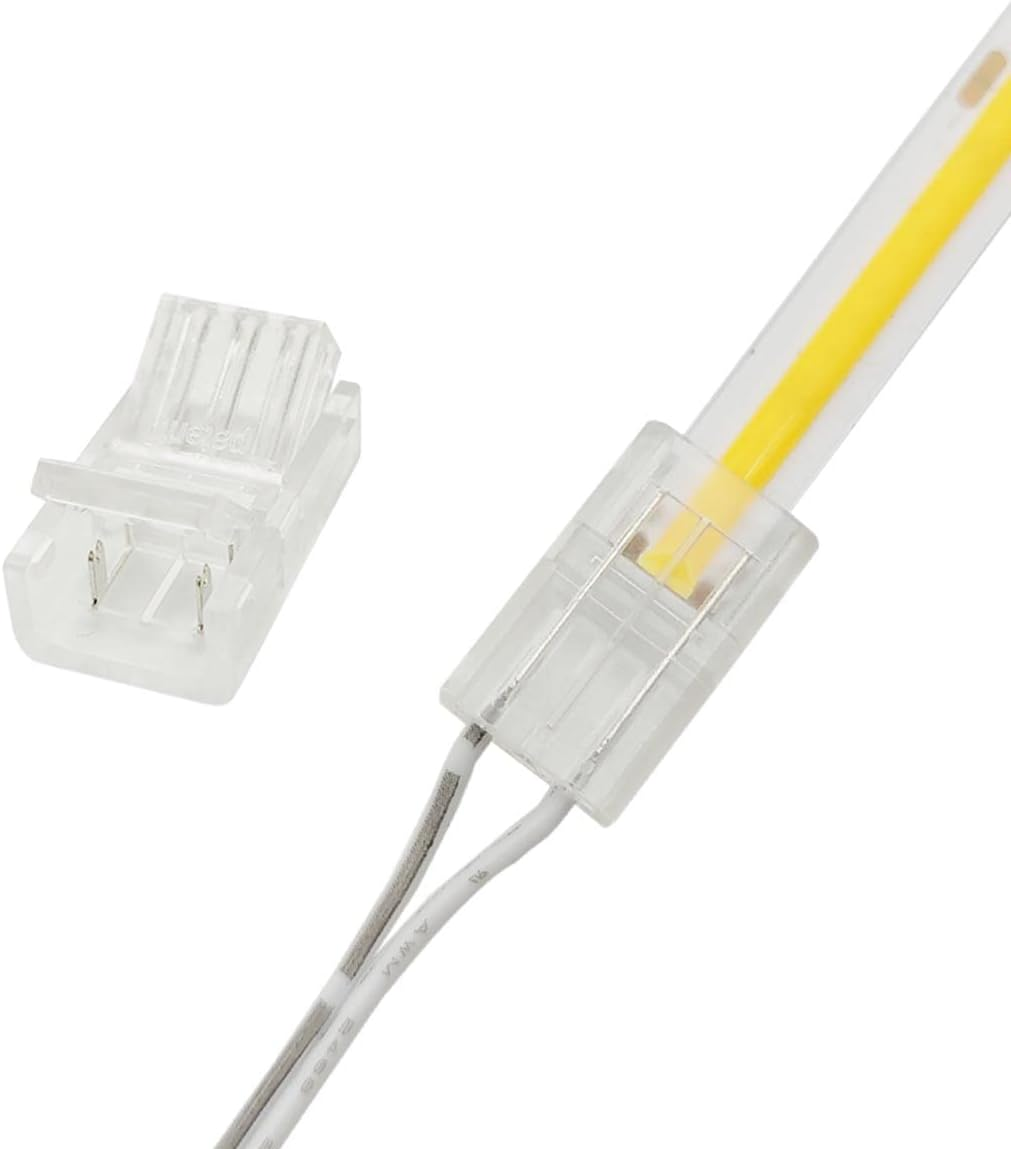

2-Pin COB LED Strip Connectors 8Mm Unwired Clips Solderless Adapter Terminal Extension Connection for 12V High Density LED Strip Lights

2-Pin COB LED Strip Connectors 8Mm Unwired Clips Solderless Adapter Terminal Extension Connection for 12V High Density LED Strip Lights

Brand: Masterwon
4.7
A$139.80
Availability:
  • This item is currently not available

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • Connect 8mm width COB and SMD LED strip lights. Our Masterwon 2-pin connectors are suitable for connecting most common 8mm width COB and SMD LED strip lights, including 3528, 2835 and 3014. Not compatible with 5mm, 10mm or 12mm strip widths.

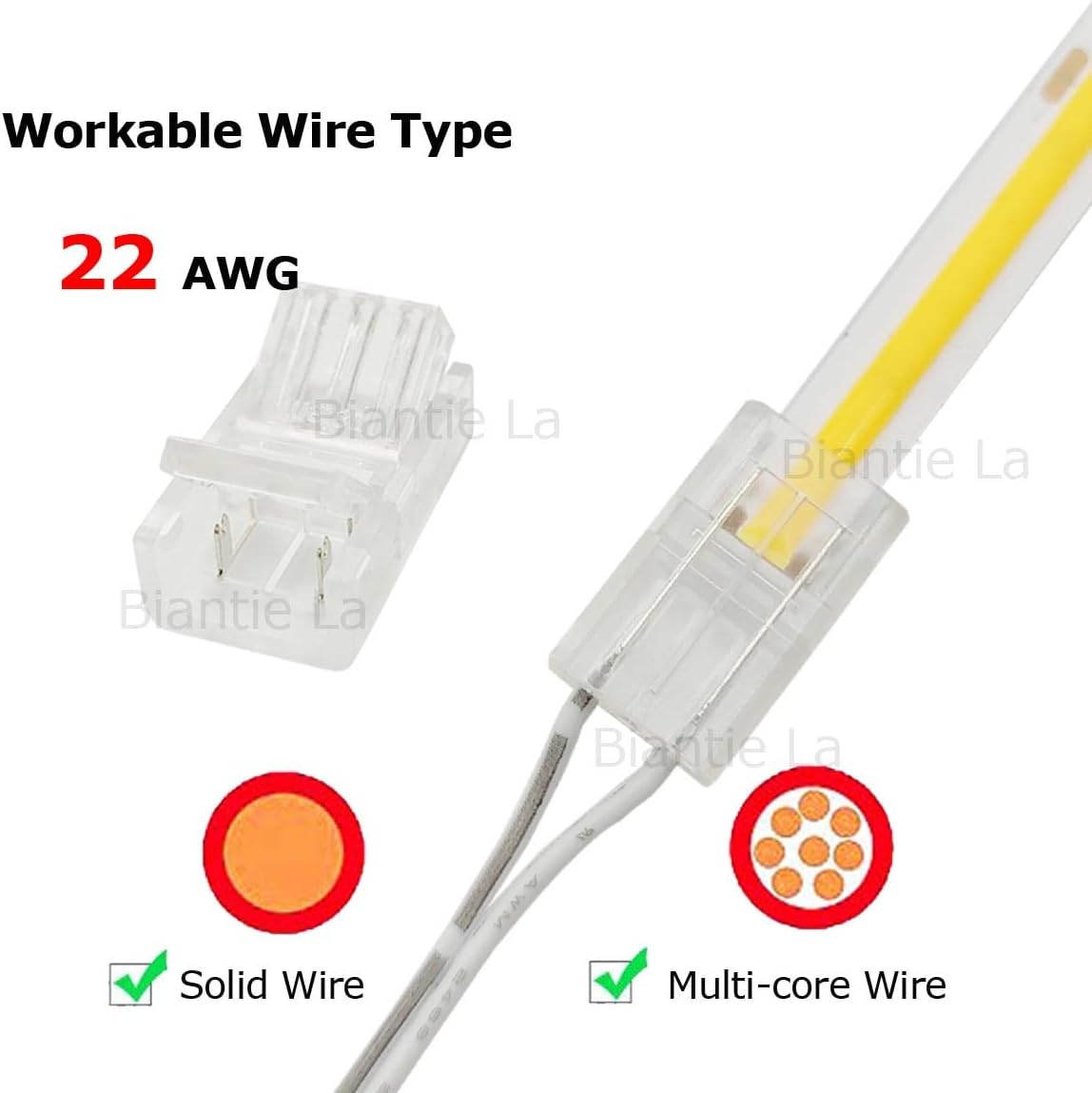

  • Create custom layouts with 22 AWG wire and LED strip lights. Use our 2-pin LED strip light connectors with 22 gauge 2-core wire to connect COB and SMD LED strip lights in any layout you desire.
  • Simply insert and secure in seconds. No soldering is required. Just insert COB and SMD LED strip lights and 2-core wire into the connectors and use the attached clips to securely join without fuss.
  • Highly transparent, non-corrosive material. Made of transparent, eco-friendly material that ensures maximum light transmission from your 8mm width COB and SMD LED strip lights.
  • Contains 10 connectors to light up your space. Our pack comes with 10 separate 2-pin connectors so you can connect multiple 8mm COB and SMD LED strip lights. COB and SMD LED strip lights and 2-core wire not included.

These 2-pin COB strip to wire connectors are solution for 8mm width LED lights strips .
NOTE:
1. Make sure your LED light strip is 8mm width COB strip lights with 2 Soldering Pads. Not work for 5mm 12mm or 10mm width led light strips.

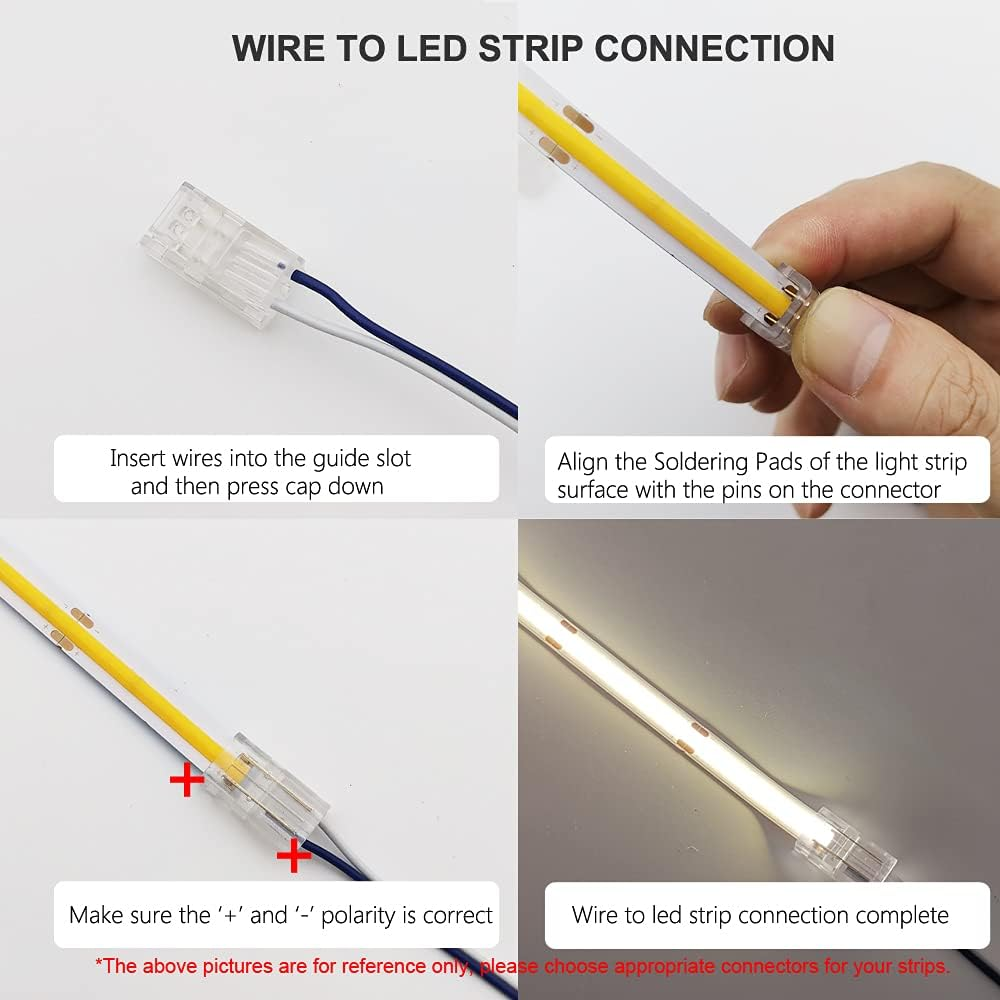

Installation tips:
Strip End:
1. Cut the strip straight perfectly, then fully open the clip.
2. Insert the light strip, align the 2 Soldering Pads of the light-emitting surface of the light with the 2-pins on the connector. Then press down the transparent cover.
Wire End:
1.Cut the desired wire length you need and separated the 2 wires around connection part.
2. Insert wires into the connector guide slot, make sure that positive and negative on the strip light surface are corresponding to the wires.
3.Close the transparent cap with a pliers and press down hard for several times. Ensure the metal joint pierces through the wire insulation as there are so many non-standard wires on the market!
4. reminder: no stripping of the wires. Just be sure polarity nodes are matched up "+" to "+" and "-" to "-".
If you have any problem about installation, pls feel free to contact us.
Package:
10pcs Strip to Wire Connectors (BL-TZ8XB3)

  • Manufacturer: Alightings
  • Style: Modern
  • Number of Lights: 10
  • Power Source: Corded Electric
  • Brand: Masterwon
  • Material: Metal
  • Type of Bulb: LED
  • Batteries Required?: No
  • Package Dimensions: 15.2 x 8.2 x 1.2 cm; 10 Grams
  • Item Weight: 10 g
  • Batteries Included?: No
  • Voltage: 12 Volts
  • Special Features: Not Dimmable
  • Included Components: Pack of 10 strip to wire connectors (BL-TZ8XB3)
  • Colour: Warm White
  • Number of Items: 10
