Feature:
1. Working in the effective working voltage, this ball valve will efficiently open or close the valve within 3 to 5 seconds.
2. Having fully opened the valve, the limit switch will reduce the power to the minimum, safe, and energy-saving.
3. The wiring is very convenient in reverse polarity mode, if there is a power failure, it will return to a completely closed state.
4. The valve will automatically cut off the power when it's fully open or closed, reducing the possibility of overheating.
5. You can use it to replace solenoid valve, and it suits perfectly for projects that require a long time to open the valve.
How to Use:

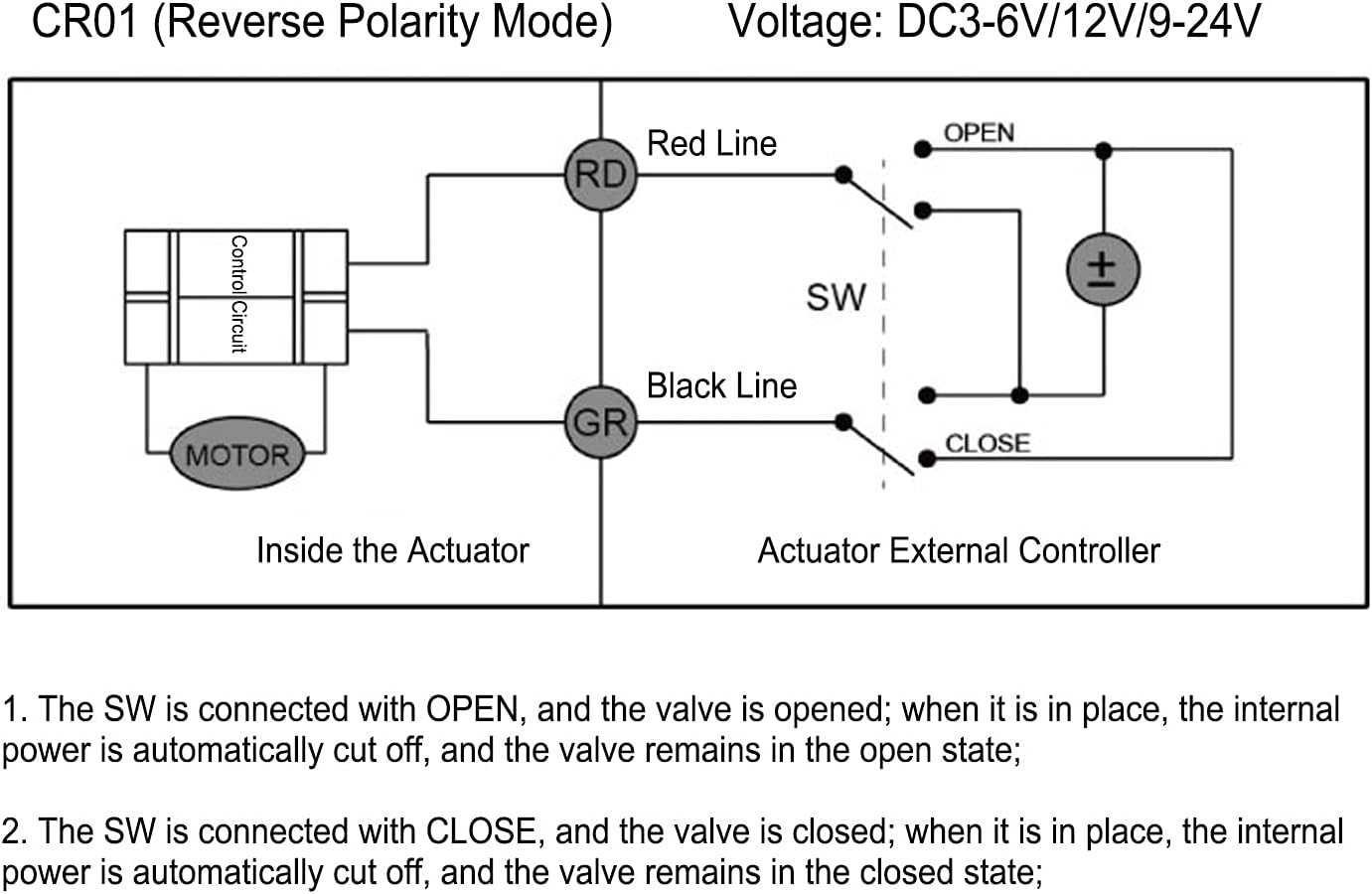

1. The SW is connected with OPEN, and the valve is opened; when it is in place, the internal power is automatically cut off, and the valve remains in the open state;
2. The SW is connected with CLOSE, and the valve is closed; when it is in place, the internal power is automatically cut off, and the valve remains in the closed state;
Specification:
Item Type: Electric Ball Valve
Model: CWX-15N-CR01-DC12V-DN15
Adaptation Calibre: DN15
Rated Voltage: DC12V
Medium Temperature: The temperature is equal to or less than 100℃.
Working Pressure: Maximum 1.0Mpa
Protection Level: IP67
Connection Method: CR01

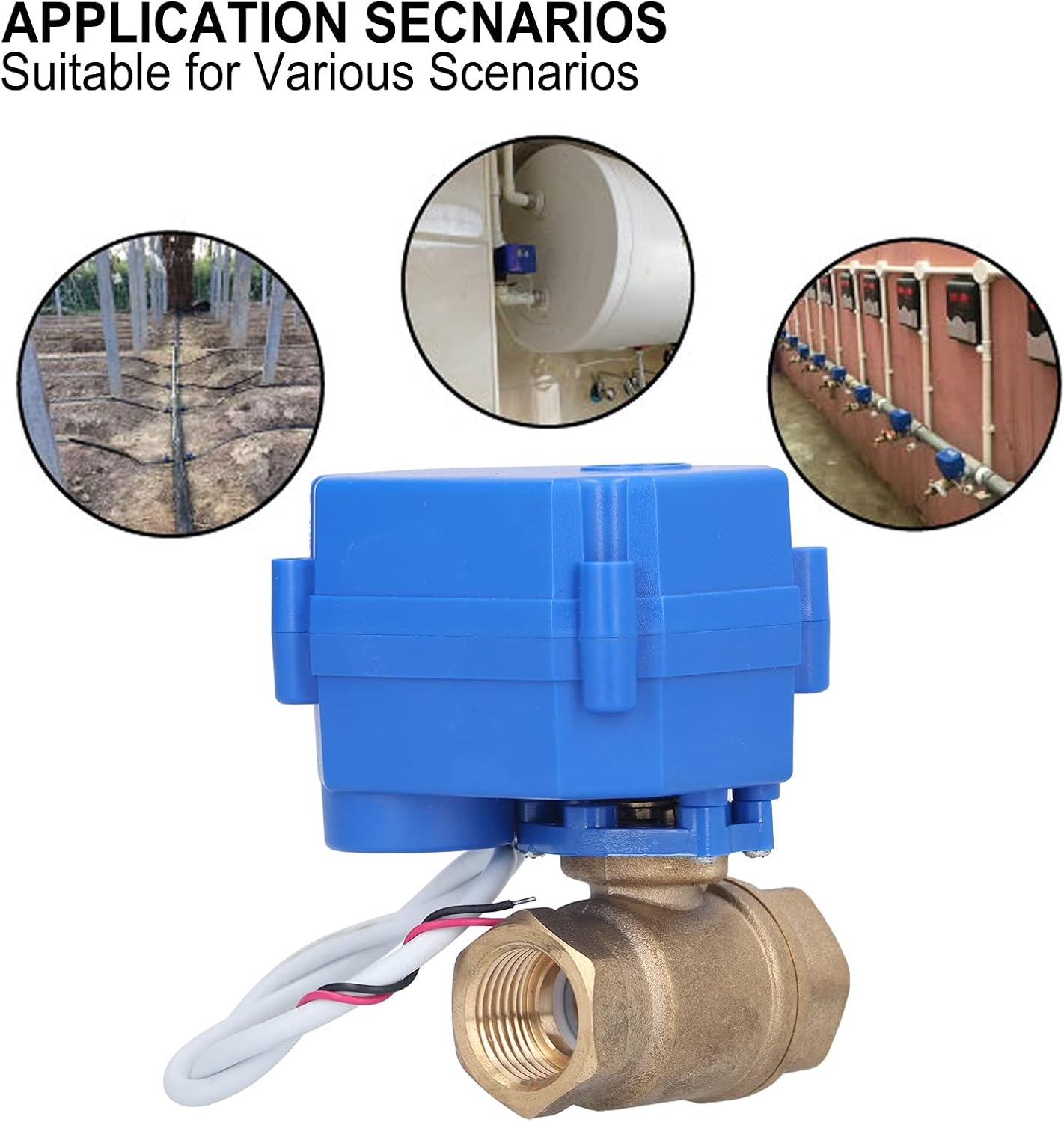

Commodity Application: Water treatment miniature electric ball valve.
Flow Direction: Straightway

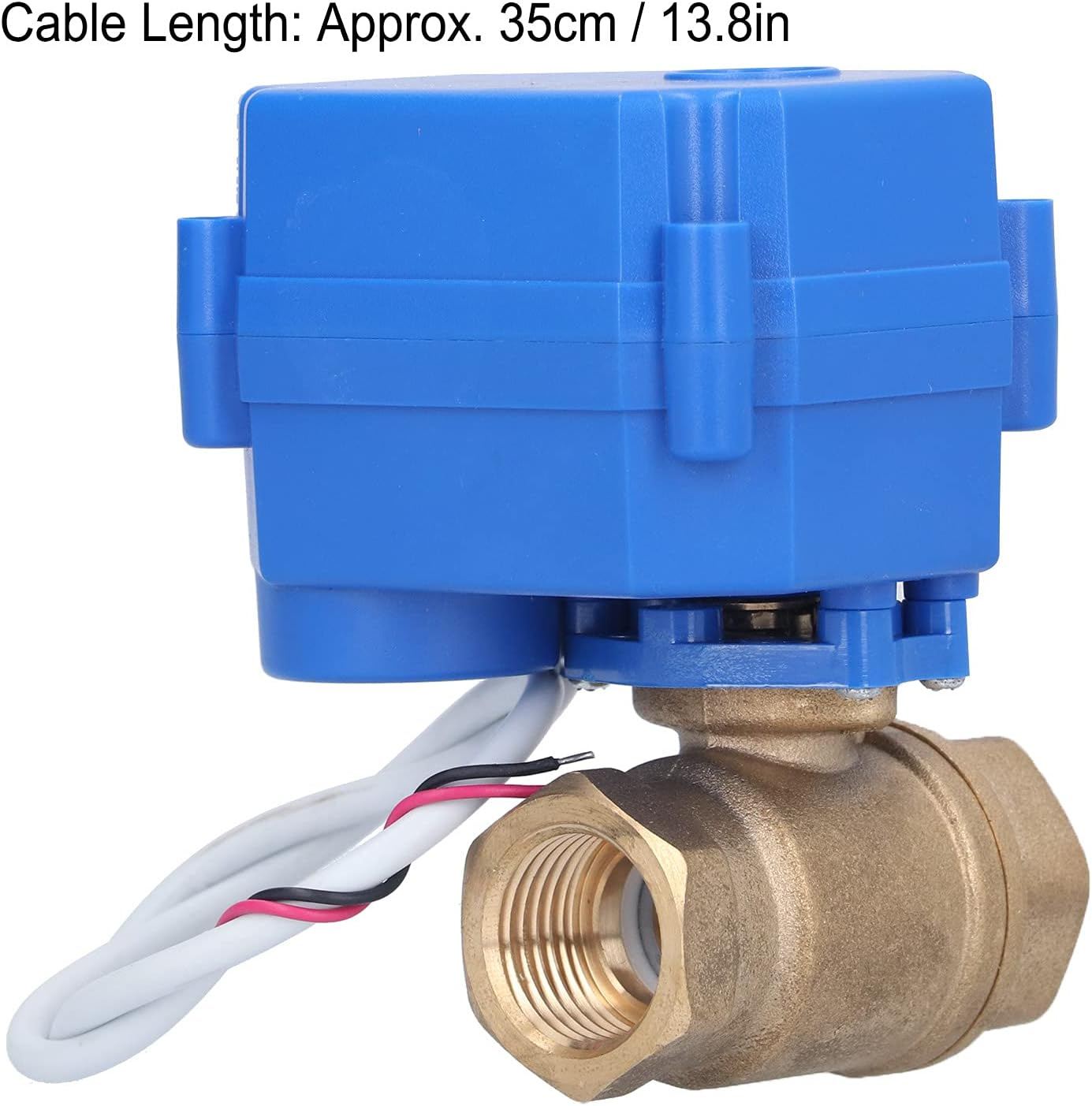

Cable Length: Approx. 35cm / 13.8in
Thread Standard: BSP
Package List:
1 x Electric Ball Valve
