SC/APC PON Optical Power Meter, 1310/1490/1550Nm Fiber Optic Power Tester, EPON Network Tester, Pon Meter (SC/APC Power Meter)
SC/APC PON Optical Power Meter, 1310/1490/1550Nm Fiber Optic Power Tester, EPON Network Tester, Pon Meter (SC/APC Power Meter)
Brand: GIETTEK
A$115.50
- Users can test three wavelengths1490 nm/1550nm/1310nm in the PON network at the same time
- Simultaneously measure and display different PON architectures, data and video signals
- The instrument provides five sets of thresholds to choose from, with pass, warning, and fail modes
- Manual calibration, automatic shutdown (can be cancelled)
- Mini, compact and equipped with anti wrestlling silicone material
- Adapt with APC connector, SC Dedicated Interface, 150 HOURS standby
Product Description

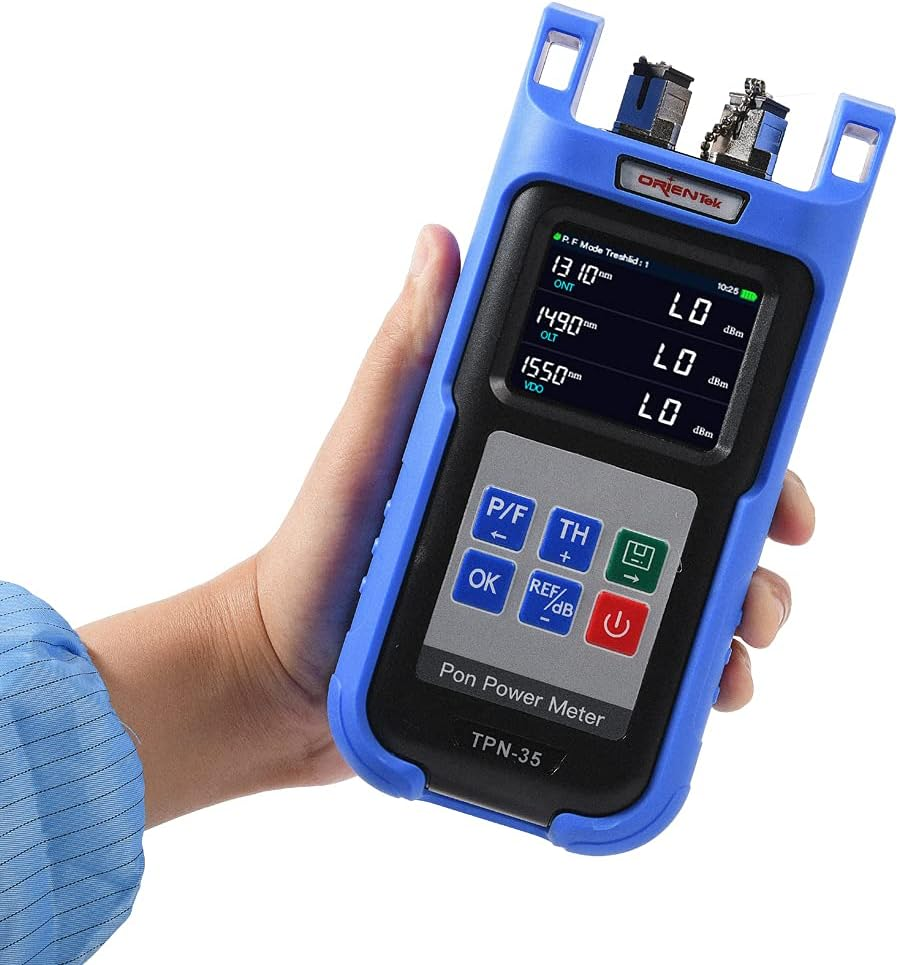

ORIENTEK TPN-35 PON Optical Power Meter Tester
Key Features:
• For PON Network Testing

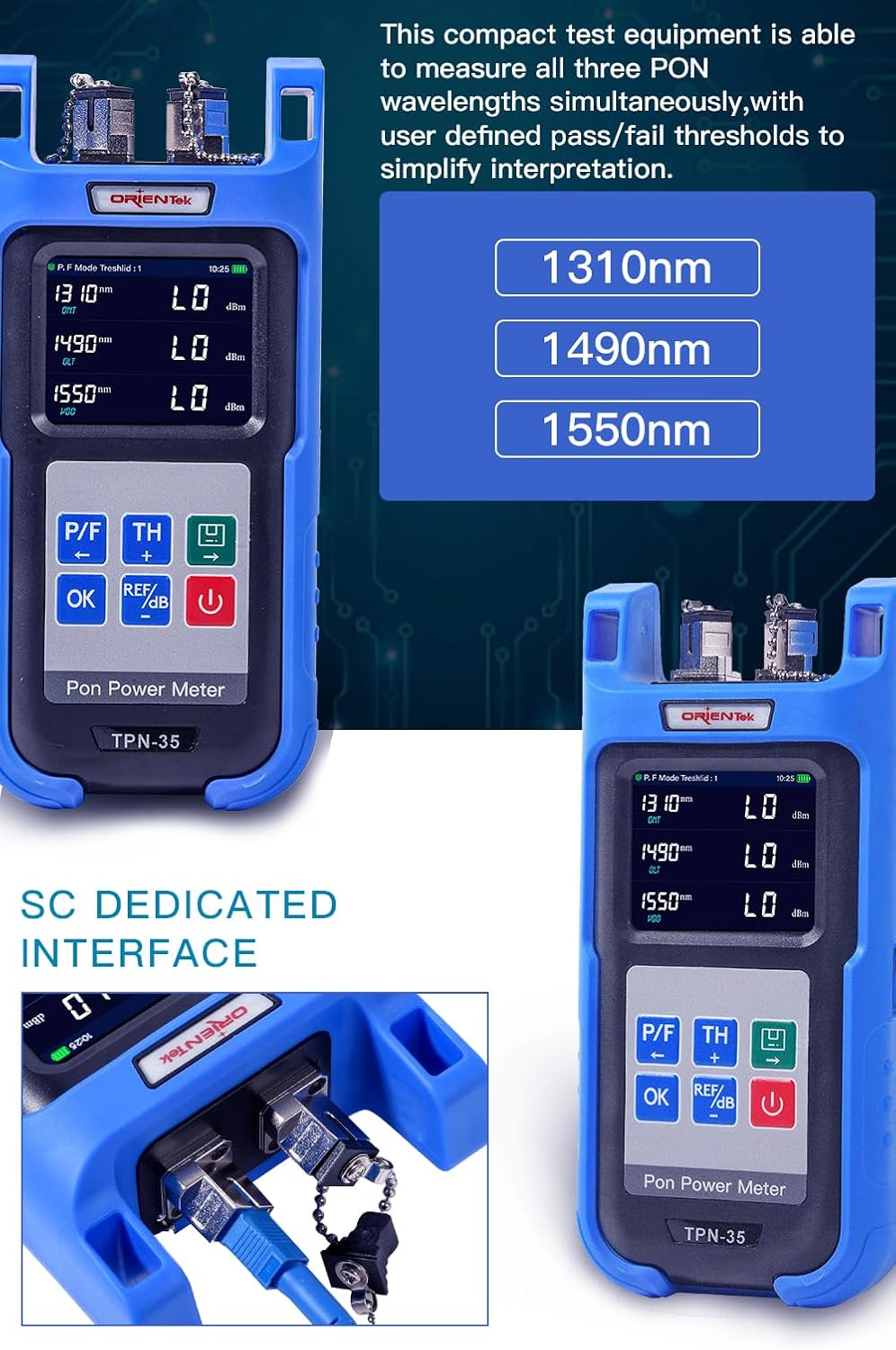

• Providing simultaneous measurementfor all three wavelengths on the fiber(1490nm, 1550nm,1310nm).
• Used in Burst mode measurement of1310nm upstream.
• Test 3 wavelengths separately andsimultaneously
• We always offer 24/7 hours assistance in whole lifetime. We promise your purchase is entitled to a 30 days return at no cost from date of purchase for any reason.
Specification
| Measuring wavelength | 1310/1490/1550nm |
| Sensor Type | InGaAS |
| Linearity | ±0.2dB@1550nm≥-40dBm |
| Inherent uncertainty | 0.5dB±1nW@1550nm |
| Display resolution | 0.01dB |
| Threshold setting | 5 groups are set by the host computer |
| Calibration wavelength | 1310/1490/1550nm |
| Data storage | 900 groups |
| Interface type | SC/APC |
| Power supply | 3 AA batteries(sent without batteries) |
- Item Model Number: SC/APC Power Meter
- Style: Modern
- Power Source: ac
- Product dimensions: 23 x 11 x 6 cm; 200 Grams
- Country of origin: China
- Batteries Required?: No
- Item Weight: 200 g
- Model: SC/APC Power Meter
- Manufacturer: NANJING ORIENTEK OPTICAL COMMUNICATION LTD
- Colour: Blue
- Included Components: Built-In power meter
