WAVLINK Displaylink Universal Laptop Docking Station, 20-In-1 Enterprise-Level Docking with 100W Power Delivery/Dc Charging,Dual 5K@60Hz(For Windows 10/11), Quad 4K@60Hz Display, 2.5Gbps Ethernet

WAVLINK Displaylink Universal Laptop Docking Station, 20-In-1 Enterprise-Level Docking with 100W Power Delivery/Dc Charging,Dual 5K@60Hz(For Windows 10/11), Quad 4K@60Hz Display, 2.5Gbps Ethernet

Brand: WAVLINK
5.0
A$139.80
Availability:
  • This item is currently not available

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

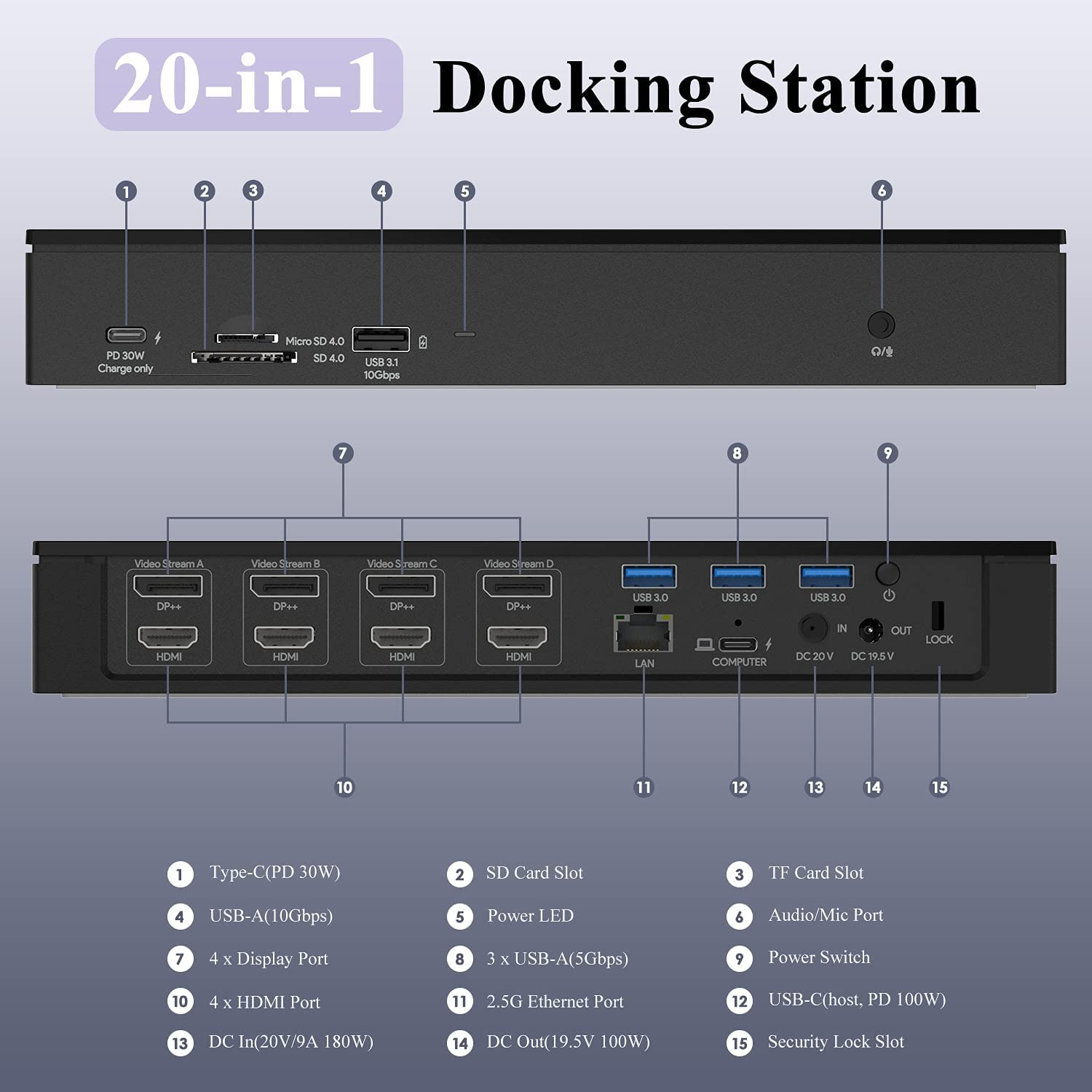

  • ♛【20-In-1 Enterprise-Level Docking Station】Wavlink enterprise-level quad 4K universal docking station is an ideal choice for large enterprises and designers, which provides a total of 20 ports: 1 x DC in, 1 x DC out, 1 x USB-C(upstream), 4 x Displayport, 4 x HDMI, 1 x RJ45 Ethernet 2.5Gbps port, 1 x 4-Pole 3.5mm Phone Jack, 1 x SD Card Reader, 1 x TF Card Reader, 3 x USB3.0-A, 1 x USB3.1-A, 1 x Type-C(downstream, no data).

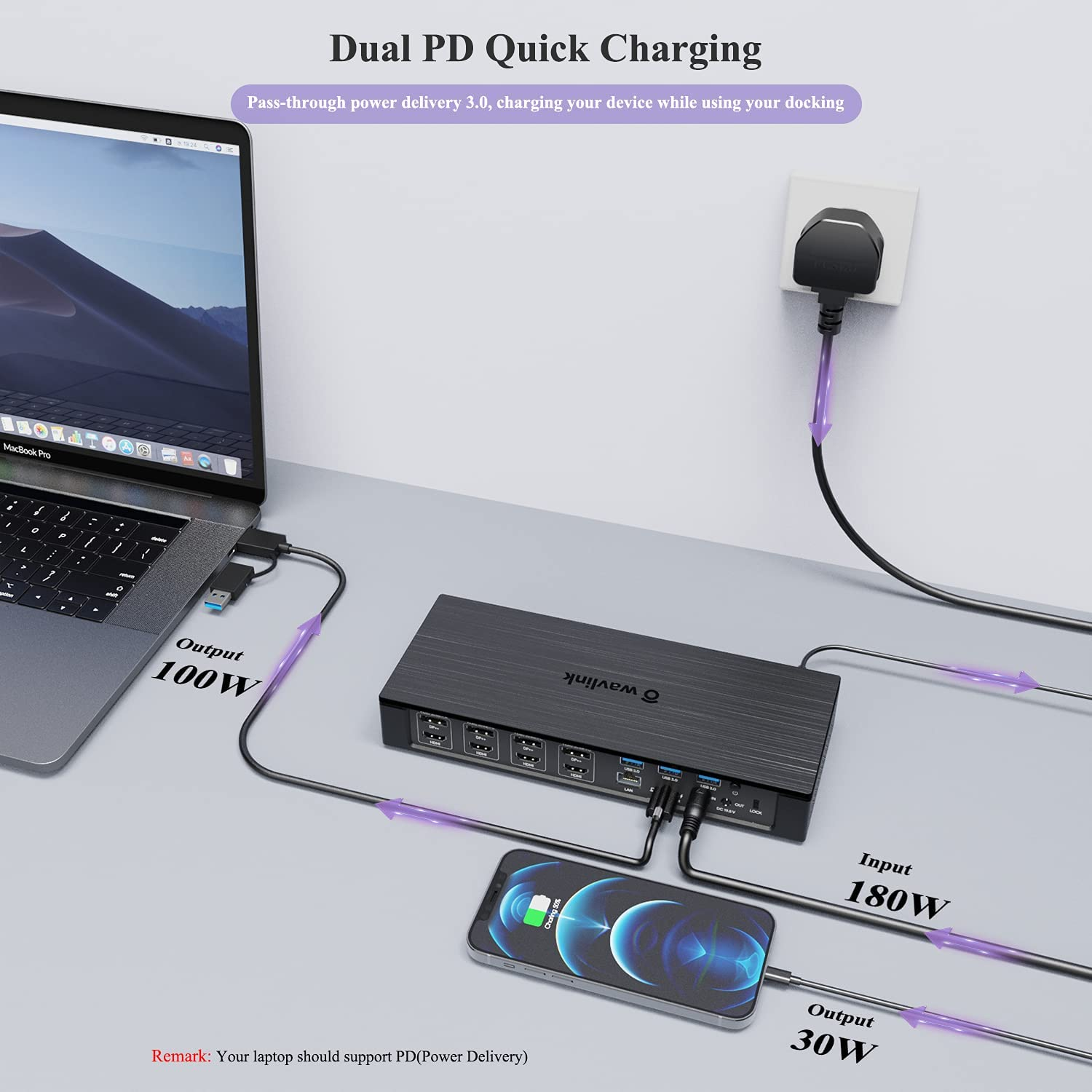

  • ♛【Max PD 100W Charging for your PC】Supported by power delivery 3.0. While using the docking, one upstream USB-C port on the back (PD 100W) for you to fast and securely charge your laptop while connecting multiple peripherals for data transferring and power storage.★Note:For downstream charging, another USB-C port on the front (PD 30W, No Data),charging for your any USB-C devices which support USB PD charging.

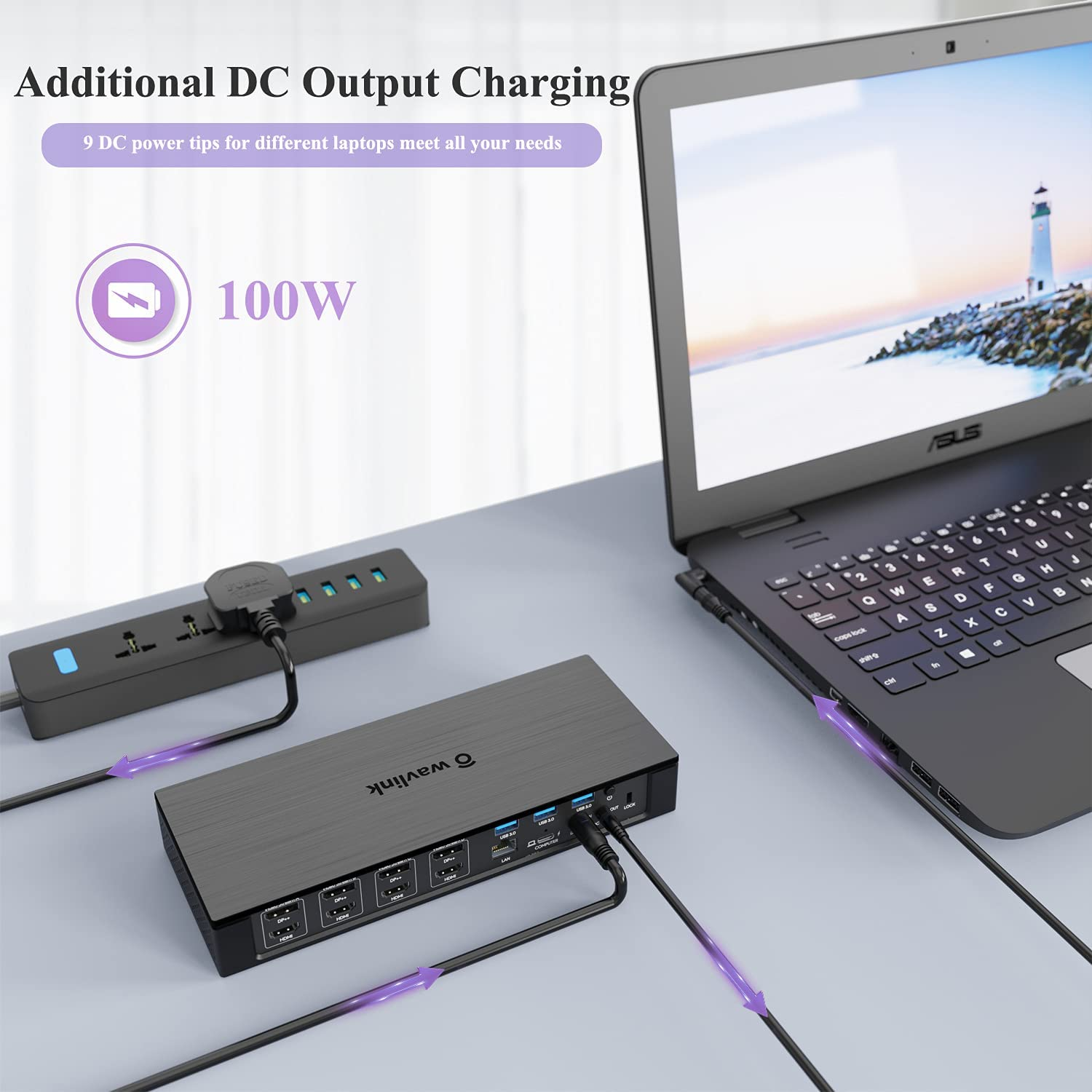

  • ♛【Additional DC Output Charging】With Type-C cable connection, which can provide up to 100W of Power Delivery charging for your computer while data transmission. While for those USB-A computers, computers without PD function, our Wavlink Universal Docking Station specially designs one extra DC output jack to supply power, accessories with 9 DC power tips that can be compatible with over 10 brands.
  • ♛【Quad 4K Display & Mirror/Extend Mode】4 HDMI ports and 4 DP Ports support quadruple 4K(3840x2160@60Hz) displays output, with the mirror mode(extra 4 same displays) and extend mode(extra 4 different displays) both supported for Windows and Mac OS. Connection Way: ①DP/HDMI(Video Stream A)+ ②DP/HDMI(Video Stream B)+ ③DP/HDMI(Video Stream C)+④DP/HDMI(Video Stream D).
  • ♛【Compatibility & What You Get】Compatible Systems: Windows7/8/10/11(32/64-bit), Mac OS 10.8 or later, Chrome OS, Android, Ubuntu, performance might be limited on Ubuntu, Chrome OS and Android. What you get:1 x USB-C quad 4K universal docking station, 1 x 2-in-1 USB-C to USB-C cable with USB-A converter, 1x DC20V/9A 180W power adapter, 1 x AC power cable, 1x DC to DC converting cable, 9 x DC power tips, 1x Cable holder, 1x CD-shaped Driver Download Links, 1 x Quick start guide.
  • 【Enterprise-class Manageability】 WAVLINK's DL-chip docks enhance efficiency and productivity in corporate environments with advanced features. They offer enterprise-class manageability, enabling seamless operations in high-performance workspaces. Tailored to meet the needs of enterprise customers, the DL series docking stations optimize productivity for essential tasks.

Product Description

WAVLINK 20-IN-1 USB-C Quad 4K Display Docking Station

Dual Charging Ports With Maximum 100W Input For Your Laptop & USB-C(host) Port and DC OUT Port

● Enterprise-level universal docking station is an ideal choice for large enterprises and designers. This docking can provide you 4 displays output with 3840 x 2160@60Hz resolution; 2.5Gbps Ethernet giving you to high bandwidth networking; the SD4.0 Card Reader supporting UHS-II SD card as full duplex mode theoretical speed up to 312MB/s fast for copying any photos or movies from your media memory card to backup to your PC directly.

● One Type-C cable connection, which can provide up to 100W of Power Delivery 3.0 charging for your computer while data transmission. For USB-A connection, computer without PD function, this Universal Docking Station provide one extra DC output jack to supply power, accessories with 9 Power Tips that can be compatible with over 10 brands 19V-20V power in to Computer. For downstream charging, one USB-C port provides up to 30W charging for your Pad / Mobile phone or any USB-C devices support USB PD charging.

● One USB3.1 Type-A (10G), three USB3.0 Type-A (5G) ports to extend more connectivity to USB devices and one 4-pole earphone jack combo with audio out and mic in basically satisfy a lot of users' needs.

Features:

  • 1. This universal docking station works with USB Type-C, Thunderbolt 3 & compatible with USB Type-A computers.
  • 2. 180Watt Power adapter provide maximum 100W power delivery to charge your computer. (Additional one DC output jack with 9 power tips provide maximum 100W for 19V-20V power input to laptops that do not support PD charging.).
  • 3. Mirror&Extend mode to connect multiple screens: Quad DisplayPort or Quad HDMI or multiple DP + HDMI displays for easy deployment.
  • 4. HDMI or DisplayPort output support audio 5.1 Channel surround-sound.
  • 5. One USB3.1 Type-A (10G) support BC1.2 fast charging and max 10Gbps data transmission and three USB3.0 Type-A (5G) ports extend more connectivity to USB devices.
  • 6. 2.5G Ethernet network RJ-45 backward 10/100/1000 Ethernet.
  • 7. Integrated TRRS 4-pole phone jack to give audio speaker out and mic in.
  • 8. One USB-C individual 30W PD charging port for any USB-C devices support USB PD charging.(No data transmission)
  • 9. Integrated SD V4.0 Card Reader with SD/Micro SD slot support UHS-II theoretical bus speed up to 312MB/s.

Fast charging and syncing

The USB3.1 Type-A (10G) on the front side supports BC1.2 fast charging and max 10Gbps data transmission.

One dock two use

the 2-in-1 USB-C to USB-C cable with USB-A converter is compatible with most Mac and Windows laptops and computers which feature Type-C and Type-A ports. The USB-A converter supports data transfer only.

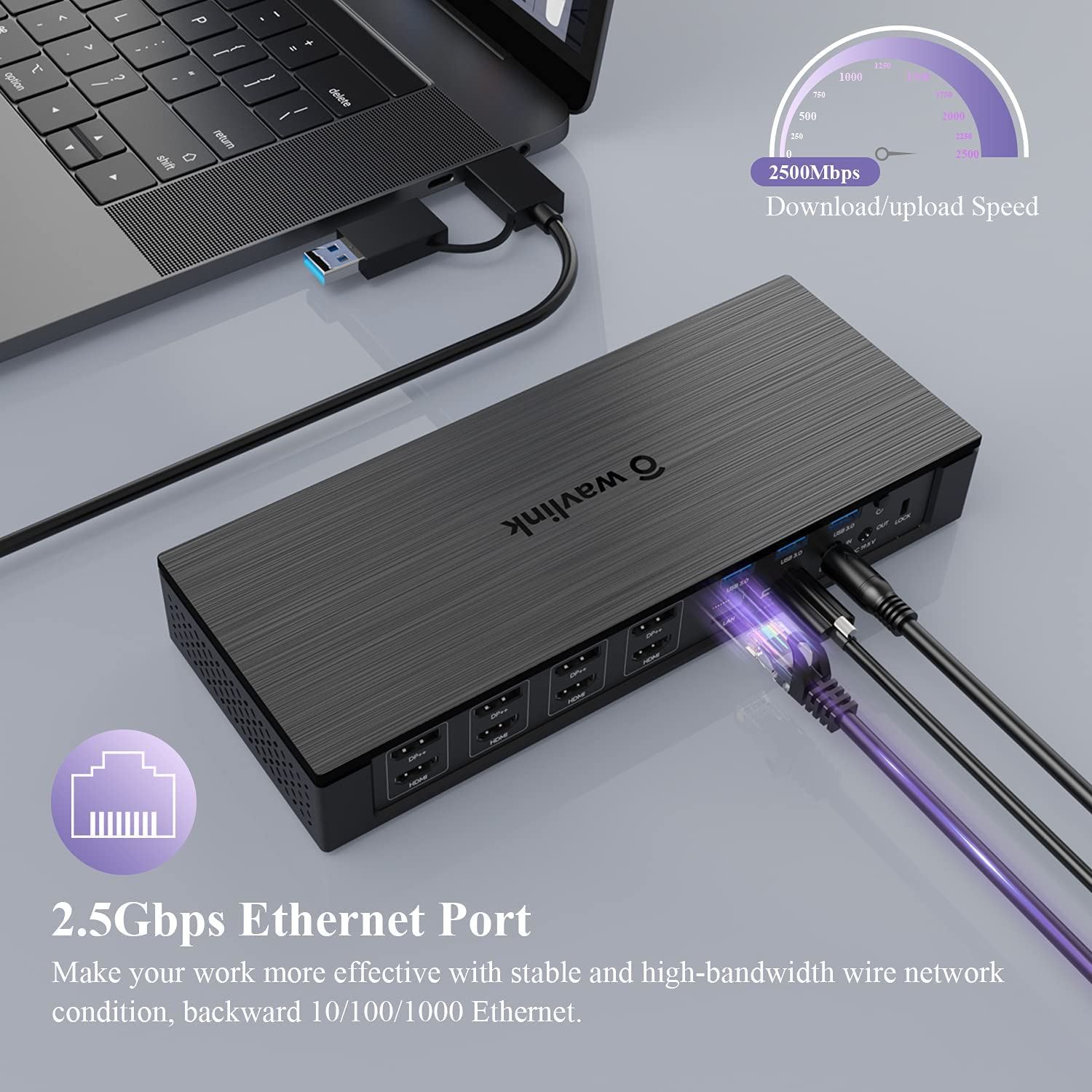

2.5G Ethernet port

2.5x faster than 1Gbps Gigabit Ethernet and backward compatible with 10/100/1000Mbps. Just enjoy the blazing fast surfing speed.

3.5mm combo audio in/out

integrated TRRS 4-pole earphone jack combo with audio out and mic in can basically satisfy a lot of users' need.

Excellent heat dissipation

double-sided ventilation holes and anti-dust mesh with built-in heat sink(76252mm² coverage) ensure stable and efficient operation of the dock.

LED indicator

the blue LED light allows you to easily acquire the power status of the dock, knowing whether it has been correctly connected to the power supply or not.

Reliable security

integrated lock slot accommodates standard security locks to safeguard equipment from being taken by others. (the security lock is not included)

Strengthened connectivity

with the help of the cable holder, it can prevent the device from being disconnected suddenly or falling to the ground.

Notes:

1. Requirements for dual 5K(5120*2880@60Hz): connect the left two or the right two DisplayPort together to provide up to 5120x2880@60Hz resolution to a single display. The display need to have 2 DP input ports and supports 5120*2880@60Hz resolution and refresh rate. Windows 10 system required.

2. This dock works with Thunderbolt 3 laptops with maximum 10Gbps data transfer rate, cannot reach 40Gbps.

3. The extend or mirror mode can only be performed by connecting to the computer through the USB-C (host) port.

4. Offering 100W USB power delivery on PD 3.0, you can power laptops and larger devices through your dock. Making sure that your laptop complies with USB PD charging and support 100W charging power.

5. Making sure that the DC charging power of your laptop is not higher than 100W.

6. In each video stream group you can only use one port, either "DP++" or "HDMI".

7. Do not support charging two laptops at the same time. If USB-C (host) port and DC out port are connected simutaneously, the Type-C PD charging performs normally in priority, while the DC out port automatically disconnects.

8. The dock is self-powered and needs to be connected to the power adapter to work normally.

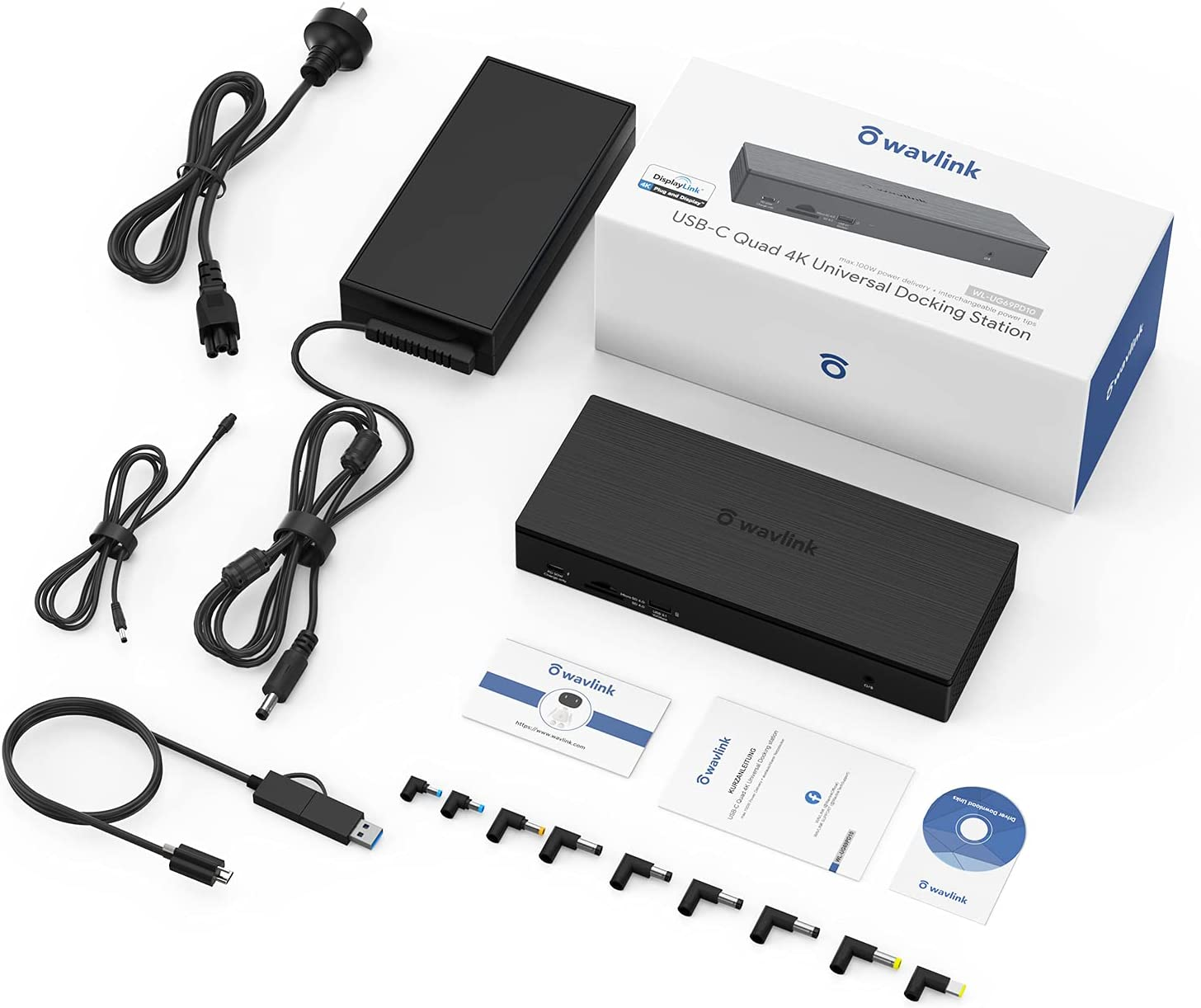

Package contents:

  • 1 x USB-C quad 4K universal docking station
  • 1 x 2-in-1 USB-C to USB-C cable with USB-A converter
  • 1x DC20V/9A 180W power adapter
  • 1 x AC power cable
  • 1x DC to DC converting cable
  • 9 x DC power tips
  • 1x Cable holder
  • 1x CD-shaped card for driver download links

Supported operating systems

Windows7/8/10(32/64-bit), Mac OS 10.8 or later, Chrome OS, Android &Ubuntu. Plug and play for Windows 10 and latest Chrome. The latest driver required to get the latest features.

Enterprise-level dock: this universal dock is an ideal choice for large enterprises and designers with medium size 9.06*3.35*1.1inch/230 x 85 x 28mm (L x W x H).

FAQ

Q.Why can't my laptop get charged through DC out?

A: Firstly, make sure the connector is compatible with your laptop charging port. Secondly, please make sure that your laptop charger is 19 to 20V with less than 100W power rate; otherwise, please get your laptop charged by using your laptop charger.

Q.Why does my dock get hot when I use it?

A: The dock will generate a lot of heat during continuous operation which is a common phenomenon and we suggest that you put the dock in a relatively open area for a better heat dissipation.

Q.Why is there no display after I connect the dock to the USB-C port of my laptop?

A: Please make sure that your laptop is the latest version, and you have installed the latest displaylink driver. At last, please check if the Type-C port of your laptop port supports data transmission.

Q.Does this dock support octa-displav?

A: No, it doesn't, the dock supports maximum 4 monitors with either video port of each set.

  • Includes Rechargeable Battery: No
  • Part Number: WL-UG69PD10-AU
  • Total USB ports: 5
  • Item Model Number: UG69PD10-AU
  • Batteries Required: No
  • Brand: WAVLINK
  • Compatible Devices: MacBook Pro
  • Item Weight: 249 g
  • Number of Ports: 15
  • Wattage: 45.00
  • Model: UG69PD10-AU
  • Hardware Interface: USB 3.0 Type A, DisplayPort, USB Docking Station, Ethernet, HDMI, 3.5mm Audio
  • Product dimensions: 22.61 x 8.48 x 2.79 cm; 249.48 Grams
  • Manufacturer: WAVLINK
