WAVLINK 20 Ports Universal Docking Station, 4X 4K@60Hz Display, 100W Charging, 4Xdisplayport, 4Xhdmi, 2.5G Ethernet, 3Xusb 3.0, 10Gbps USB 3.1, PD30W, USB-C, USB 3.0/USB C Dock for Macbook & Windows

WAVLINK 20 Ports Universal Docking Station, 4X 4K@60Hz Display, 100W Charging, 4Xdisplayport, 4Xhdmi, 2.5G Ethernet, 3Xusb 3.0, 10Gbps USB 3.1, PD30W, USB-C, USB 3.0/USB C Dock for Macbook & Windows

Brand: WAVLINK
4.1
A$139.80
Availability:
  • This item is currently not available

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • 【Enterprise-Level Dock】 Ideal choice for large enterprises and designers which provides 20 ports - DC in & out, 1x USB-C(100W upstream charging), 4x Displayport 1.2, 4x HDMI 2.0, 1x RJ45 Ethernet, 1x 3.5mm Phone Jack, 312MB/s SD/TF Card Reader 4.0, 3x USB3.0, 1x USB3.1-A(Fast charging), 1x Type-C(30W downstream charging, no data).
  • 【PD 100W Charging】Supported by PD 3.0, 180W power adapter provides max. 100W PD charging to your computer while connecting multiple peripherals for data transferring and power storage. Another USB-C port on the front provides 30W charging for your mobile phone/pad or any USB-C devices.*Note: The USB-C port of your computer must support PD 3.0.
  • 【Quad 4K Display 】Support single 5K (5120x1440@60Hz), 4x 4K(3840x2160@60Hz) displays in mirror mode or extend mode. 1 video stream contains 1 DP and 1 HDMI, you can only connect one of them within the same video stream; if you plug in both, only DP will work.Only Windows 10 supports 4 screens in extend mode at the same time.
  • 【Wide Compatibility】Included 9 DC power tips that fit different brands in the market.Supports max 100W of 19V-20V power input to your thunderbolt or universal computer, Windows7/8/10, Mac OS 10.8 or later. *Note: DC charging rate of your laptop should be lower than 100W, otherwise it won’t be charged.Performance might be limited on Ubuntu, Chrome OS and Android.
  • 【What You Get】1x quad 4K universal docking station, 1x USB-C cable with USB C to USB-A converter, 1x DC20V/9A 180W power adapter, 1x AC power cable, 1x DC to DC converting cable, 9x DC power tips, 1x Cable holder, 1x CD-shaped Driver Download Links, 1x Quick start guide. 1-Year warranty and life-long technical support.

Product Description

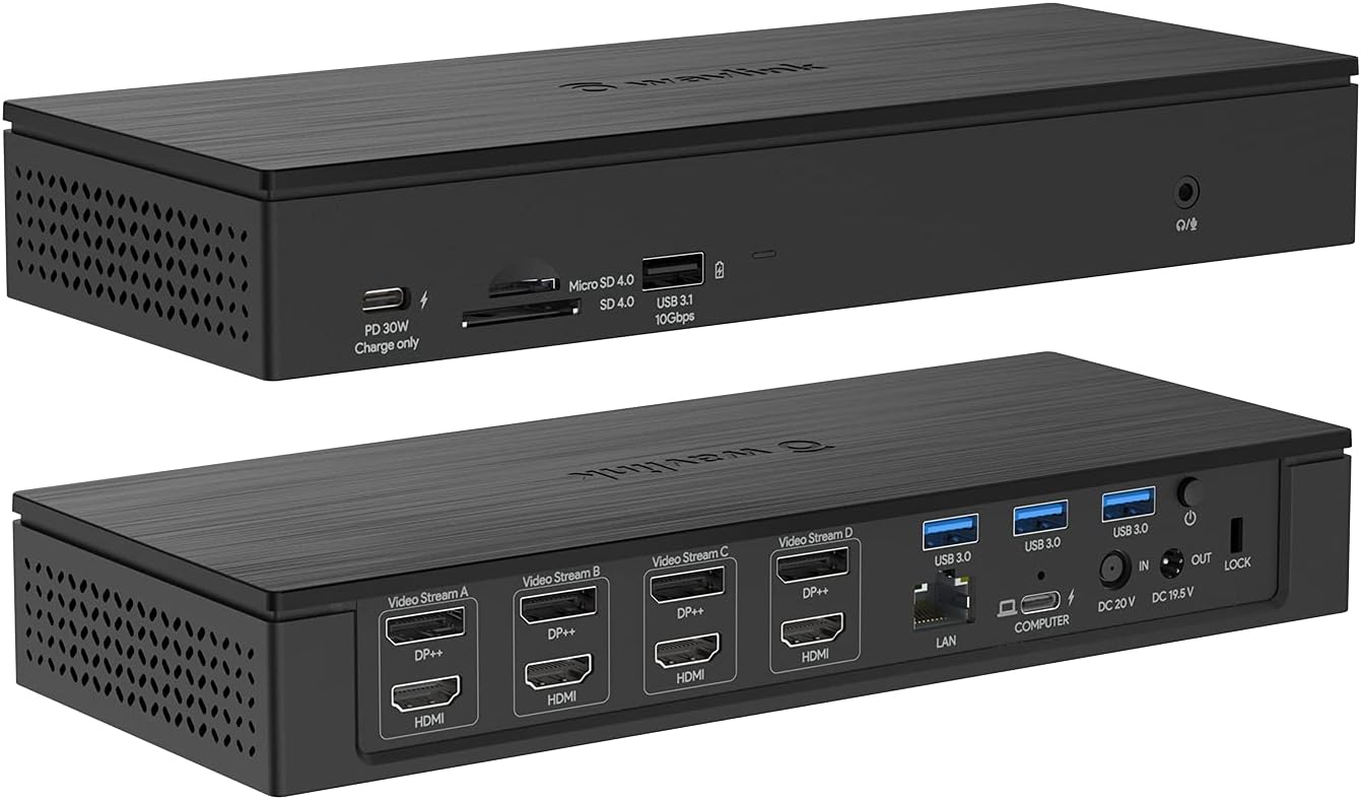

Wavlink 20-IN-1 Enterprise-Level Docking Station

● Enterprise-level universal docking station is an ideal choice for large enterprises and designers. This docking can provide you 4 displays output with 3840 x 2160@60Hz resolution; 2.5Gbps Ethernet giving you to high bandwidth networking; the SD4.0 Card Reader supporting UHS-II SD card as full duplex mode theoretical speed up to 312MB/s fast for copying any photos or movies from your media memory card to backup to your PC directly.

● One Type-C cable connection provides up to 100W of Power Delivery 3.0 charging for your computer while data transmission. For USB-A connection, computer without PD function, this Universal Docking Station provids one extra DC output jack to supply power, accessories with 9 Power Tips that are compatible with over 10 brands 19V-20V power in to Computer. One USB-C port provides up to 30W for downstream charging your Pad / Mobile phone or any USB-C devices support USB PD charging.

● One USB3.1 Type-A (10G), three USB3.0 Type-A (5G) ports to extend more connectivity to USB devices and one 4-pole earphone jack combo with audio out and mic in basically satisfy a lot of users' needs.

Impressive 2.5G Ethernet port

2.5x faster than 1Gbps Gigabit Ethernet and backward compatible with 10/100/1000Mbps. Just enjoy the blazing fast surfing speed. TRRS 4-pole earphone jack combo with audio out and mic in can basically satisfy a lot of users' need.

Fast charging and syncing

The USB3.1 Type-A (10G) on the front side supports BC1.2 fast charging and max 10Gbps data transmission. The blue LED light allows you to easily acquire the power status of the dock.

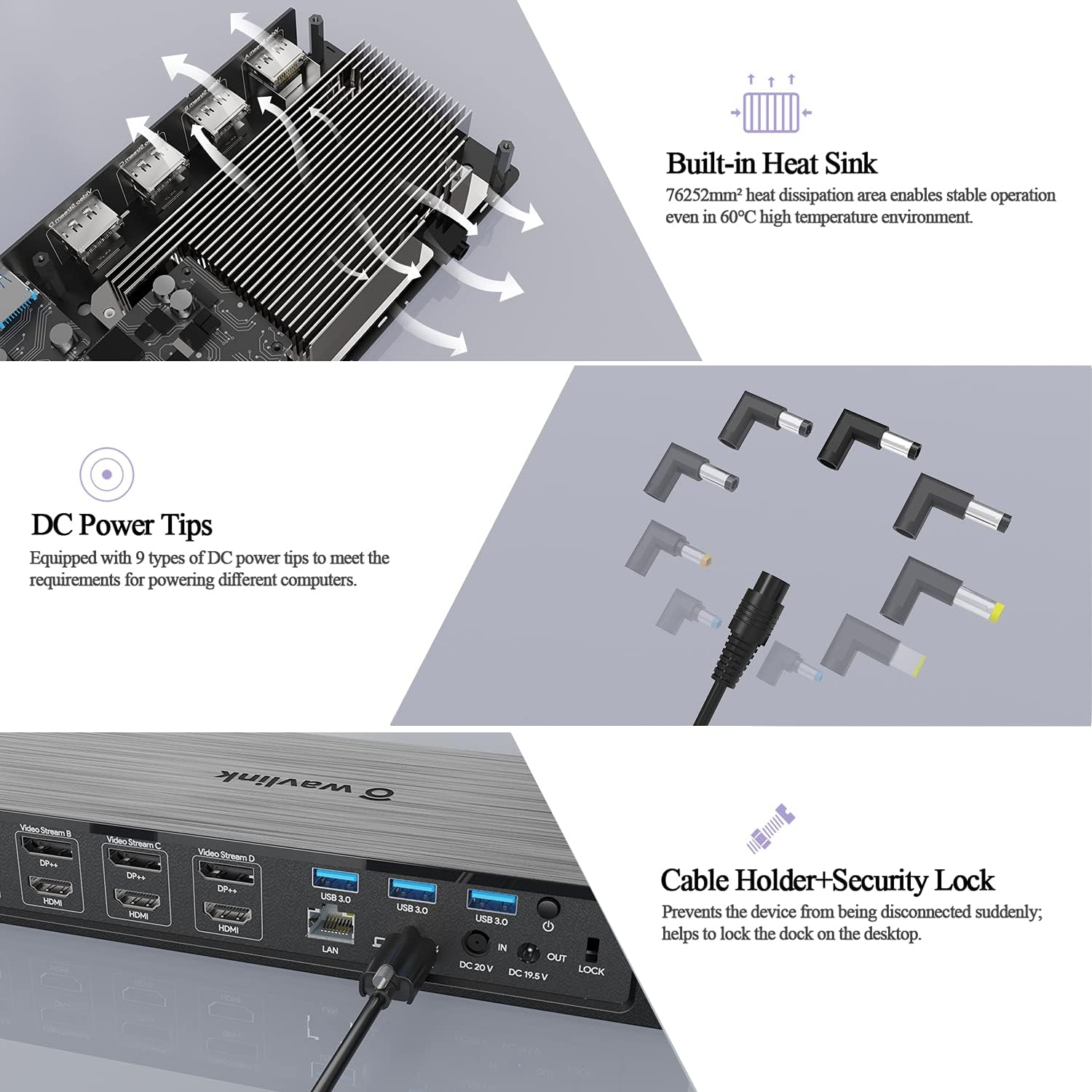

Excellent heat dissipation

Double-sided ventilation holes and anti-dust mesh with built-in heat sink(76252mm² coverage) ensure stable and efficient operation of the dock. SD V4.0 Card Reader with SD/Micro SD slot support UHS-II theoretical bus speed up to 312MB/s.

Reliable security

Integrated lock slot accommodates standard security locks to safeguard equipment from being taken by others. (the security lock is not included). Cable holder can prevent the device from being disconnected suddenly or falling to the ground.

  • 180Watt Power adapter provide maximum 100W power delivery to charge your computer. (Additional one DC output jack with 9 power tips provide maximum 100W for 19V-20V power input to laptops that do not support PD charging.)
  • Making sure that your laptop complies with USB PD charging and support 100W charging power.
  • Use either USB C or DC Out for charging, if you connect them simultaneously, USB C will keep working and DC Out will stop power delivery.
  • DC charging rate of your laptop should be not higher than 100W.

Supported Systems

  • Windows7/8/10(32/64-bit)
  • Mac OS 10.8 or later
  • Chrome OS
  • Android &Ubuntu
  • Plug and play for Windows 10 and latest Chrome.
  • Displaylink deiver is required for other OS.

4K Display Extension

  • Single 5K Display: 5120x1440@60Hz (Windows OS)
  • Dual 5K Display: 5120*2880@60Hz when connect the left two or the right two DisplayPort together with 1 monitor, Windows 10 only.
  • Quad 4K Display: 3840x2160@60Hz displays in mirror mode / extend mode. 1 video stream contains 1 DP and 1 HDMI, you can only connect one of them within the same video stream.
  • HDMI or DisplayPort output support audio 5.1 Channel surround-sound.

Notice

1. Connect the left two or the right two DisplayPort together to provide up to 5120x2880@60Hz resolution to a single display. The display need to have 2 DP input ports and supports 5120*2880@60Hz refresh rate. Windows 10 system required.

2. Works with Thunderbolt 3 laptops with max. 10Gbps data transfer rate, cannot reach 40Gbps.

3. The extend or mirror mode can only be performed by connecting to the computer through the USB-C (host) port.

4. Offering 100W power delivery on PD3.0, Please make sure your laptop complies with USB PD charging and support 100W charging power.

5. Making sure that the DC charging power of your laptop is not higher than 100W.

6. In each video stream group you can only use one port, either "DP++" or "HDMI".

7. Don't support charging two laptops at the same time. If USB-C (host) port and DC out port are connected simutaneously, the Type-C PD charging performs normally in priority, while the DC out port automatically disconnects.

8. The dock is self-powered and needs to be connected to the power adapter to work normally.

Package contents

  • 1 x USB-C quad 4K universal docking station
  • 1x DC20V/9A 180W power adapter
  • 1 x AC power cable & 1 x DC cable
  • 1 x USB-C to C cable with USB-A converter
  • 9 x DC power tips
  • 1x Cable holder
  • 1x CD-shaped driver card
  • 1 x Quick start guide
  • Wattage: 100 watts
  • Data Transfer Rate: 10 Gigabits Per Second
  • Operating System: Chrome OS, Windows 10
  • Batteries Required: No
  • Brand: WAVLINK
  • Compatible Devices: MacBook Pro
  • Item Weight: 1.8 kg
  • Number of Ports: 4
  • Total USB ports: 4
  • Hardware Interface: USB Type C, USB, USB 3.1 Type C, USB 3.0, Thunderbolt
  • Package Dimensions: 28.3 x 13.1 x 11.1 cm; 1.8 kg
  • Manufacturer: WAVLINK
