FEELWORLD LUT7 Pro 7 Inch Camera Field Monitor 2200Nit Touch Screen 1920 * 1200 4K HDMI IPS Panel 3D LUT

FEELWORLD LUT7 Pro 7 Inch Camera Field Monitor 2200Nit Touch Screen 1920 * 1200 4K HDMI IPS Panel 3D LUT

Brand: Feelworld
5.0
A$430.50
Availability:
  • In Stock

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

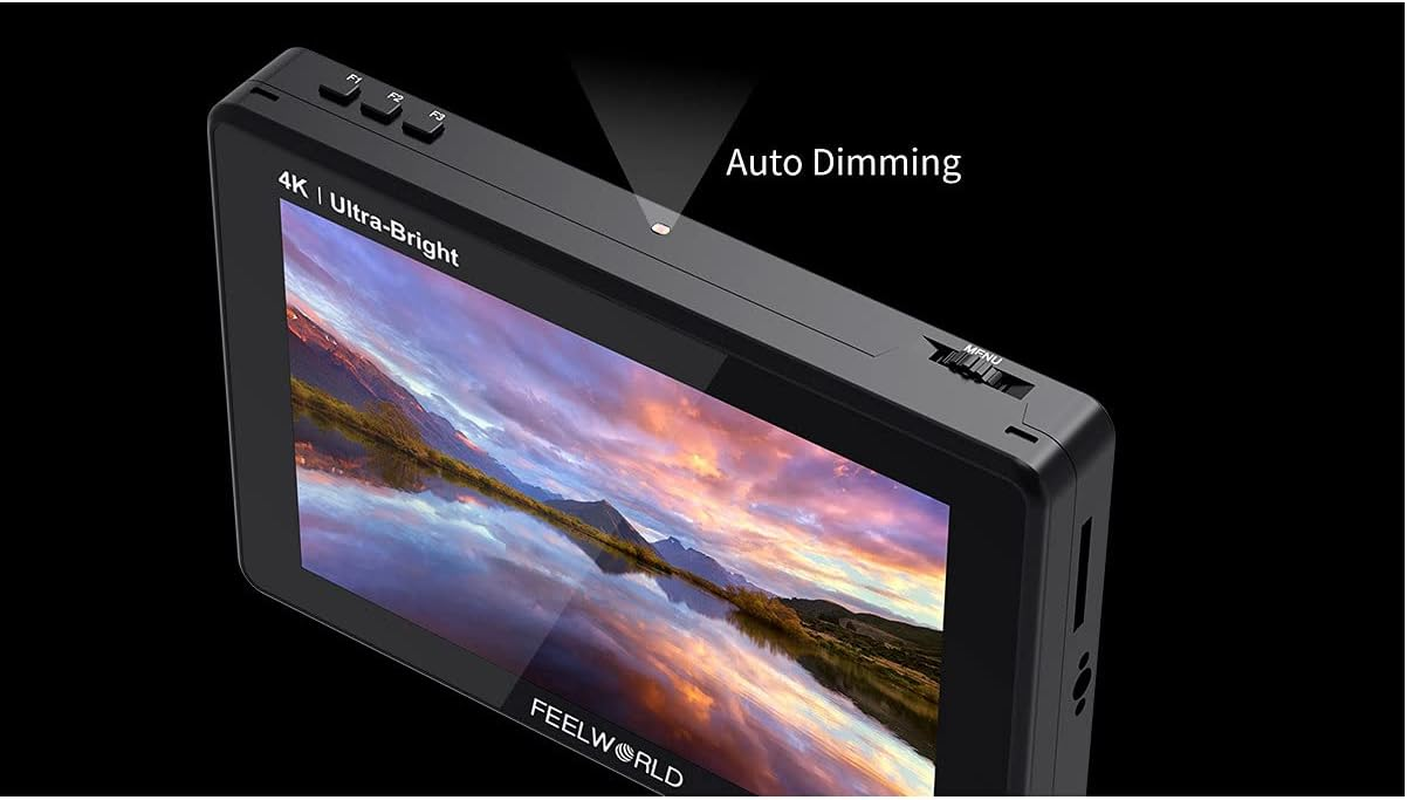

  • [Light Sensor for Auto Dimming] LUT7 PRO has an ambient light sensor that detects ambient light levels and automatically adjusts the screen brightness. It ensures that the screen is readable in different environments and always protects your eyes.
  • [External Install and Power Design] A Sony F970 external install and power kit design is added to the back of the monitor, it can install the external equipment like wireless transmitter, LED light, video converter and others which can be powered by Sony F970 battery.

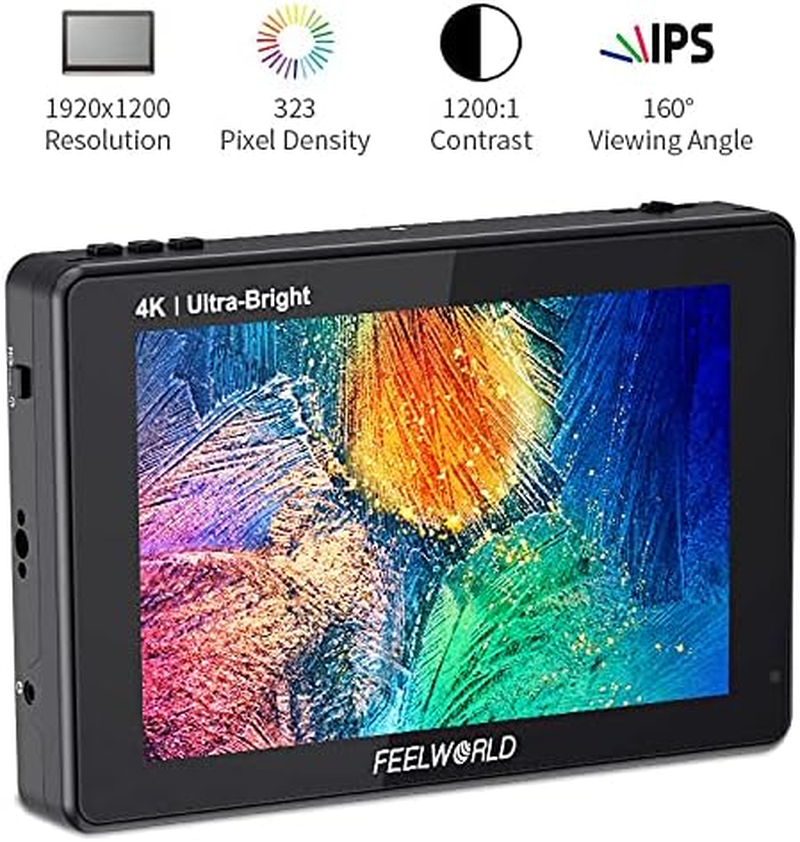

  • [Viewing clearly and capture every detail] 1920 x 1200 maximum resolution, sRGB / Rec.709 Color Gamut and 1200:1 contrast ratio, which can offer you exceptional screen clarity even in intense lighting conditions.
  • [Daylight Viewable] No need for sunshade, the ultra-bright 2200 nits screen, almost 4 times the brightness of conventional field monitors, can make you shoot outdoors without reflections washing out your image.
  • [Support Touch Screen and Button Control Menu]You can uses simple tap and swipe gestures for the important monitoring functions. It also supports physical buttons control. Tap/Rotate the wheel button for quick selection and function settings.

Product Description

Ideal Filming Crew, Director, AC and DP Monitor

  • Easy monitoring and focus, flexible mobility on set
  • The LUT7 Pro equips filmmakers with the benefits of a large on-camera display without making the camera set up feel cumbersome.
  • LUT6 is packed with high end monitoring features in a small, lightweight package that can be connected to virtually any camera.

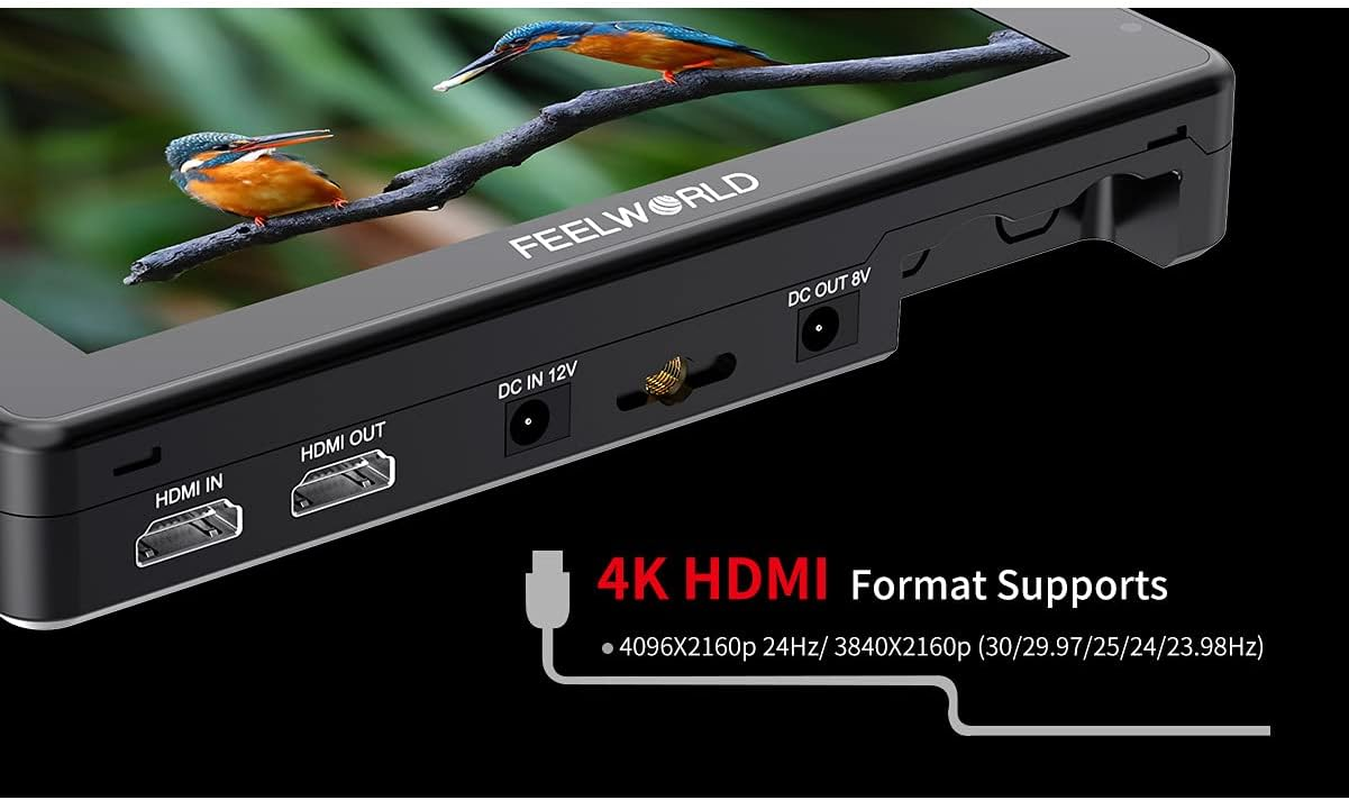

  • The front features a large high resolution, daylight viewable LCD touchscreen, there are video connections on the left side and SD card slot on the bottom, and space for a NP-F battery on the back.

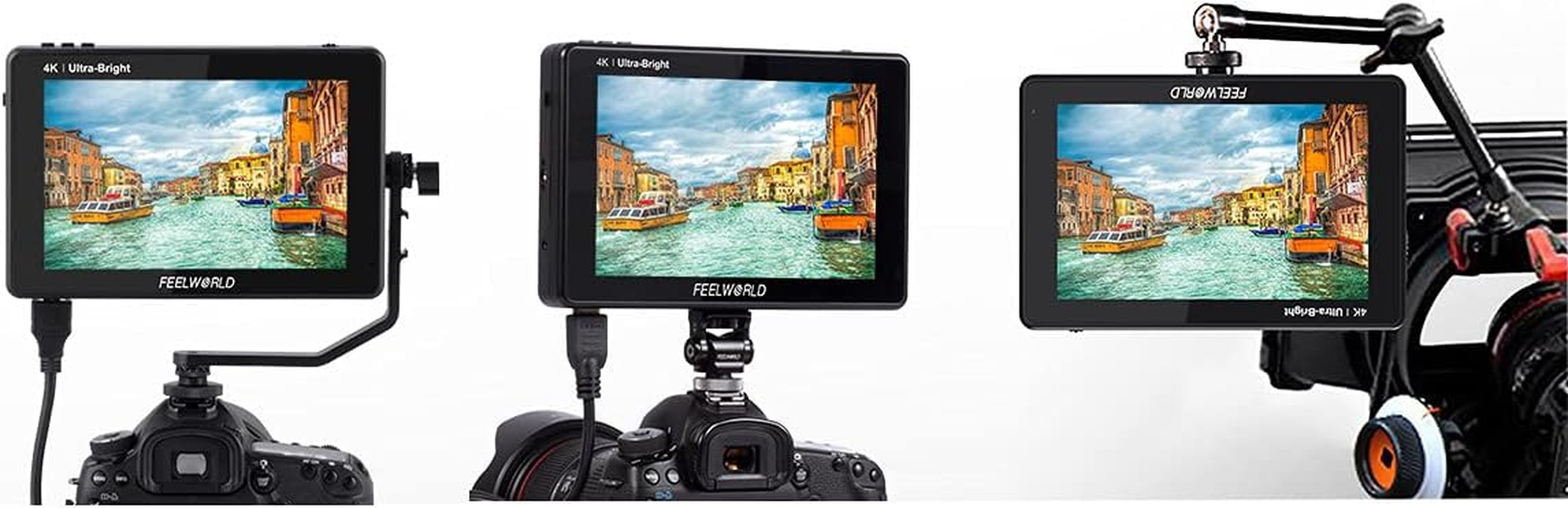

  • The outer frame features standard 1/4" mount points on the bottom and right for attaching it to camera and rig.
  • This design detail makes the LUT6 easy to attach to a camera and easy to share with a team member or client on set.

FEELWORLD LUT7 Pro Advanced Features

  • * Support 3D LUT Log to Rec.709, user 3D LUT Upload * Support Touch Menu
  • * Parade (RGB, YUV, Y) *All Waves * Vector * RGB Histogram
  • * Brightness Histogram * Embedded Audio
  • * Peaking Focus (red, green, blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable)
  • * False Colors * Zebra Exposure (1%~100% adjustable)
  • * Check Field (Red, Green, Blue, Gray) * Scan Mode (Under Scan, Over Scan)
  • * Anamorphic Mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag) * Image Flip (H, V, H/V)
  • * Image Freeze * Center Marker* Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1)
  • * Ratio Marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1) * Marker Color (red, green, blue, white, black, yellow)
  • * Color Temperature Adjustment * Nine Grid* Zoom (100%~300%)
  • * Aspect Ratio * Pixel to Pixel

HDR Monitoring

  • LUT7 PRO has built-in HLG 2020, HLG 709, HLG P3 HDR 3D LUT, and Rec709 De-slog3 LUTs, includes SLOG2, SLOG3, LOGC, VLOG.
  • The monitor can display an HDR (high dynamic range) signal for incredible clarity and detail, simplify the complexities of shooting Log and HDR

Support 50 custom LUTs

  • 3D LUTs allow you to apply a "look" to the monitor so you get an idea of how the finished images will look like when editing.
  • LUT7 PRO allows you to load internally up to 50 custom LUTs, looks or profiles at any time via the SD Card Slot

Accurate waveform monitoring

  • LUT7 Pro has waveform (RGB Parade, YUV Parade, Y Parade), vectorscope, histogram and audio phase and level displays, and get broadcast accurate waveform monitoring.
  • The functions can be opened separately, and also support one key to open all scope mode.

Innovative External Install and Power Design

  • A Sony F970 external install and power kit design is added to the back of the monitor.
  • The external kit can be used to install the external equipment, like wireless transmitter, LED light, video converter and others which can be powered by Sony F970 battery.

Power Your DSLR or Mirrorless Camer

  • LUT7 PRO provides auxiliary power out (DC OUT 8V); allowing shooters to power their cameras.
  • Barrel output for powering your camera with a separately available DC couple via adaptor (NP-FW50 Sony & LP-E6 Canon & DMW-BLF19 Panasonic).
  • Note: since different brands and models of cameras require different power to function normally, when using batteries to power the monitor, it is recommended to use a large-capacity fully charged battery.

Touch Screen Operating Instruction

  • When the monitor and touch are both on, continuously click the screen twice to enter the main menu.
  • Swipe up from the bottom of the screen to open the shortcut menu and click on the corresponding menu to open or set the corresponding function. Double-click the shortcut menu function and select the function setting with the "" key.
  • On the left side of the screen (1/2 split screen), you can directly adjust the brightness of the screen backlight; on the right side of the screen (1/2 split screen), you can directly adjust the volume.
  • Click any space beside menu to exit the menu.
  • Item Weight: 980 g
  • Item Model Number: LUT7 PRO-OF-AU

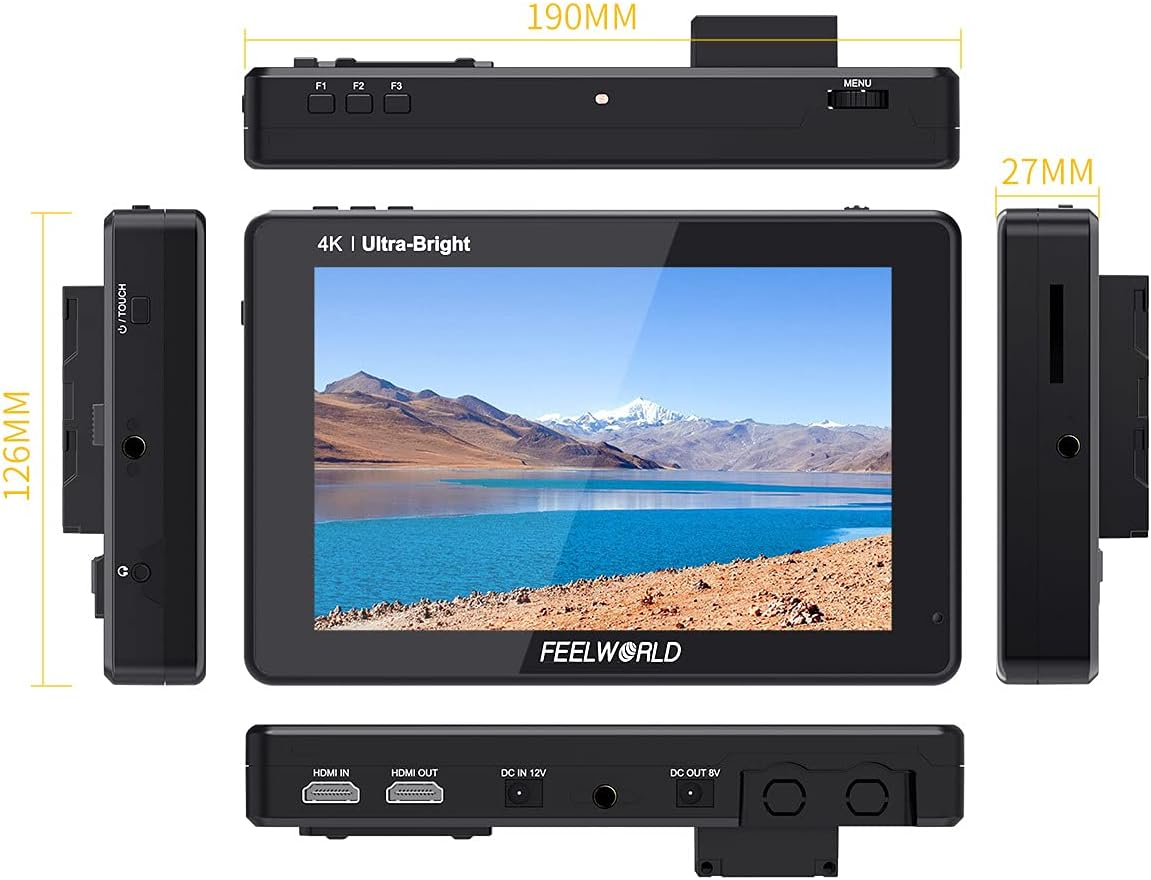

  • Product dimensions: 22.1 x 16.1 x 8.2 cm; 979.76 Grams
  • Manufacturer: FEELWORLD
