Feature:

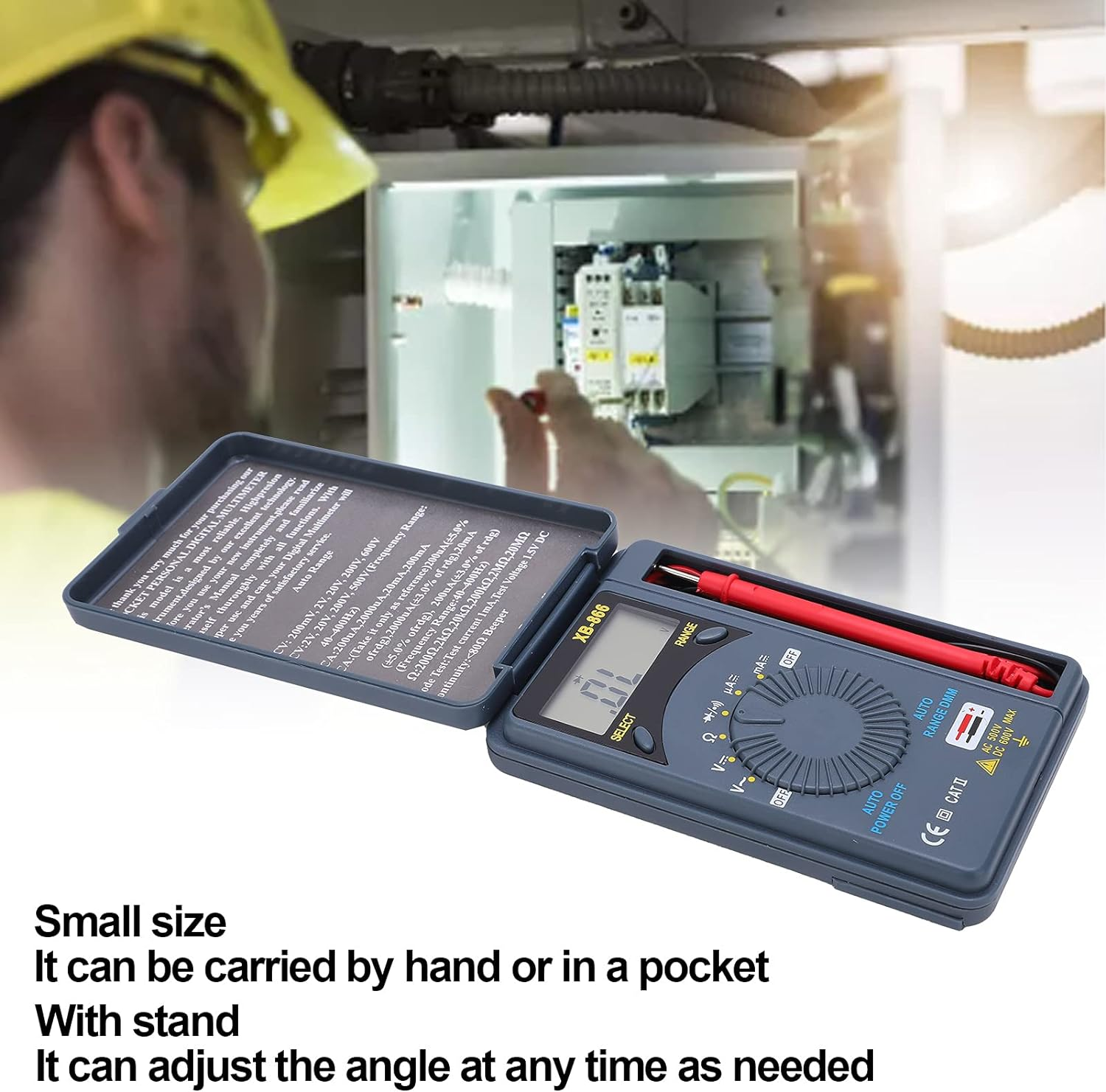

1. With a bracket on the back, it can adjust the angle measurement it needs at any time, and it is more convenient to read the data.
2. Small size, light weight and portability, it can be carried by hand, and it is also convenient to put in a pocket.
3. Multi‑function, it can measure current, resistance and voltage, the measurement range is wide, and the measurement is more accurate.

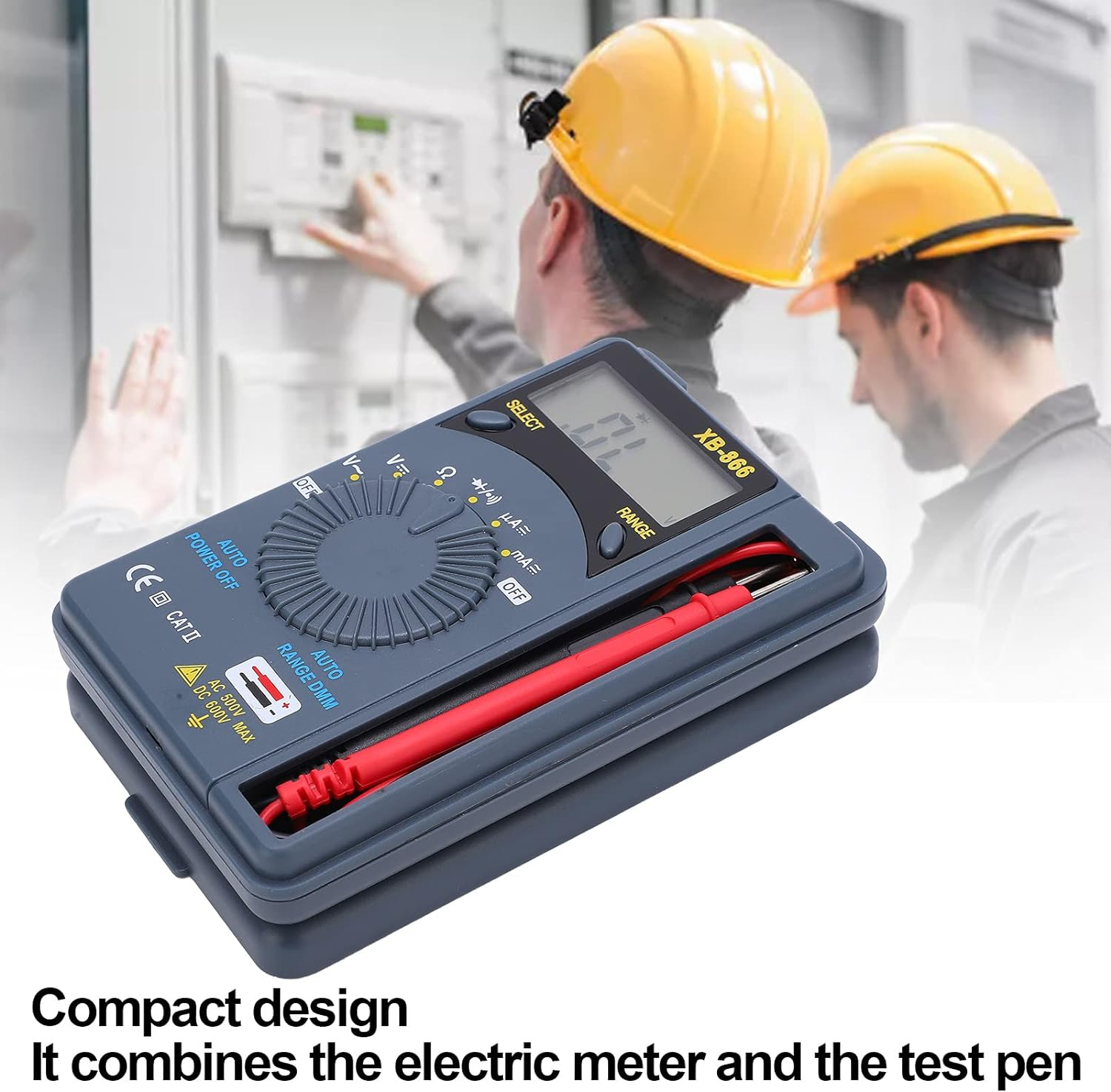

4. Compact design, it combines the electric meter and the test pen, no longer have to worry about losing it.
5. Digital display screen, which can make readings clear, convenient for data measurement and recording.
Specification:
Item Type: Digital Multimeter
Battery Type: 2x1.5V AAA Dry Battery (Battery Not Included)
Battery Capacity: 700mAh
Material: ABS
DC Voltage Measurement Range: 200mV, 2V, 20V, 200V, 600V
AC Voltage Measurement Range: 2V, 20V, 200V, 500V (Frequency Range: 40~400Hz)
Resistance Measurement Range: 200Ω, 2KΩ, 20KΩ, 200KΩ, 2MΩ, 20MΩ
AC Current Measurement Range: (For Reference Only) 200uA (±5% of Reading), 2000uA (±3% of Reading), 20mA (±5% of Reading), 200mA (±3% of Reading) (Frequency Range: 40 ~400Hz)
DC Current Measurement Range: 200μA, 2000μA, 20mA, 200mA
Diode Test Current: 1mA
Diode Test Voltage: DC 1.5V
Continuity: <80Ω Buzzer
Working Temperature: 0 ℃-40 ℃ (32°F-104°F)
Storage Temperature: 0 ℃-50 ℃ (10°F-122°F)
Relative Ambient Temperature: 23±5℃
Purpose: It is suitable for measuring voltage, resistance and current.
Applicable Scenarios: It can be used in our daily lives, such as factories, machinery, schools, electronic equipment, homes, maintenance, laboratories, and so on.
Package List:
1 x Digital Multimeter (Battery Not Included)
1 x Manual
