Specification

Feature:

Soft start can solve the damage caused by instantaneous high current to speed controller.

Blocking protection(20A current limited) can limit the high current produced by the blocking of the motor.

Panel switch control makes it more easy to control the speed.

Ultra-high power control. The maximum current is 20A. It is recommended not to exceed it.

Specification:

Current: 0-20A (Limited value 20A)

Regulating type: regulating current

Regulating method: potentiometer(270° linear)

Regulating speed range: 0-100%

Control frequency: 15KHZ

Knob: 10K(with switch)

Size: Approx. 9.6 x 6.1 x 3.4cm / 3.78 x 2.4 x 1.34inch

Weight: 107g

Package Included:

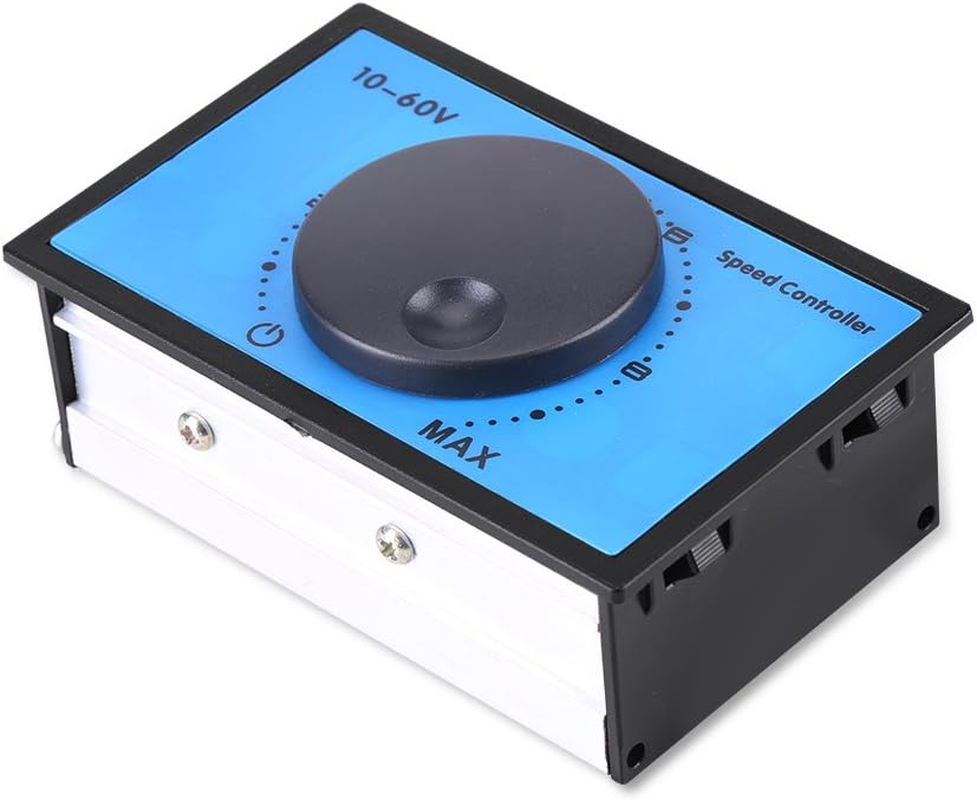

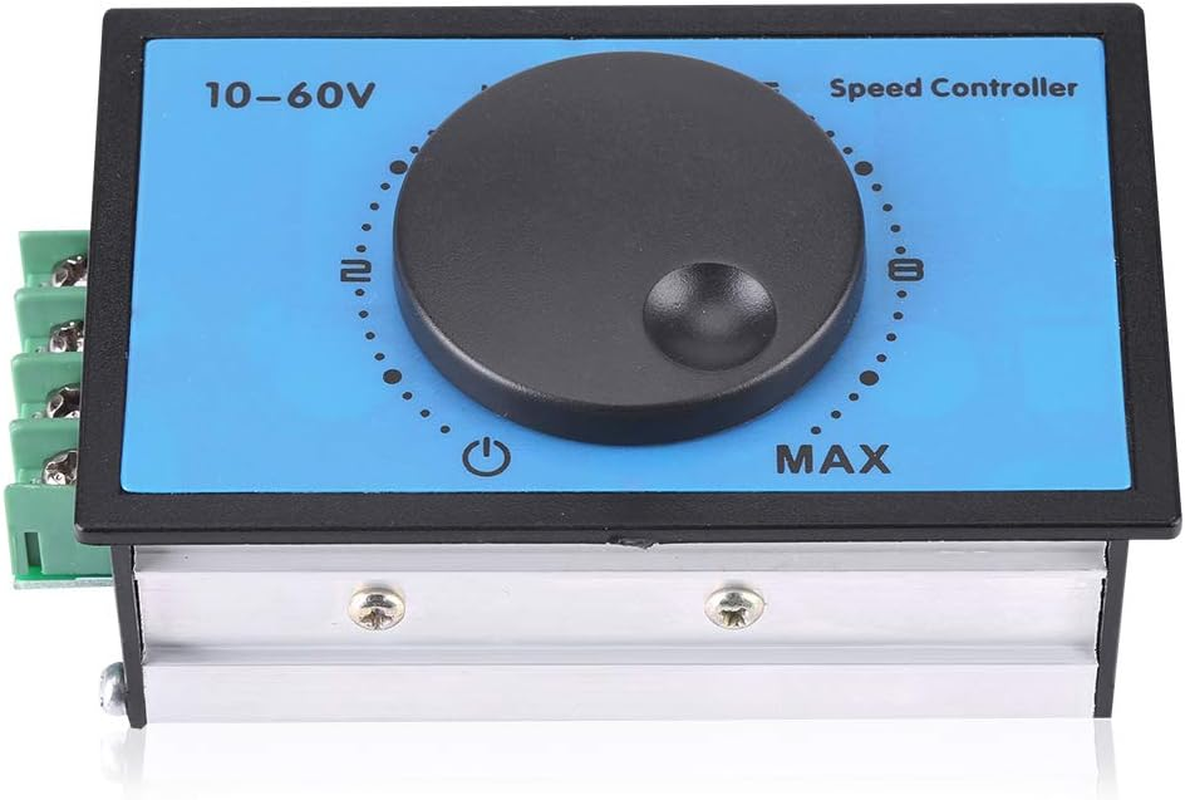

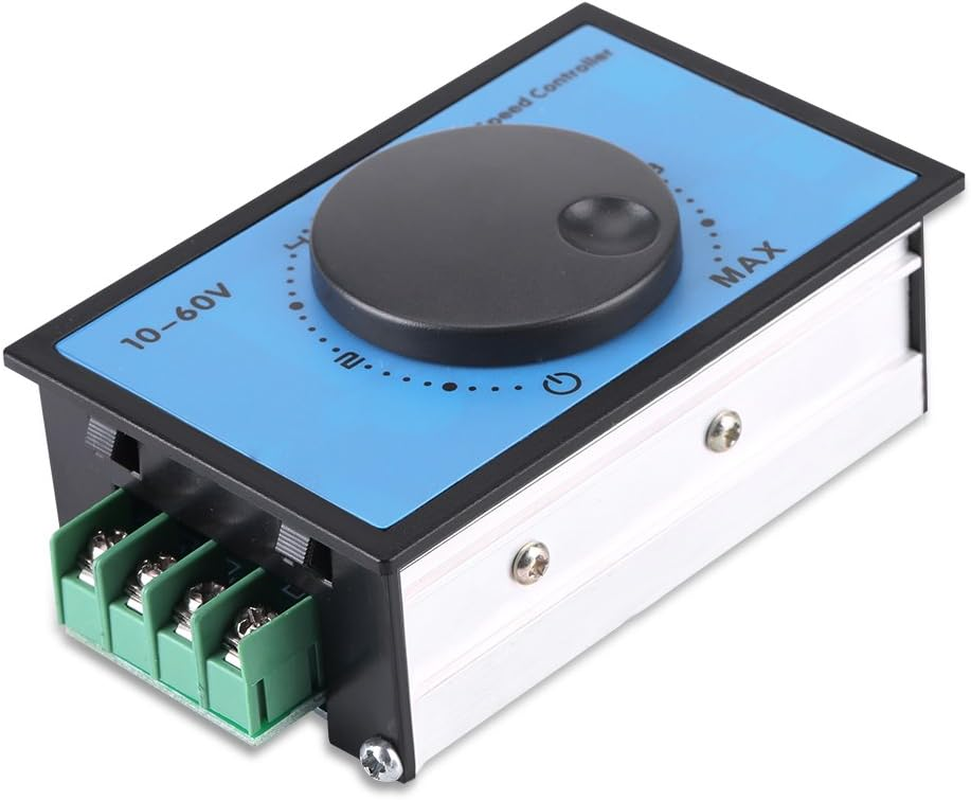

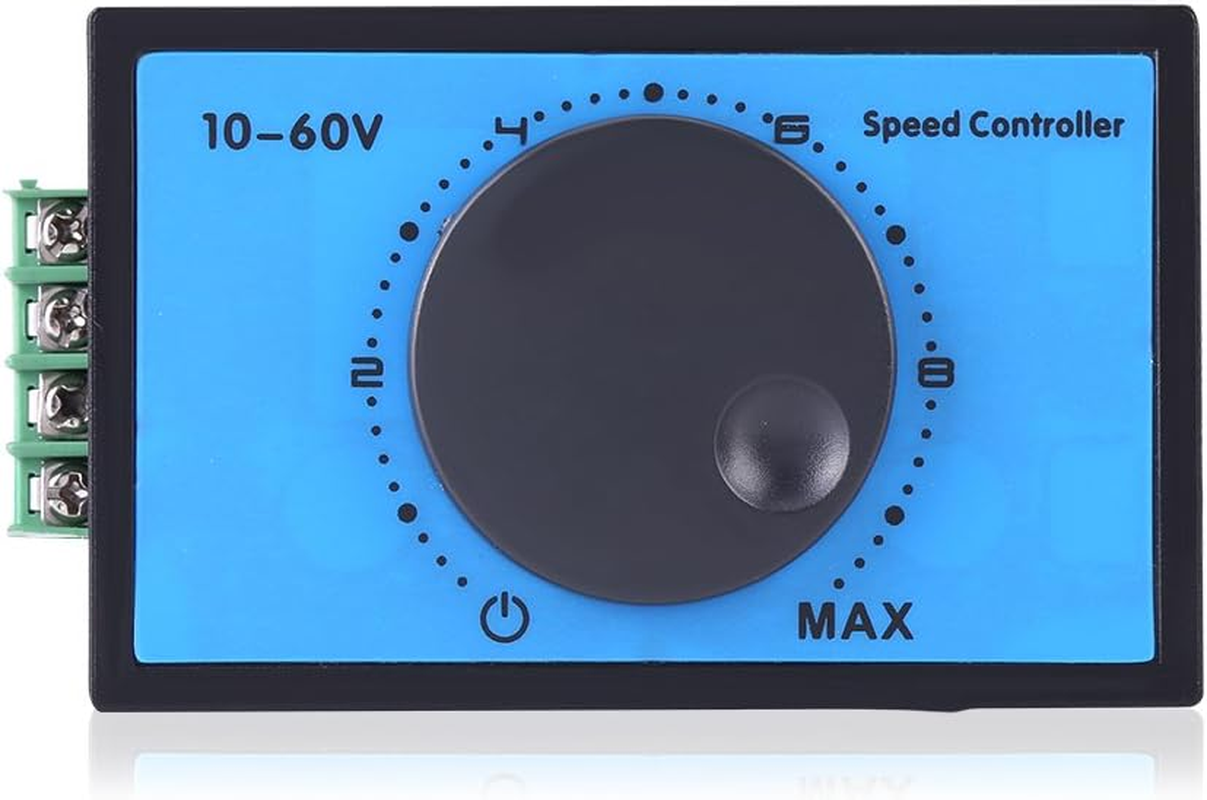

1 x DC Motor Speed Controller

Note:

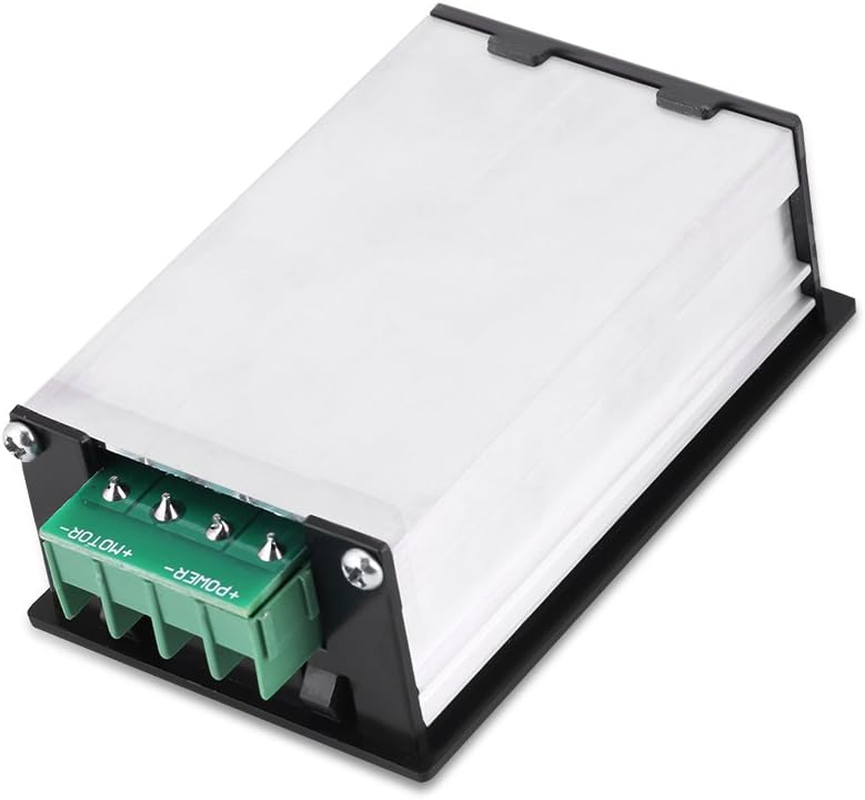

The input terminal must be divided into positive and negative input.

Blocking protection is not a power cut, it is the limited current value of 20A.

Please allow 1-3cm differences due to manual measurement. Thank you for your kindly understanding.
