Waveshare SIM7600G-H 4G HAT (B) for Raspberry Pi LTE Cat-4 4G / 3G / 2G Support GNSS Positioning Global Band
Waveshare SIM7600G-H 4G HAT (B) for Raspberry Pi LTE Cat-4 4G / 3G / 2G Support GNSS Positioning Global Band
Brand: Waveshare
A$158.55

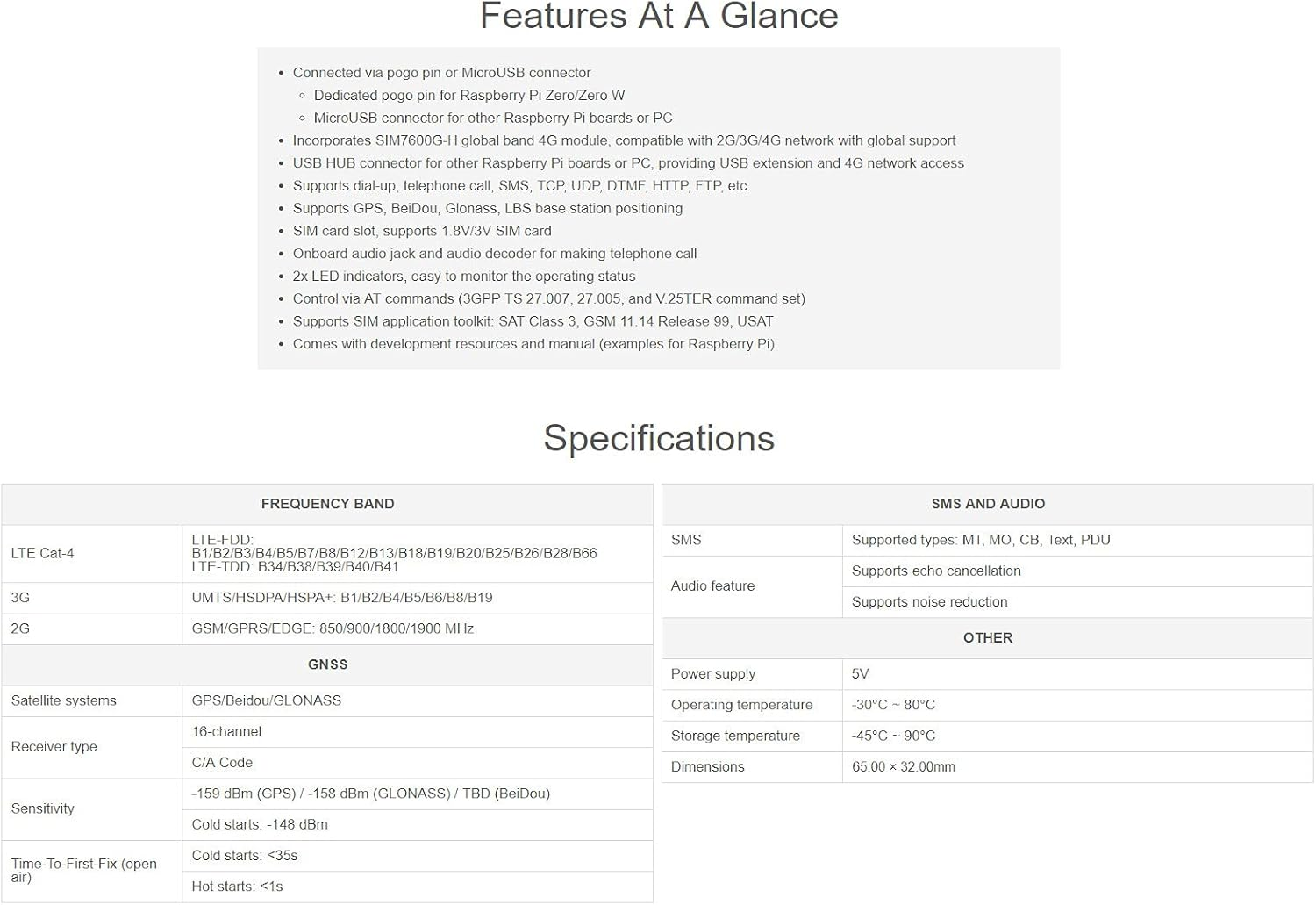

- Connected via pogo pin or MicroUSB connector, Dedicated pogo pin for Raspberry Pi Zero/Zero W, MicroUSB connector for other Raspberry Pi boards or PC
- Incorporates SIM7600G-H global band 4G module, compatible with 2G/3G/4G network with global support, USB HUB connector for other Raspberry Pi boards or PC, providing USB extension and 4G network access
- Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc., Supports GPS, BeiDou, Glonass, LBS base station positioning, SIM card slot, supports 1.8V/3V SIM card
- 2x LED indicators, easy to monitor the operating status, Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
- Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT, Comes with development resources and manual (examples for Raspberry Pi)

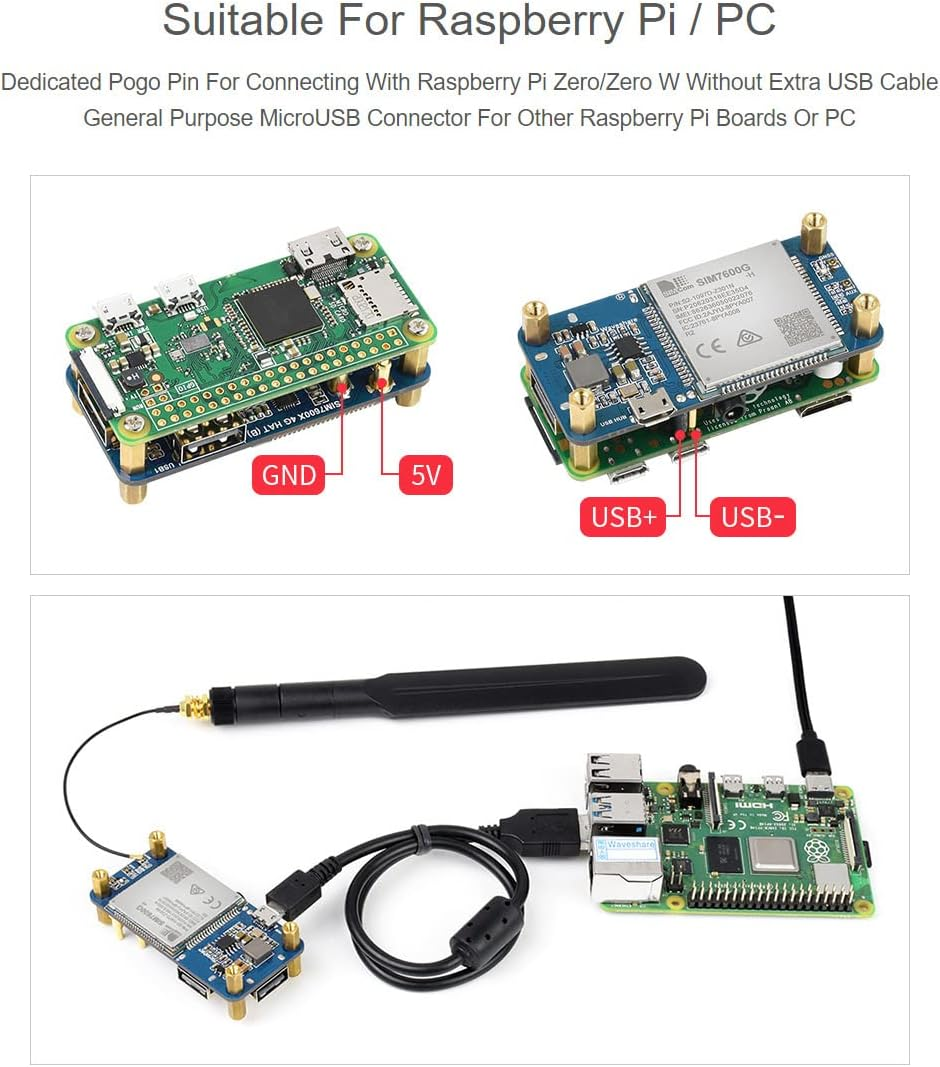

Suitable For Raspberry Pi / PC
Dedicated Pogo Pin For Connecting With Raspberry Pi Zero/Zero W Without Extra USB Cable
General Purpose MicroUSB Connector For Other Raspberry Pi Boards Or PC

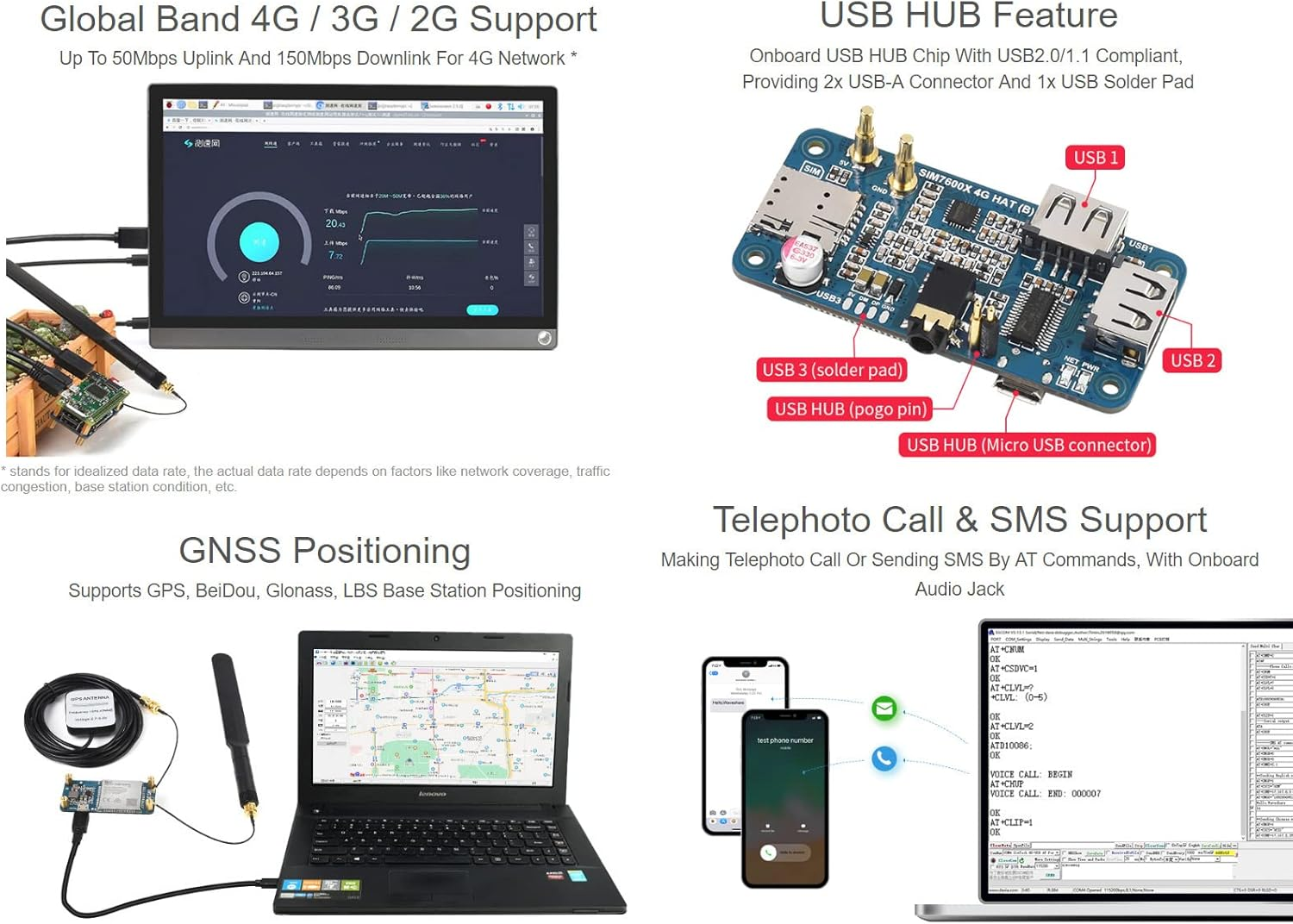

Global Band 4G / 3G / 2G Support
Up To 50Mbps Uplink And 150Mbps Downlink For 4G Network *
USB HUB Feature
Onboard USB HUB Chip With USB2.0/1.1 Compliant
Providing 2x USB-A Connector And 1x USB Solder Pad
GNSS Positioning
Supports GPS, BeiDou, Glonass, LBS Base Station Positioning
Telephoto Call & SMS Support
Making Telephoto Call Or Sending SMS By AT Commands, With Onboard Audio Jack
Wiki:
https://www.waveshare.com/wiki/SIM7600G-H_4G_HAT_(B)?amazon
PACKAGE CONTENT

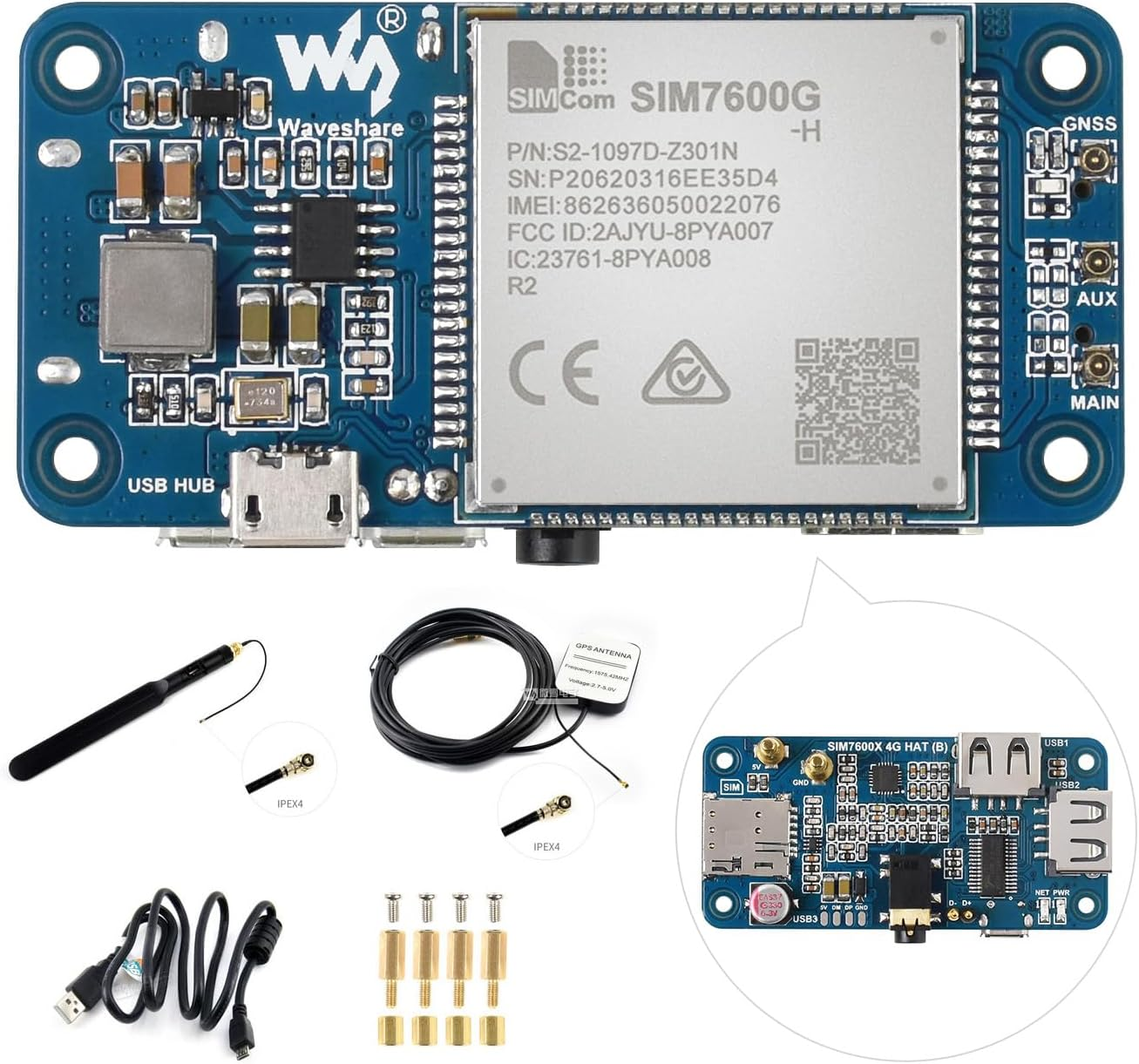

1. SIM7600G-H 4G HAT (B) x1 2. LTE Antenna x1 3. GPS Antenna x1 4. USB-A to micro-B cable x1 5. Screws pack x1
- Country/Region of origin: China
- Processor Count: 1
- Processor Brand: ARM
- Wireless Type: Bluetooth
- Operating System: Raspberry Pi OS
- Is discontinued by manufacturer: No
- Brand: Waveshare
- Ram Memory Technology: LPDDR2
- Model Name: SIM7600G-H 4G HAT (B)
- Hardware Interface: USB
- Package Dimensions: 15.6 x 11 x 3.3 cm; 10 Grams
- Manufacturer: Waveshare
- Item Model Number: SIM7600G-H 4G HAT (B)
- Batteries Included: No
- Batteries Required: No
- Connector Type: USB
- Item Weight: 10 g
- Human interface input: Dial
- Model: SIM7600G-H 4G HAT (B)
- Part Number: SIM7600G-H 4G HAT (B)
- Mounting Hardware: SIM7600G-H 4G HAT (B), LTE Antenna, GPS Antenna, USB-A to micro-B cable, Screws pack
- Compatible Devices: Raspberry Pi, Personal Computer
- Processor Type: MediaTek MT8125
