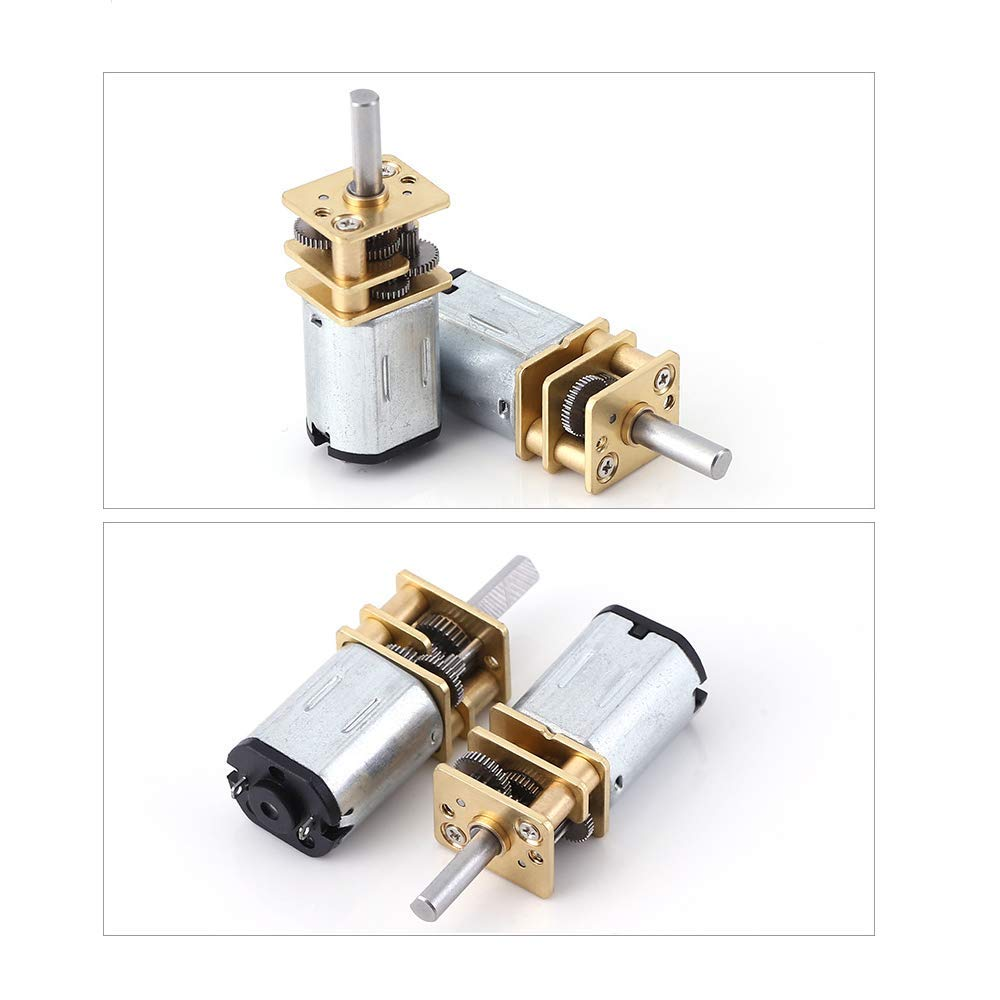

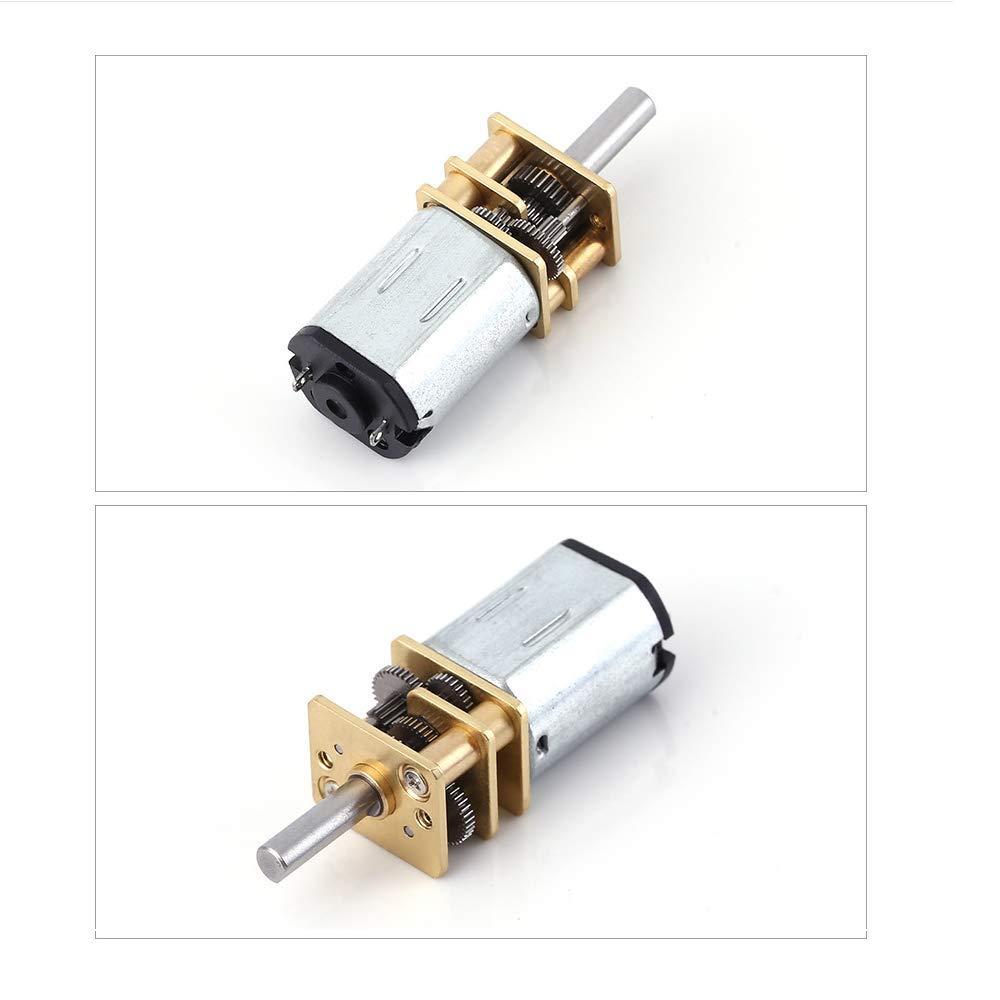

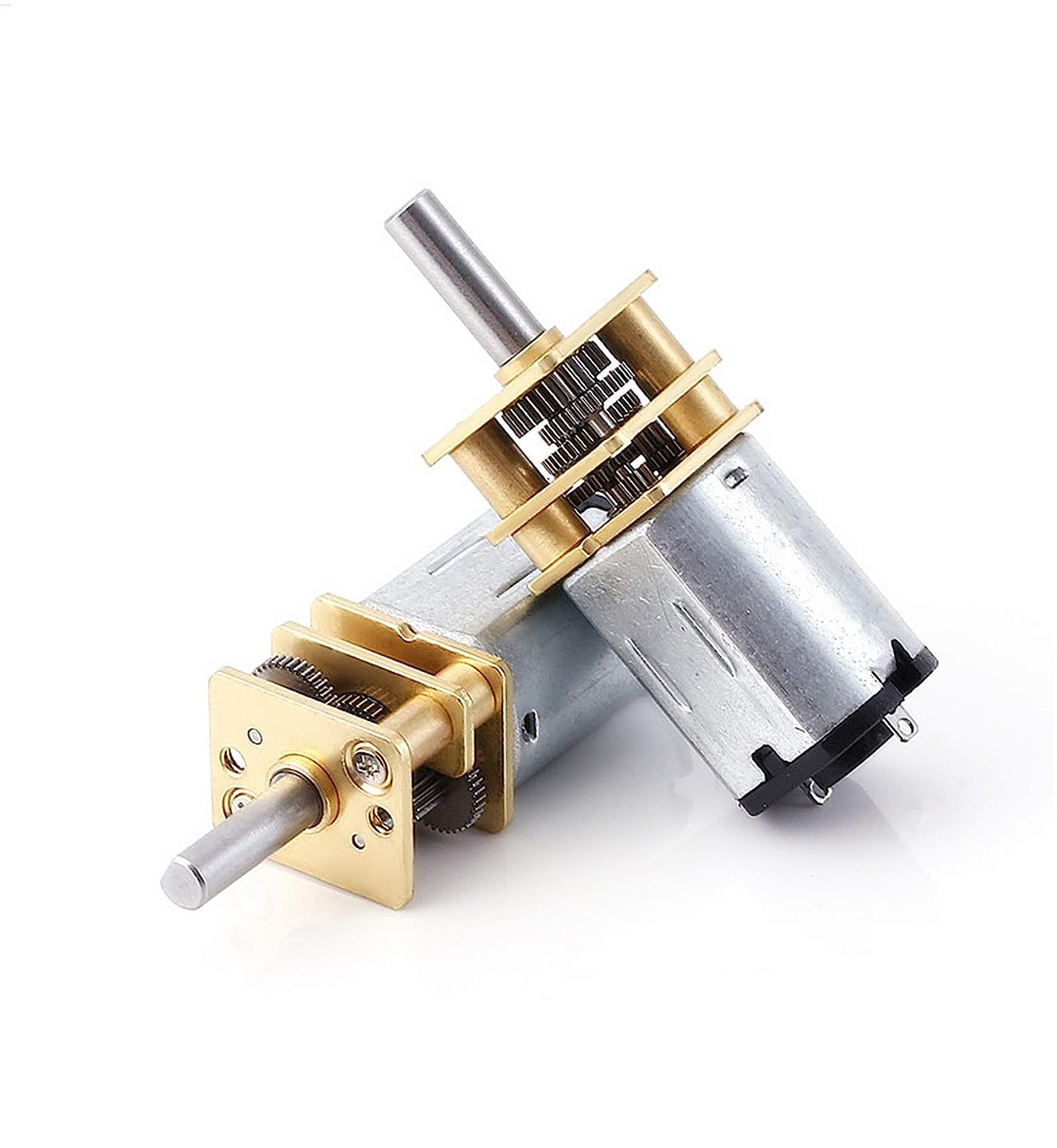

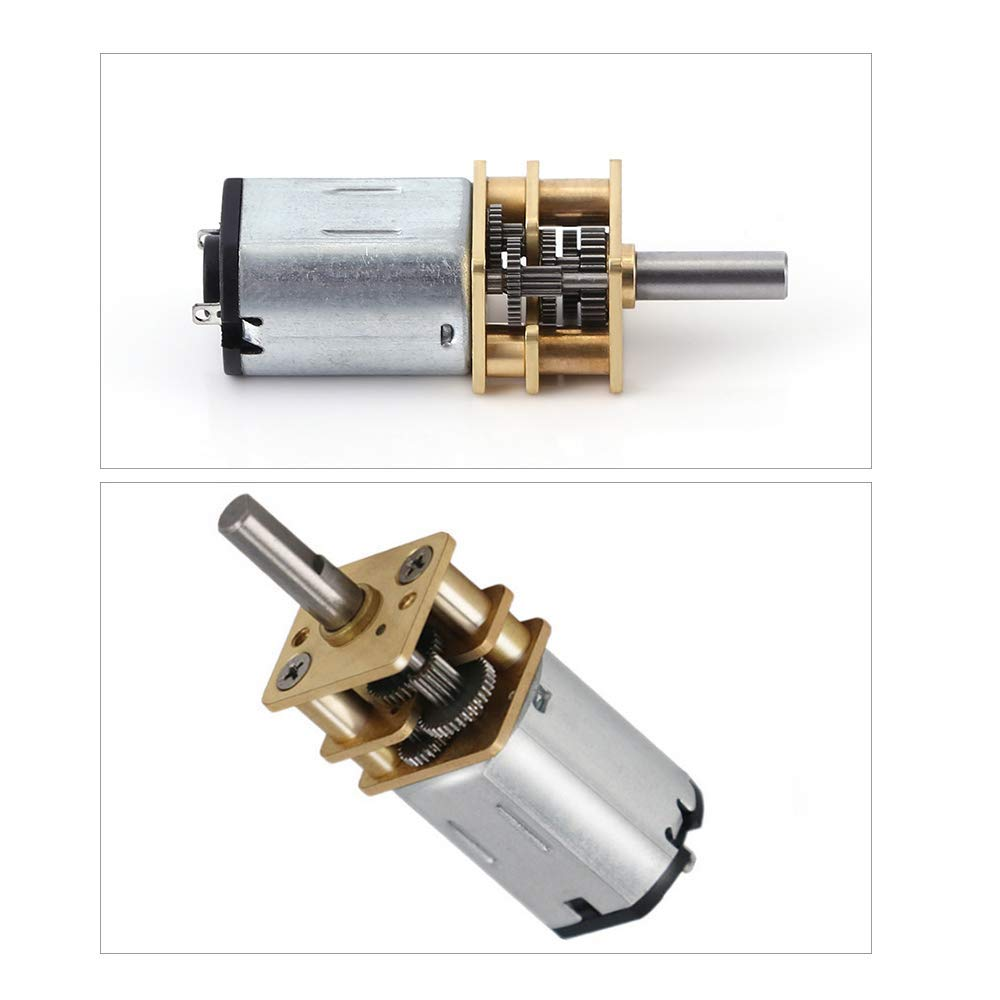

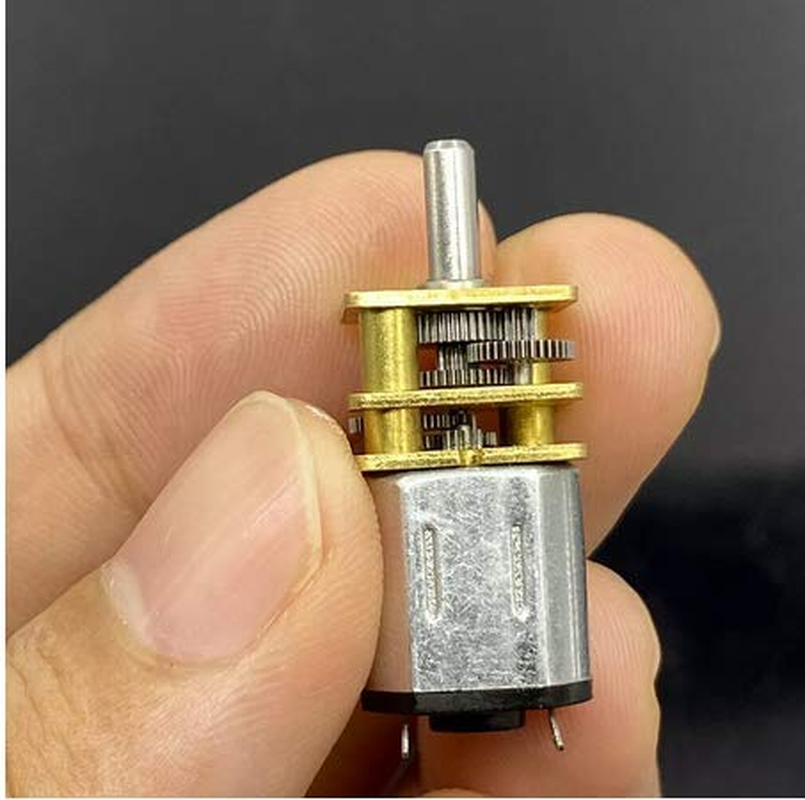

DC 6V 100RPM Speed Reduction Motor N20 3Mm Shaft Mini Metal Gearwheel Gear Motor with Full Metal Gearbox Micro Electric Motor for DIY Engine Toys(2 Pieces)

DC 6V 100RPM Speed Reduction Motor N20 3Mm Shaft Mini Metal Gearwheel Gear Motor with Full Metal Gearbox Micro Electric Motor for DIY Engine Toys(2 Pieces)

Brand: Ruimou
5.0
A$139.80
Availability:
  • This item is currently not available

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • 【RATED VOLTAGE】: DC 6V, Speed: 100RPM, Current: 30-40mA.
  • 【 FEATURE】: Mini dc gear motor is small and light weight high torque and low RPM .to easily mount a wheel on the motor's output shaft or copter blade.
  • 【FUNCTION】: Mini metal gearwheel gear motor with excellent stall characteristics, it can climb hills easily.
  • 【 ADVANTAGE】: Low energy consumption low noise,Replacement spare part and give your electrical and testing equipment a new lease of life,The quality of the bearing and the service life of the gear motor are improved, extremely durable.
  • 【APPLICATION】: Cylindrical shape and with 3mm diameter shaft and 2 Terminals connectors.Great replacement for the rusty or damaged DC geared motor on the machine,Micro gearbox motor for DIY RC Hobby, vehicles, small robots, planes and more.

Specification:
Product Name : DC Mini Metal Gear Motor.
Model: GA12-N20
Material: Metal.
Shaft Model:D Shaft.
Rated Voltage: DC 6V.
Speed: 100RPM.
Reduction Ratio: 1:150.
No-Load Current: 30-40mA
Rated Current: 160mA
Rated Torque: 0.4Kg.cm
Net weight: 9g/0.02lb

-------------------------

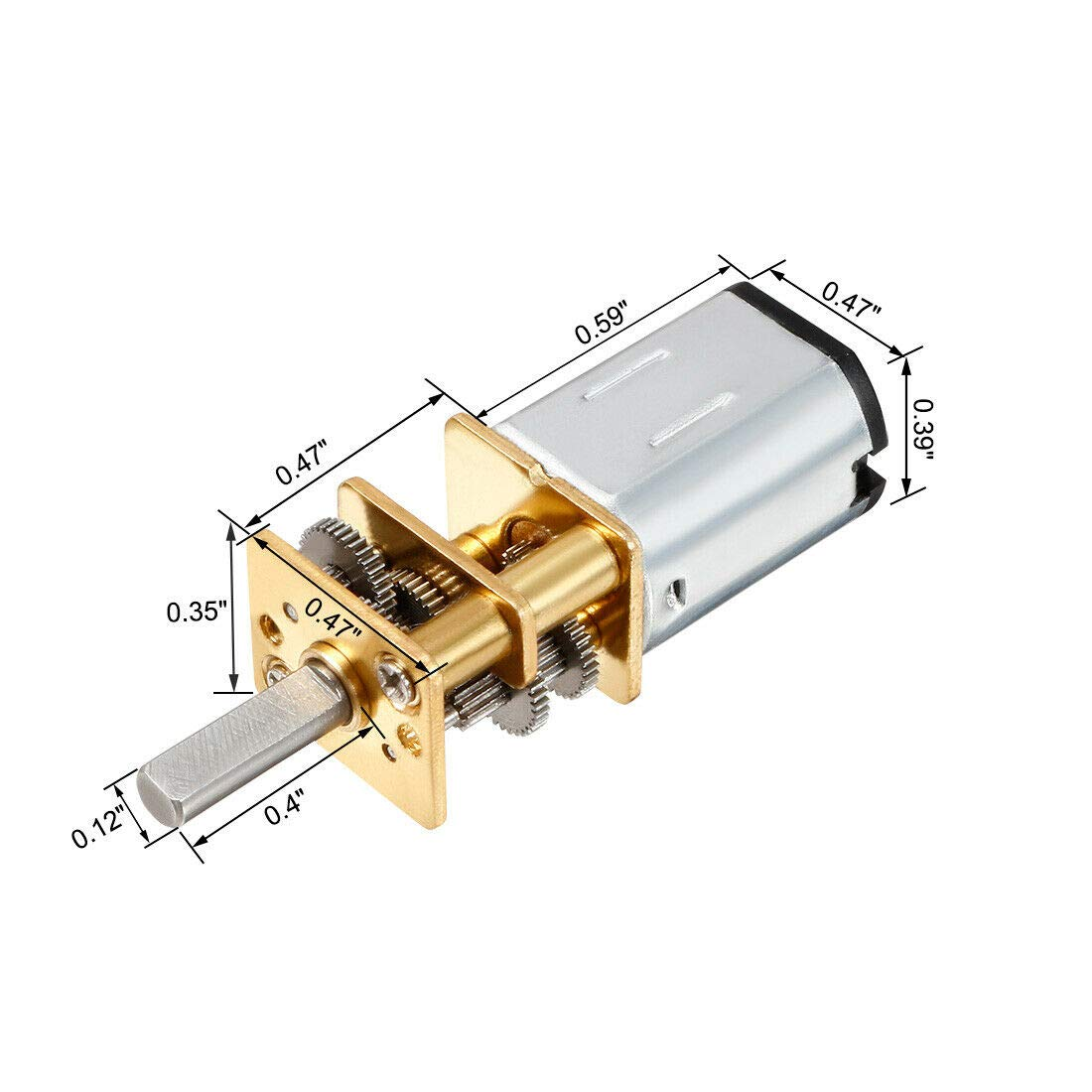

Diemnsion:
Diameter: 12mm
Shaft Diameter: 3mm
D Shaped Output Shaft Size: 3*9.5mm (0.12" x 0.37") (D*L)
Gearbox Size: 9x 12 x 10mm (0.35x 0.47 x 0.39inch) (L*W*H)
Motor Size: 15.2 x 12 x 10mm (0.598 x 0.47 x 0.39) (L*W*H)

-------------------------
Packages:
2x Mini DC Geared Motor

-------------------------
PLEASE NOTE:
Motor Storage:
---Storage temperature: 0℃ - 40℃
---Storage humidity: 15% -90% RH
---Avoid placing in high temperature, high humidity and corrosive gases.
---Motor use temperature: 0℃ - 70℃

-------------------------
QUALITY GUARANTEE:
If there is any quality problem, please feel free to contact us. Refund or Replacement for any quality problem.

  • Item Weight: 9.1 g
  • Item Model Number: GA12-N20
  • Product dimensions: 1.19 x 0.99 x 3.71 cm; 9.1 Grams
  • Is discontinued by manufacturer: No
